For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$4,950 USD
Description

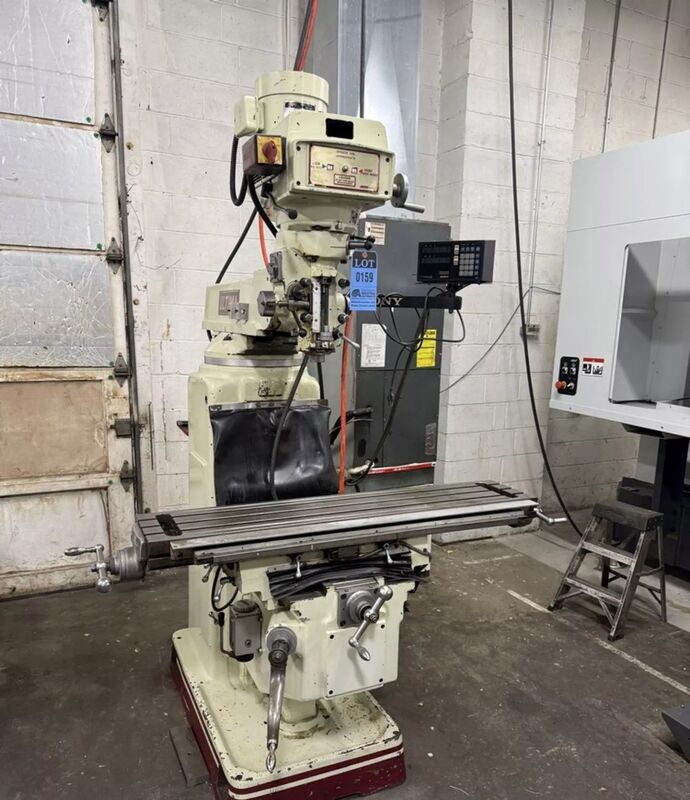

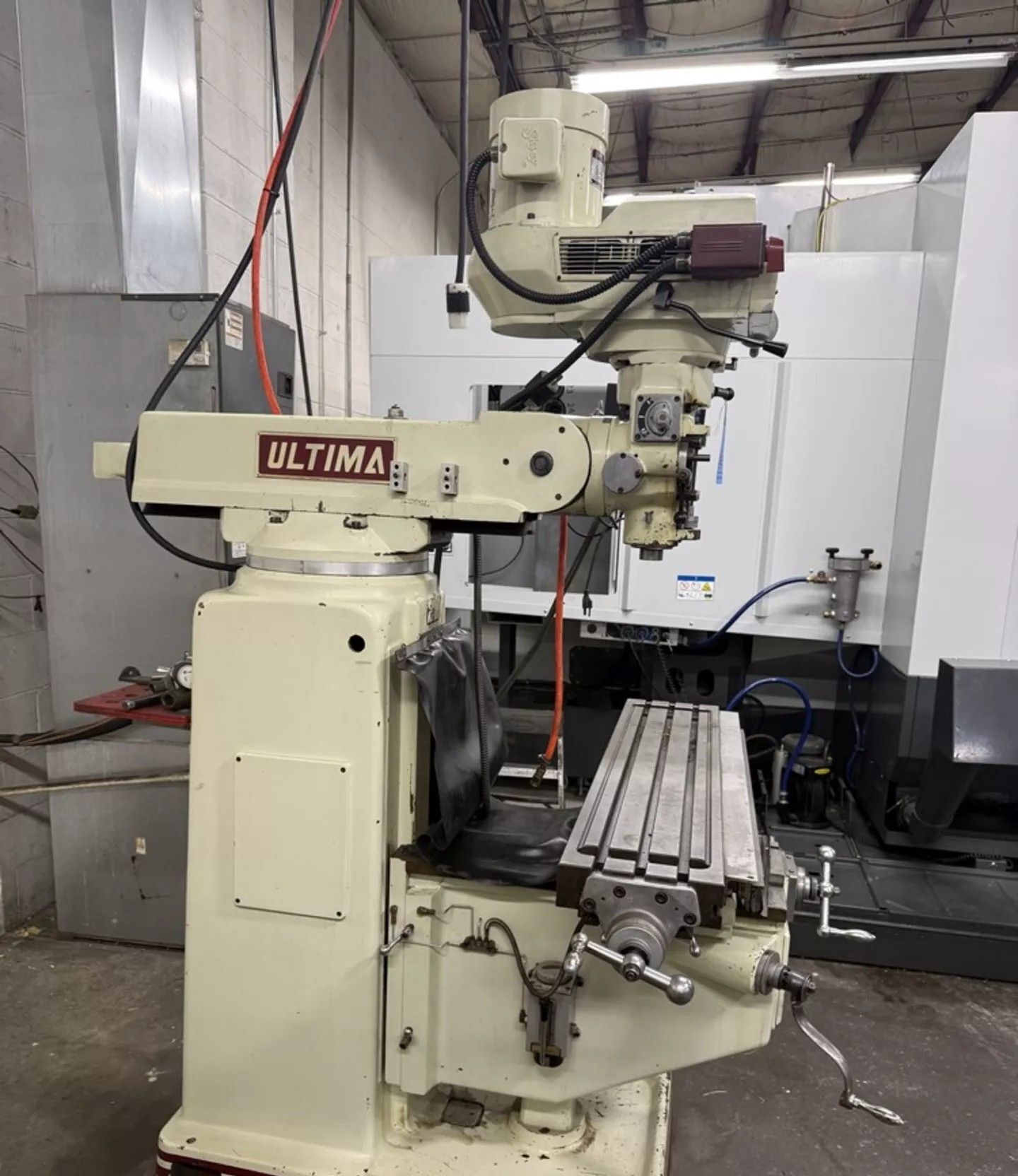

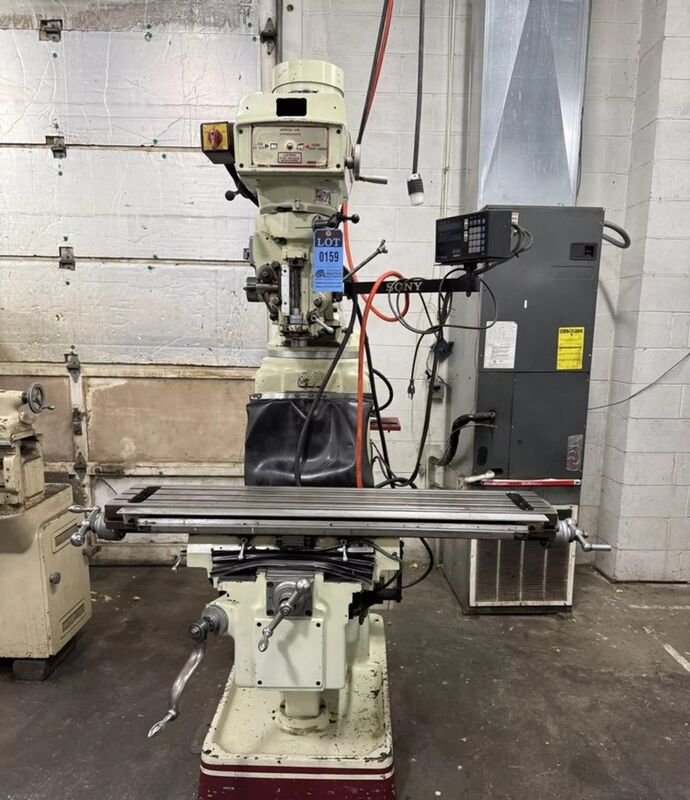

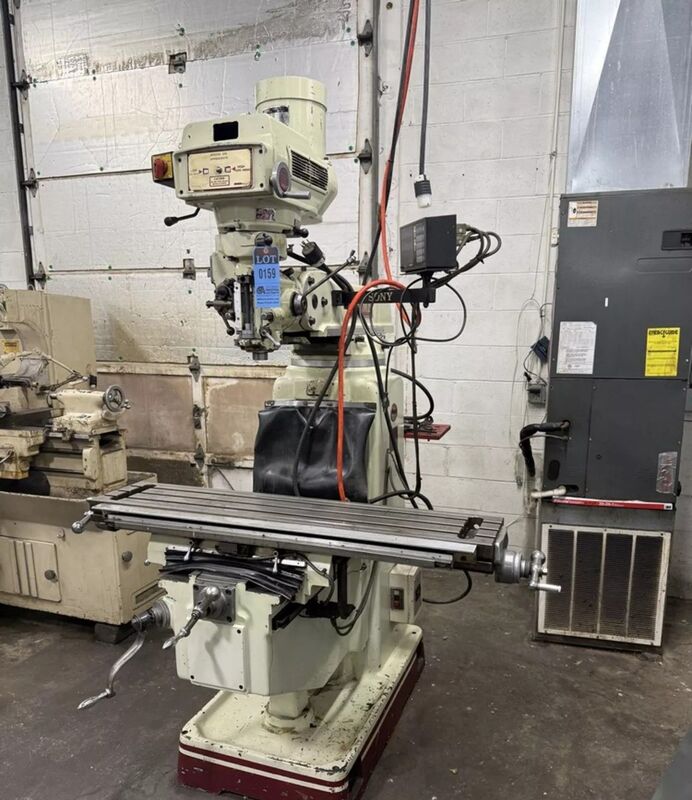

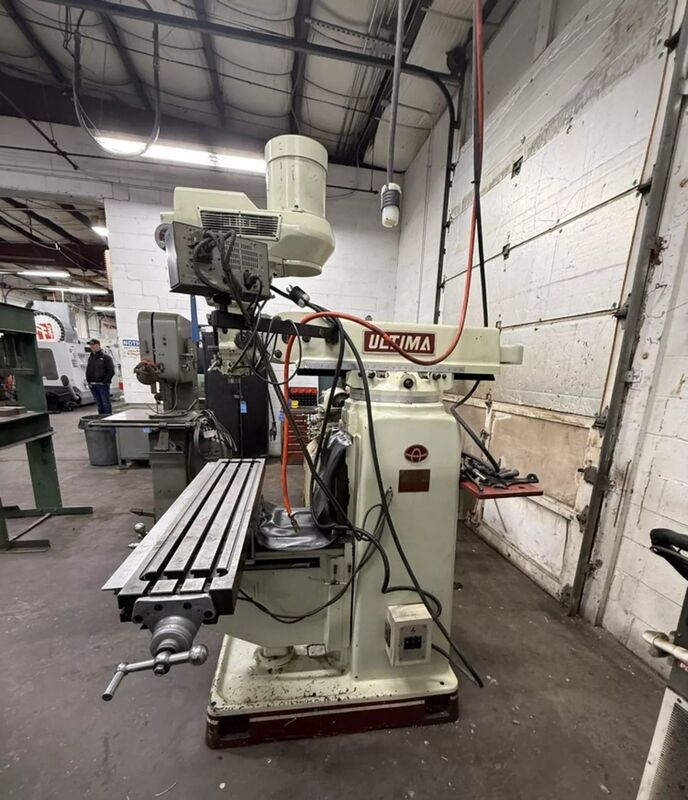

3HP ACER ULTIMA 3VKH VERTICAL MILL - Sony Digital Readouts - 10 x 50 Table
3 HP ACER ULTIMA VERTICAL TURRET MILL

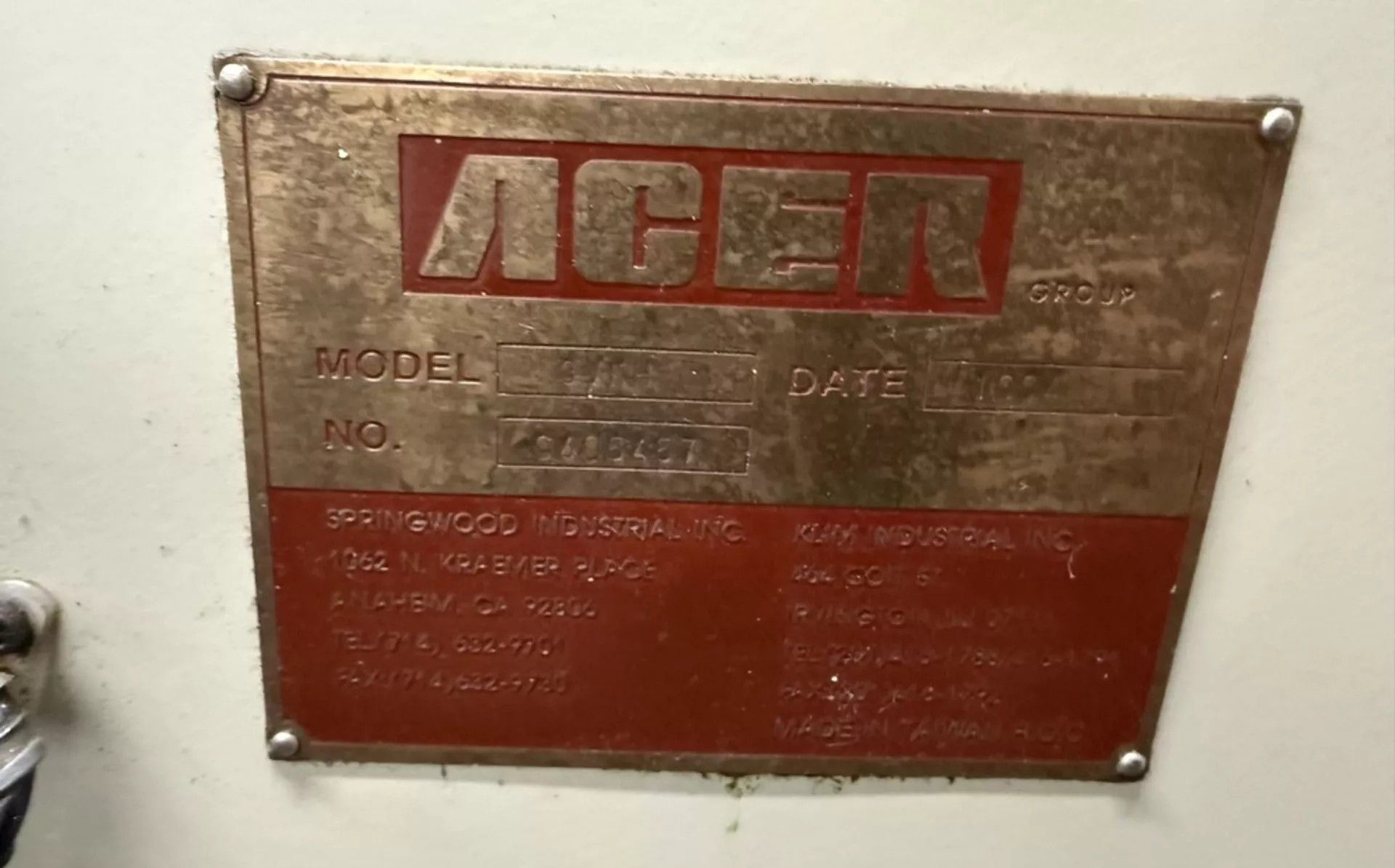

Serial No 9605457, Model 3VKH, Series ULTIMA
EQUIPPED WITH:

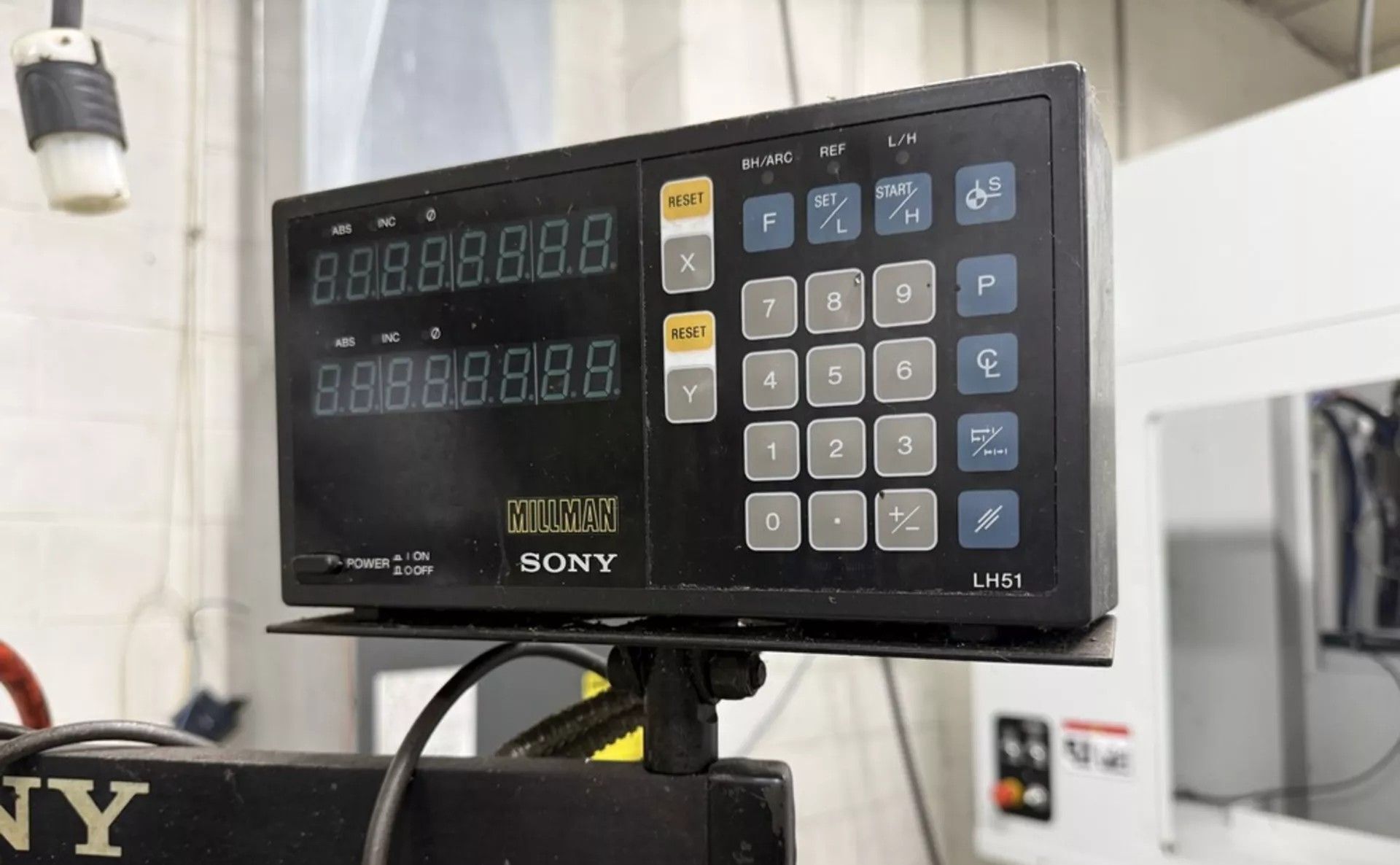

Sony MILLMAN LH51 2-Axis Digital Readouts

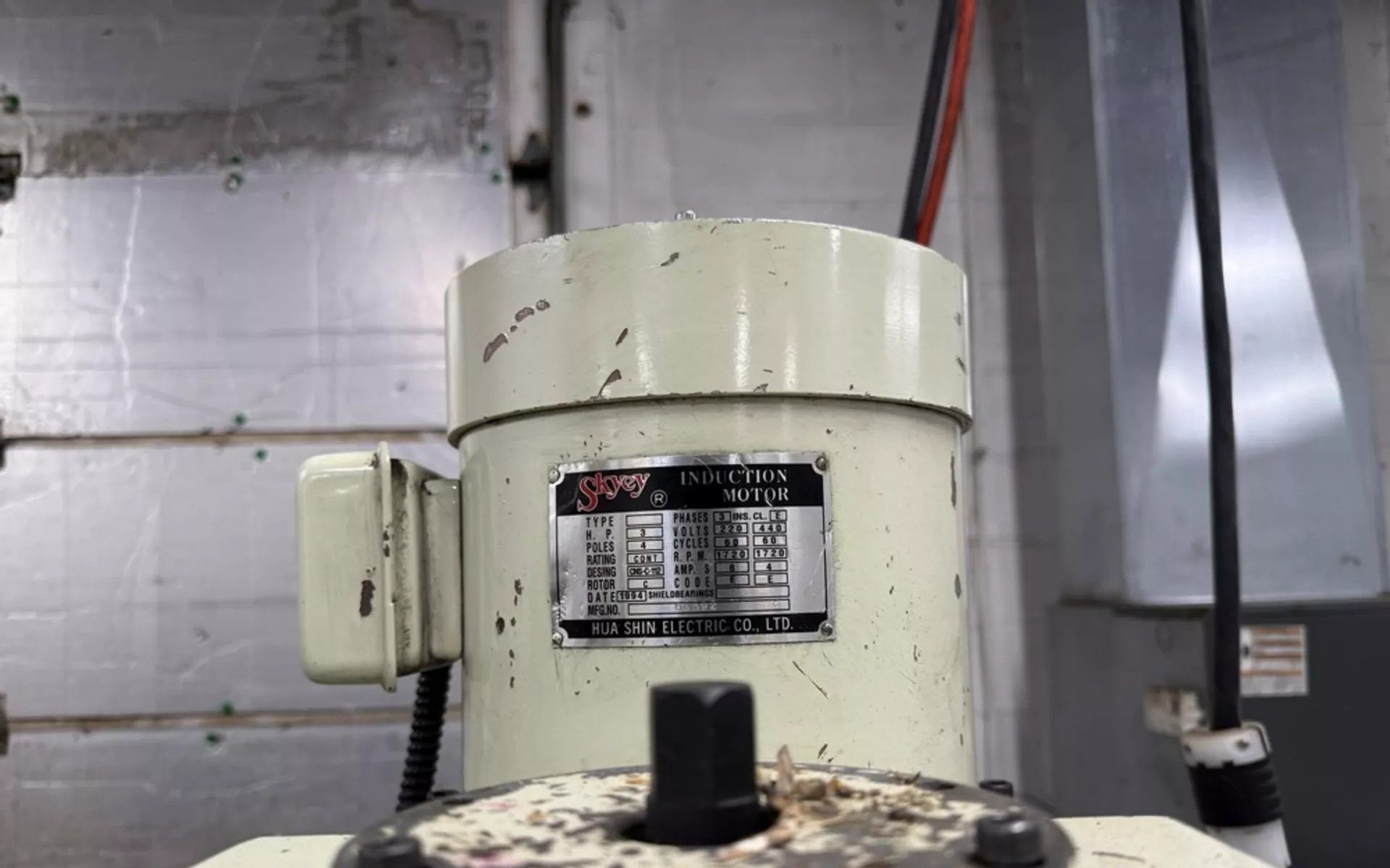

3 HP Spindle Motor (Infinitely Variable Speeds)
Power Quill Feed
One-Shot Lubrication System
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 10" x 50"
Table Longitudinal Travel (X-Axis) 34"
Saddle Cross Travel (Y-Axis) 16"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel (Z-Axis) 5"
Ram Travel 20"
Spindle Taper #R8
Head Swivel 360-DEGREES
Spindle Speeds Range, Variable 60 to 4200 RPM
(3) Vertical Feeds, Range .0015 to .006 IPR
Spindle Motor, Horsepower/RPM 3 HP/1730 RPM
Electrical System 220-440/3/60
Weight, Approximately 3500 LBS
F.O.B. OUR WAREHOUSE
3 HP ACER ULTIMA VERTICAL TURRET MILL
Serial No 9605457, Model 3VKH, Series ULTIMA
EQUIPPED WITH:
Sony MILLMAN LH51 2-Axis Digital Readouts
3 HP Spindle Motor (Infinitely Variable Speeds)
Power Quill Feed
One-Shot Lubrication System
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 10" x 50"
Table Longitudinal Travel (X-Axis) 34"
Saddle Cross Travel (Y-Axis) 16"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel (Z-Axis) 5"
Ram Travel 20"
Spindle Taper #R8
Head Swivel 360-DEGREES
Spindle Speeds Range, Variable 60 to 4200 RPM
(3) Vertical Feeds, Range .0015 to .006 IPR
Spindle Motor, Horsepower/RPM 3 HP/1730 RPM
Electrical System 220-440/3/60
Weight, Approximately 3500 LBS
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
