HERE WE HAVE:

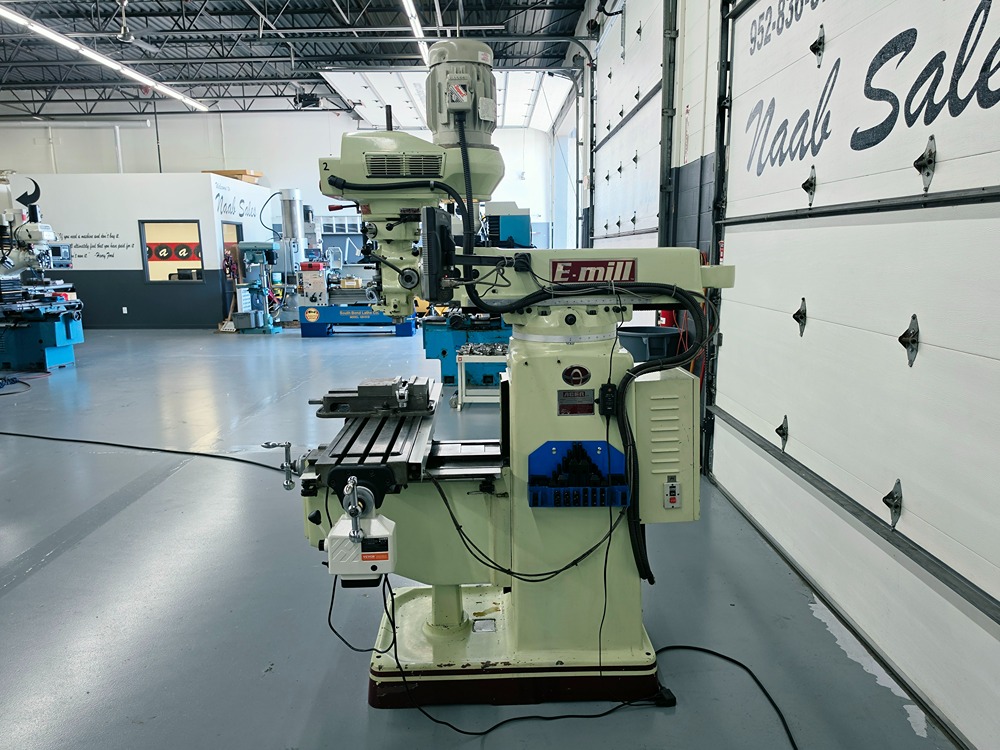

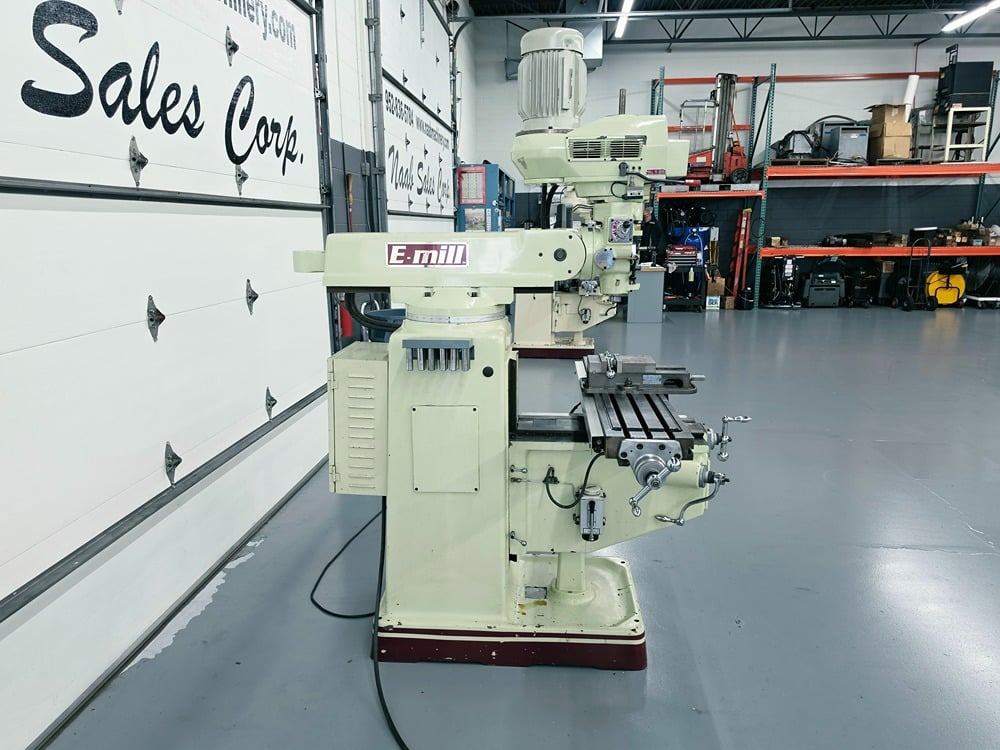

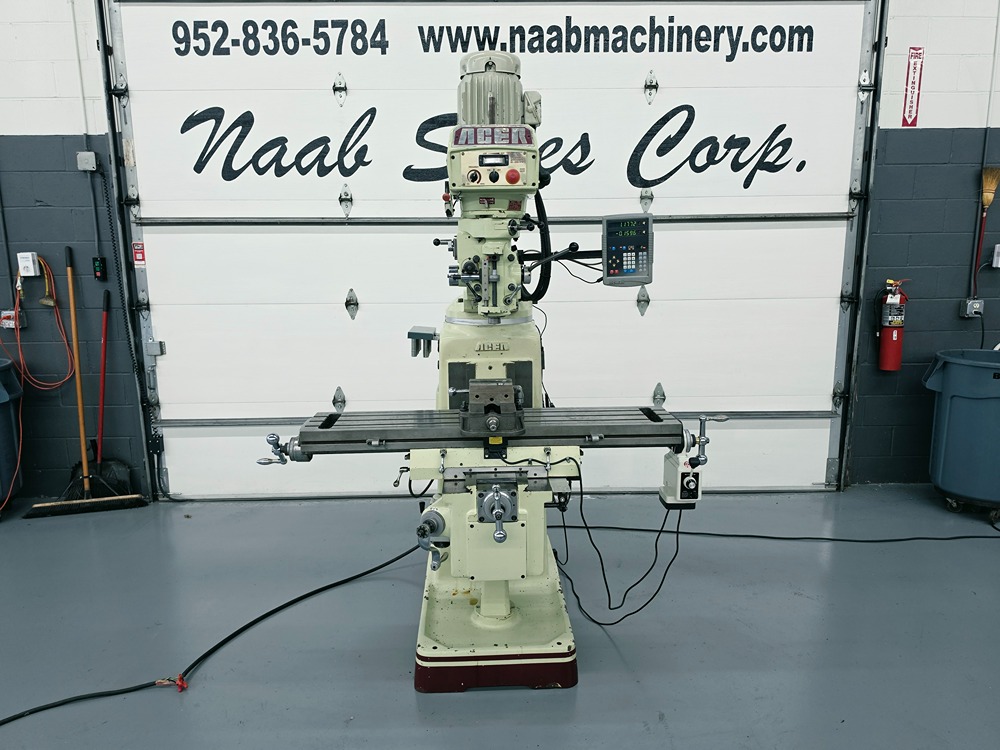

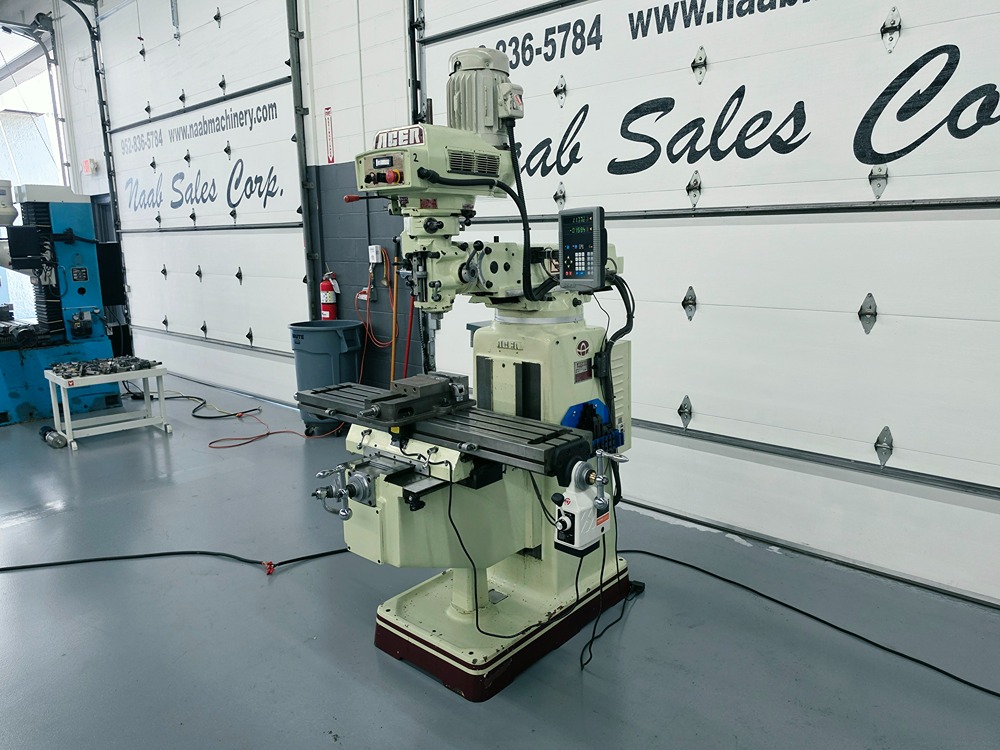

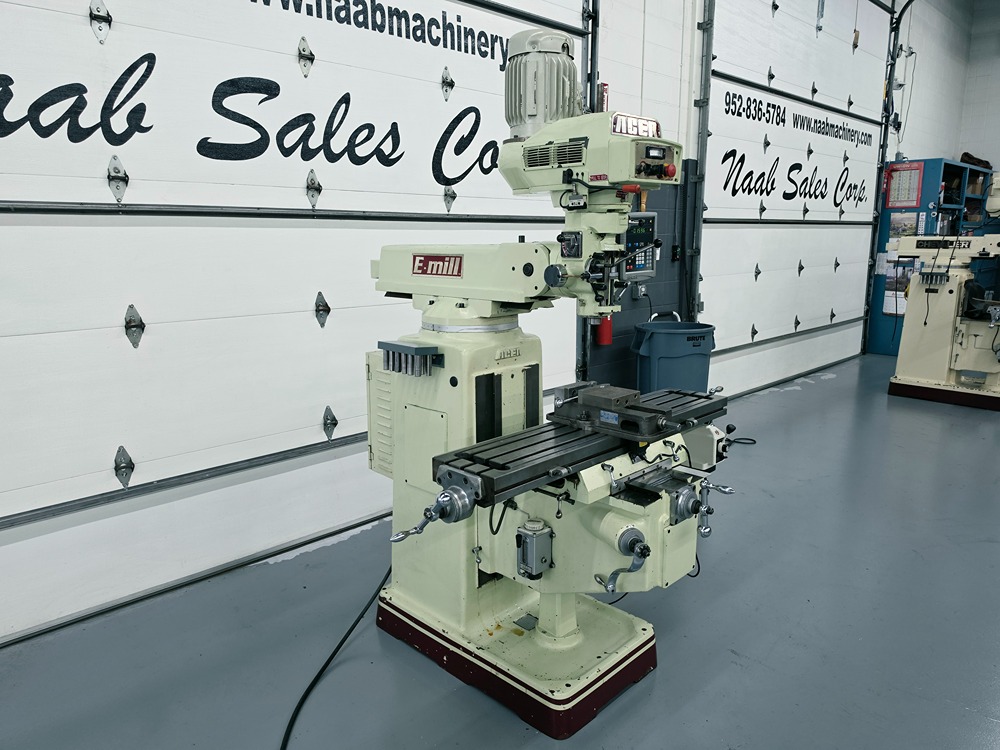

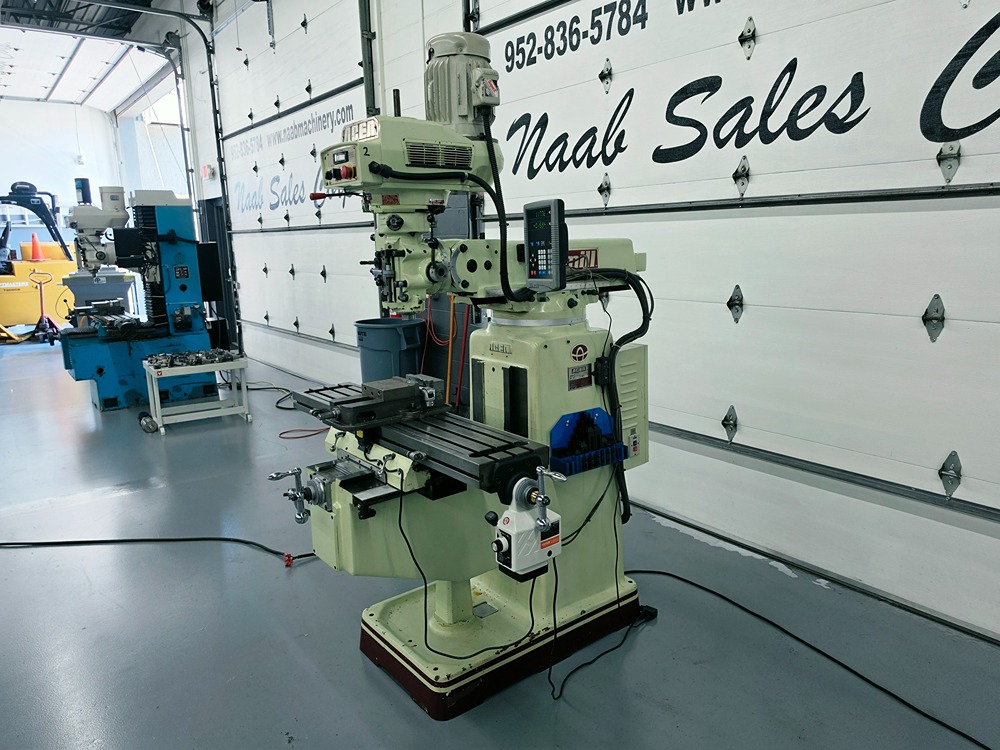

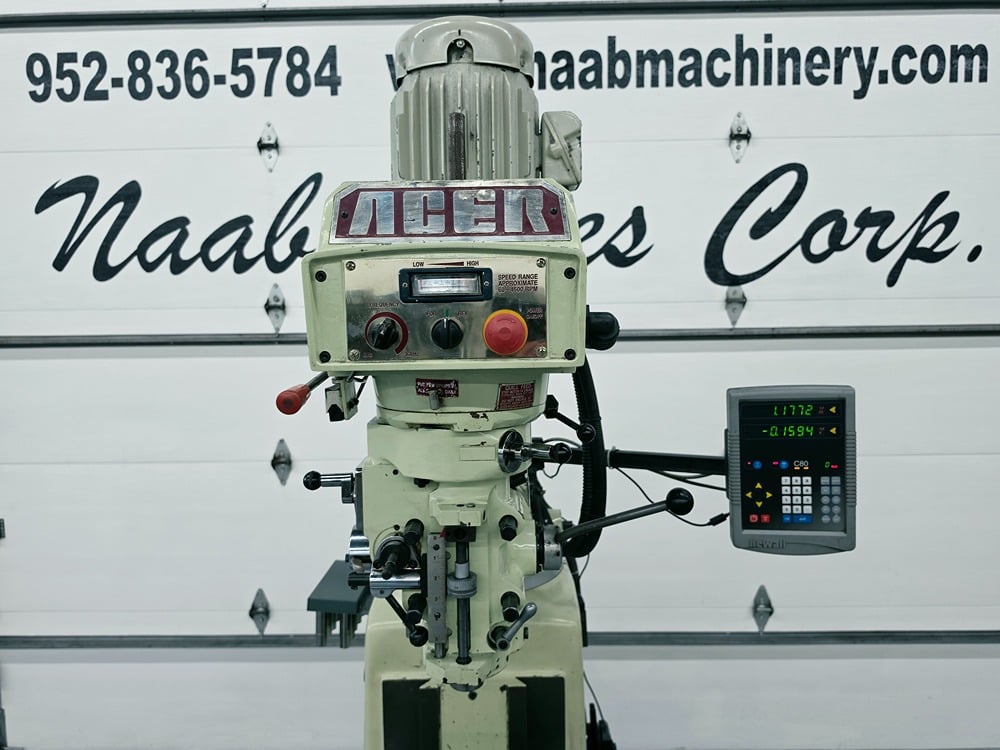

ACER 10”x50” VERTICAL MILLING MACHINE W/ 2 AXIS DRO & POWER FEED

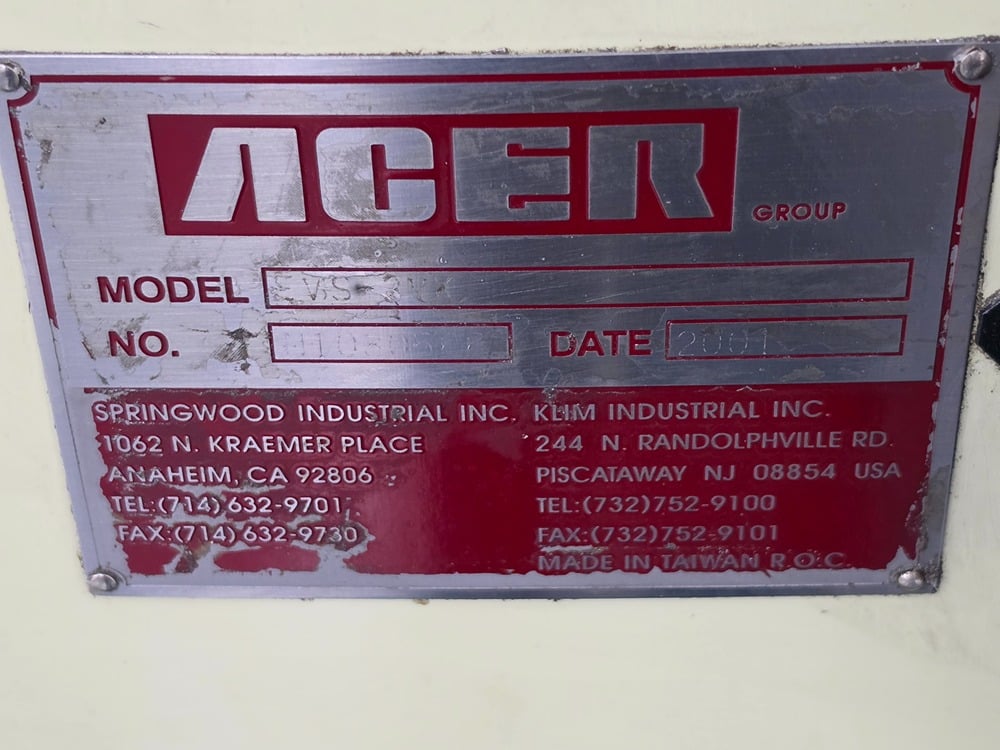

Make: Acer
Model: EVS-3VK (Electronic Variable Speed)
Serial: N1080508
New in: 2008
Specifications:
Table Working Surface: 10″ x 50″
Longitudinal Travel: 36-1/2″
Cross Travel: 17″
Vertical Knee Travel: 19″
Ram Travel: 20″
T-Slot Number, Size: (3) 5/8″
Head Main Motor: 3 HP
Head moves right to left: 90 deg
Head tilts front to back 45 deg
Spindle Drive: Electronic Variable
Spindle speed: 0 ~ 4,500 Electronic Variable
Spindle taper: R-8
Quill Power: quill feeds (in / rev.) 0.0015″, 0.003″, 0.006″
Quill diameter (Chromed): 3-3/8″
Quill travel: 5″
Electrics: 3 HP 440 3 Ph Only
Dimensions: 70” x 70” x 90” H Approx.
Approx. Weight: 3050 Lbs.
Complete With:

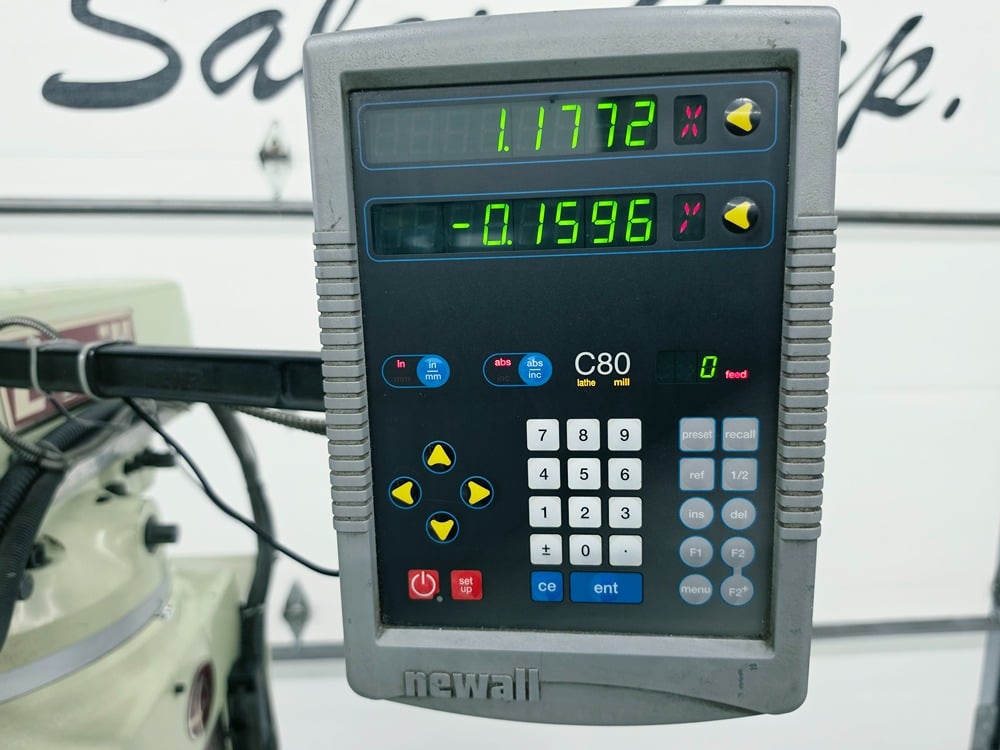

Newall 2-Axis DRO
One Shot Lubrication
New Set Hold Downs
Kurt Machine Vise
New Set Collets & Holder
New X Axis Power Feed
Inquire Further with Naab Sales Corporation!
