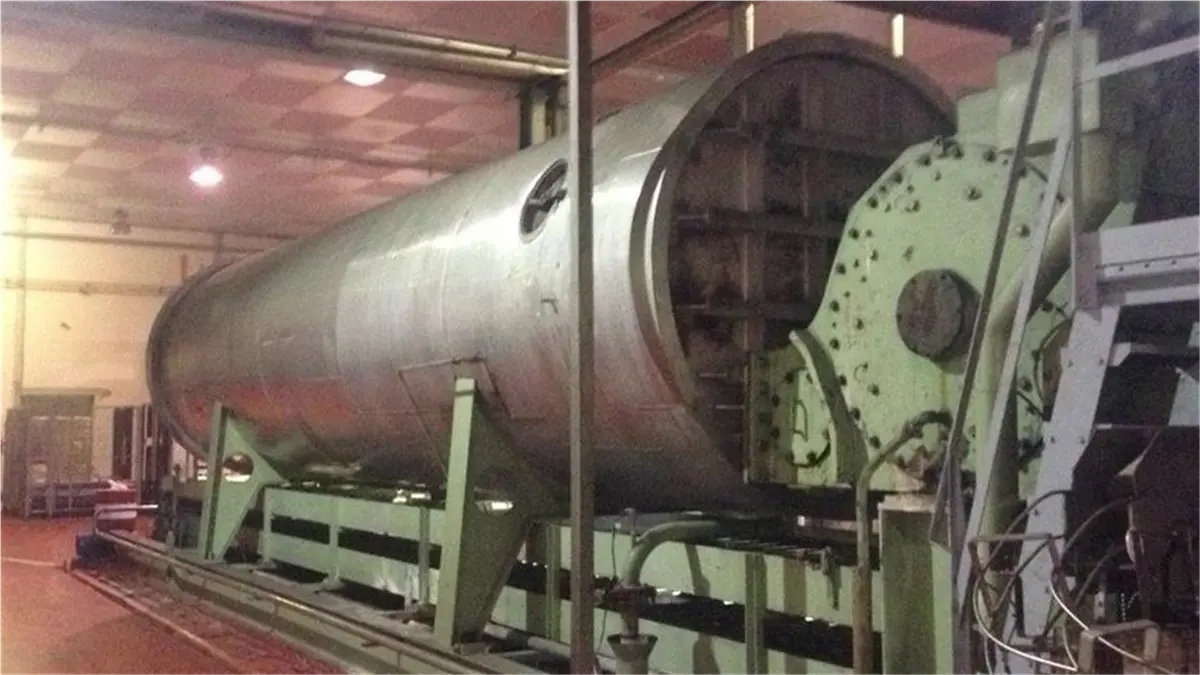

99.2" x 551.2" ACB Hydrolock, continuous horizontal autoclave, 150-250 cans/minute, 15811 gallon, 116 psi, 291°F, automatic infeed & discharge

Specifications:

HEIGHT	3.67 m
INCLUDED	2.50 m
USEFUL WIDTH	0.00 m
LENGTH	14.00 m
WEIGHT	0 Kg
MAKE	HYDROLOCK
MADE OF	CARBON STEEL
PRESSURE	8 BAR
VOLUME	59.850 L
CAN SIZE FROM-UP TO	1 Y 1/2 KG.
TEMPERATURE	144C
VACUUM WEIGHT KG:	10.000 KG
PRESSURE TEST	6 BAR
PRESSURE RING	3 BAR

Description:
-Production:
* Cans 1kg: 150 cans / min
* Cans 1/2 kg: 250 cans / min.
-Automatic feeder boats and automatic output.
--N APAVE: R3116179000
Working dimensions:
Long entry: 3.70 m
Input Width: 2.25 m
High input: 1.50 m.
Cooler long: 6.20 m
Cooler Width: 2.50 m.
Cooler High: 1.20 m.
Elevator Input
Length: 4.85 m.
Width: 2.55 m.
Height: 3.75 m.
conveyor:
Length: 7.5 m.
Width: 2.55 m.
Height: 1.10 m.
Door / Lid:
Thickness: 60 cm.
Diameter: 2.52 m.
Additional Advantages :
-Continuous automatic process
-Individual homogeneous treatment for each product
-Total traceability of each product by calculation of Individual Sterilization Value
-Permanent or partial product rotation
-Container flexibility
-Constant, uniform and adjustable pressure and temperature conditions (Max. 143C / 290 F)
-Increased efficiency of your production time
-Integrated loading and unloading system
-Self sustained supporting assembly.
