Description

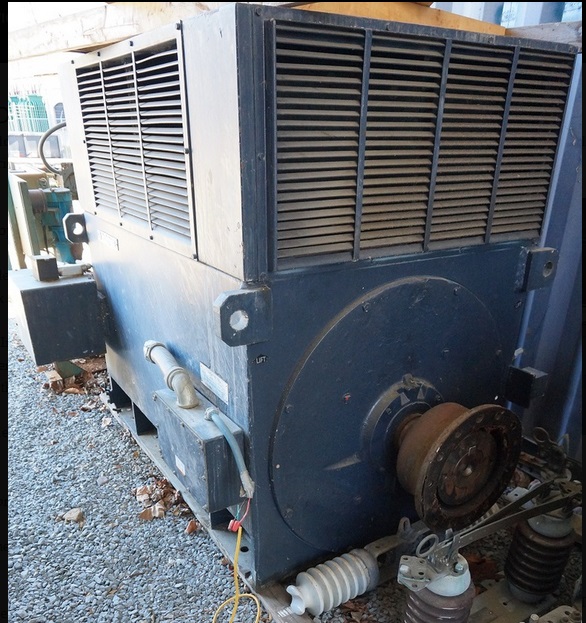

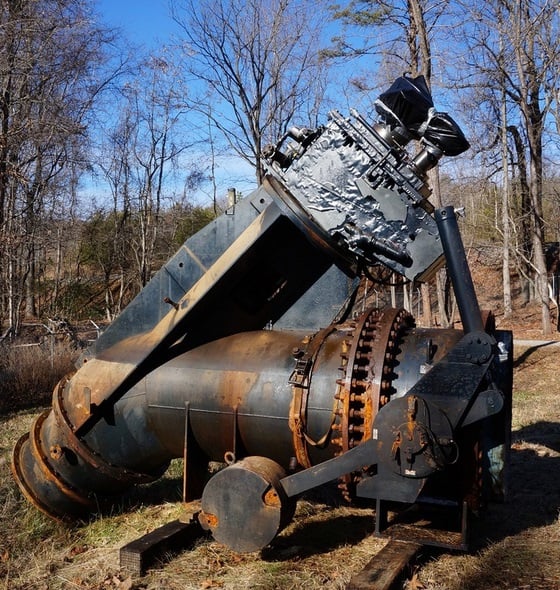

The 994 kW induction generators mount at a 45-degree angle above the axial-flow turbines which are fed through penstocks. The turbine flow is controlled by a large butterfly gate. The turbine flow rate and power output is controlled by Kaplan type variable pitch blades. The guide vanes are fixed. The power from the turbine passes through a gear box and into the high speed genererator. This equipment was lightly used when it was installed and is now stored at our Greensboro, NC yard. Please email us for more information.
Hydro Turbine.48 in. Pitch.12 in. Wide Cups.10 in. dia. Dual Feed With Butterfly Valve Shut Offs.4 in. Nozzles With Manual Diverter Control.16 in. – 10 in. Transition With 4 in. Bypass.16 in. Main Butterfly Valve Shut Off.All in 6 ft. Cubed Enclosure.
