1000 KW, Teledyne / Louis-Allis, complete hydro-electric generating system, 1985

REC # 2585

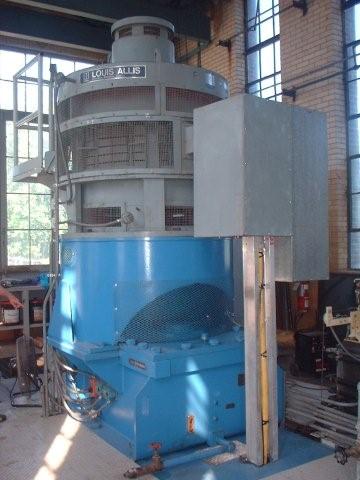

(1) Used 1,000 KW LOUIS-ALLIS / TELEDYNE Hydro-Electric Generating System; MFG. 1985
Specifications:
Turbine (Runner)
Manufacturer.....................................Teledyne
Type..................................................Francis (vertical axis)
Diameter (nominal)............................60"
Design Head......................................41 ft.
Rated Discharge...............................332 cu.ft/sec.
Radial Bearing..................................Thordon
Wicket Gates:
Type.................................................Butterfly
Number.............................................24
Control System.................................Hydraulic
Speed Increaser:
Manufacturer....................................XTEK, Inc.
Type.................................................T.S.P.
Ratio.................................................4.889 @ 900 RPM
Horsepower......................................1,343 HP (rated output)
Service Factor..................................1.75
Alternator:
Manufacturer....................................Louis-Allis
Type.................................................Synchronous / Vertical
Output..............................................1,000 kW @ 900 RPM
Voltage.............................................4,160 VAC / 3 phase / 60 cycles
Equipped With:

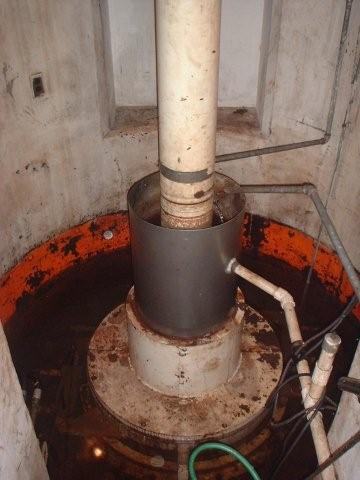

(1) Used 60" Diameter Francis Type 14 Bucket Turbine / Runner Assembly; 1,400 HP @ 184 RPM; complete with 24 gates, headcover with hydraulic actuator assembly, drive shaft with coupling and all components as designed, engineered and installed by W.J. Bauer, Inc. & Lunda Construction Co. 1984-1986
(1) Used Xtec Type TSP Speed Increaser; S/N SR-1969; with Gearbox Bridge

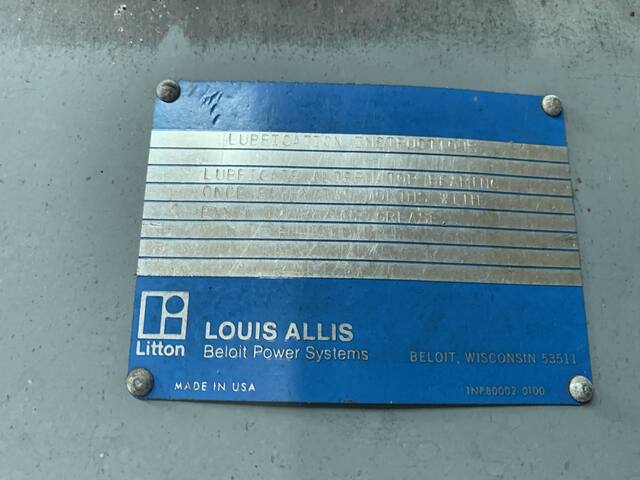

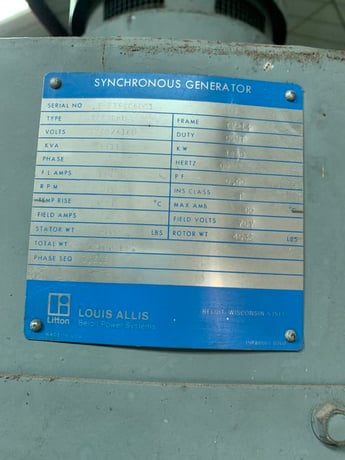

(1) Used 1,000 kW Louis-Allis Synchronous AC Generator; with Mounting Bracket and Coupling; S/N 5-275906-001; Type TBGZDKU

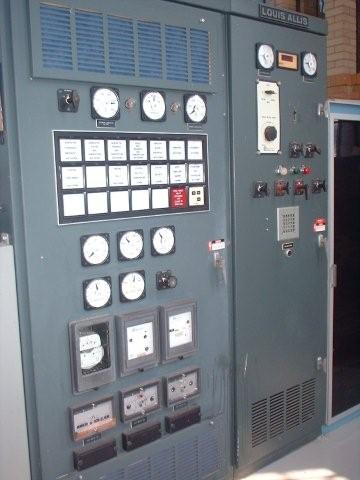

(1) Used 5 kV Louis-Allis Switchgear System; Order # 5-896090; Complete with Interconnecting Controls and Processors; 4,160 VAC / 3 Phase / 60 Cycles; S/N 5-896091 & 5-896092

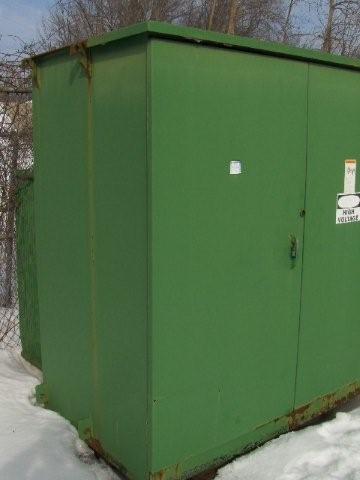

(1) Used 1,200 kVA Niagara Transformer; 3 Phase / 60 Cycles; Class O.A.; S/N 49887
(1) Used 1,250 kVA Niagara Transformer; 3 Phase / 60 Cycles; Class O.A.; S/N 50103
(1) Used 75 kVA Federal Pacific Dry Type Transformer; 3 Phase / 60 Cycles, S/N 10882-001

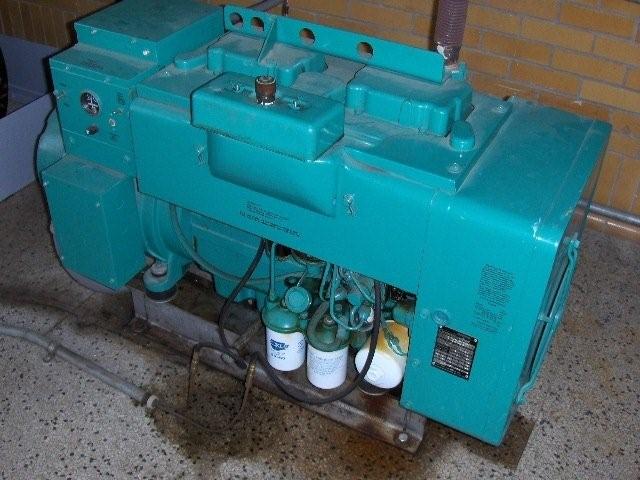

(1) Used 12 kW Onan Diesel Generator; 480 VAC / 3 Phase / 60 Cycle; equipped with Fuel Tank, Transfer Switches & Controls; S/N A850746011

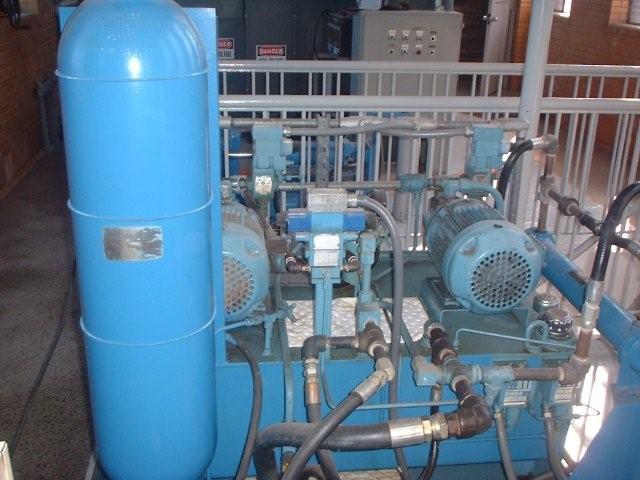

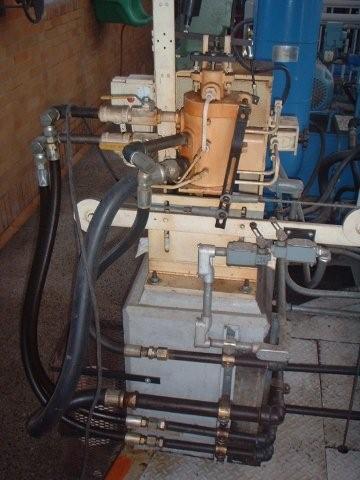

(1) Used Walter Norris / Sperry Vickers Hydraulic Power Unit with controls; S/N 4241

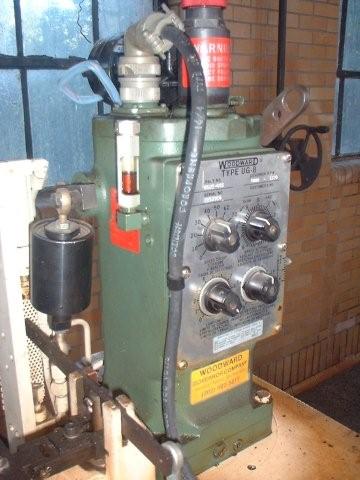

(1) Used Woodward Type UG-8 Governor Control Unit; Size 2; S/N 2002797
(1) Lot Used Buoys, Bubblers, Floats, Insect Foggers, Pumps, and Agitators.
(1) Lot of Misc. Replacement
Parts
and Components for Referenced Equipment
Overall Dimensions.................................
Weight....................................................80,000 lbs. (estimated total)
F.O.B...................................................... Michigan
