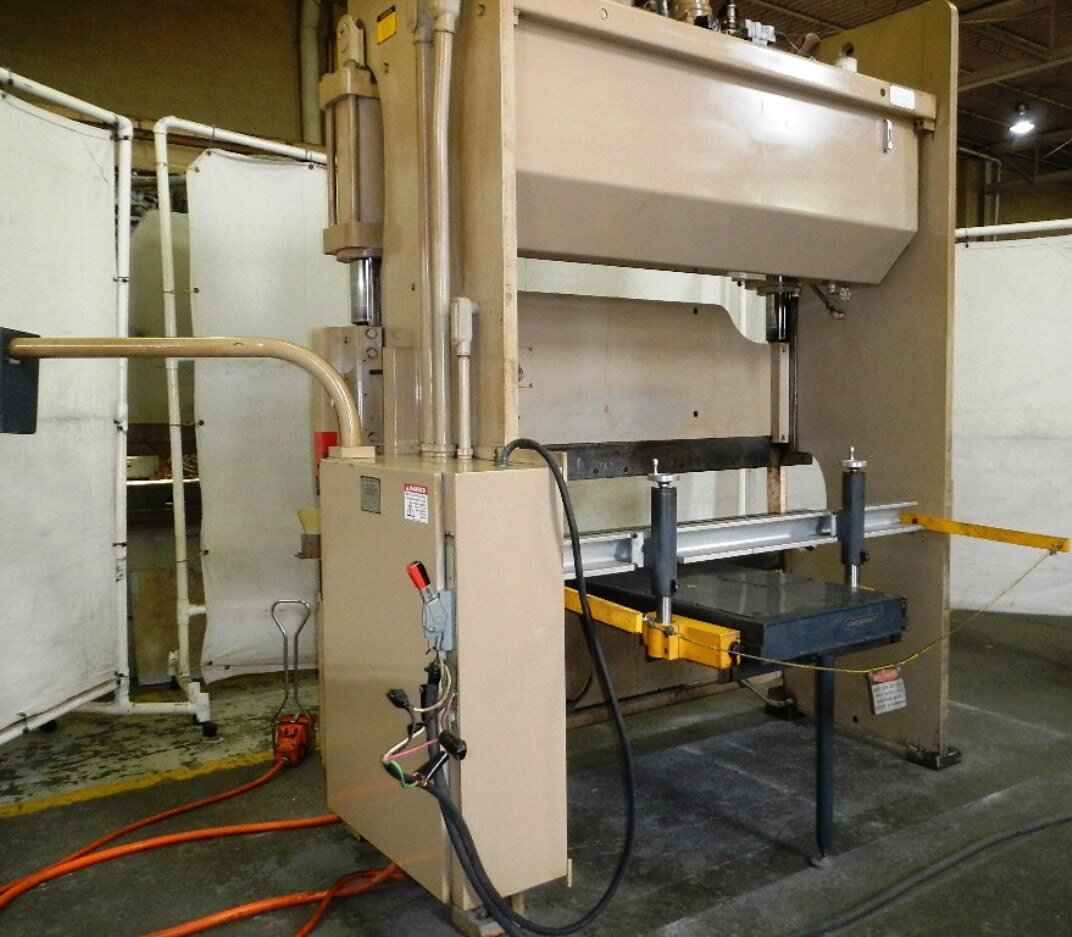

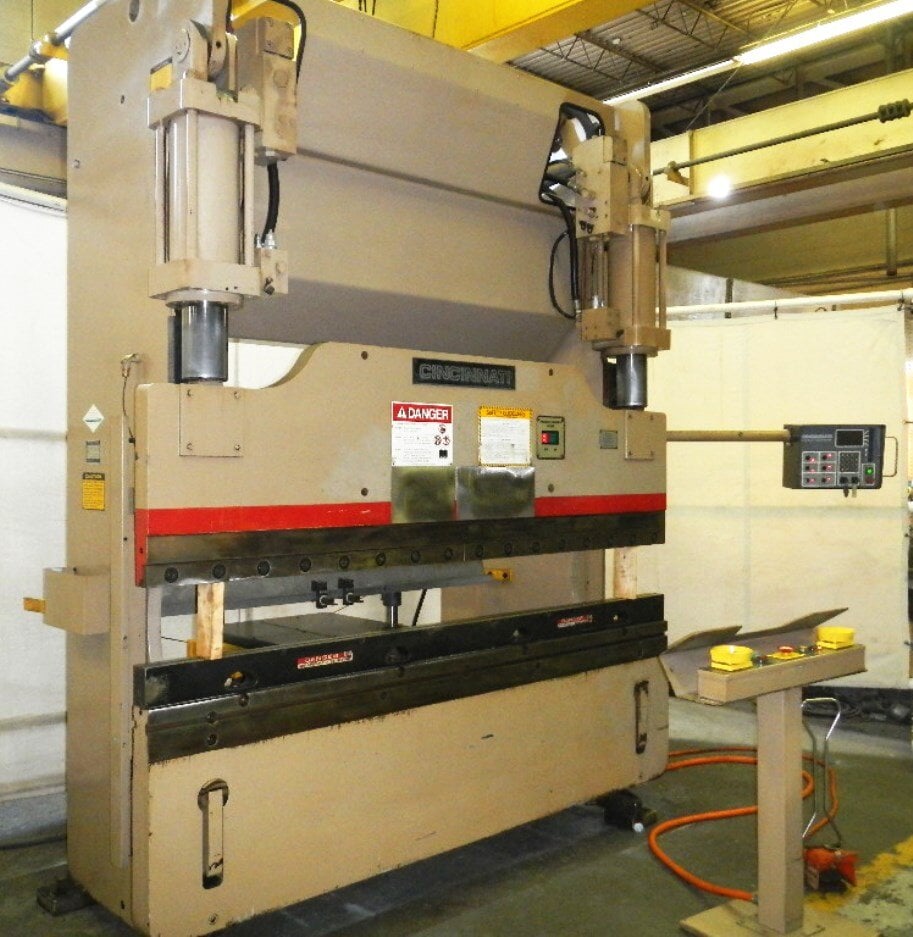

90 Ton, Cincinnati #90CBX6, Hydraulic Press Brake, 8' overall, 72" between housing, CBII controller, 14" stroke of ram, 15" open daylight, 1998, 90CBX6

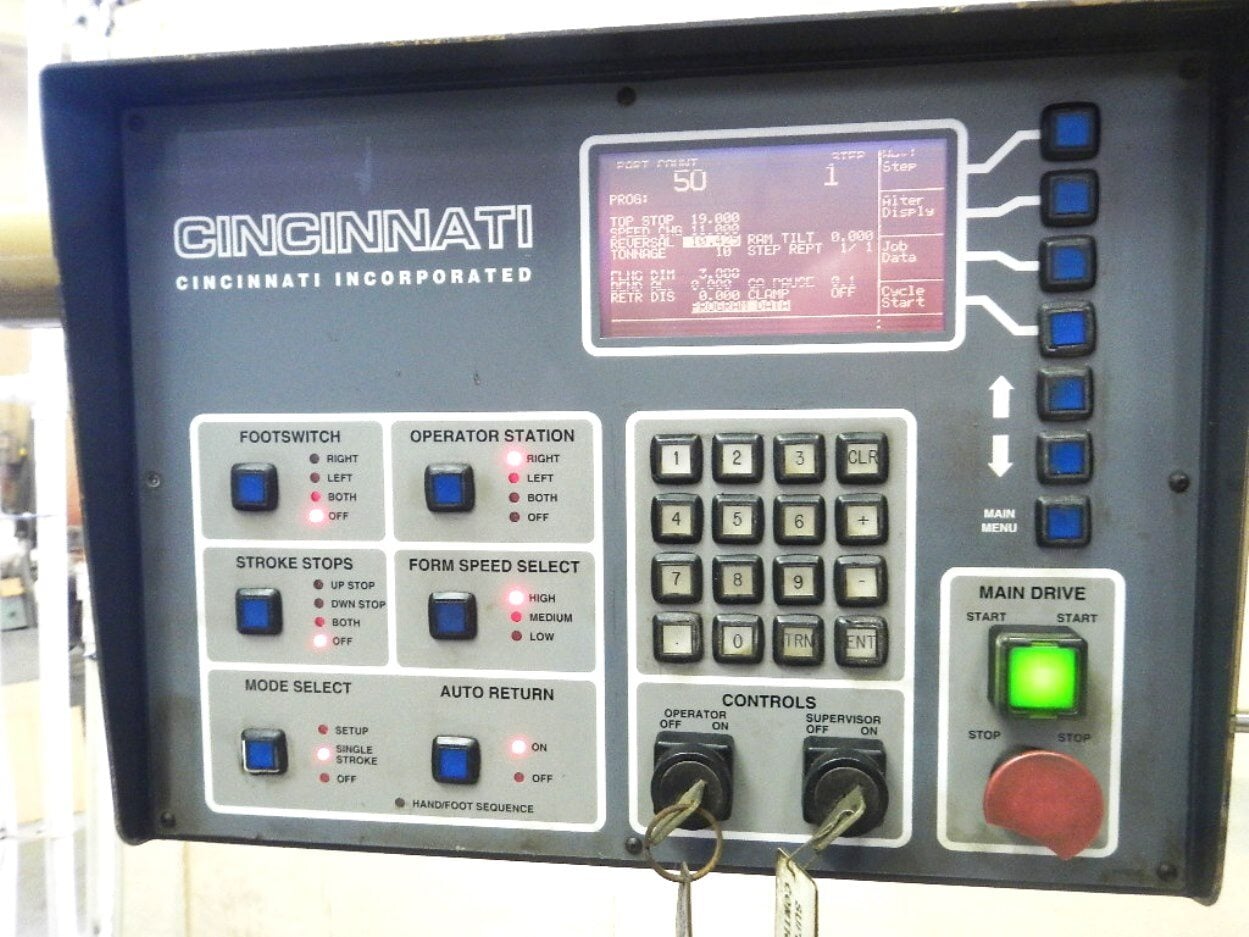

90 Ton X 8’ CNC Hydraulic Press Brake with CBII Controller, Adjustable Tonnage, Adjustable Ram Tilt, Transducer Positioned Feedback, Narrow Filler Block, Electric Foot Switch, Palm Button Station, Manuals, Clevis Mounted Self Aligning Cylinders and Extended 14” Stroke
GENERAL SPECIFICATIONS
Capacity: 90 Tons
Overall Length of Bed & Ram: 96”
Distance Between Housings: 72”
Stroke of Ram (Extended): 14”
Open Daylight: 15”
Closed Daylight: 7”
Throat Depth: 7”
Bending Capacity: 5’ X ¼” | 6’8” X 3/16”
Ram Approach Speed: 200 IPM
High Ram Speed: 55 IPM
Medium Ram Speed: 20 IPM
Low Ram Speed: 5 IPM
Return Speed: 185 IPM
Back Gauge Range: 24”
Motor Power: 15 HP
Dimensions: 102” X 60” X 112” H
Weight: 12,000 Lbs
INCLUDES: CBII Controller, Adjustable Tonnage, Adjustable Ram Tilt, Transducer Positioned Feedback, Narrow Filler Block, Electric Foot Switch, Palm Button Station, Manuals, Clevis Mounted Self Aligning Cylinders and Extended 14” Stroke

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
