Description

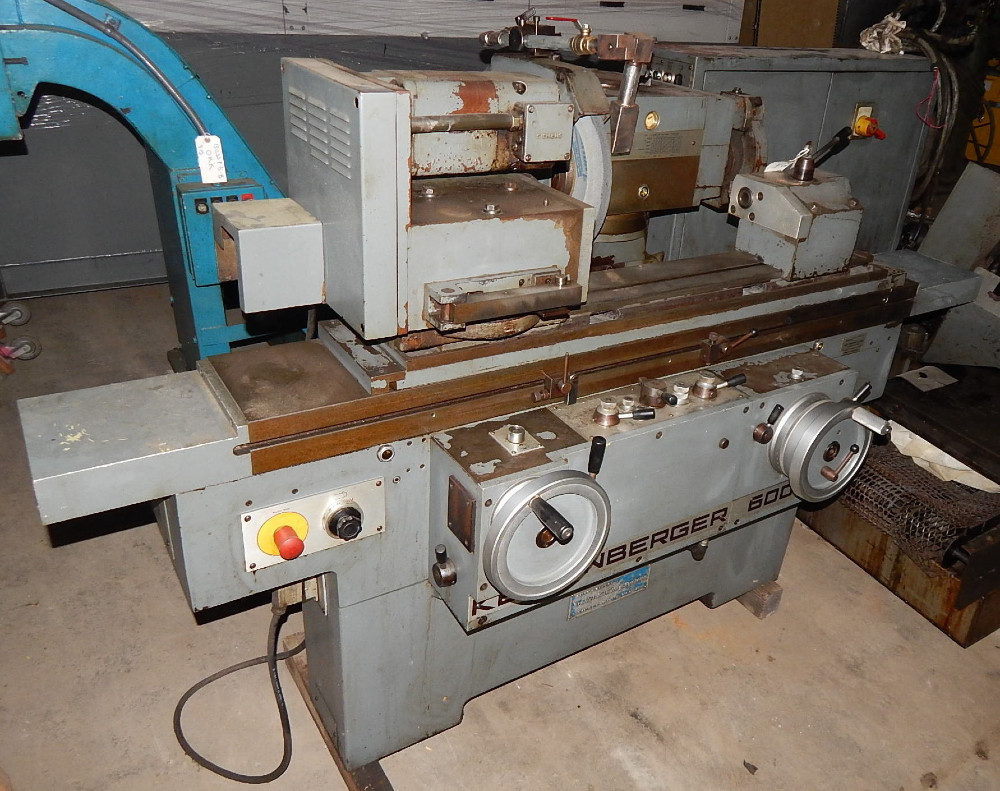

9.8" x 23.6" KELLENBERGER Model 600-U-125 Universal ID/OD/End Face Cylindrical Grinder
AGE: 1986
TEMPORARY SPECIFICATIONS:
Swiss, High Production
Universal I.D./O.D. Cylindrical Grinder
Swing, Max., As Presently Set Up: 9.8"
Swing, Max., with Factory Risers: 19.8"
Distance Between Centers, Nominal: 23-5/8"
Distance Between Centers, Tailstock Overhanging: 29-1/2"
Table:
Longitudinal Travel: 35-7/16"

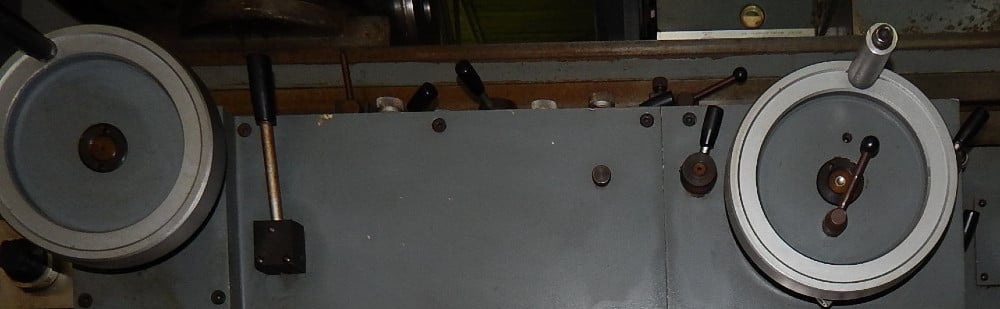

Longitudinal Travel Per Turn of Handwheel:
Coarse: 0.8"
Fine: 0.1"
Longitudinal Table Speed, Hydraulic: 0 to 20 FPM
Swivels: +/- 10 Degrees
Reversing Dwell: 0 to 5 Seconds
Grinding Wheel Infeed:
1 Graduation of Feed Scale: 0.0002"
Automatic Hydraulic Infeed: 0 to 0.037"
Auto Infeed Per Table Reversal: 0.00004" to 1.18"
Plunge Grinding, Infeed Speed: 0.00001 to .0001 In/S
Micrometer Stop, 1 Graduation: 0.00005"

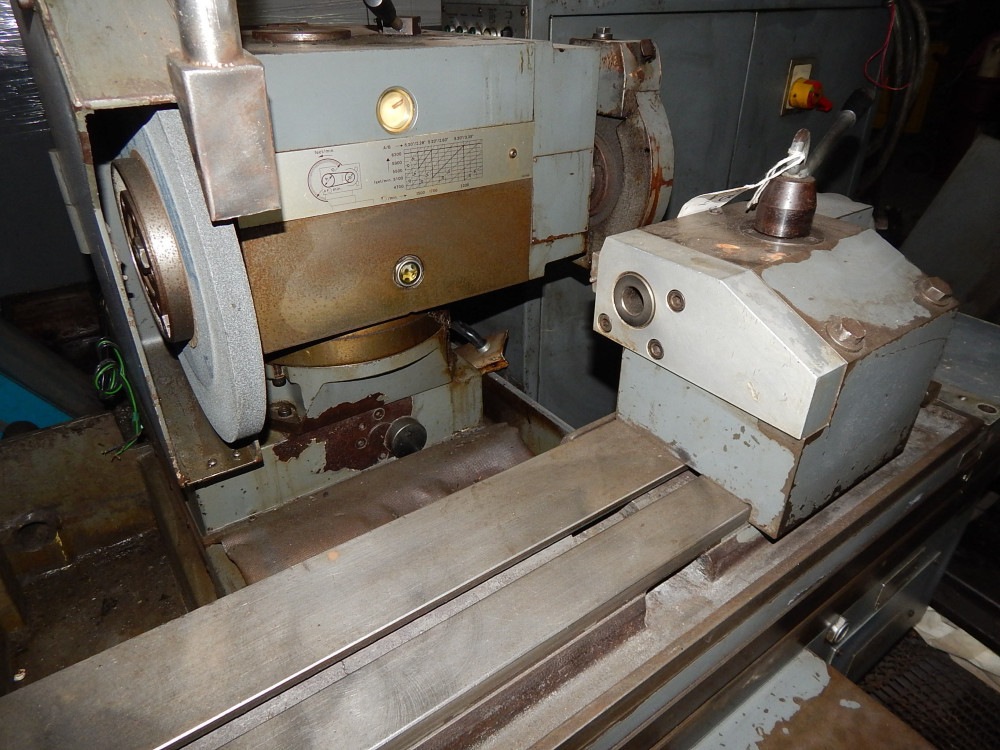

Universal Grinding Spindle Head:
Transverse Movement of Wheel Slide: 8-21/32"
Infeed Per Rev. of Handwheel:
Coarse: 0.3"
Fine: 0.04"
Hydraulic Rapid Wheel Slide
Advance/Retraction Stroke: 1-9/16"
Grinding Wheel Speeds: 1500, 1700, 2200 RPM

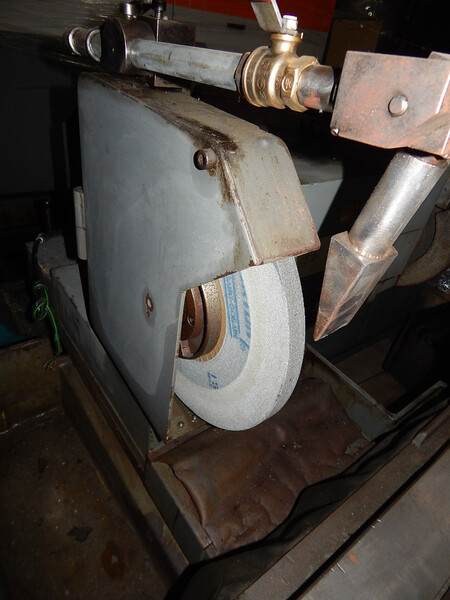

Wheel for Cylindrical Grinding: 16" x 2" x 5"
Wheel for Surface Grinding: 9" x 1/2" x 3"
Head Swivel with Locking Every 90 Degrees: 270 Degrees

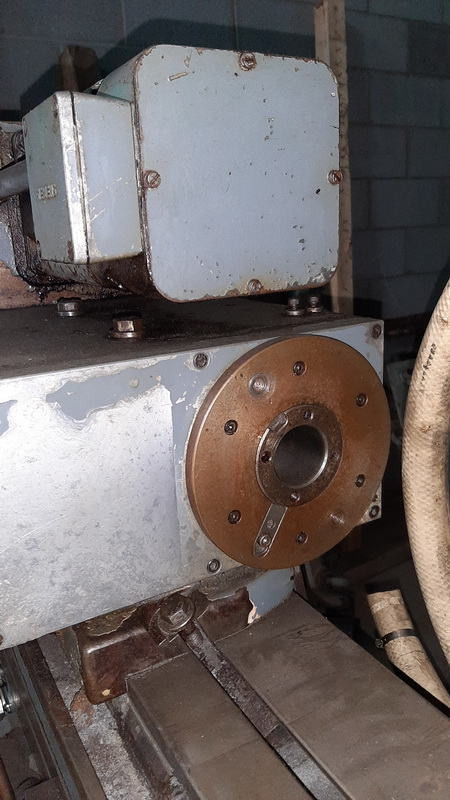

Workhead:
Infinitely Variable Spindle Speeds: 6 to 600 RPM
Workhead Swivels: 360 Degrees
Inside Taper of Work Spindle: #5MT
Tailstock:
Inside Taper of Spindle: #4MT
Stroke of Spindle: 1-3/16"
EQUIPPED WITH:

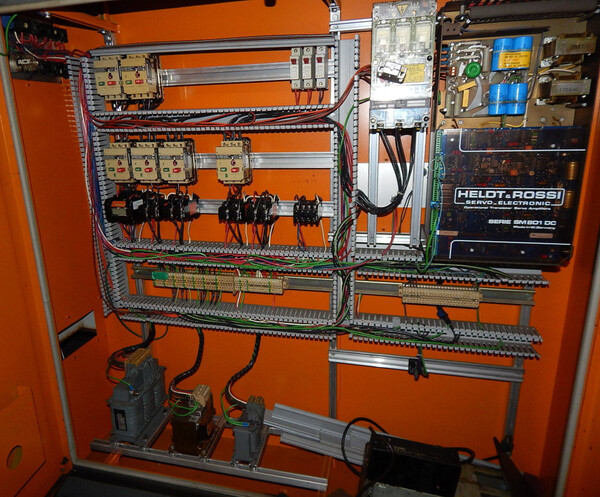

Helt & Ross Servo Drive

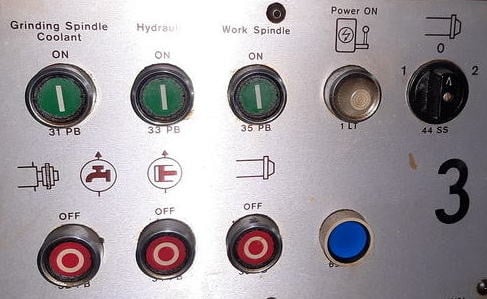

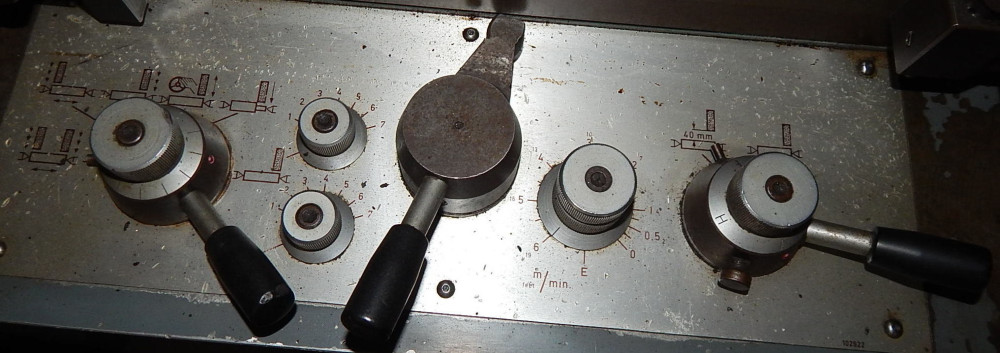

Hydraulic Operation Featuring:
Single Lever Control
Infinitely Variable Table Traverse
Automatic Infeed
Plunge Infeed
Rapid Wheel Advance and Retraction
Sparkout Timer
Swing Around Head for I.D. Grinding
Adjustable Rise and Fall Mechanism of Wheelhead by Turn of Handwheel

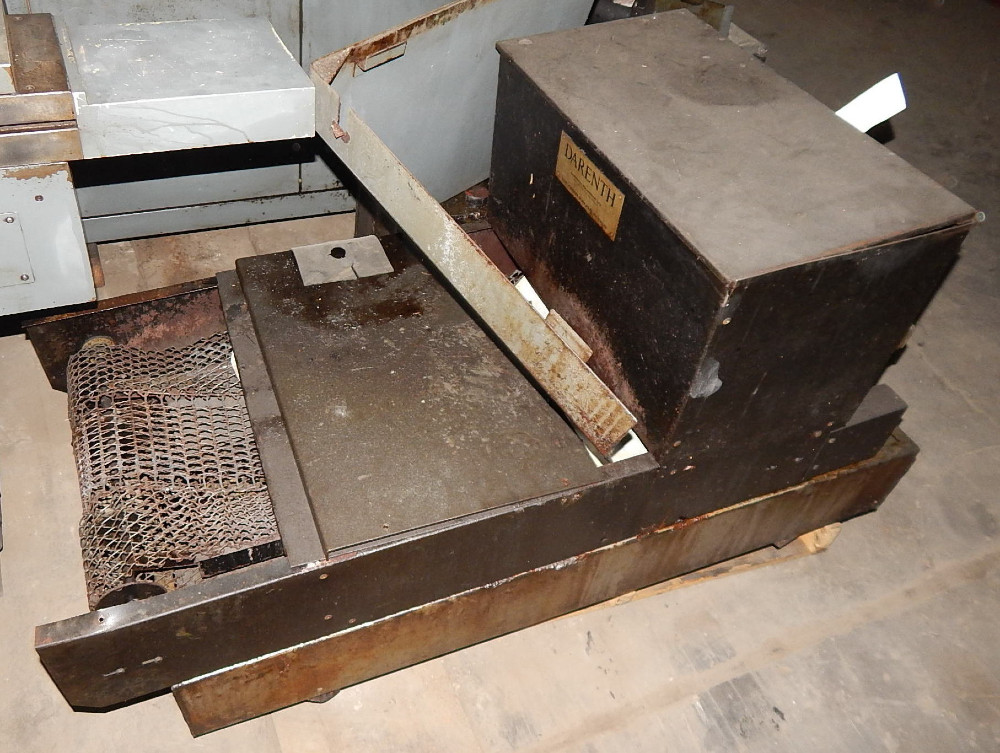

Coolant System with Pump/Tank/Paper Type Coolant Filtration
MOTOR DATA: Spindle, Wheel, Coolant Pumps, Hydraulic Pump
Currently Wired for 230/60/3
OVERALL DIMENSIONS: 102" x 64" x 66" High
WEIGHT: 6,000 Lbs.
CONDITION: Good Working, Taken from Local Machine Shop
AGE: 1986
TEMPORARY SPECIFICATIONS:
Swiss, High Production
Universal I.D./O.D. Cylindrical Grinder
Swing, Max., As Presently Set Up: 9.8"
Swing, Max., with Factory Risers: 19.8"
Distance Between Centers, Nominal: 23-5/8"
Distance Between Centers, Tailstock Overhanging: 29-1/2"
Table:
Longitudinal Travel: 35-7/16"
Longitudinal Travel Per Turn of Handwheel:
Coarse: 0.8"
Fine: 0.1"
Longitudinal Table Speed, Hydraulic: 0 to 20 FPM
Swivels: +/- 10 Degrees
Reversing Dwell: 0 to 5 Seconds
Grinding Wheel Infeed:
1 Graduation of Feed Scale: 0.0002"
Automatic Hydraulic Infeed: 0 to 0.037"
Auto Infeed Per Table Reversal: 0.00004" to 1.18"
Plunge Grinding, Infeed Speed: 0.00001 to .0001 In/S
Micrometer Stop, 1 Graduation: 0.00005"
Universal Grinding Spindle Head:
Transverse Movement of Wheel Slide: 8-21/32"
Infeed Per Rev. of Handwheel:
Coarse: 0.3"
Fine: 0.04"
Hydraulic Rapid Wheel Slide
Advance/Retraction Stroke: 1-9/16"
Grinding Wheel Speeds: 1500, 1700, 2200 RPM
Wheel for Cylindrical Grinding: 16" x 2" x 5"
Wheel for Surface Grinding: 9" x 1/2" x 3"
Head Swivel with Locking Every 90 Degrees: 270 Degrees
Workhead:
Infinitely Variable Spindle Speeds: 6 to 600 RPM
Workhead Swivels: 360 Degrees
Inside Taper of Work Spindle: #5MT
Tailstock:
Inside Taper of Spindle: #4MT
Stroke of Spindle: 1-3/16"
EQUIPPED WITH:
Helt & Ross Servo Drive
Hydraulic Operation Featuring:
Single Lever Control
Infinitely Variable Table Traverse
Automatic Infeed
Plunge Infeed
Rapid Wheel Advance and Retraction
Sparkout Timer
Swing Around Head for I.D. Grinding
Adjustable Rise and Fall Mechanism of Wheelhead by Turn of Handwheel
Coolant System with Pump/Tank/Paper Type Coolant Filtration
MOTOR DATA: Spindle, Wheel, Coolant Pumps, Hydraulic Pump
Currently Wired for 230/60/3
OVERALL DIMENSIONS: 102" x 64" x 66" High
WEIGHT: 6,000 Lbs.
CONDITION: Good Working, Taken from Local Machine Shop
Get Your Price from Bass Machinery LLC!
