CATALOG SPECIFICATIONS: Tonnage Capacity, (Nominal) 80 TONS Tonnage Capacity, (Short Tons) 88 TON Stroke Length 3.93" Slide Adjustment 3.14" Slide Area, L-R x F-B 21.25" x 18.11" Bolster Area, L-R x F-B 37.4" x 18.11" Strokes per Minute, Variable 55 to 110 SPM Motor Horsepower 10 HP Floor Space Required, W x D 40" x 54"
3.93" Stroke (100mm) 11.8" Shut Height Over Bolster (300mm) 3.14" Adjustment (80mm) 55 - 110 SPM Variable Speed 37.4" x 18.1" Bolster Area (950mm x 460mm) 21.26" x 18.1" Slide Area (540mm x 460mm) 10 HP Main Motor (7.5kw) Light Curtains Vibration Mounts Pascal Hydraulic Die lift & Clamping, 54" x 68" x 109" T ...more
AIDA 88 TON GAP FRAME PRESS, S/N 10208-9061, STOCK# 14431J, 3.93" Stroke (100mm), 11.8" Shut Height Over Bolster (300mm), 3.14" Adjustment (80mm), 55 - 110 SPM Variable Speed, 37.4" x 18.1" Bolster Area (950mm x 460mm), 21.26" x 18.1" Slide Area (540mm x 460mm), 10 HP Main Motor (7.5kw), Light Curtains, Vibration ...more

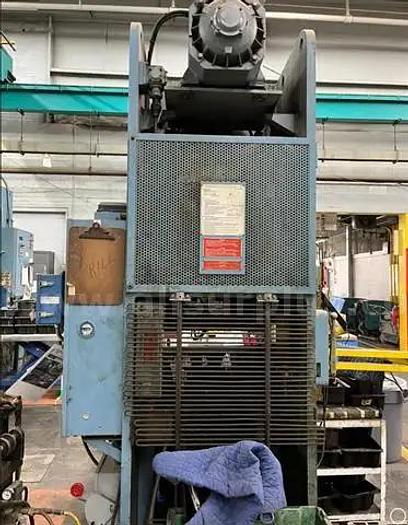

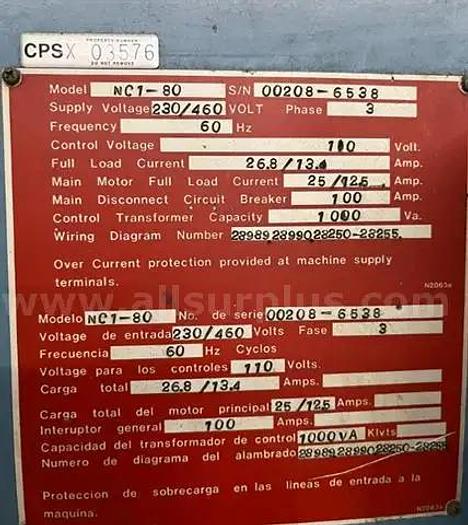

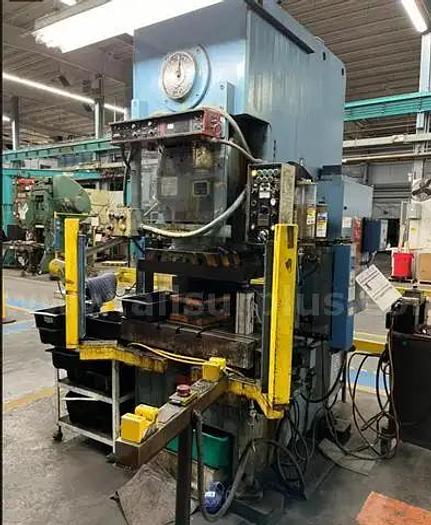

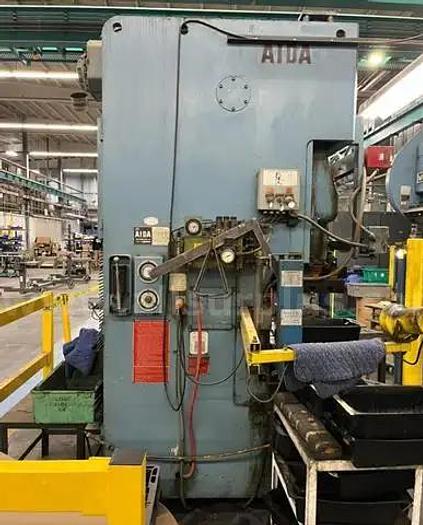

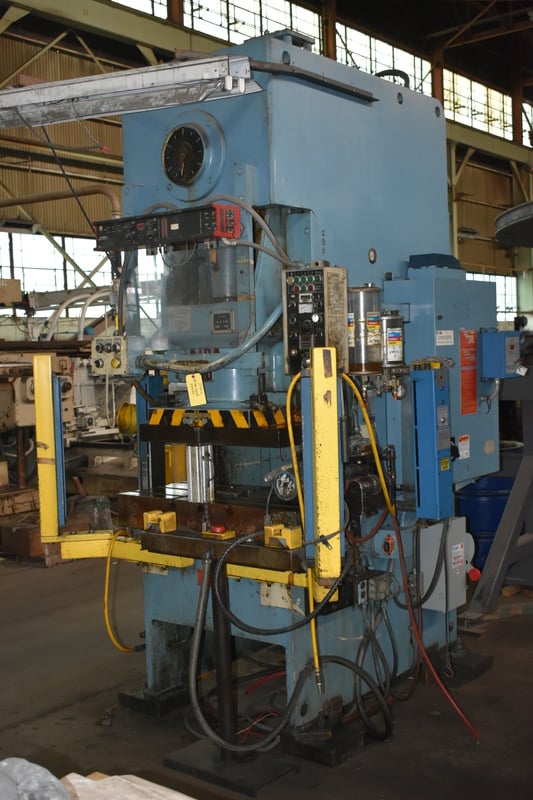

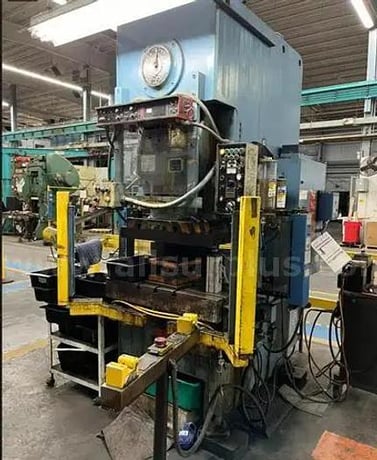

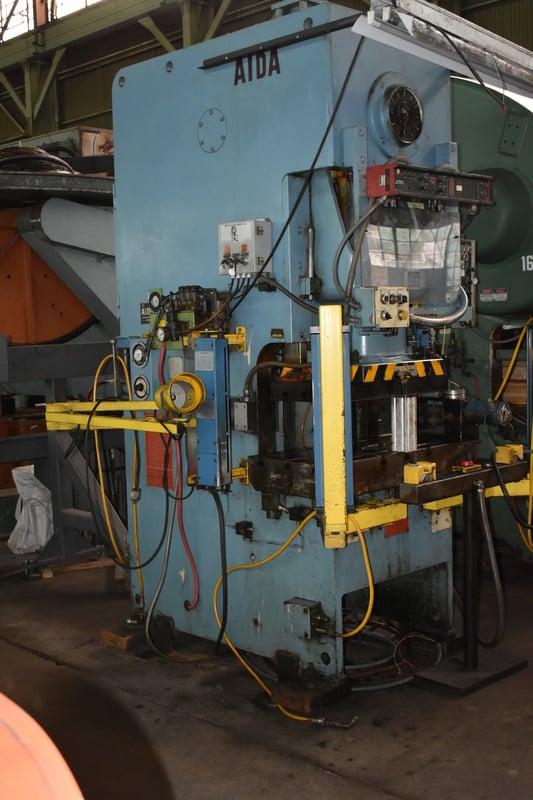

, Boost your production with this used 88 Ton AIDA NC1-80(1) single-crank gap-frame press. s include a 3.93" stroke, 10 HP power, 37.4" x 18.11" bed, variable SPM of 55110, and air clutch for enhanced functionality. Located in Cincinnati., Spec Sheet:, 88 TON AIDA SINGLE-CRANK GAP-FRAME PRESS, Serial No 00208-6538 ...more
Tonnage 80, Stroke 3.94 inches, Shut Height 18 inches, Adjustment 3.2 inches, Bed Size 39.3" LR x 23.6" FB, Ram Area 21.65" LR x 17.7" FB, SPM 60-120 VSPM, Standard, 80-ton Komatsu OBS Press, Model 80 H-VS-3, 80 ton Capacity (metric), 3.94" Stroke, 13.8" Die Height over Bolster, 3.15" Motorized Adjustment, 39.3" LR x ...more
Sutherland Mark-88 OBS Punch Press 88 Ton #6954 #1, Capacity: 88 Ton, Blanking Capacity: 70 Ton, Slide Stroke: 3.9", Strokes Per Minute: 55 to 130 SPM (Variable), Die Height: 22.8", Slide Adjustment: 3.2", Slide Area LR x FB: 22" x 18", Bolster Area LR x FB: 41.3" x 23.6", Main Motor: 10 HP, Air Pressure Required: 72 ...more
