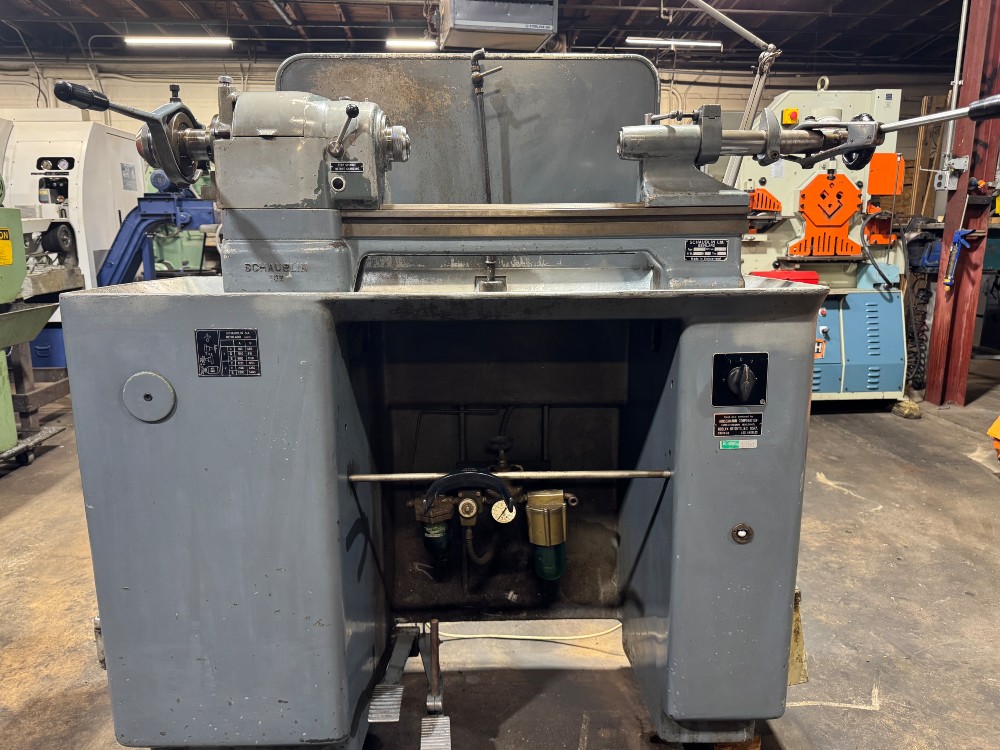

8" x 17" Schaublin #102-80, Precision Pedestal Tool Room Lathe, 35.43" bed length, 4.72" swing over cross slide, 0.78" spindle bore, 3600 RPM

Schaublin 102-80
Precision Pedestal Tool Room Lathe
Stock#R889
Model 102-80
Serial#1611

Workpiece Capacity & Dimensions
• Center Height: 102 mm (4.01")
• Swing Over Bed: 200 mm (7.87")
• Swing Over Carriage / Slide: 120 mm (4.72")
• Distance Between Centers: 375 mm (14.76") w/tailstock
• Bed Length: 900 mm (35.43")

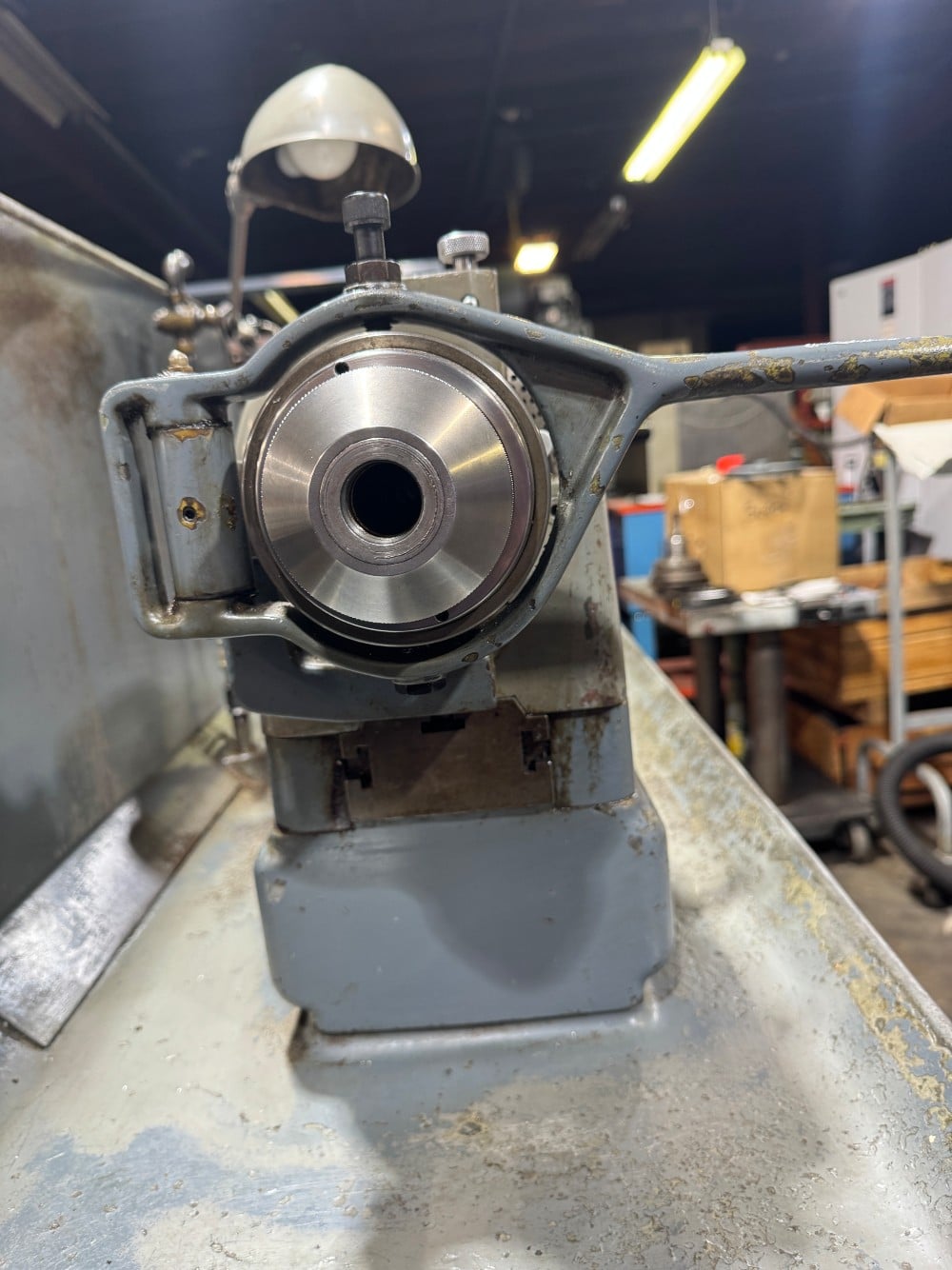

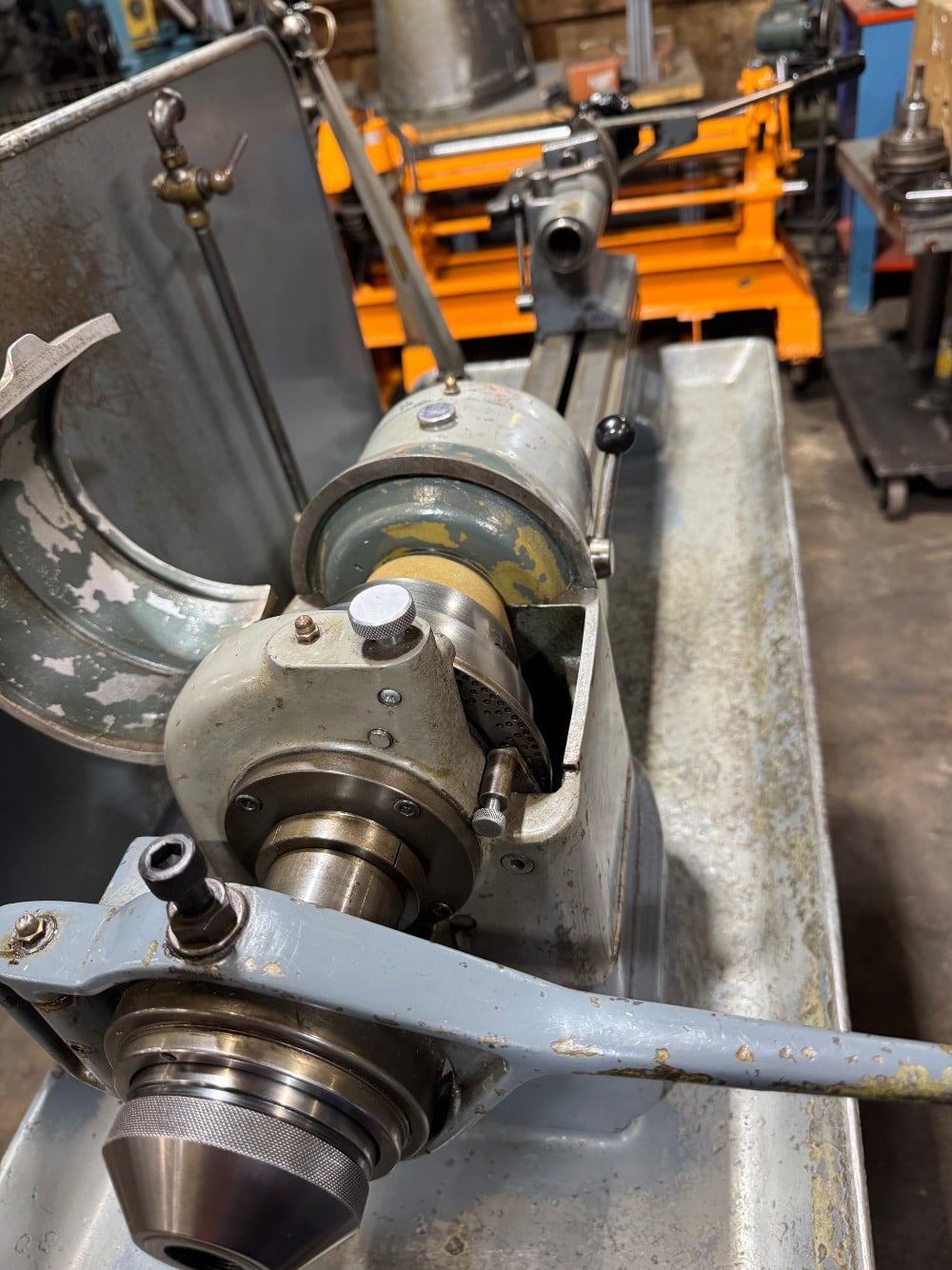

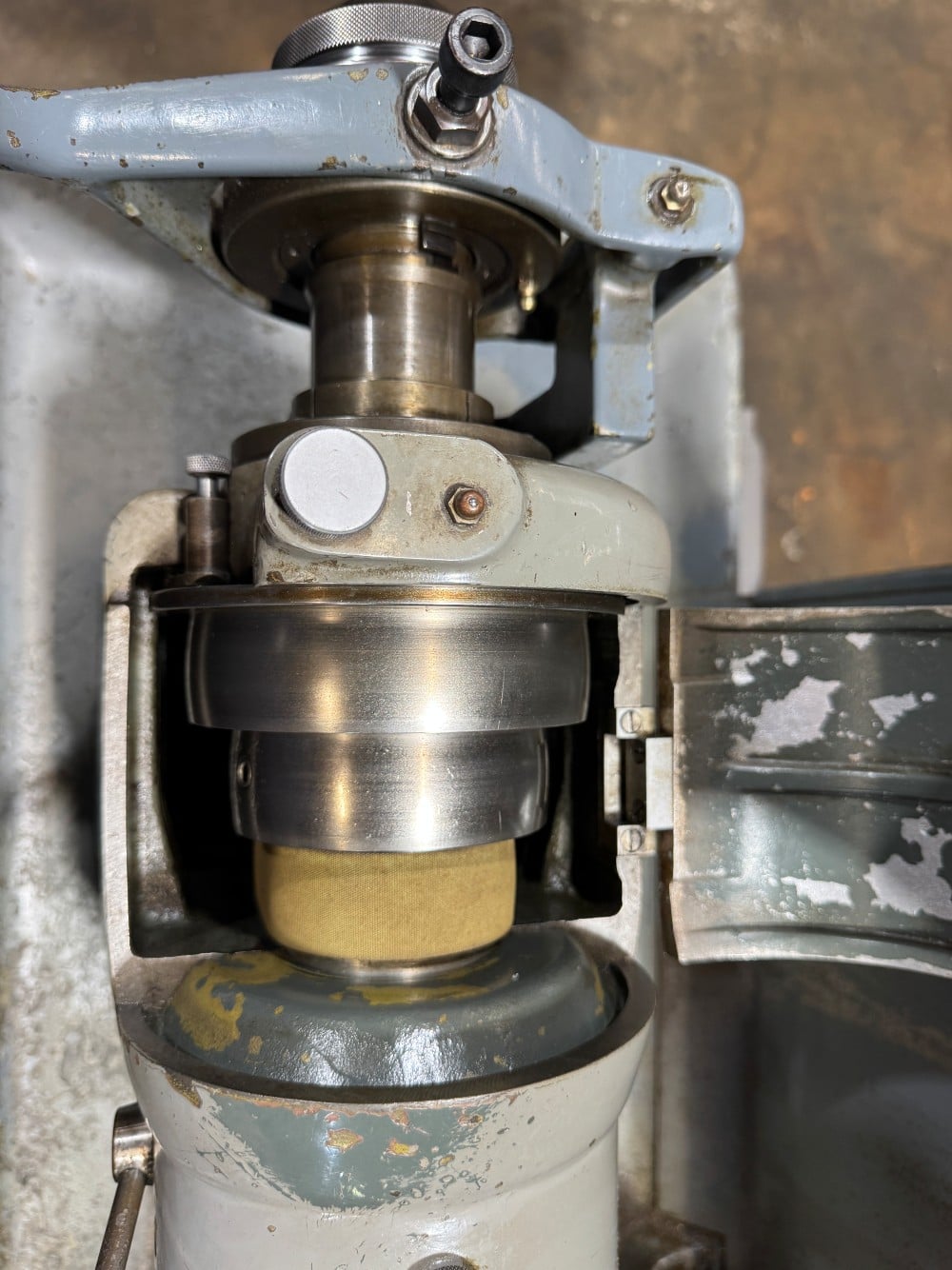

Headstock Options & Spindle Setup
• Spindle Collet Interface: Schaublin W20 (Standard)
• Spindle Bore: 20 mm (0.78")
• Maximum Collet Capacity: 14.5 mm (W20)
• Spindle Speeds: 360 to 5400 RPM
• Spindle Nose Tread: M37.5 x 3 mm (W20)

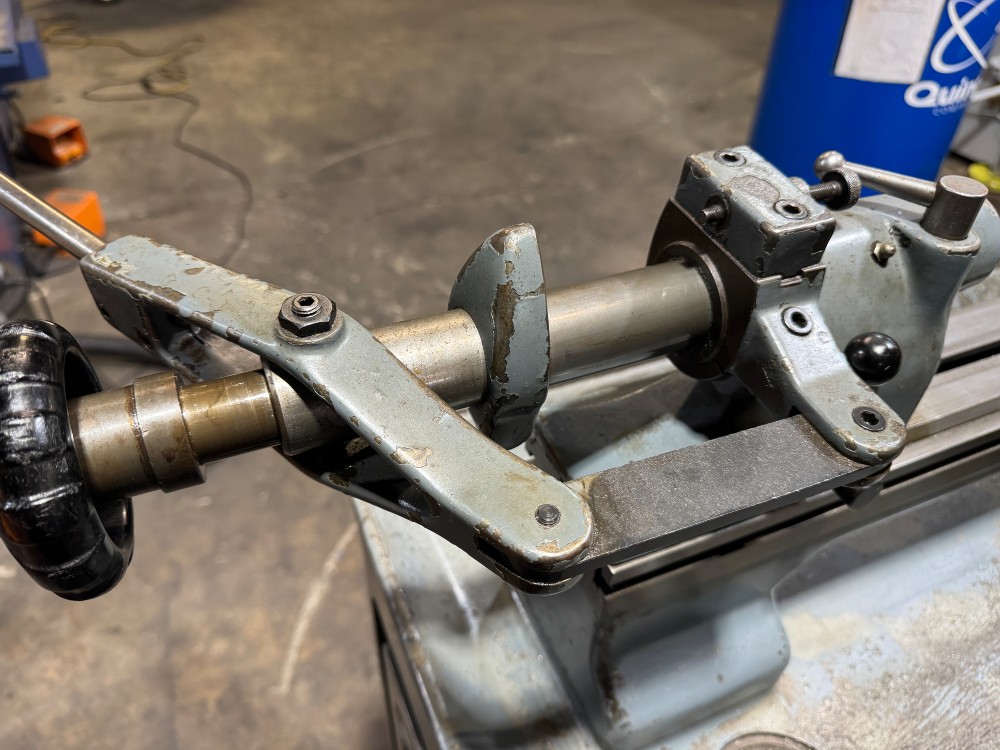

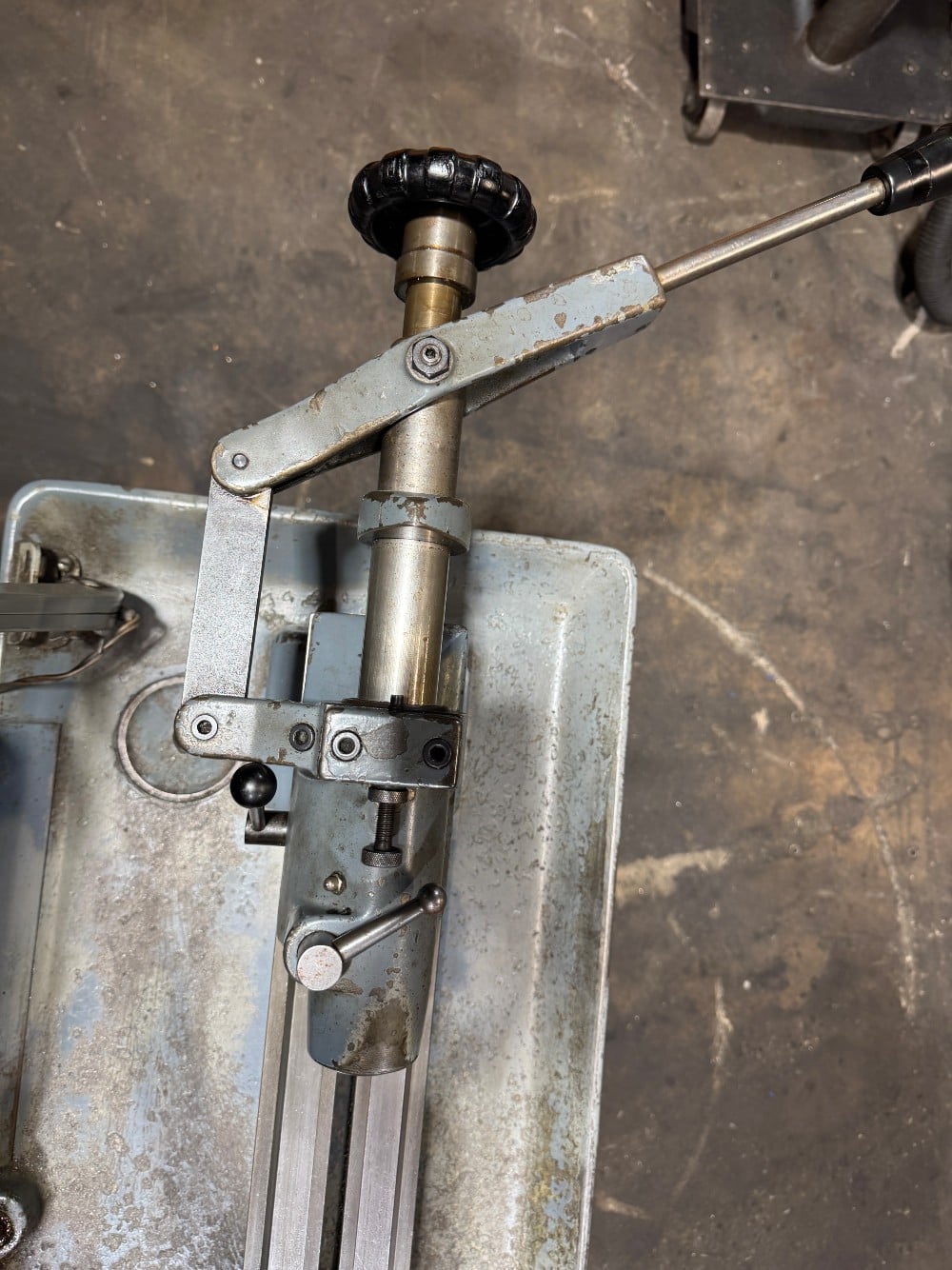

Tailstock & Sub-structure
• Tailstock Taper Internal: Morse Taper No. 2 (MT2)
• Spindle Travel: 80 mm (3.15")
• Bed Profile: Ground cast iron prism way with matching wide flat-rear stabilizing track

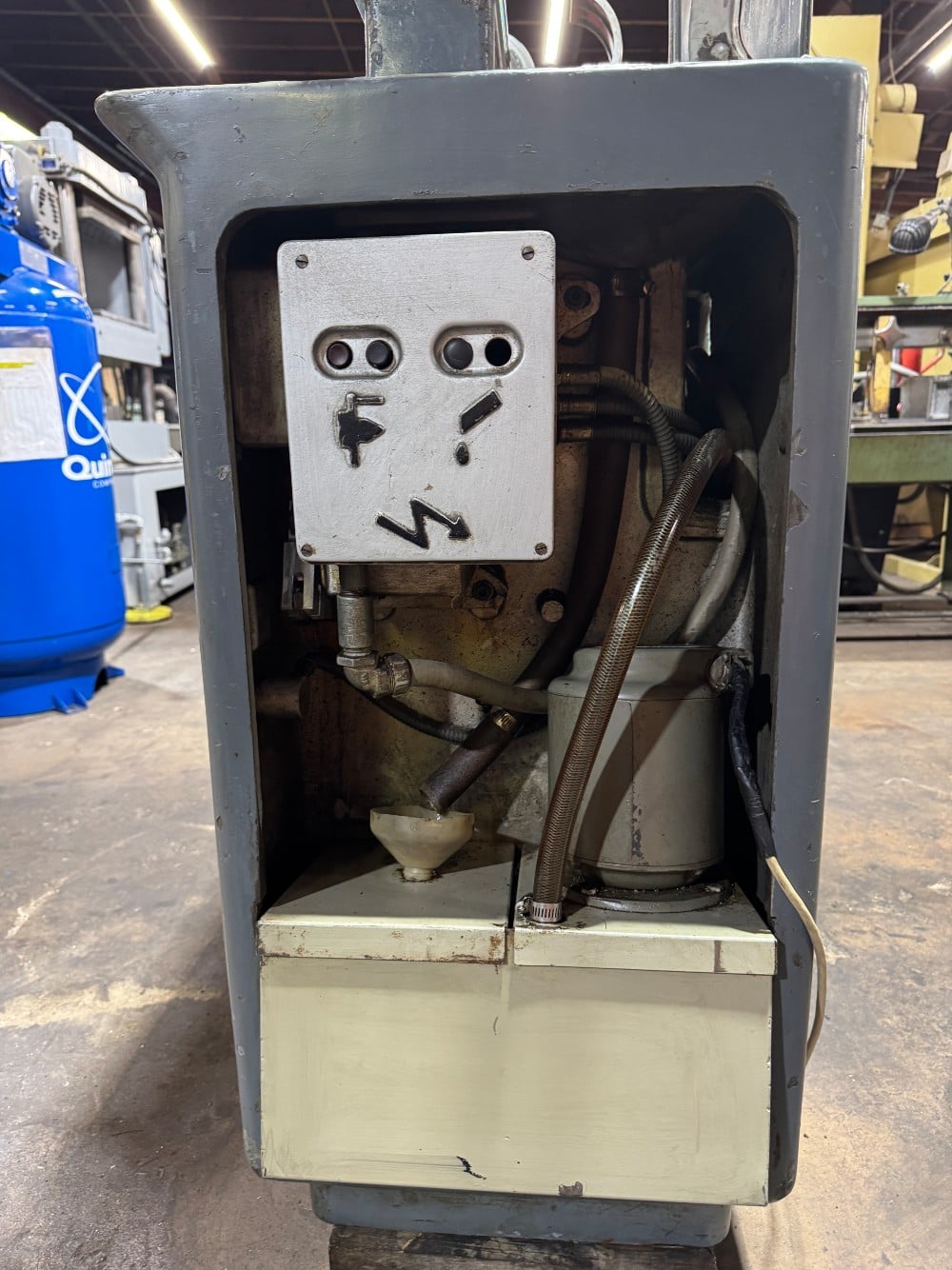

• Base Configuration (-80 designation): Monoblock cast-iron floor pedestal cabinet enclosing the motor assembly

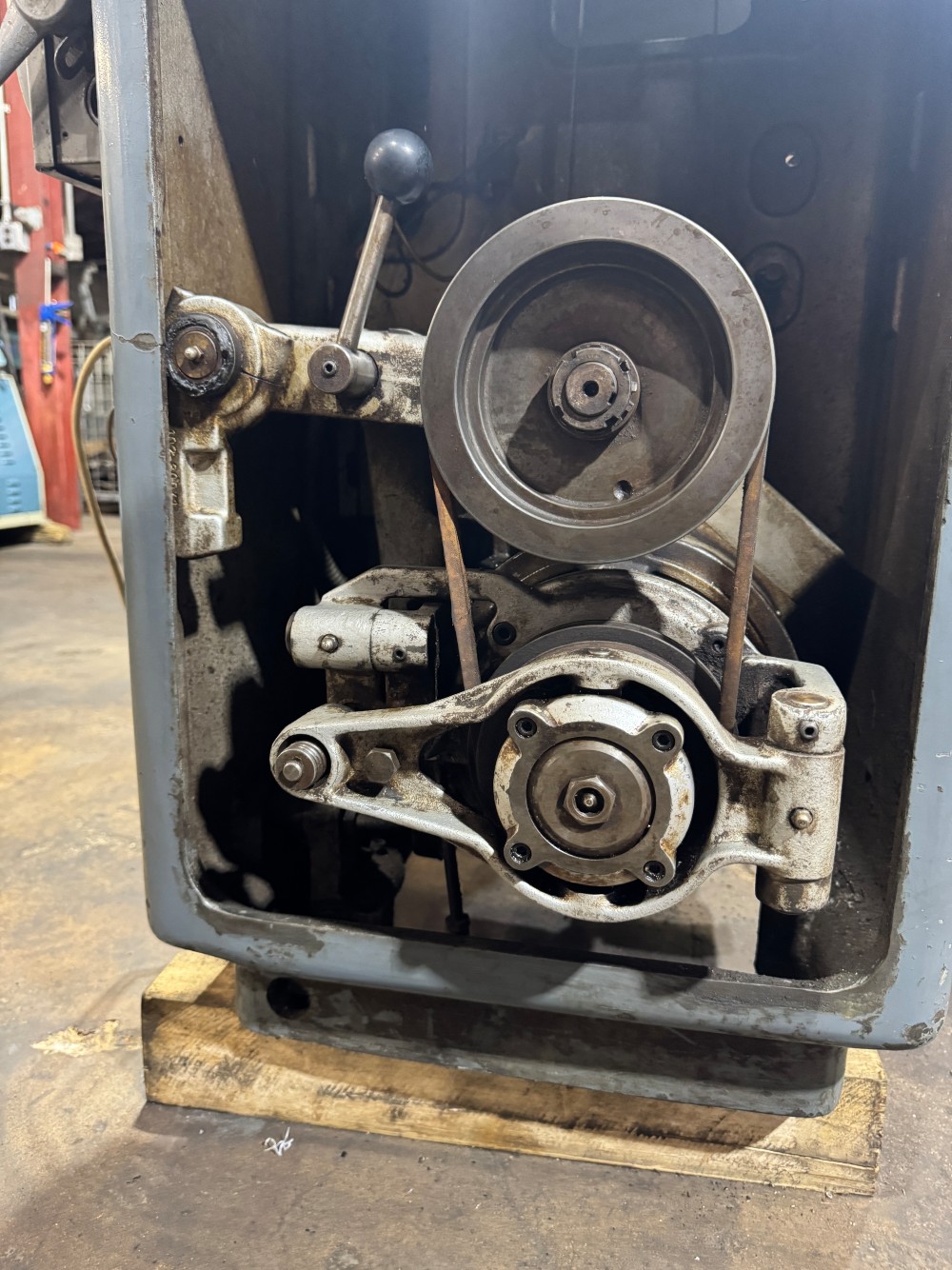

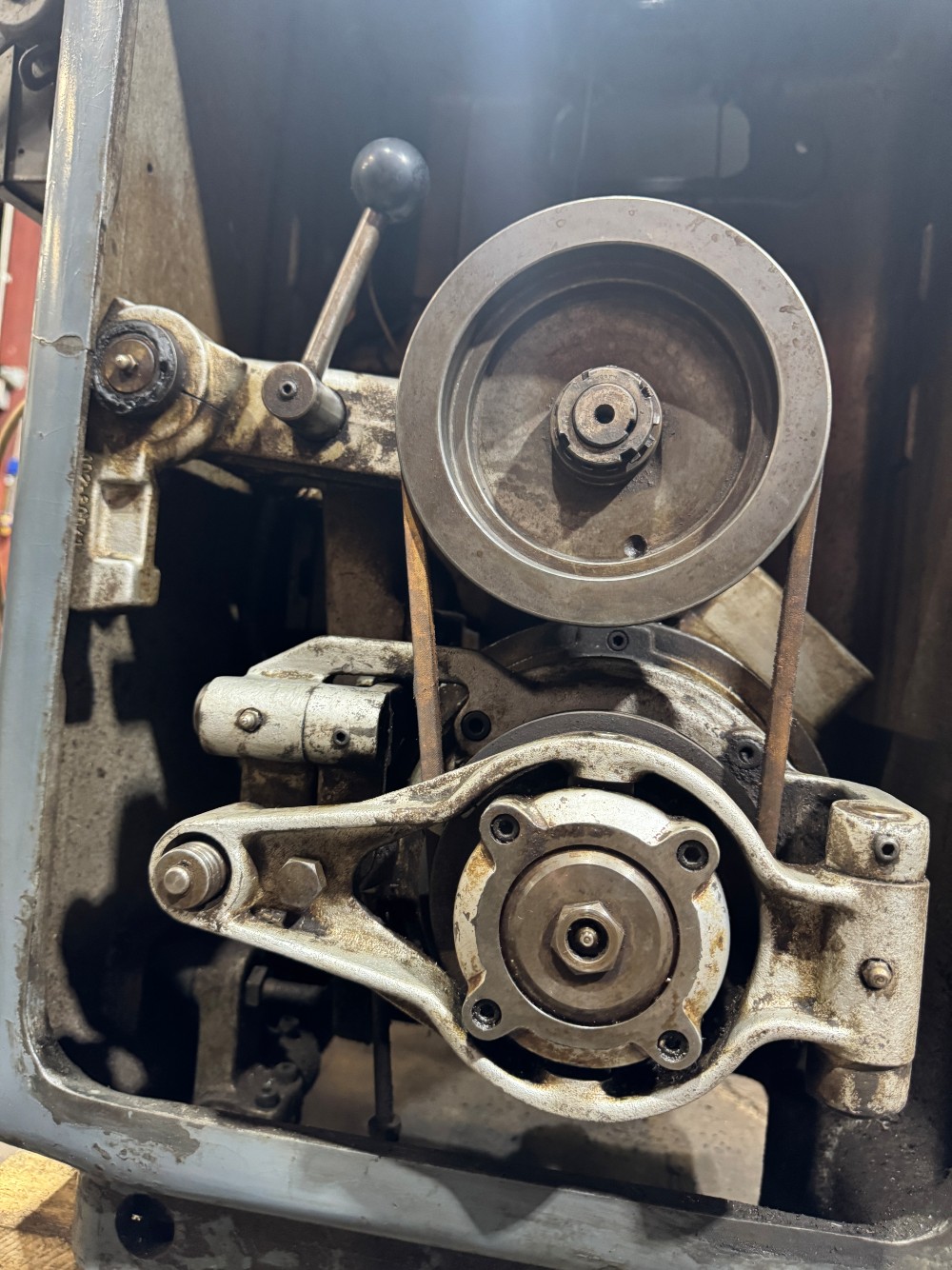

Drive Mechanics & Weight
• Motor Profile: 2-speed, pole-changing 3-Phase electric motor (typically 0.45 kW / 1.1 kW)
• Clutch Mechanism: Integrated foot-pedal operated brake and mechanical clutch lever for rapid spindle stopping
• Total Machine Footprint: Approximately 1100 mm x 600 mm x 1200 mm
• Net Operational Weight: ~380 kg to 420 kg (838 to 925 lbs) depending on internal drive layout
