Description

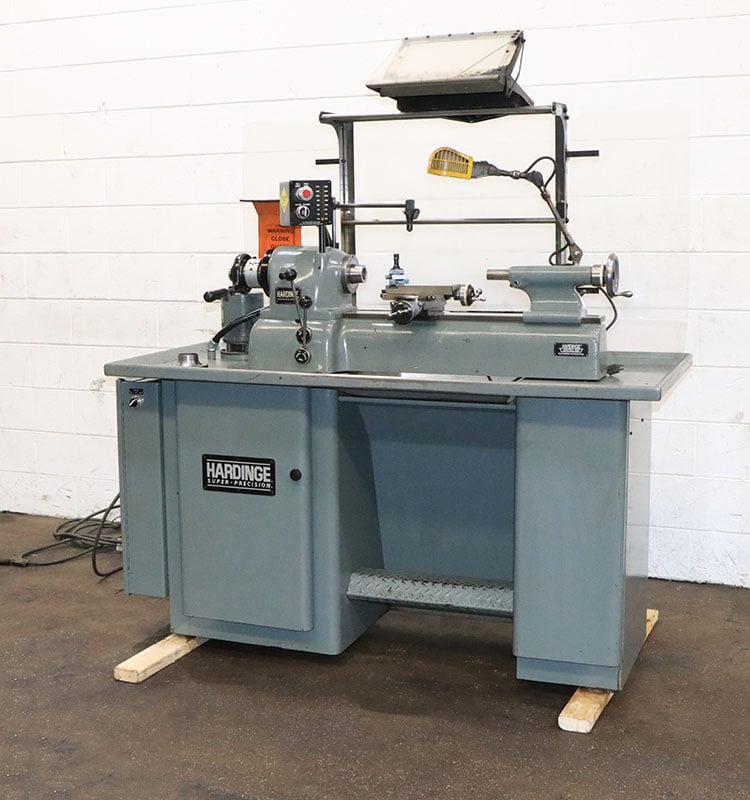

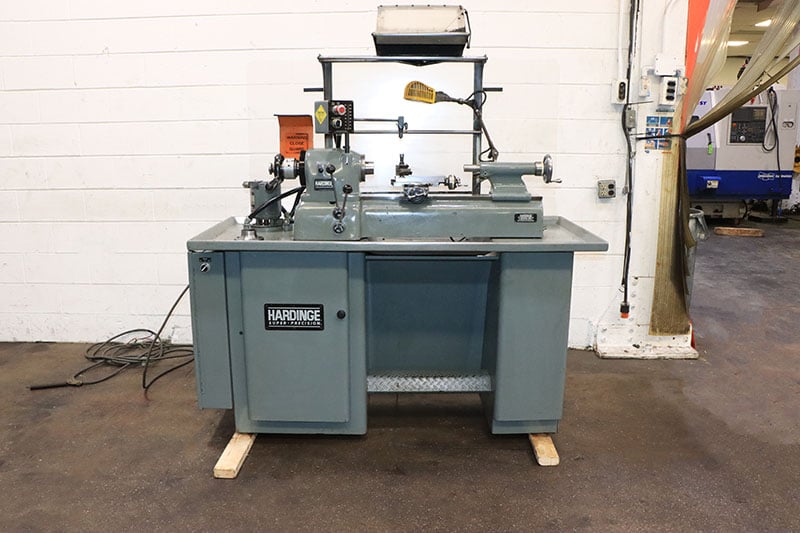

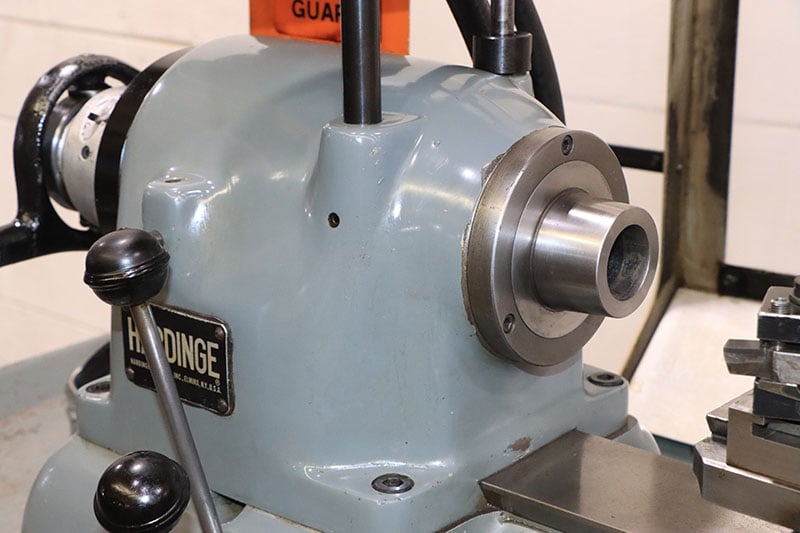

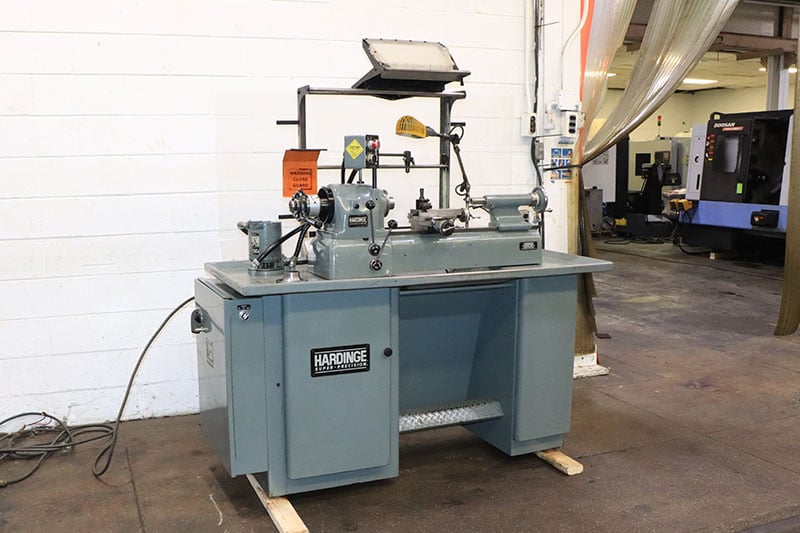

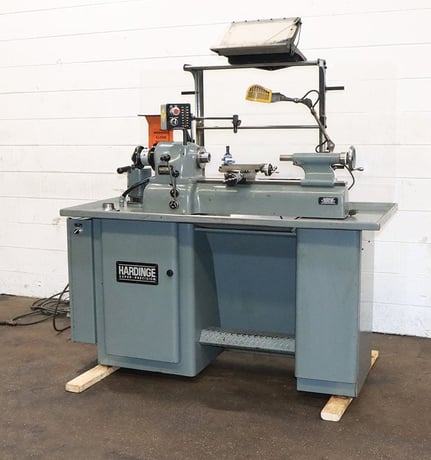

HARDINGE SUPER PRECISION FIRST OPERATION LATHE
MODEL: DV-59,… S/N: DV-59-18747,… NEW:… 1987
SPECIFICATIONS:…
SPINDLE CAP. w/ROUND 5C COLLETS ...... 1-1/16"…
HEXAGON 5C COLLETS .... 7/8"…
SQUARE 5C COLLETS .....″/4"…
STEP CHUCKS ........... 1-1/16" TO 6"…
JAW CHUCKS ............ 5"…
JAW CHUCKS THROUGH SPINDLE 1-5/32"…
SPINDLE TAPER ........................ 2-3/16" - R.H.
SWING OVER BED ....................... 9"…
DISTANCE BETWEEN CENTERS ............. 17"
TRAVEL OF TOP SLIDE .................. 4-1/4"
TRAVEL OF BOTTOM SLIDE ............... 5"…
TRAVEL OF TAILSTOCK SPINDLE ..........″-1/2"
TAILSTOCK SPINDLE TAPER .............. #3MT
VARIABLE SPINDLE SPEED RANGE ......... 230 TO″500 RPM…
APPROX. WEIGHT ....................... 1,150 LBS.…
EQUIPPED WITH:…

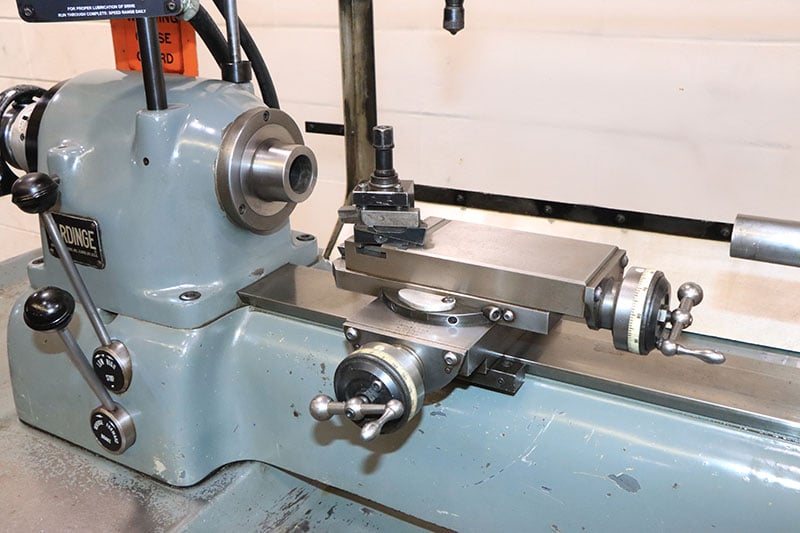

- HARDINGE TOOLMAKERS COMPOUND
- HARDINGE FULL BEARING TAILSTOCK

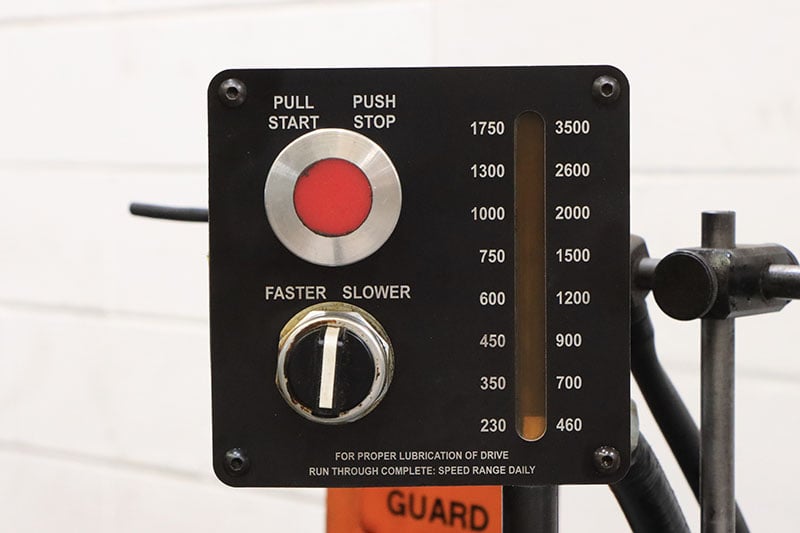

- PUSH BUTTON CONTROL FOR VARIABLE SPEED
- BALL BEARING LEVER TYPE 5C COLLET CLOSER
- COOLANT SYSTEM…
-″/60/230 VOLT TWO-SPEED DRIVE MOTOR& ELECTRICAL CONTROLS…
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
Get Your Price from Machinery Values Inc!
