For Sale by Bass Machinery LLC
Surplus Record Dealer Since 2009
Location: Toledo, OH
Contact Sales
Phone Number: 419...> Show Phone Number 419-243-2277
Let the seller know you found their listing on Surplus Record!
Description

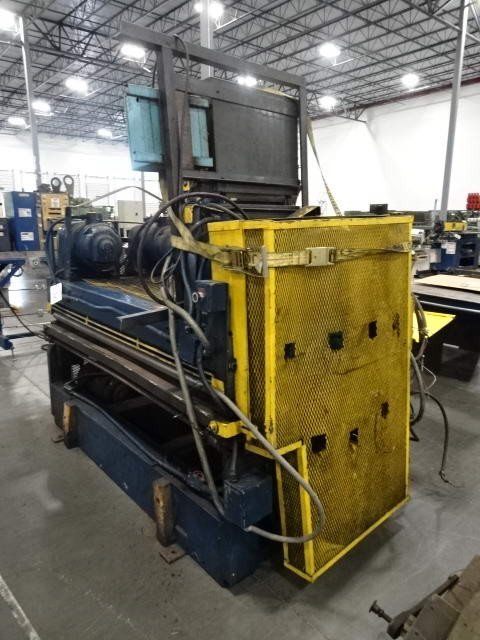

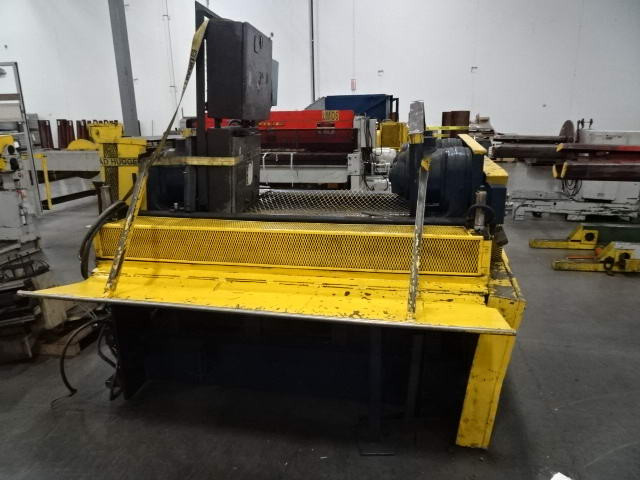

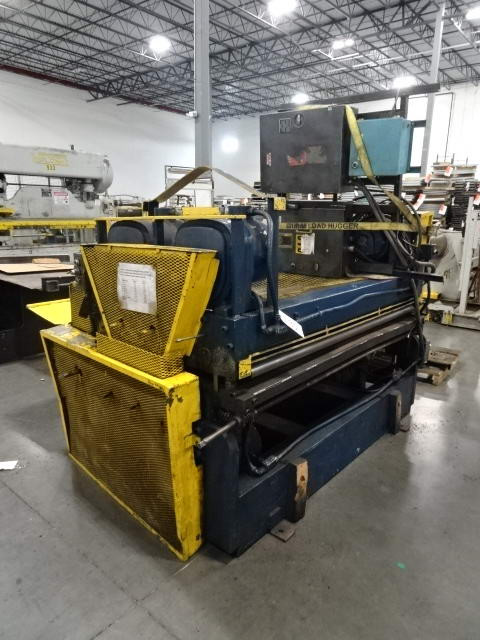

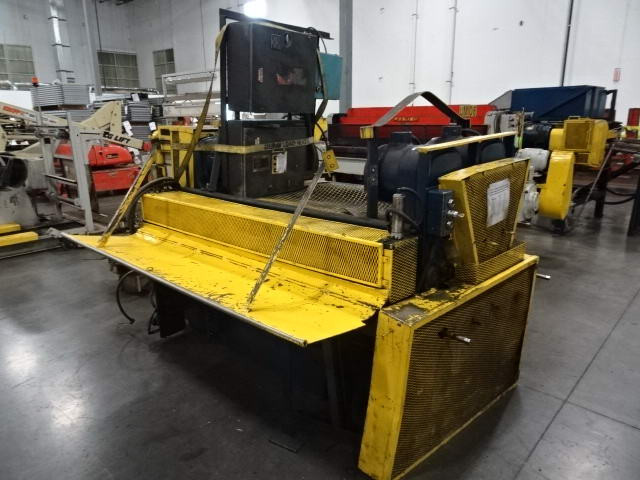

1-1/2" x #6 x 72" STANDARD RAISED EXPANDED METAL Flattener
SPECIFICATIONS:
4 Over 3
Flattening Rolls: 8" Dia. on 9" Centers
All (7) Rolls are Individually Driven
By Separate Motors
Pair of Driven Urethane Entry Pinch Rolls:
6" Diameter with Upper Roll Pressure by
(2) Pneumatic Cylinders
Roll Length: 75"
EQUIPPED WITH:
(1) Smaller Exit Non-Driven Hold Down Roll
MOTOR DATA: (7) 2 HP, 220/440/60/3
OVERALL DIMENSIONS: 8'7" L x 7' W x 7' High
WEIGHT: 15,000 Lbs.
SPECIFICATIONS:
4 Over 3
Flattening Rolls: 8" Dia. on 9" Centers
All (7) Rolls are Individually Driven
By Separate Motors
Pair of Driven Urethane Entry Pinch Rolls:
6" Diameter with Upper Roll Pressure by
(2) Pneumatic Cylinders
Roll Length: 75"
EQUIPPED WITH:
(1) Smaller Exit Non-Driven Hold Down Roll
MOTOR DATA: (7) 2 HP, 220/440/60/3
OVERALL DIMENSIONS: 8'7" L x 7' W x 7' High
WEIGHT: 15,000 Lbs.
Get Your Price from Bass Machinery LLC!
