Manufacturer: Bendmak
Model: CY3R-HHS190-20/08
Length': 7.00
CapacityInches or Gauges: .31250
Stock # 3806
For Sale by Southern Fabricating Mchy Sales
Surplus Record Dealer Since 2015
Dan McCurdy
813-44...> Show Seller's Phone Number 813-444-4555 Let the seller know you found their listing on Surplus Record!
Description

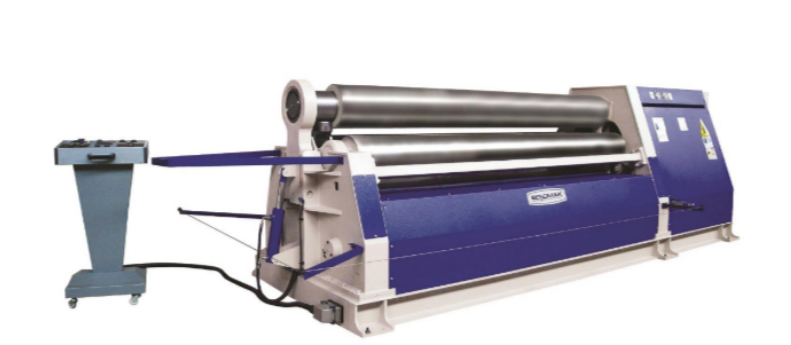

5/16" X 6' 3-Rolls Hydraulic Plate Roll with Hardened Rolls, Digital Display, Steel (ST-52) Machine Body, Separate Control Panel, Movement & Parallelism Adjustment of Rollers from Control Panel.
GENERAL SPECIFICATIONS
- Working Length: 6’
- Pre-Bending: 1/4"
- Bending: 5/16"
- Number of Rolls: 3
- Motor Power: 4.02 HP
- Top Roll Ø: 7.48”
- Side Roll Ø: 7.08”
- Length: 155.51”
- Height: 45.66”
- Width: 42.51”
- Weight: 6,504 Lbs
- Min Ø Top Roll Dia: X 3
- Maximum Thickness: (ø Min = Top Roll Ø X 3 ) In
INCLUDES: Hardened Rolls, Digital Display, Steel (ST-52) Machine Body, Separate Control Panel, Movement & Parallelism Adjustment of Rollers from Control Panel.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
Get Your Price from Southern Fabricating Mchy Sales!
