66" x .187" UMI, slitting line, 40,000 lb., .015" - .187" thick, 7" arbor, 2 slitter heads, 75 HP DC, 44,000 lb. recoiler, LR, 1976

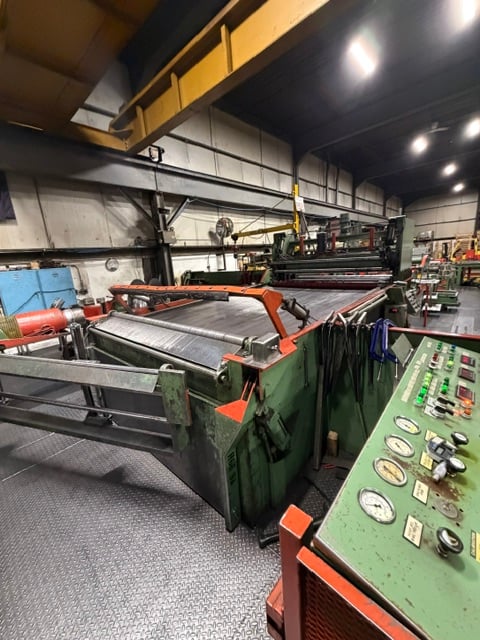

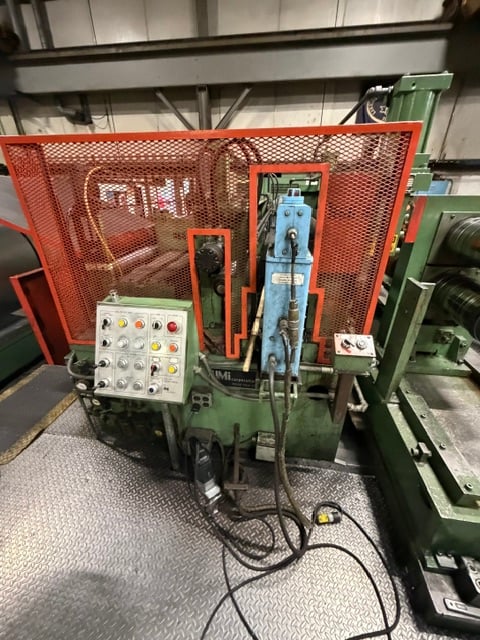

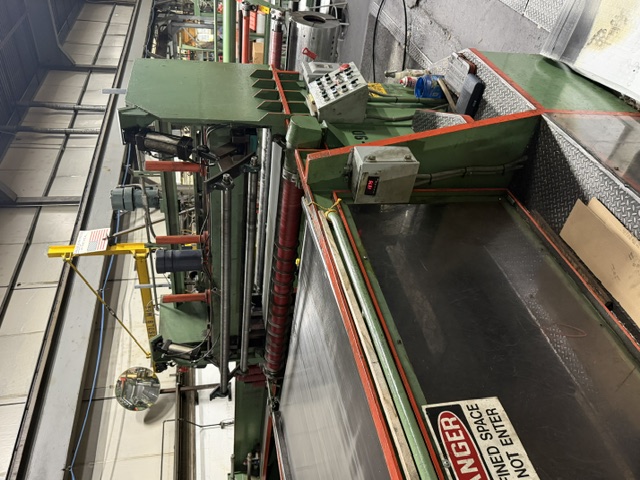

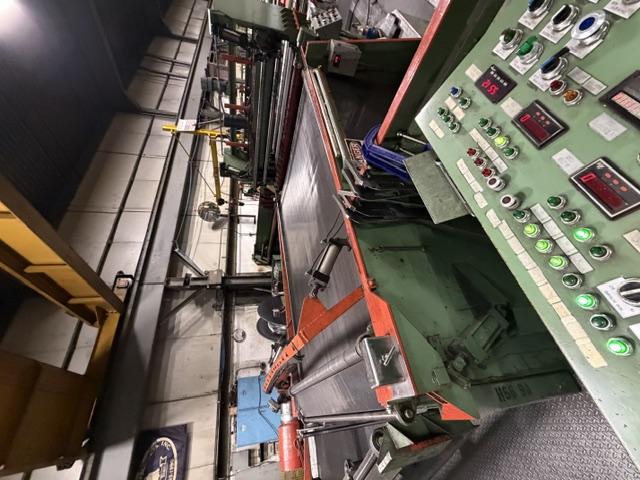

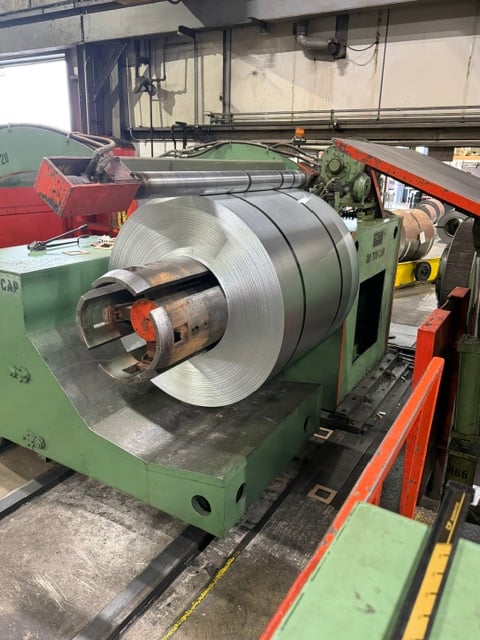

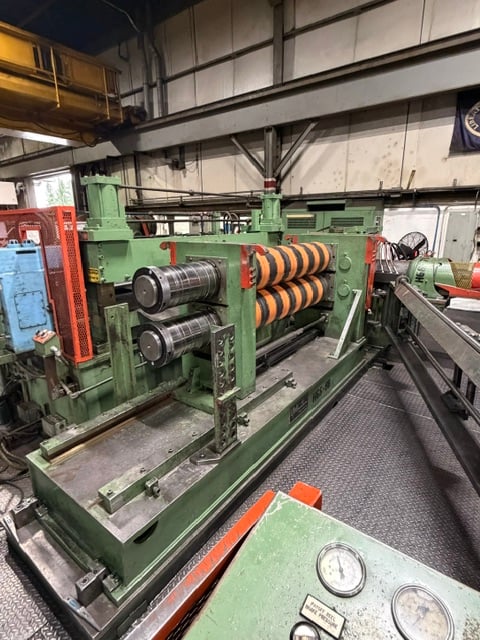

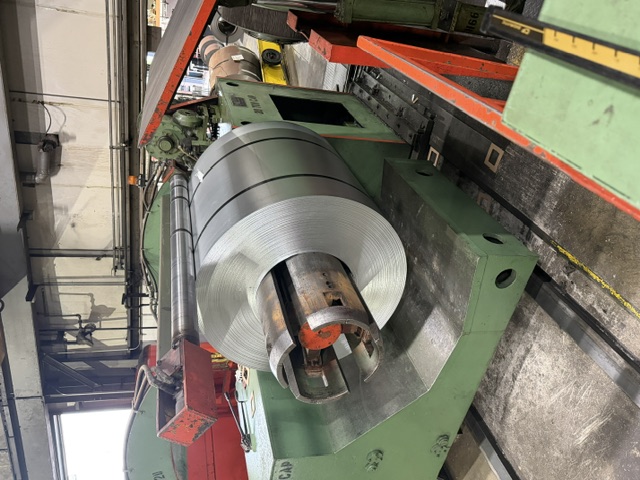

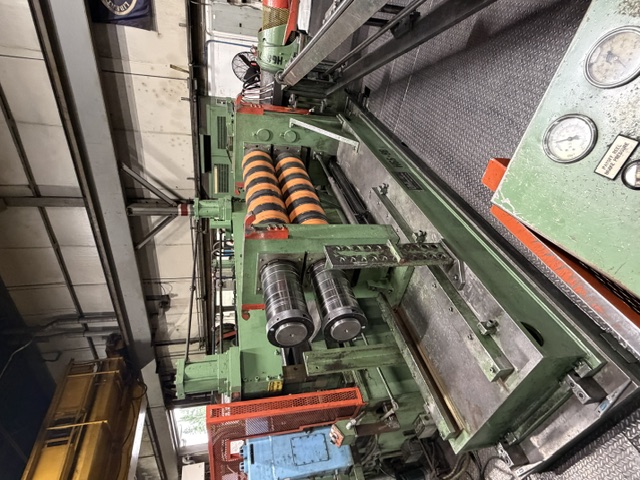

This 66” UMI Slitting Line, manufactured in 1976, offers robust performance for processing a variety of materials. The line is capable of handling coils with a maximum width of 66 inches and a weight of up to 40,000 lbs. Designed for materials with thicknesses ranging from .015" to .187", it operates efficiently in a left to right orientation. Key components include a 7" slitter arbor diameter and dual slitter heads powered by a 75 HP DC drive, ensuring precision in slitting tasks. The whole system includes a recoiler with a capacity of 44,000 lbs and a 75 HP drive for effective material handling. Auxiliary equipment features an above-floor coil car, a 70" wide uncoiler with hydraulic expansion, and an attached driven hold-down roll. Additional facilities include a hydraulic peeler table, X-ray gauge, and a two-head slitter with cable carryover tables which all enhance operability and convenience. A key highlight is the semi-automatic Signode banding head included in the shared banding line, which aids in the efficient handling and packaging of processed materials. The slitting line further incorporates a tension stand, an outboard support for dynamic slitter head width adjustment, and a 3-speed recoiler gearbox. Essential functionalities such as hydraulic push-off plates, chain and sprocket drive mechanisms, and a shared 2-arm UMI turnstile demonstrate the line's comprehensive capacity for high-volume industrial applications, catering to businesses seeking adaptability and durability in their slitting processes.
66"40,000 lbs. (20 Tons).015".187"Left to Right7"275 HP DC75 HP
