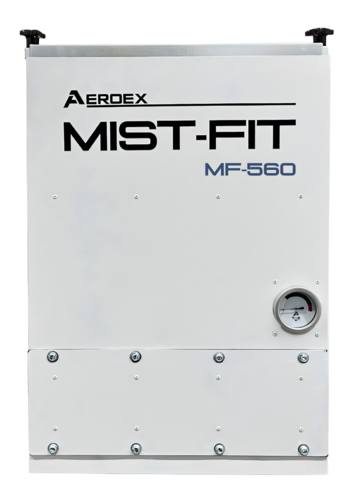

600 cfm Aeroex #MF-560, Mist-Fit mist collector, 0.75 HP, 6" diameter inlet, 68 dB(A), 125°F max., 86 lb.

The Aeroex Mist-Fit MF-560 is engineered for high-pressure coolant, oil mist, smoke, and demanding machining applications. Its larger filtration housing and optional pre-filtration box make it particularly well suited to Swiss lathes and screw-machine environments. Technical Specifications Air flow 500-600 CFM Recommended enclosure Up to 250 cubic feet Motor 0.75 hp Voltage options 115/1/60, 220/1/60, 230/3/60, or 460/3/60 Inlet connection 6-inch diameter Sound level 68 dB(A) Coolant pressure range 30-3000 psi Oil pressure range 30-2000 psi pH range 5.8-9.8 Maximum temperature 125 degrees F / 50 degrees C Weight 86 lb Dimensions (L x W x H) 18.9 x 18.9 x 28.8 inches HEPA filtration Optional Progressive Multi-Stage Filtration Mechanical element: separates the largest mist droplets and swarf so collected fluid can drain back toward the machine sump. Demister element: supports the first stage with a washable separation layer. MERV 15 fibre-bed filter: depth-loads fine mist and smoke particles for long service life. Optional HEPA stage: available when the application requires additional sub-micron filtration. Mounting and Installation Options Bay Area CNC Machinery can help select the collector configuration and mounting arrangement for the machine enclosure and available shop space. Direct machine mounting Wall mount Side mount Suspension kit Pedestal mount Adjustable floor stand Blank or machine-specific base plates Available Configurations 115 V single-phase, 220 V single-phase, 230 V three-phase, and 460 V three-phase electrical configurations Optional pre-filtration box for oil, heavy mist, and Swiss screw-machine applications Optional HEPA and combination HEPA/carbon filtration Alternative inlet, base-plate, hose, hood, and mounting configurations Final configuration, electrical requirements, mounting hardware, freight, and installation requirements will be confirmed during quotation.
