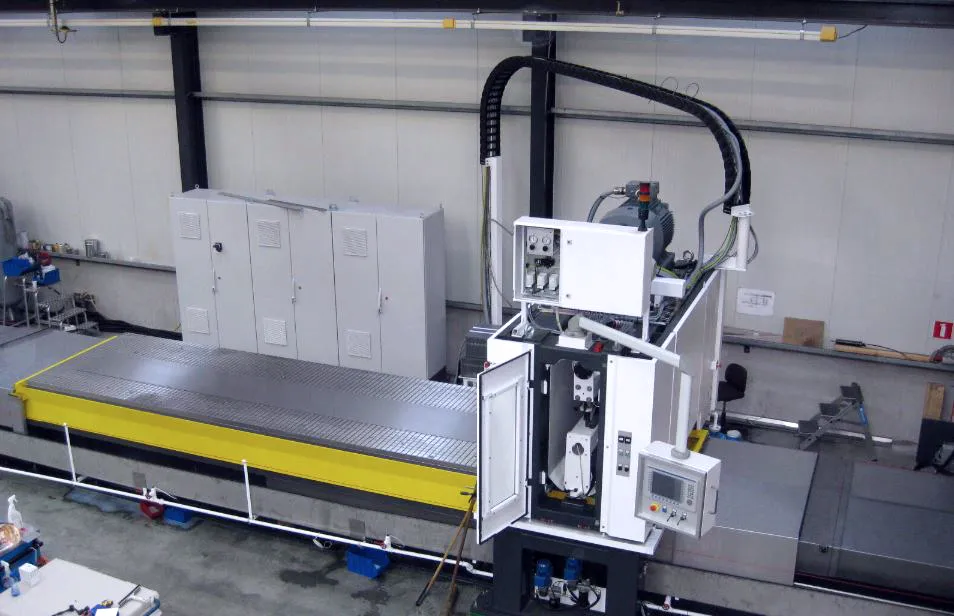

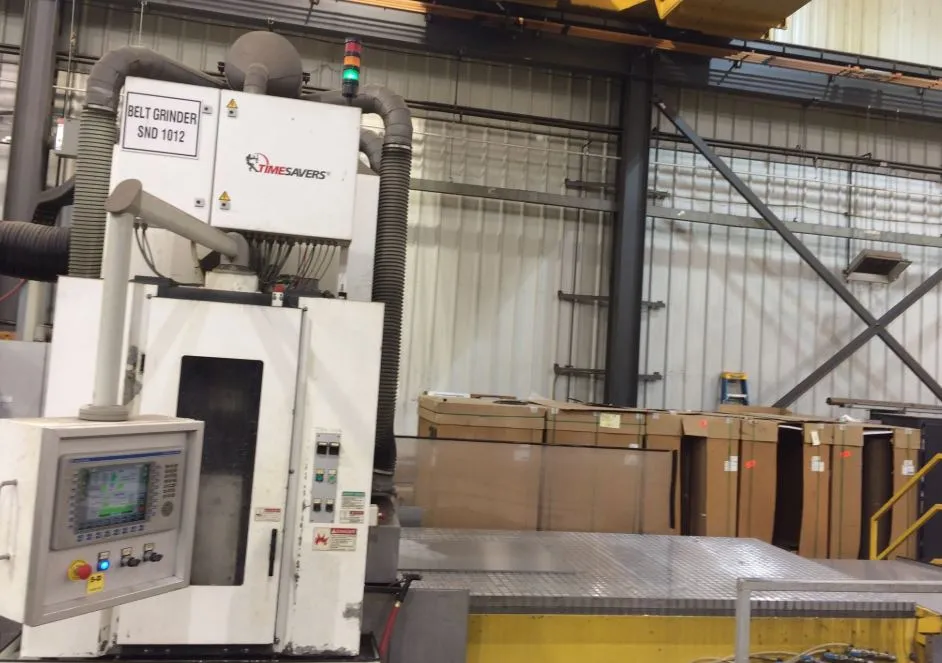

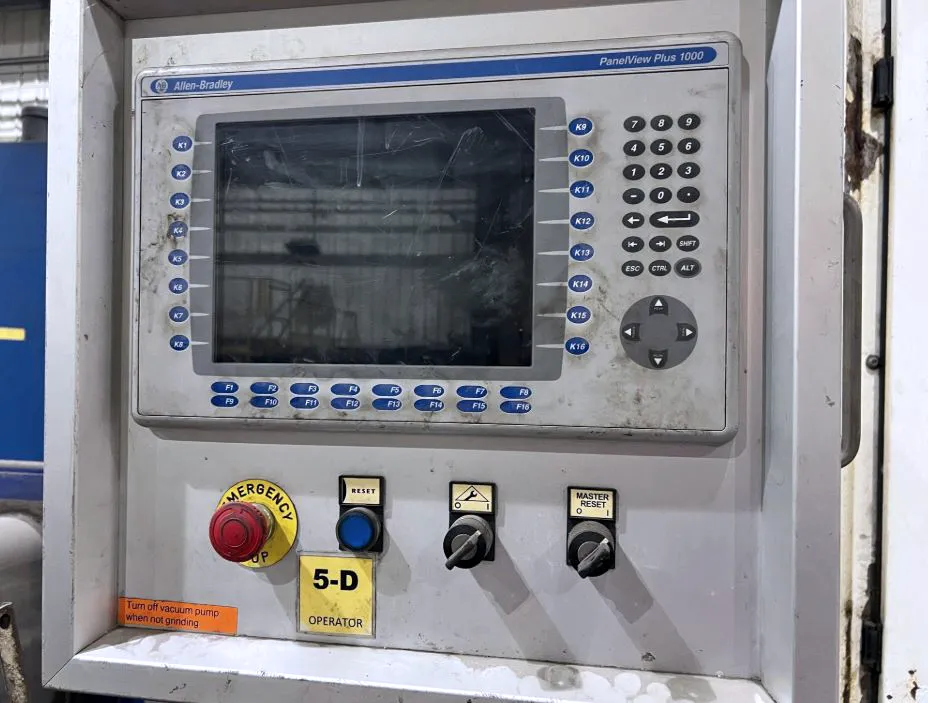

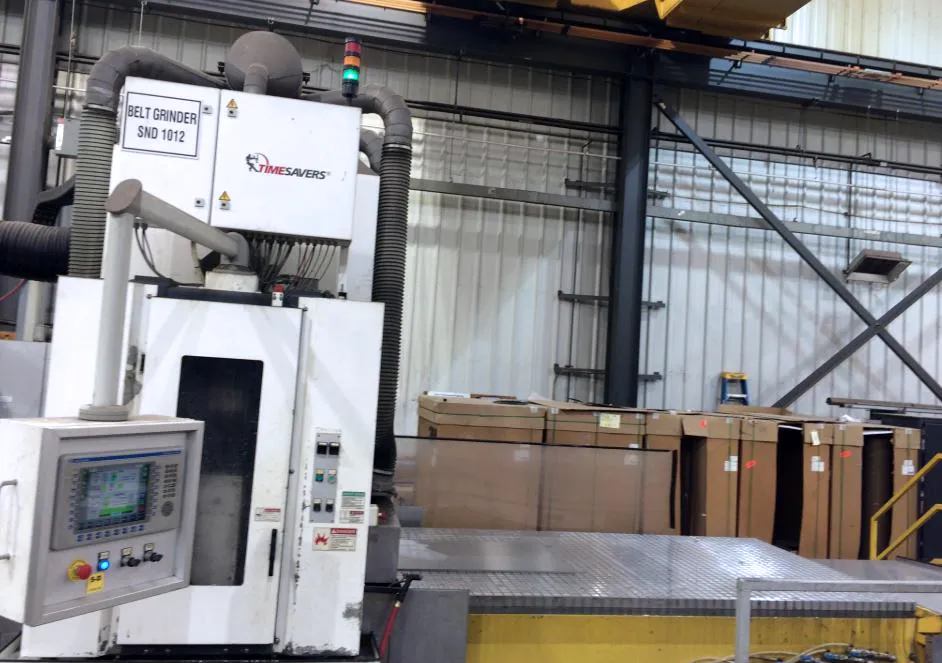

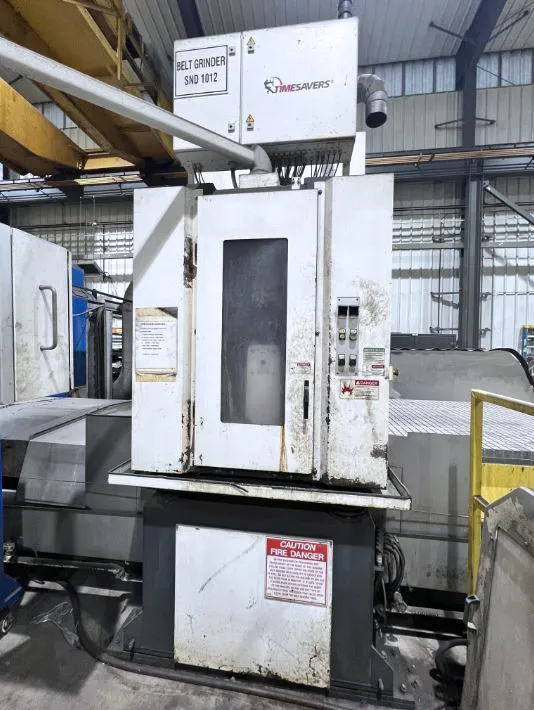

60" Timesavers #Series-81, belt grinder, Allen-Bradley Panel View Plus 1000, 2012

Used TIMESAVERS Series 81. This pre-owned Belt Grinder is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this TIMESAVERS Belt Grinder we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Distance between the contact roller and the vacuum table: 0.030-4"
Accuracy in adjustment of height: 0.0005"
Feed speed, frequency controlled: 0.001-4"/min

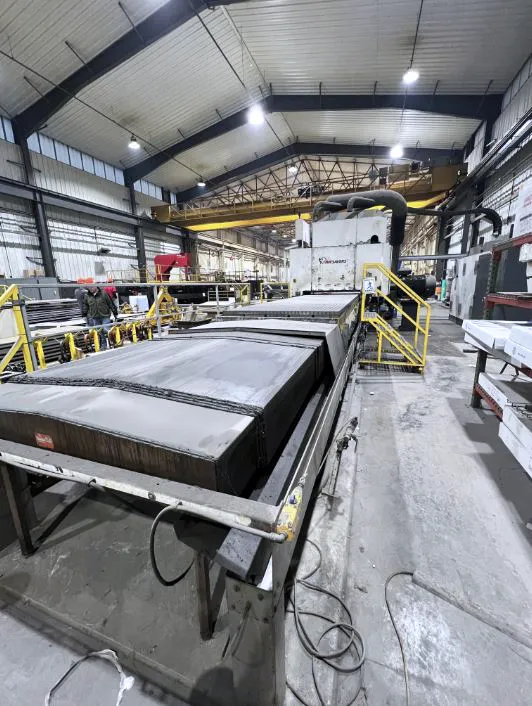

Vacuumtable L x W: 255" x 60"
Vacuum force: max 98%

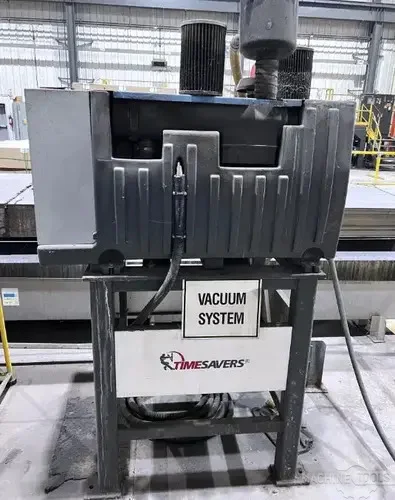

Vacuum Pump: 7.5 Kw
Minimum Feed speed: 4"/min
Maximum Feed Speed: 30 feet/min
Minimum Length: 4"
Minimum Width: 4"
Minimum Height: 0.080"
Maximum Length: 255"
Maximum Width: 60"
Maximum Height: 4"
Maximum Sheet/Plate weight: 10,000 lbs

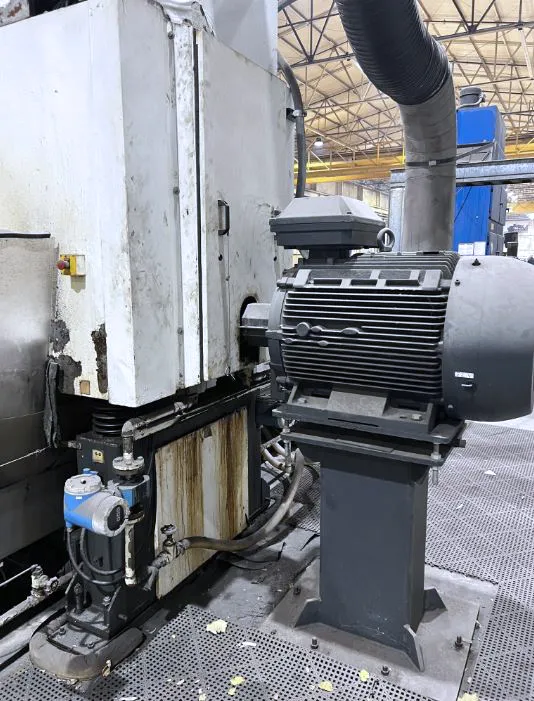

Main Motor: 90 kW
Frequency controlled, adjustable grinding belt speed: 1400-4400 Cf/m
Table Motor: 7 kW
Electrical connection: 460 Volt
Cycles: 60 Hz
Control current: 24 V
Total installed power of system: approx. 130 kW
Air Pressure Required: 100 PSI
Air consumption per head: 4 gallons/min
Capacity tank filler: 2,000 gallon
Pump capacity grinding machine (adjustable in the machine: max. 125 gallon/min
Pump capacity to clean the system: max 125 gallon/min
Cooler keeps the temp on adjusted value: 70-100 fahrenheit
Weight of Machine: 50,000 lbs
