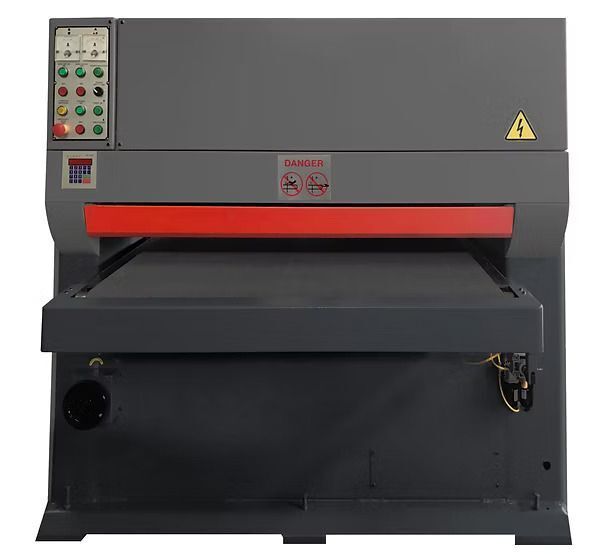

51" x 60" GMC #FP-5160T, belt grinder, 5" thick max, 8" roller, 15-56 FPM, variable speed, 30 HP, 208/230 V., new

Made in Taiwan
Computerized programmable thickness control
Abrasive belt size: 51 x 60
10 diameter heavy duty drum for perfect graining
5-1/8 wide opening for max. workpiece thickness 5
Motorized Table Lift with LED display
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts
4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 6 outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 82 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230V, 3-Phase
One year Industrial Warranty for parts.
Specifications: Model FP-5160T
Max. Part Width 51
Abrasive Belt Size 51 x 60
Contact Roller Size 8 Dia.
Passline Height 31 37
Thickness Capacity 20Ga to Max. 5-1/8
Conveyor Drive Speeds 15--56 FPM
Infeed Conveyor Length 20
Dust Collector Capacity
Outlet dust Hood2,800 CFM
Dia 6 x 2 outlets
Main Motor 30 HP, 230V
Conveyor Motor 2 HP, 230V
Table Lifting Motor 2 HP, 230V
Amperage draw 120A on 220V, only
Machine Weight, approx. 4,190 LBS
Machine Dimensions, LxWxH 82 x 68 x 73
Machine shipping dimensions, LWH 84 x 70 x 75
OPTIONAL ACCESSORIES
This machine requires two sets Wet Dust Collectors #WDC-2100
Model WDC-2100 Wet Dust Collector # WDC-2100, 5HP, 2,100CFM.. .
Heavy Duty Ducting Package # HDDP-5285
Service Engineer for Start-Up and On-site Training # ST...... $ POR
Plus travel expenses
Shipping (approx.) .. $
NOTE: All prices in this quotation are plus tax, F.O.B. Factory. Prices and specifications are subject to change without notice
