Manufacturer: Republic-Lagun
Year: 2015
Swing: 60.0
Centers: 80.0
Stock # 30512
Price: $129,500 USD - Finance for as low as $2,626/mth
For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Mr. Secord
513-77...> Show Seller's Phone Number 513-771-1952 Let the seller know you found their listing on Surplus Record!
Description

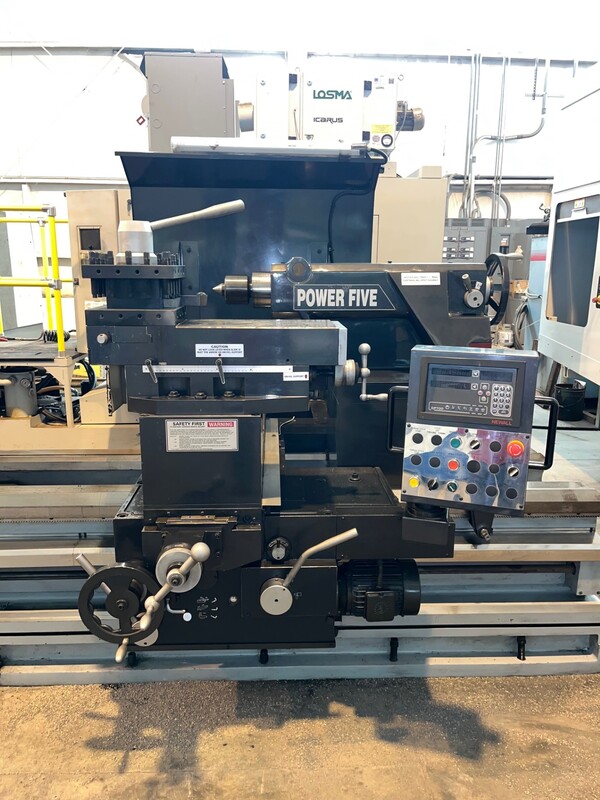

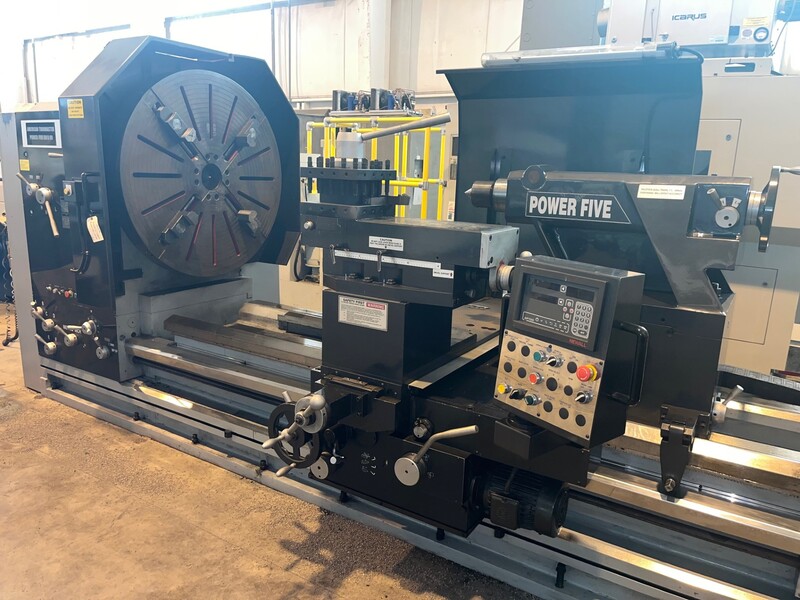

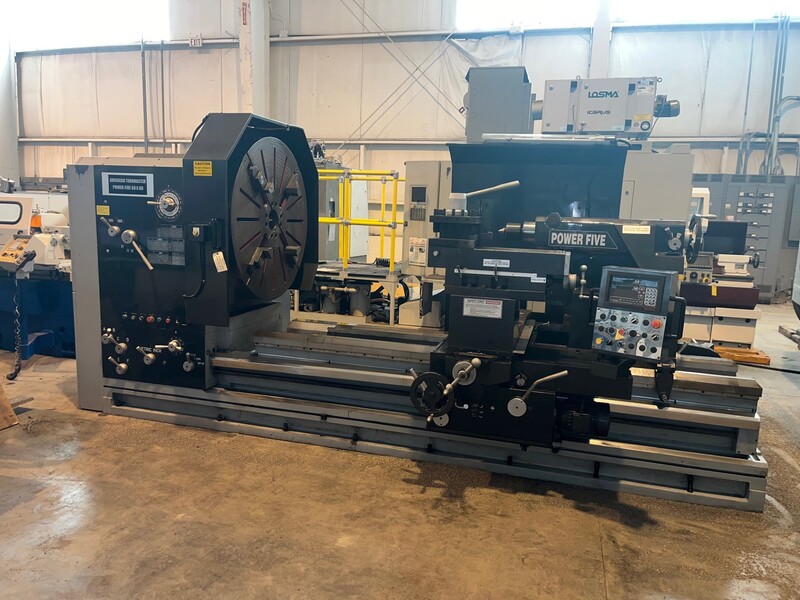

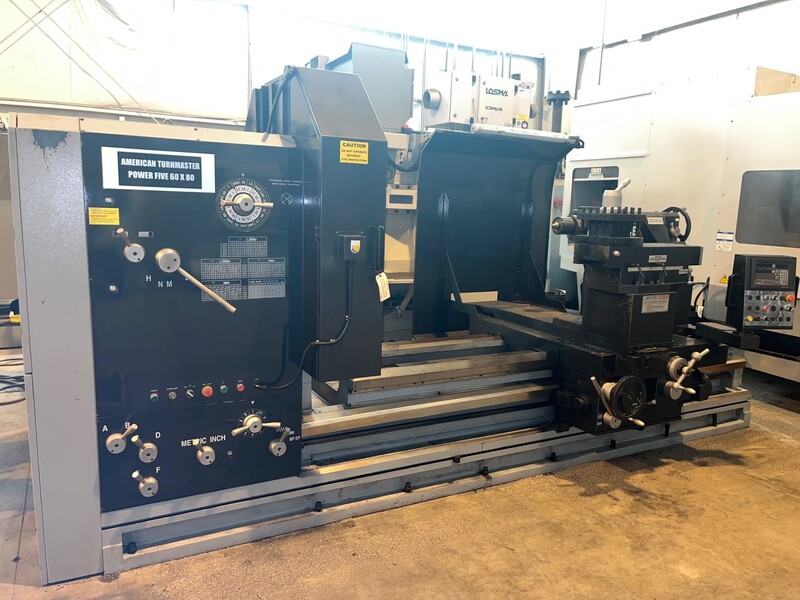

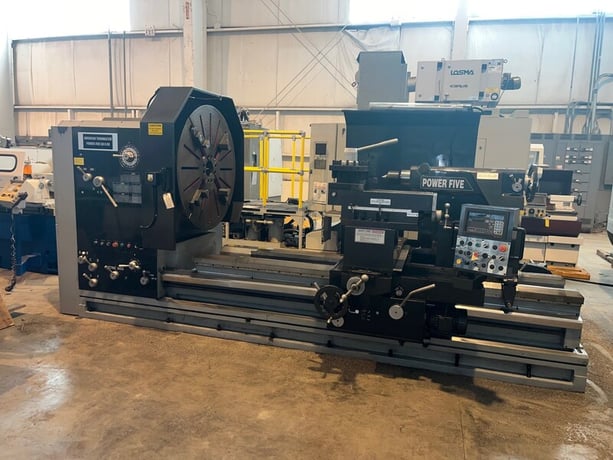

60"/80" x 80" REPUBLIC LAGUN HOLLOW-SPINDLE
"AMERICAN TURNMASTER POWER FIVE" GAP-TYPE ENGINE LATHE

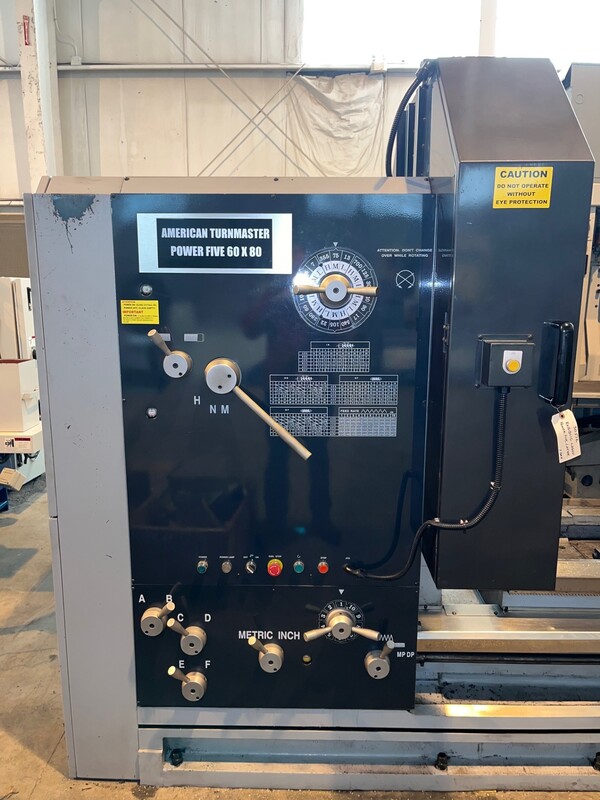

New 2015, Model 60/80 x 80, Series American Turnmaster Power Five
EQUIPPED WITH:
Newall Smart Digital Readouts

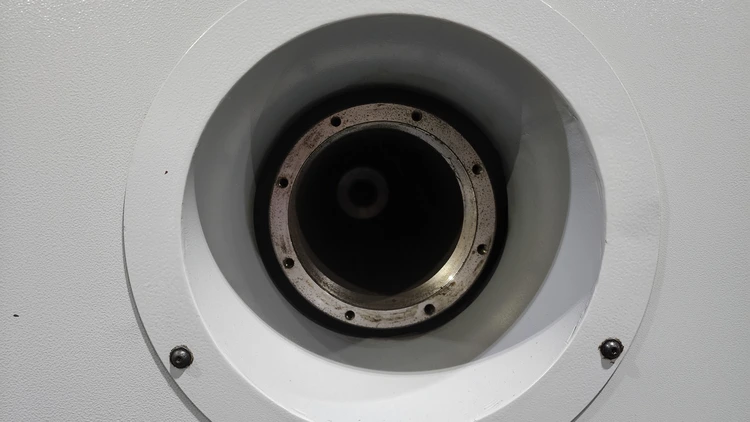

6.02" Hole Thru Spindle
Threading (Inch-Metric)

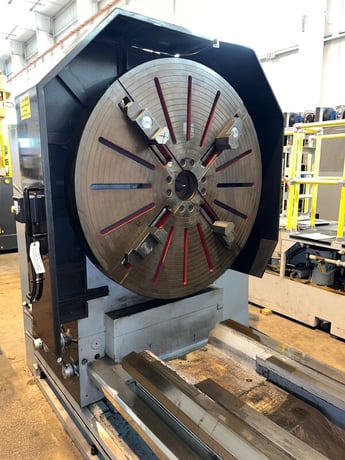

60" 4-Jaw Manual Chuck w/Thru Hole
Tool Post
CATALOG SPECIFICATIONS:
Hole Thru Spindle 6.02"

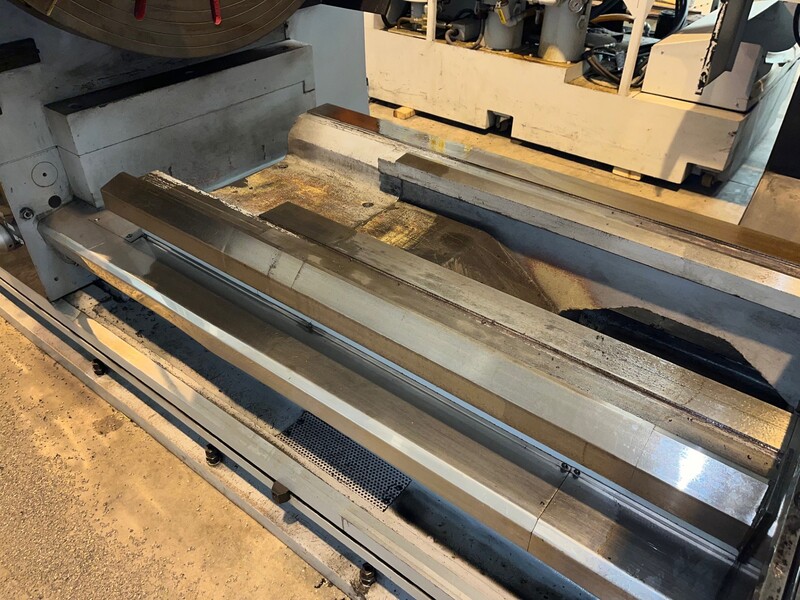

Swing Over Bed Ways, Actual 60.125"
Swing Thru Gap 80.25"
Swing Over Cross-Slide 47.25"
Distance Between Centers 80"
Length Of Gap 23.75"
Cross-Slide Cross Travel 31.5"
Top-Slide Travel, Power 15.75"
Longitudinal Travel 82"
(18) Spindle Speeds, Range 7 to 700 RPM
Longitudinal Feeds, Range .0018 to 0.1 IPR
Cross Feeds, Range .0009 to 0,05 IPR
Longitudinal Power Rapid Traverse, Rate 80 IPM
Cross Power Rapid Traverse, Rate 50 IPM
Leadscrew Pitch 2 TPI
(60) Inch Threads, Range 0.5 to 28 TPI
(60) Metric Threads, Range 1 to 56 MM
(60) Modular Threads, Range .25 to 14
Diametral Threads, Range 1 to 112"

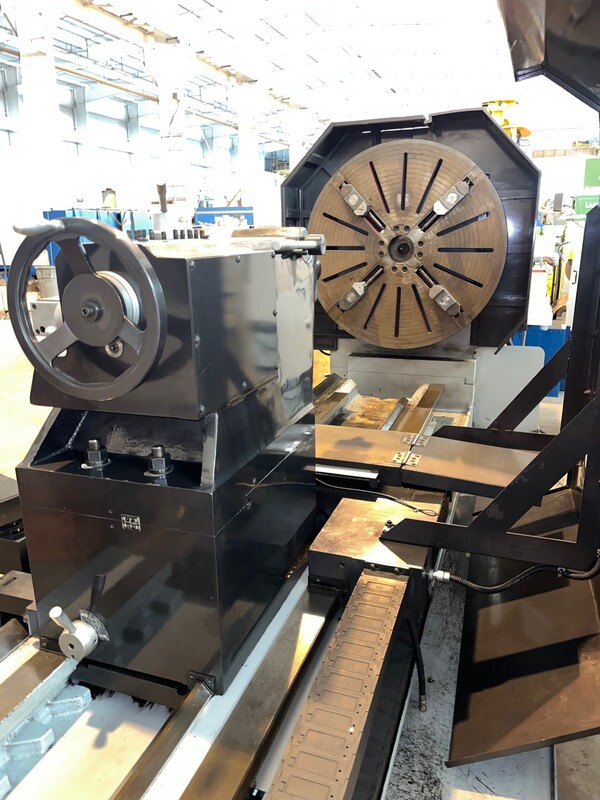

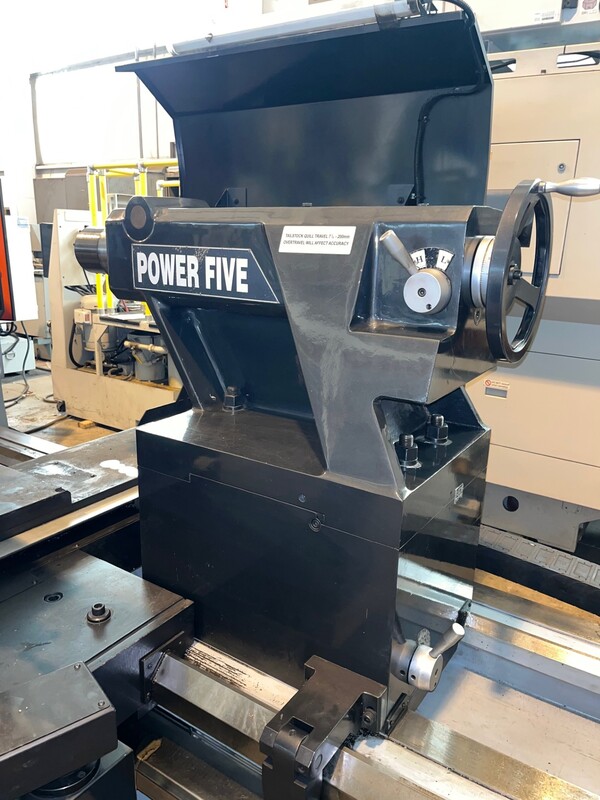

Tailstock Quill Diameter 5.75"
Tailstock Quill Traverse (2-Speed) 7.87"
Tailstock Quill Speed, Ratios 1:1 & 4:1
Tailstock Spindle Center 6 MT
Drive Motor Horsepower 30 HP
Overall Dimensions, L x W 14'x 7'
Overall Height 7'
Weight Approximately 31700 LBS
"AMERICAN TURNMASTER POWER FIVE" GAP-TYPE ENGINE LATHE
New 2015, Model 60/80 x 80, Series American Turnmaster Power Five
EQUIPPED WITH:
Newall Smart Digital Readouts
6.02" Hole Thru Spindle
Threading (Inch-Metric)
60" 4-Jaw Manual Chuck w/Thru Hole
Tool Post
CATALOG SPECIFICATIONS:
Hole Thru Spindle 6.02"
Swing Over Bed Ways, Actual 60.125"
Swing Thru Gap 80.25"
Swing Over Cross-Slide 47.25"
Distance Between Centers 80"
Length Of Gap 23.75"
Cross-Slide Cross Travel 31.5"
Top-Slide Travel, Power 15.75"
Longitudinal Travel 82"
(18) Spindle Speeds, Range 7 to 700 RPM
Longitudinal Feeds, Range .0018 to 0.1 IPR
Cross Feeds, Range .0009 to 0,05 IPR
Longitudinal Power Rapid Traverse, Rate 80 IPM
Cross Power Rapid Traverse, Rate 50 IPM
Leadscrew Pitch 2 TPI
(60) Inch Threads, Range 0.5 to 28 TPI
(60) Metric Threads, Range 1 to 56 MM
(60) Modular Threads, Range .25 to 14
Diametral Threads, Range 1 to 112"
Tailstock Quill Diameter 5.75"
Tailstock Quill Traverse (2-Speed) 7.87"
Tailstock Quill Speed, Ratios 1:1 & 4:1
Tailstock Spindle Center 6 MT
Drive Motor Horsepower 30 HP
Overall Dimensions, L x W 14'x 7'
Overall Height 7'
Weight Approximately 31700 LBS
Inquire Further with Mohawk Machinery Inc!
