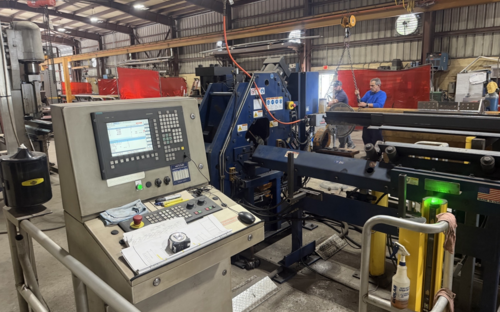

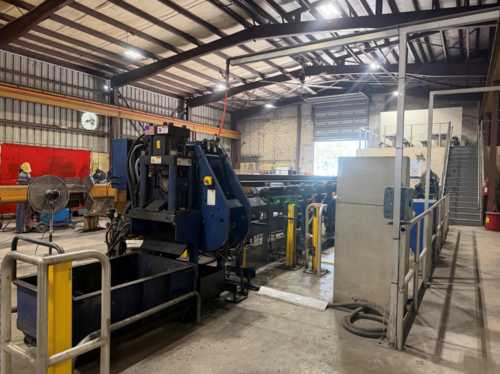

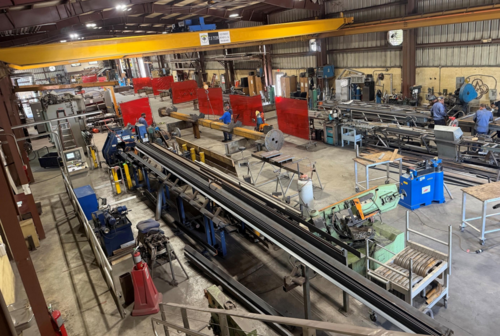

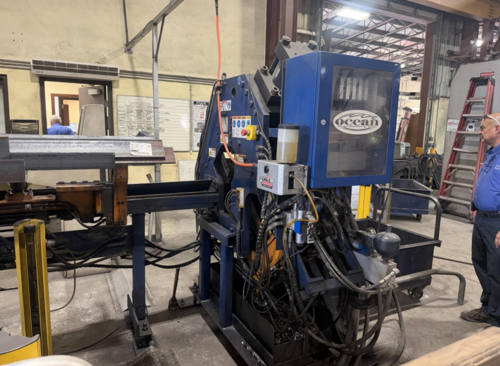

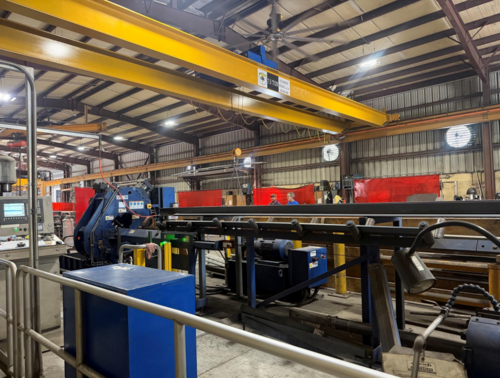

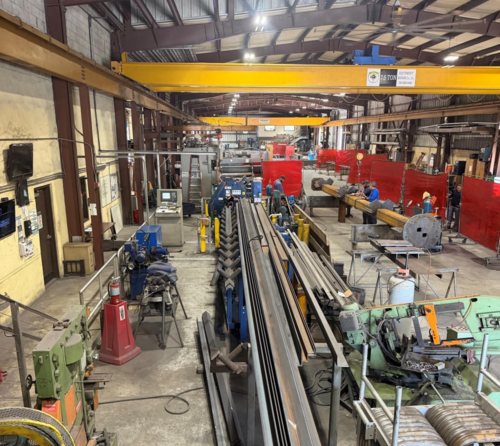

6" x 6" x 5/8" Ocean Clipper, Angle Line, Siemens 840Di Control, conveyor, 2015

6” X 6” X ” Angle Line Punching and Shearing Line with Siemens 840Di Numerical Control, 20’ Infeed Idler Roller Conveyor, Hydraulic Punch, Hydraulic Drill, Hydraulic Shear, Angle Sensor System, Angle and Flat Bar Processing.
GENERAL SPECIFICATIONS
Angle Sizes
Max. Angle Size: 6” X 6” X ”
Min. Angle Size: 1-½” X 1-½” X ”
Drill One Leg
Min. Hole Diameter: 5/16”
Max. Hole Diameter: 1-9/16”
Min. Drill Gauge: 0.5”
Max. Drill Gauge: 5.5”
Drill Feed Rate: 2” - 10” / Min

Punch One Leg
Punch Tonnage: 75 Tons US
Max. Punch Size: 1-¼” Diameter - #272 Punch
Punch Cycle Time: 2 Seconds
Minimum Gauges: 11/16” Plus Leg Thickness for 1-½” X 1-½” Thru 2” X 2”
1-3/16” Plus Leg Thickness 2 - ½” X 2 - ½” Angle Thru 2” X 2”
1-¼” Plus Leg Thickness for Over 2” X 2” Thickness Thru 6” X 6”

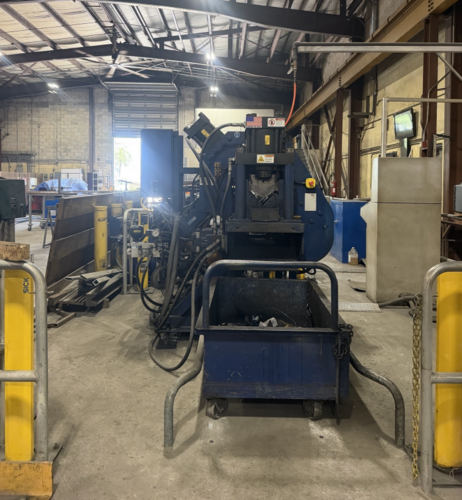

Shear
Shear Tonnage: 100 Tons US
Minimum Drop: 8.125”
Shear Cycle Time: 5 Seconds
Slug Size: ½”
Measurement
In-Feed Speed (X - Axis): 61 FPM
Max. “X” Direction Stroke: 50”
Y - Axis Travel: 12”
Z - Axis Travel: 5”
General
Machine Pass Line: 45”
Power Requirements: 460V / 40 Amps / 33KVA
Shop Air: 90 - 100 PSI
Foundation: 6”

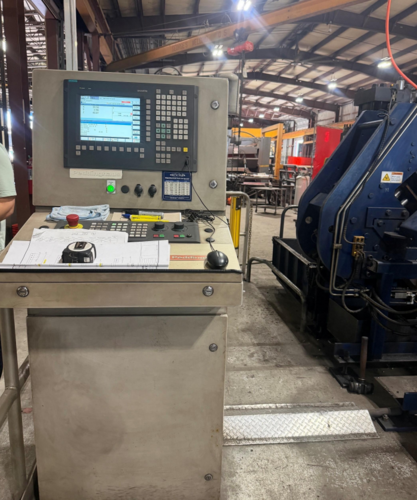

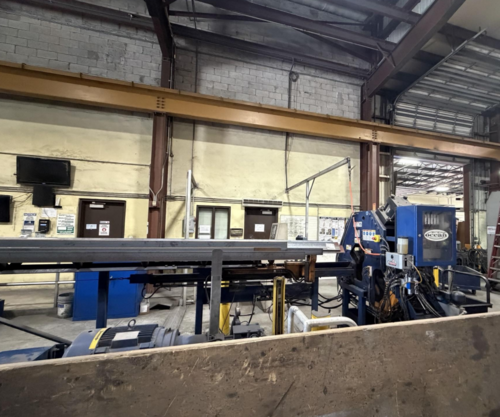

INCLUDES: Siemens 840Di Numerical Control, 20’ Infeed Idler Roller Conveyor, Hydraulic Punch, Hydraulic Drill, Hydraulic Shear, Angle Sensor System, Angle and Flat Bar Processing.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
