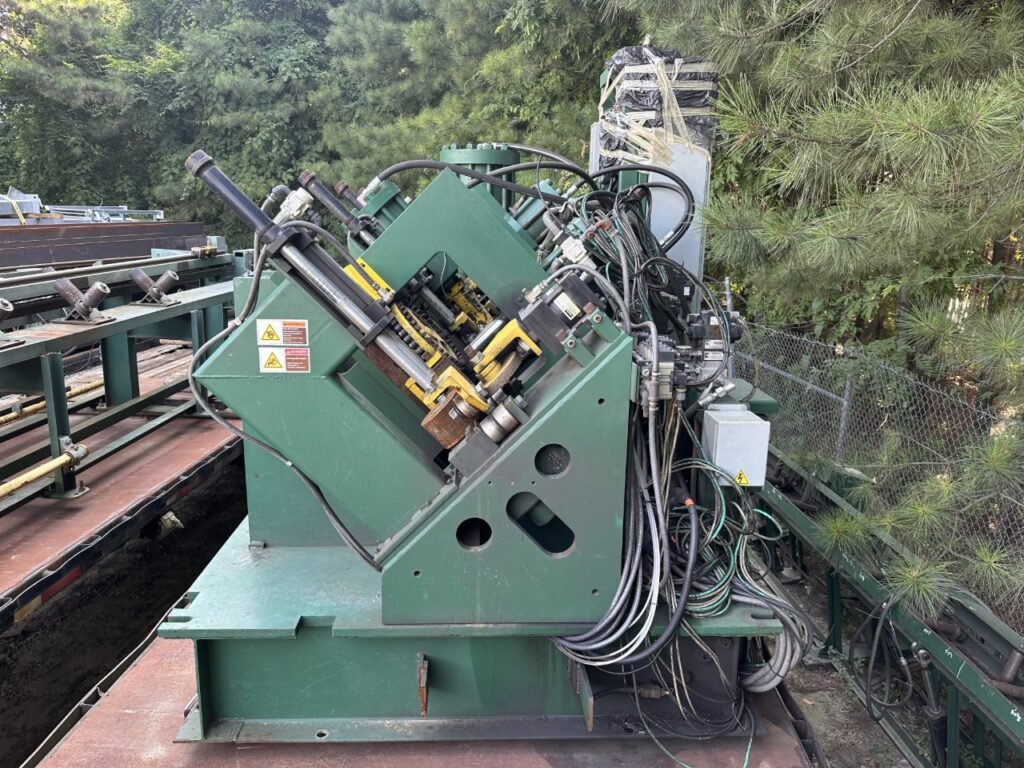

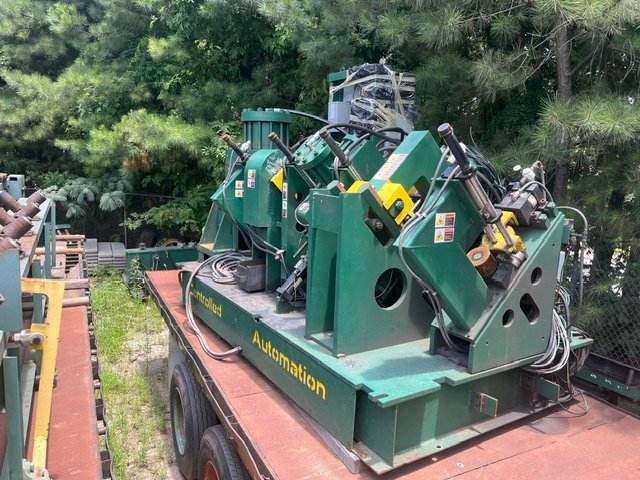

Controlled Automation #ABL86T, angle punching & shearing line, 86 ton punch, 250 ton shear, 2018

Estimated monthly payment valid upon approved credit.

Request Formal Quote

General Info
Stock #: 121260024
Brand: Controlled Automation
Model: ABL 86T
Year: 2018
Loading Fee: Rigging Required
Specifications
Punch Capacity: 86 Tons
Max Hole Size: 1.5"
Shear Capacity: 250 Tons
Shear Clearance: 7" x 7" x 1/2" (will not process channel)
Max Length Of Material: 40'
Minimum Length Of Material: 6'
Max Angle Size: 6" X 6" X \u215d"
Minimum Angle Size: 1-\u00bd" X 1-\u00bd" X 3/16"
Max Flat Bar Size: \u215d" X 6"
Minimum Flat Bar Size: \u00bc" X 1-\u00bd"

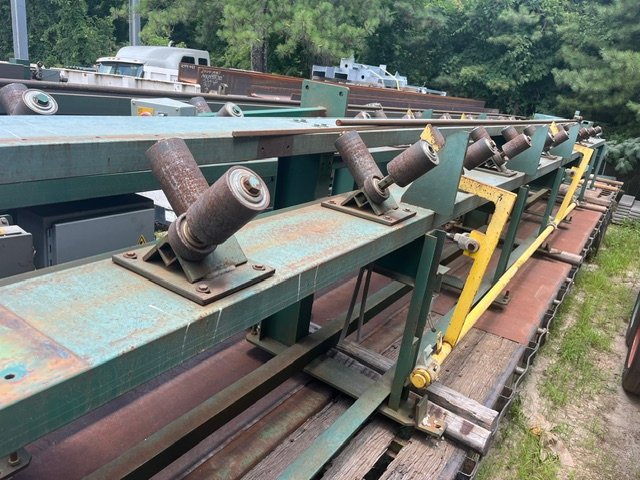

Storage & Loading Transfer Conveyor: 40'
Outfeed Conveyor W/ Laydown Side: 5'
Powered Outfeed & Dump Conveyor: 15'
Power Requirement: 460v/3ph
Equipped With

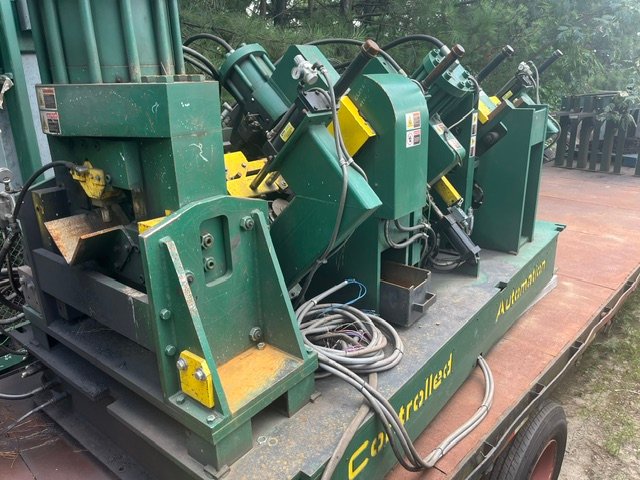

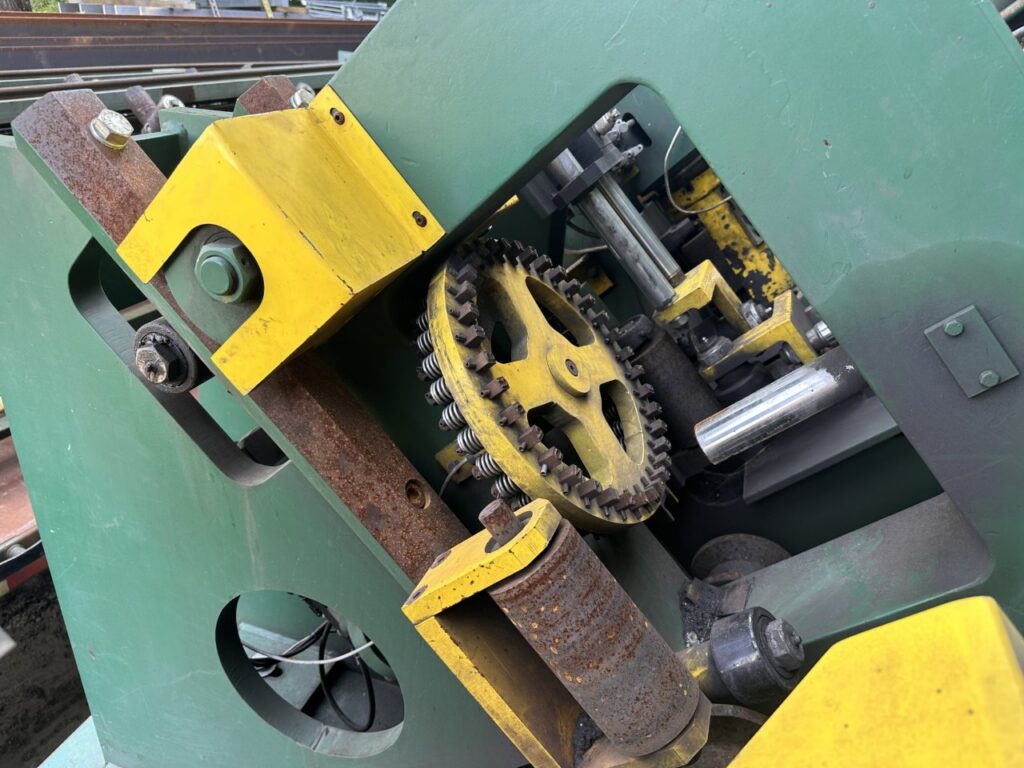

(2) 86 Ton Punch Frames (One For Each Leg),36 Position Wheel Stencil For Part Marking, Probe Measuring System, Powered Storage And Loading Transfer System, Powered Outfeed System W/ Dump Conveyor
Additional Info
Can be inspected upon request.
