For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
Equipped With
Equipped With

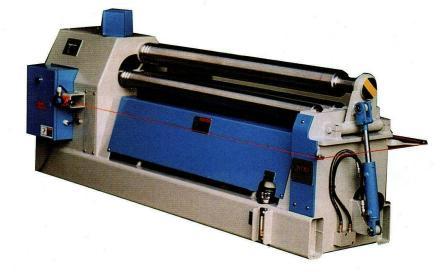

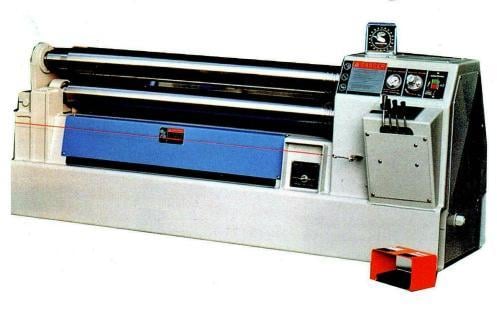

SPECIFICATIONS:
NOMINAL ROLL DIAMETER -------------------- 8 in
RATED ROLLING CAPACITY (MILD STEEL) ------ 3/8” mild steel plate to 32” diameter x 6' wide
MOTOR ------------------------------------ 7.5 HP
VOLTAGE ---------------------------------- 230/460Volt/ 3PH TEFC
APPROXIMATE WEIGHT ----------------------- 5,500LBS
FEATURES:
• 1045 carbon rolls
• Hydraulic driven roll which provides instant start, stop, and reverse
• NEMA 12 control cabinet with fused control transformer
• Electrics meet NFPA 79 specifications
• 230/460 volt 3 phase 50/60 hertz electrics (specify voltage when ordering)
• Electronic overload protection
• Two roll drive
• SKF spherical roller bearings on all main bearings
• LSHT type hydraulic drive motor with high volumetric and overall efficiency
• Infinitely variable speed from 0-22 FPM
• Safety cable around perimeter of machine
• Beta 3 roving pendant control. Push button control of main functions and 2 digital readouts to show the position of the 2 lower rolls.
• Rolls driven through planetary or spur gear type speed reducers with brake(s)
• Machine sets directly on level floor
• Ability to roll symmetrical steel sections without additional attachments
• Hydraulic operated drop end support
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
• Cone Attachment -$1,800
• Heavy Duty Cone Attachment -$3,400
• Hardened Only Rolls -$4,500
• Hardened and Polished Rolls -$8,250
• Circular Grooves 3/8, 1/2, 5/8 -$1,000
• Additional Starting Groove -$350
• Side Support Each -$9,050
• Overhead Support 12' Max -$10,000
• Foot Switch (rotation/pinch) -$1,000
• Pre 3.2 Control -$10,700
DELIVERY:
10-12 Weeks
NOMINAL ROLL DIAMETER -------------------- 8 in
RATED ROLLING CAPACITY (MILD STEEL) ------ 3/8” mild steel plate to 32” diameter x 6' wide
MOTOR ------------------------------------ 7.5 HP
VOLTAGE ---------------------------------- 230/460Volt/ 3PH TEFC
APPROXIMATE WEIGHT ----------------------- 5,500LBS
FEATURES:
• 1045 carbon rolls
• Hydraulic driven roll which provides instant start, stop, and reverse
• NEMA 12 control cabinet with fused control transformer
• Electrics meet NFPA 79 specifications
• 230/460 volt 3 phase 50/60 hertz electrics (specify voltage when ordering)
• Electronic overload protection
• Two roll drive
• SKF spherical roller bearings on all main bearings
• LSHT type hydraulic drive motor with high volumetric and overall efficiency
• Infinitely variable speed from 0-22 FPM
• Safety cable around perimeter of machine
• Beta 3 roving pendant control. Push button control of main functions and 2 digital readouts to show the position of the 2 lower rolls.
• Rolls driven through planetary or spur gear type speed reducers with brake(s)
• Machine sets directly on level floor
• Ability to roll symmetrical steel sections without additional attachments
• Hydraulic operated drop end support
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
• Cone Attachment -$1,800
• Heavy Duty Cone Attachment -$3,400
• Hardened Only Rolls -$4,500
• Hardened and Polished Rolls -$8,250
• Circular Grooves 3/8, 1/2, 5/8 -$1,000
• Additional Starting Groove -$350
• Side Support Each -$9,050
• Overhead Support 12' Max -$10,000
• Foot Switch (rotation/pinch) -$1,000
• Pre 3.2 Control -$10,700
DELIVERY:
10-12 Weeks
Get Your Price from Smith Machinery Co!
