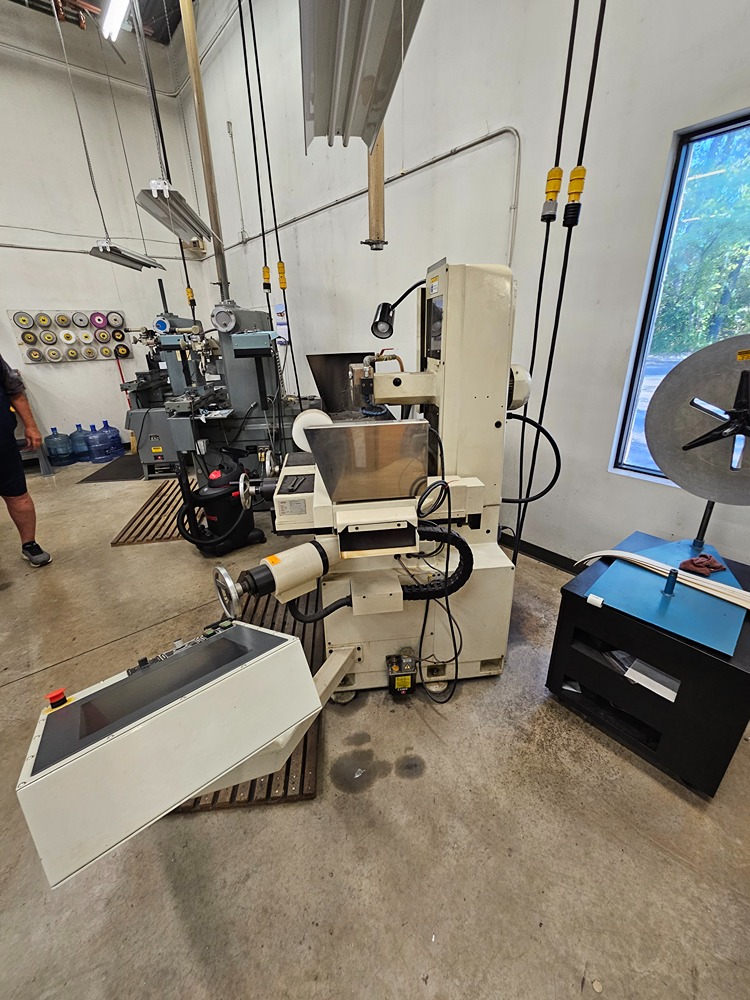

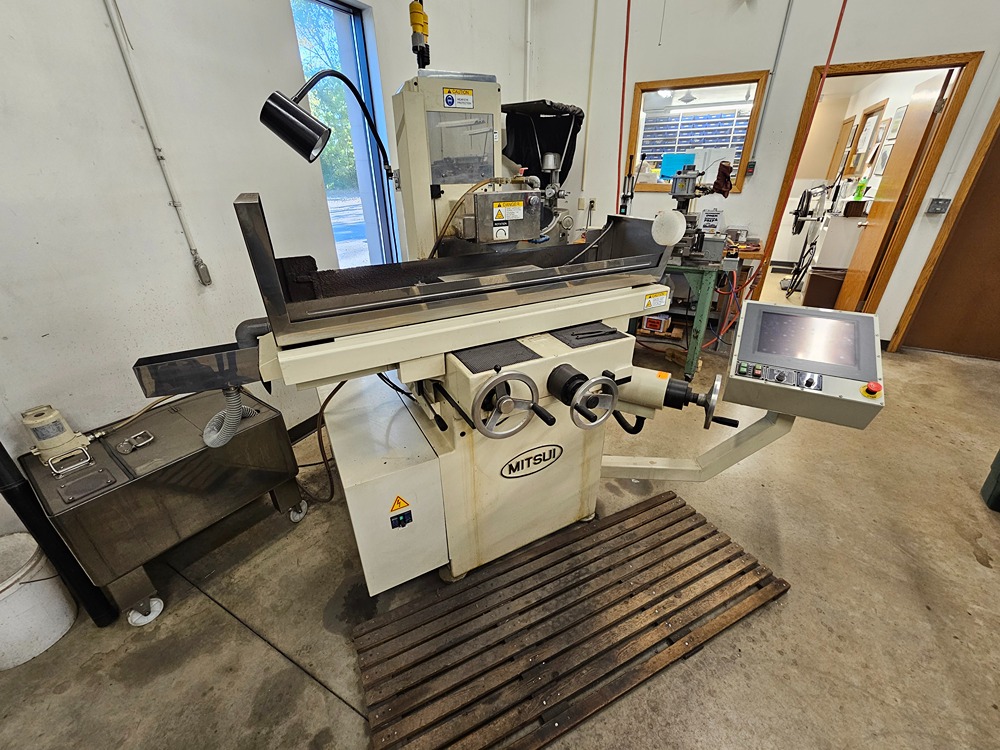

7" x 19" Mitsui #618PC-NC, 3-Axis CNC Surface Grinder, 8" x 3/4" x 1-1/4" wheel, 3460 RPM, fully automatic teachable & programmable, 220 Volt, 3PH, 2006

Here We Have:

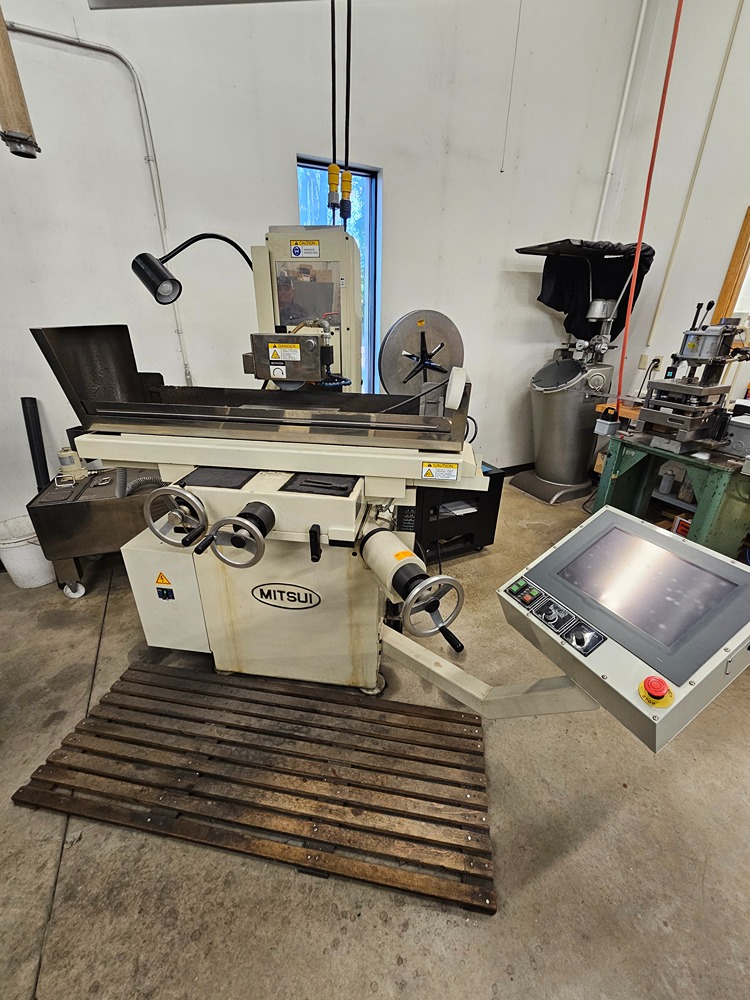

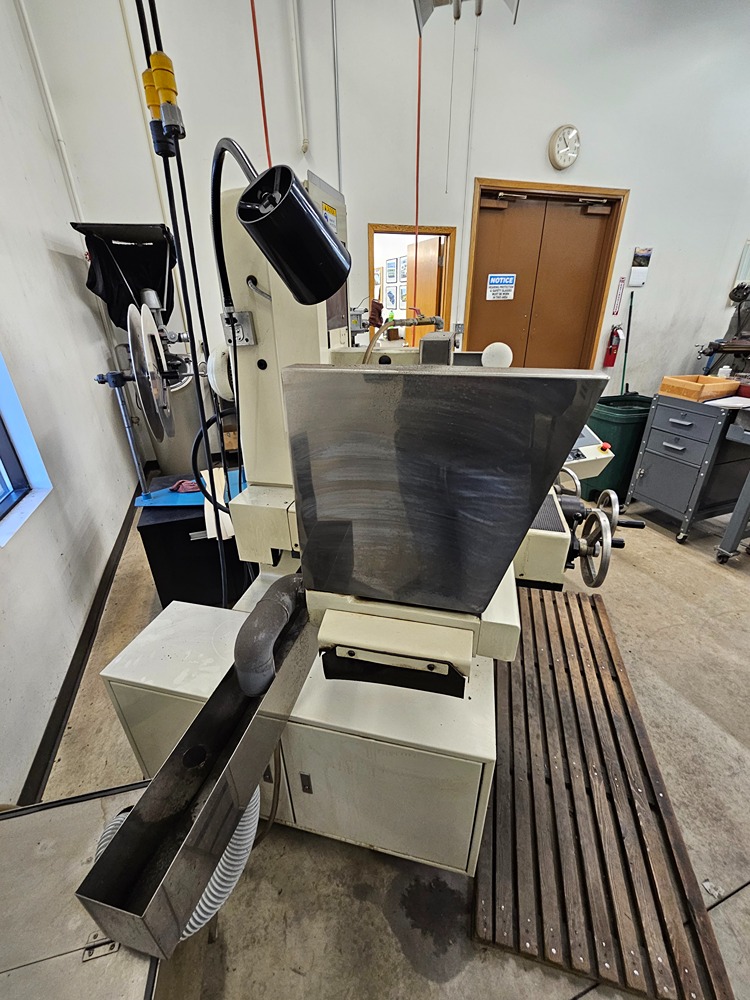

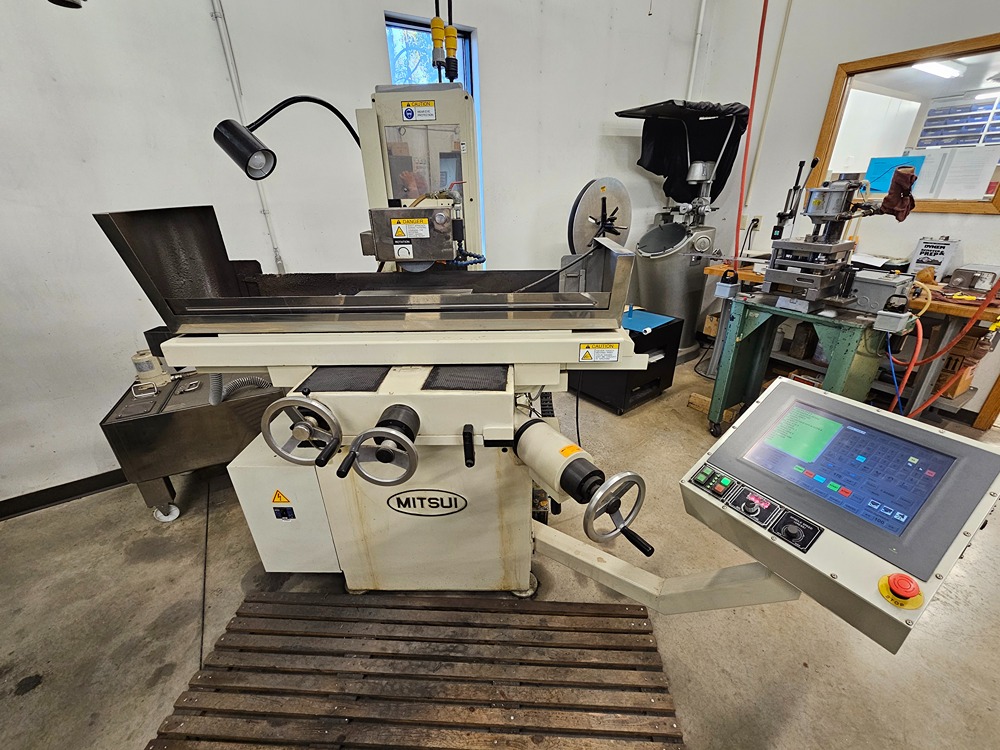

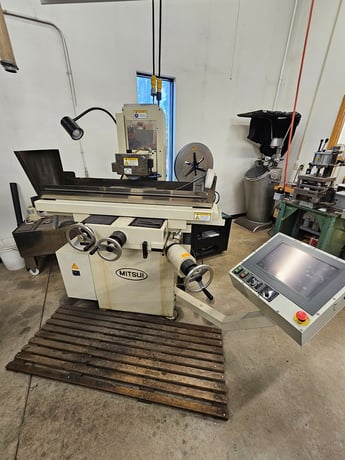

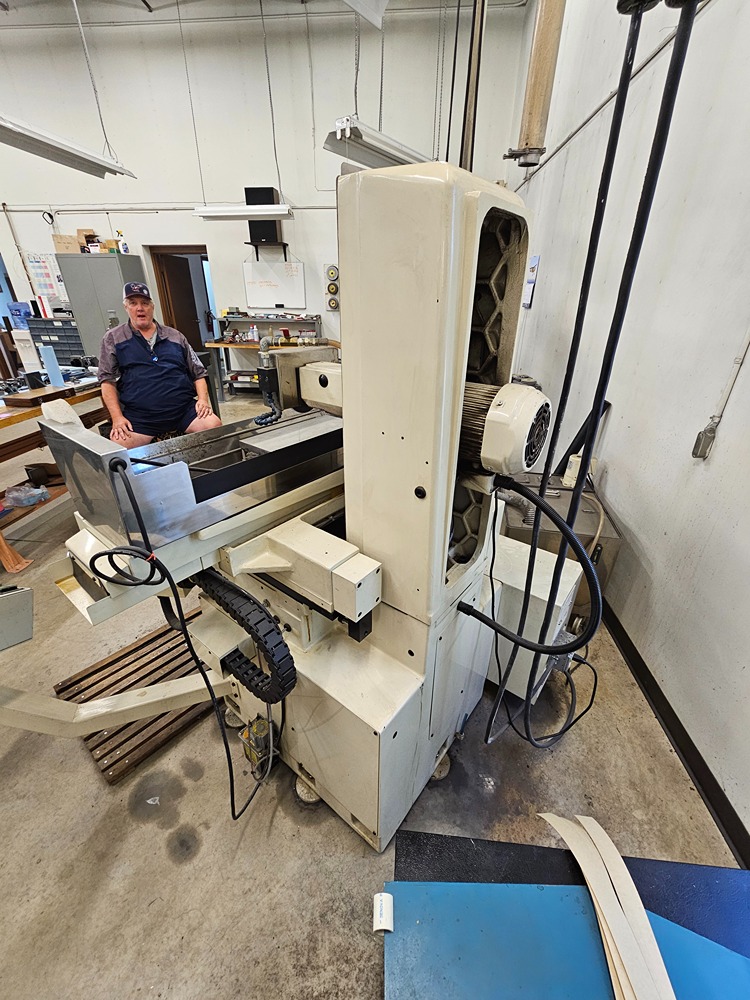

618 Mitsui 618PC-NC, 3 Axis Fully Automatic, Teachable & Programmable Surface Grinder, 3 Axis Simultaneous Controlled

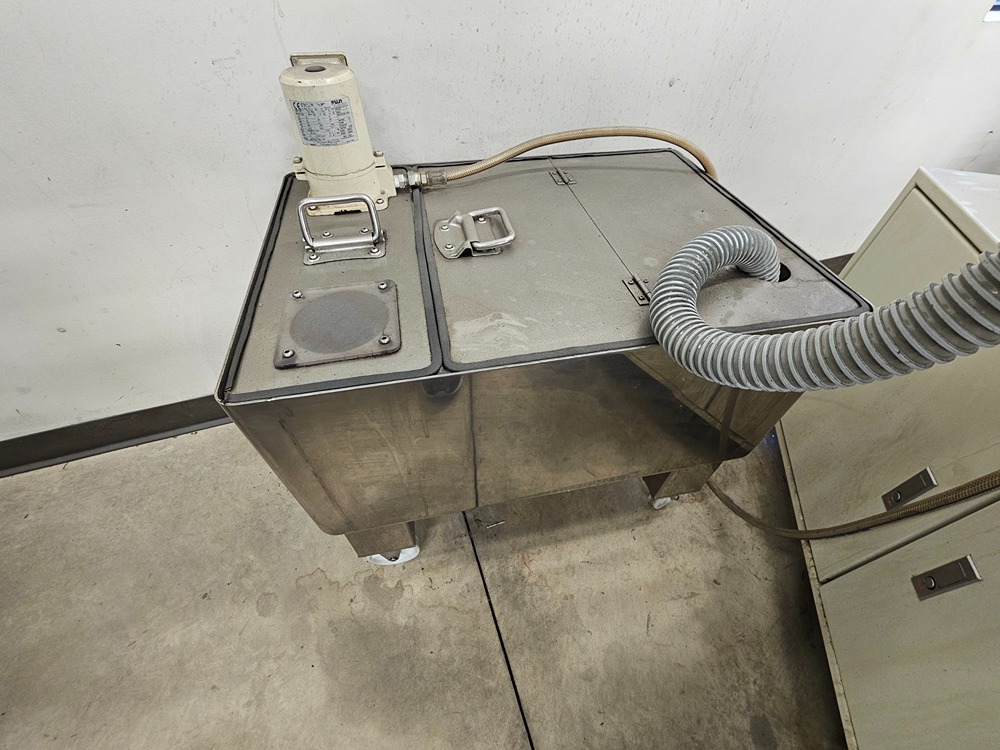

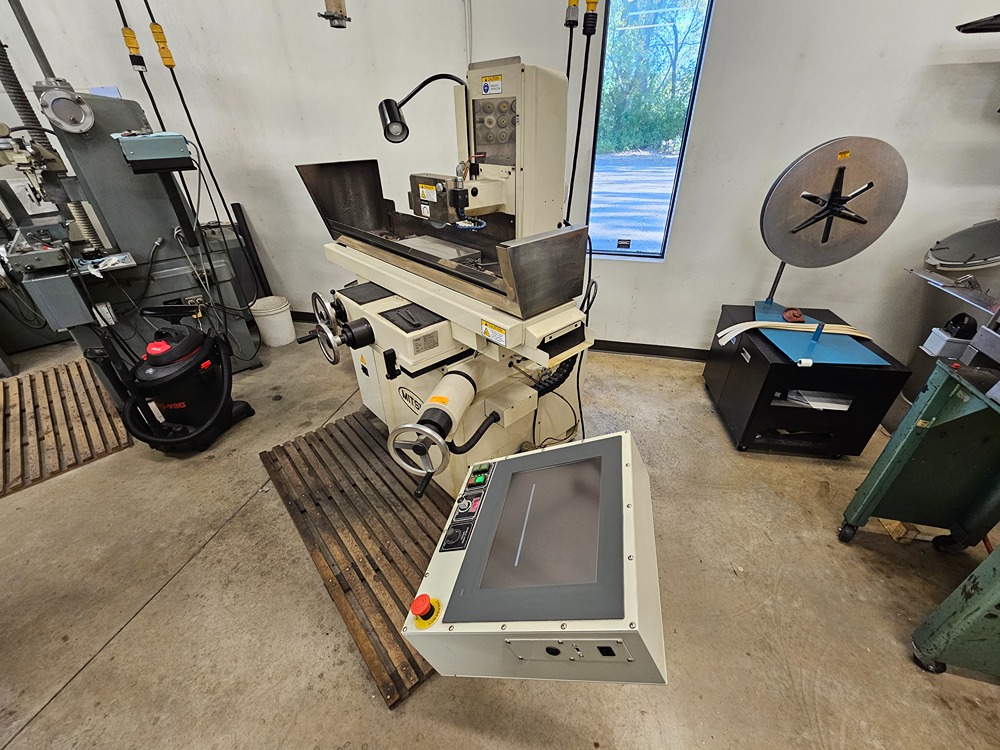

PC Motion NC Touch Screen Control, Complete with Stainless Steel Coolant Tank & Pump
Make: Mitsui
Model: 618PC-NC
Serial Number: 2006079037
New in: 2006 Owner states 200 Hrs.
3 Axis Simultaneous Controlled
Specifications:
Max Longitudinal Travel: 19.75”
Max Cross Travel: 7”
Max Height Table to Spindle Center: 15.75”

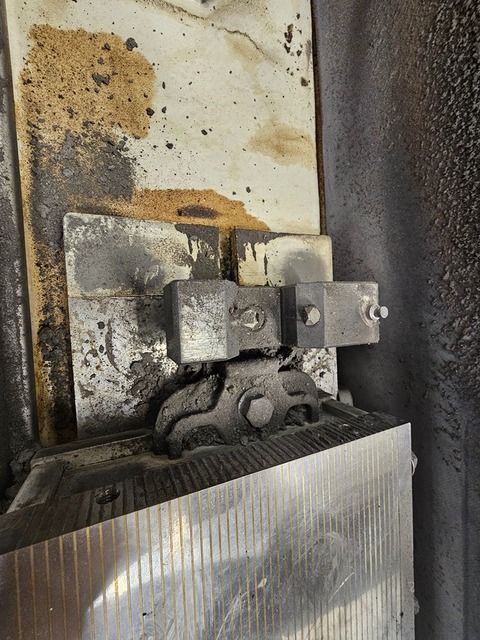

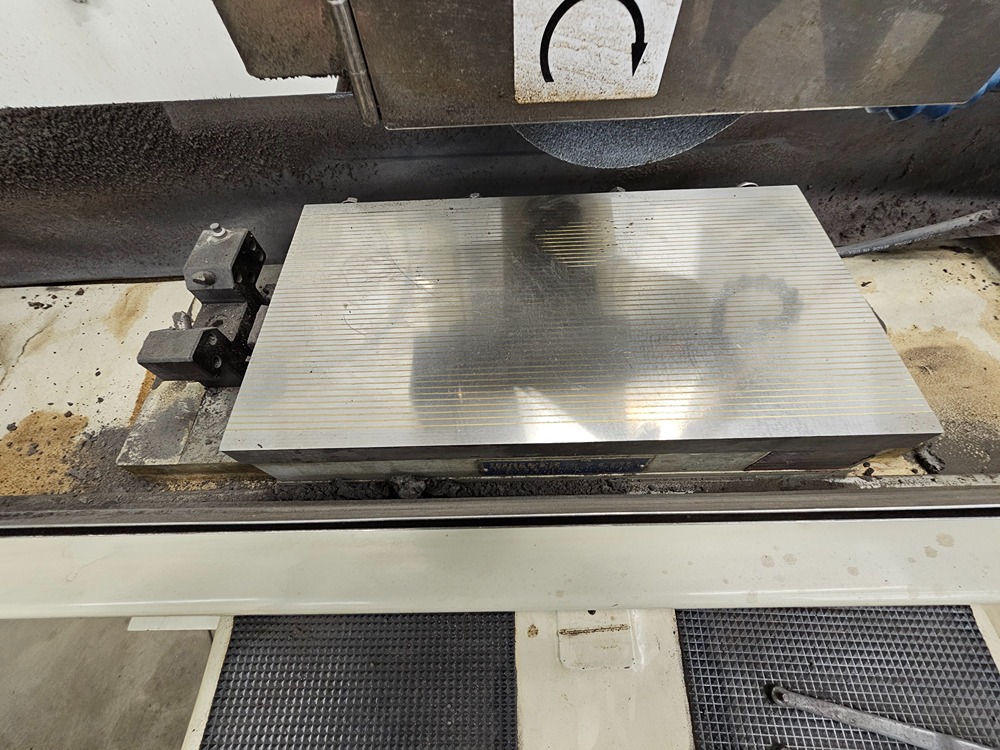

Table Work Surface: 19”x6” Variable Chuck

Vertical Feed:
Movement Per. 1 Revolution on Handle: 1mm
Minimum Manual Incremental Feed: .0001”
Minimum Programmable Incremental Feed: .00001”
Continuous Feed Speed: 0-13” Per Minute
Number of Spark Outs: Programmable

Cross Feed:
Movement Per. 1 Revolution on Handle: 5mm
Minimum Manual Incremental Feed: .001”
Continuous Feed Speed: 0-13” Per Minute
Minimum Programmable Incremental Feed: .00001”
Spindle Speed: 3460 RPM
Grinding Wheel Size: 8”x3/4”x1-1/4”
Drive System Cross: LM Guide & Ball Screw
Drive System : LM Guide & Ground Screw
Longitudinal Feed: Hardened Steel Ways, w/ Linear Ball Bearings & Cable Drum
Machine Dims: 100”x63” 70” H
Weight: 2440 LBS
Power Requirement: 220v 3 Phase
Owner is selling due to operator retiring, that’s the reason we don’t have a video.
Naab Sales Corp. is selling for owner. Machine is under power and can be shown.
Rigging will have to be supplied from buyer. We can help arrange for a local rigger to load on your provided truck.
Machine sold as is where is.
