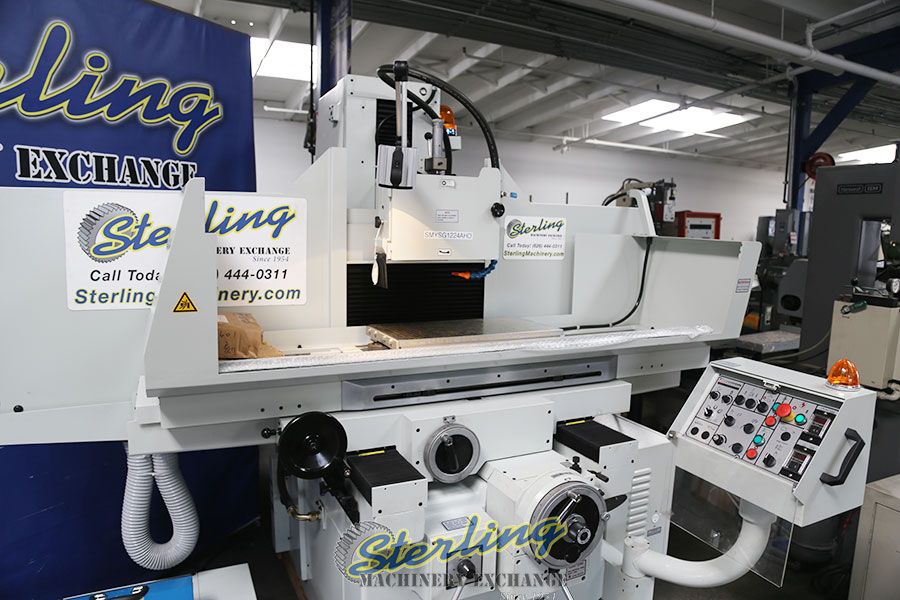

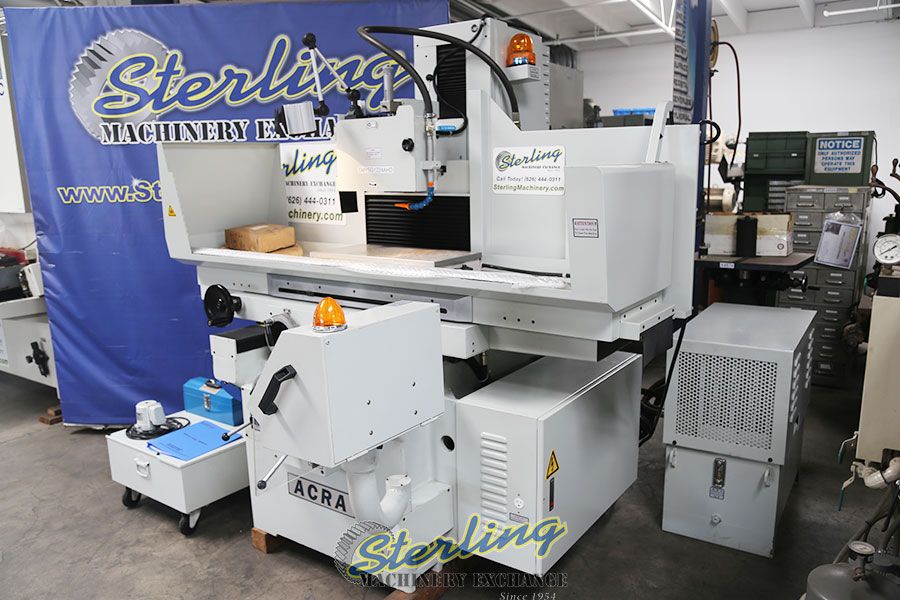

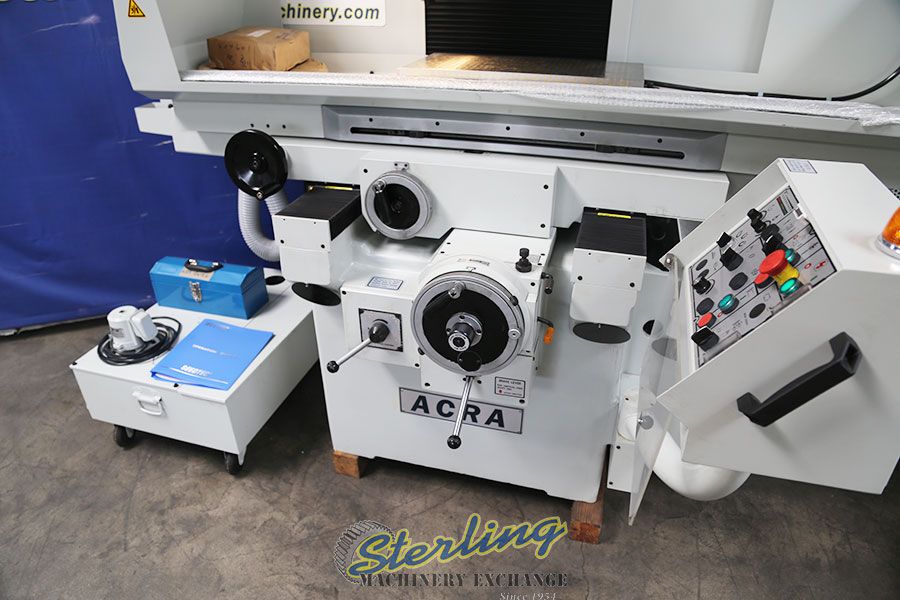

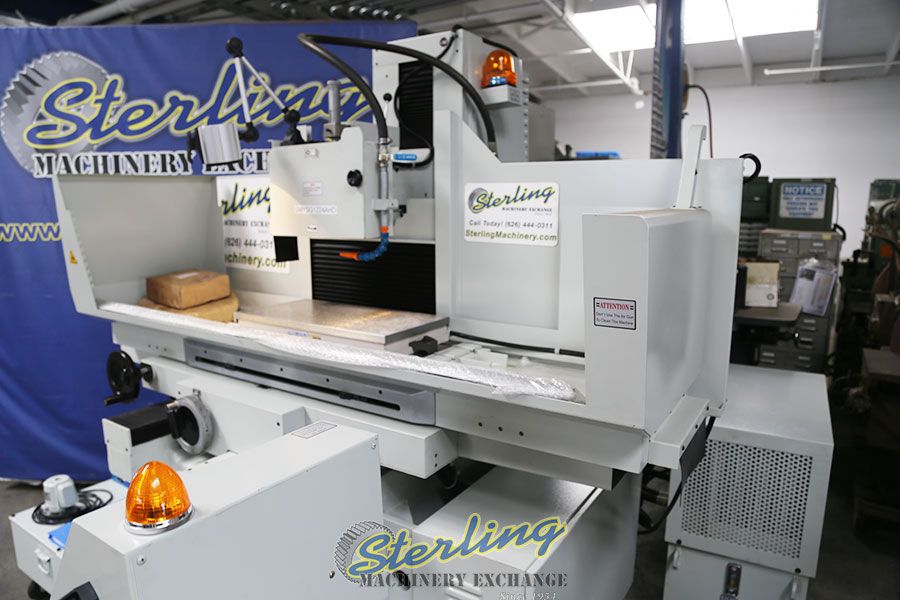

Manufacturer: Acra
Model: ASG-1224AHD
Travel Width/Cross: 12
Travel Length/Longit.: 24
Stock # SMASG1224AHD
1 / 10
Click to zoom in
1 / 10
For Sale by Sterling Machinery Exchange - New Mach.
Surplus Record Dealer Since 1970
Location: South El Monte, CA
Contact Adam Mattes
Phone Number: 626...> Show Phone Number 626-444-0311
Let the seller know you found their listing on Surplus Record!
Description
DETAILED SPECIFICATION
| Capacity | 12" x 24" |
| Maximum Grinding (WXL) | 12" x 28" |
| Maximum Distance from Spindle Center Line to Table Top | 27-1/2" |
| Table | |
| Chuck Size (WXL) | 12" x 24" |
| Maximum Longitudinal Travel | 30" |
| Maximum Cross Travel | 14-1/8" |
| T-Slot (No. x W) | 3 x 0.67" |
| Maximum Part Weight on Top of Chuck (Lbs.) | 775 lbs. |
| Feed | |
| Longitudinal Movement of Table: Hydraulic Feed | 3.2 - 82 fpm |
| Longitudinal Movement of Table: Hand Feed Per Revolution | 2.36" |
| Cross Movement of Saddle: Intermittent Feed | 0.04 - 0.60" |
| Cross Movement of Saddle: Continuous Traverse Feed | 471 IPM |
| Cross Movement of Saddle: Hand Feed Per Revolution | 0.20" |
| Cross Movement of Saddle: Graduation of Handwheel | 0.001" |
| Vertical Movement of Wheelhead: Hand Feed Per Revolution | 0.02" |
| Vertical Movement of Wheelhead: Graduation of Handwheel | 0.000,050" |
| Vertical Movement of Wheelhead: Rapid Feed | 13 IPM |
| Auto Down Feed: Feed Rate | 0.0001 - 0.0015" |
| Auto Down Feed: Maximum Total Feed Amount, with "0" | 2" |
| Auto Down Feed: Spark Out | 0-9 Passes |
| Grinding Wheel Size (Dia., Width, Bore) | 12", 2", 3" |
| Horsepower | 5 H.P. |
| Speed | 1,800 RPM |
| Dimensions (L x W x H) | 109" x 73" x 81" |
Features

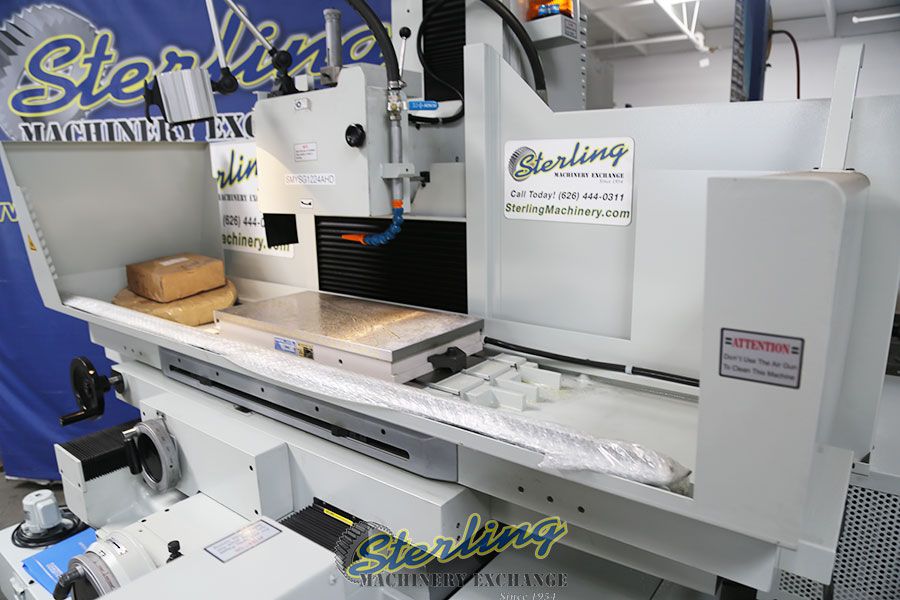

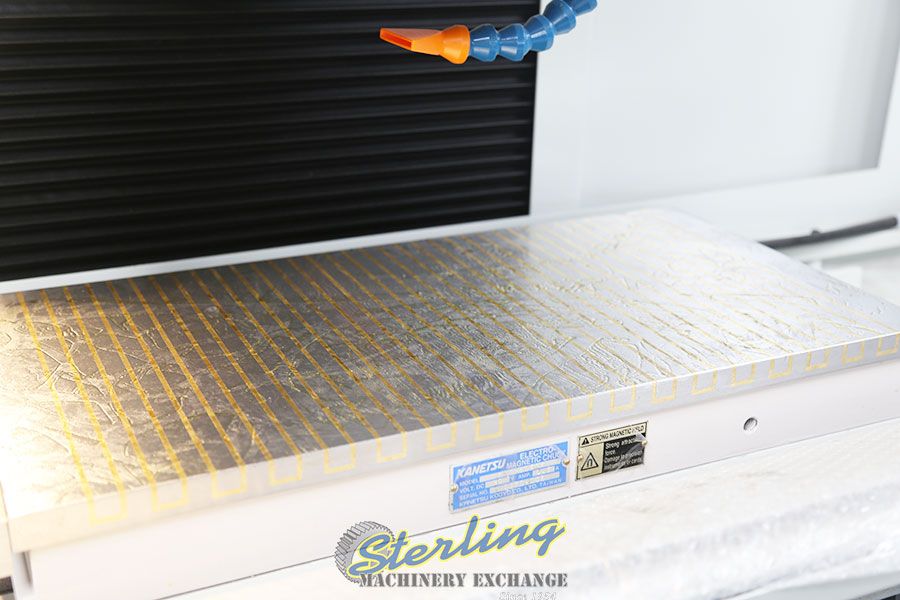

Electromagnetic Chuck
Coolant System

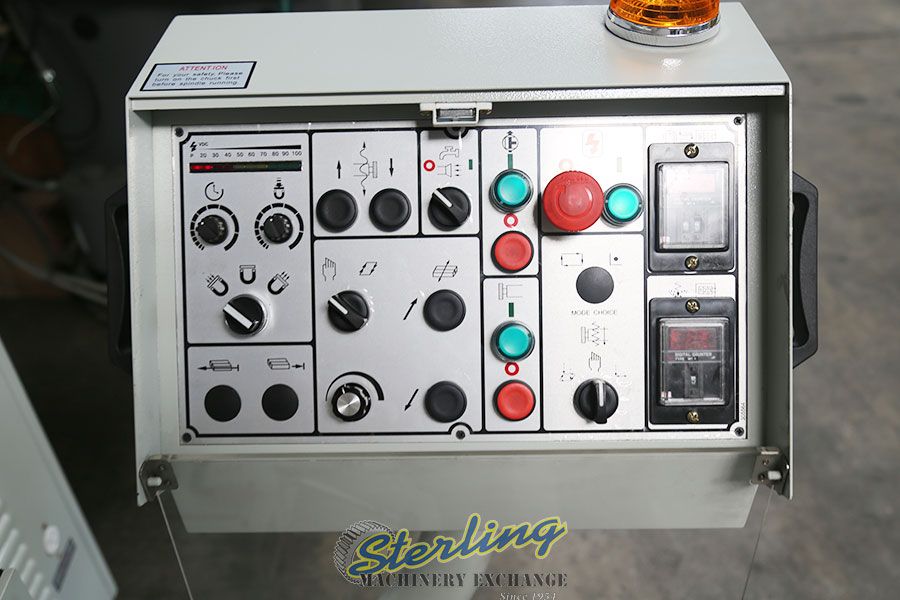

Automatic Demagnetizing Controller

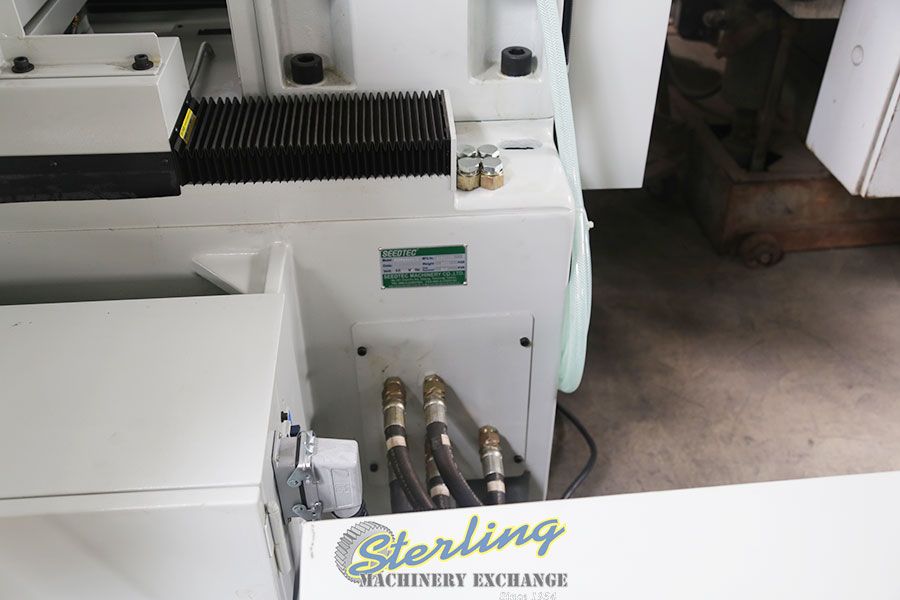

External Hydraulic System
Halogen Work Light
Heat Exchanger

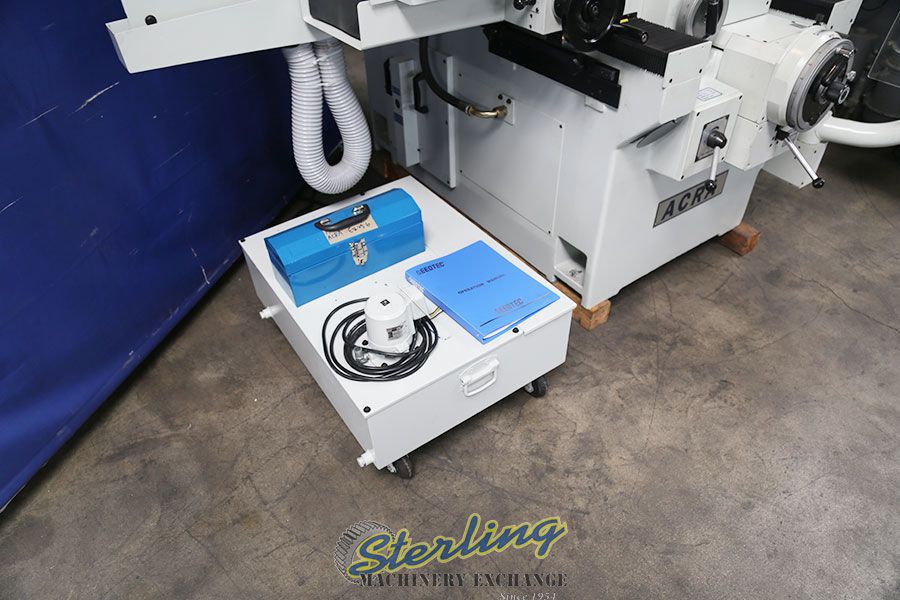

Grinding Wheel With Flange, Arbor, Maintenance Tools, And Table Dresser With Diamond
One Can Of Touch Up Paint
One Manual
Get Your Price from Sterling Machinery Exchange - New Mach.!
