Manufacturer: Okamoto
Model: LINEAR-618B
Year: 2015
Width/Cross: 6.0
Length/Longit.: 18.0
Stock # 179645
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

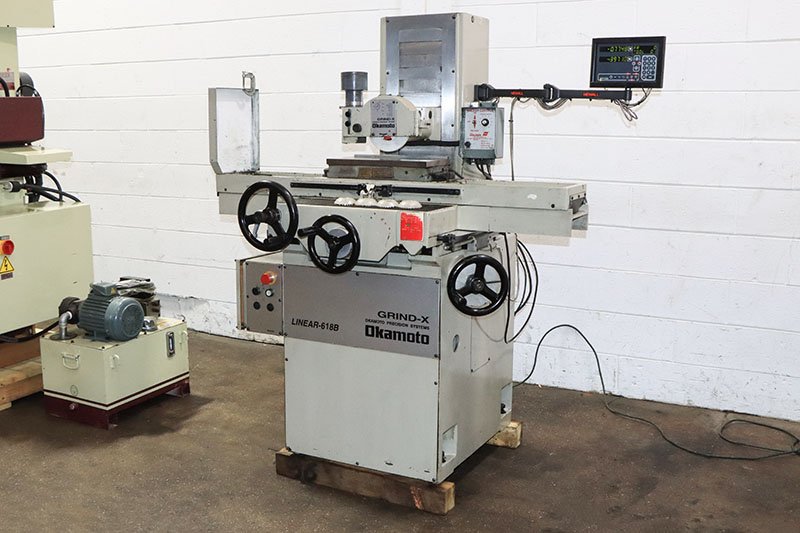

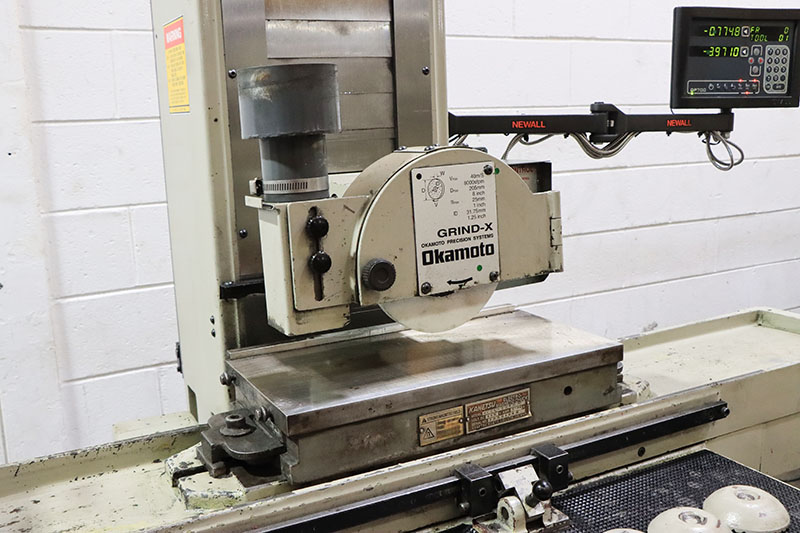

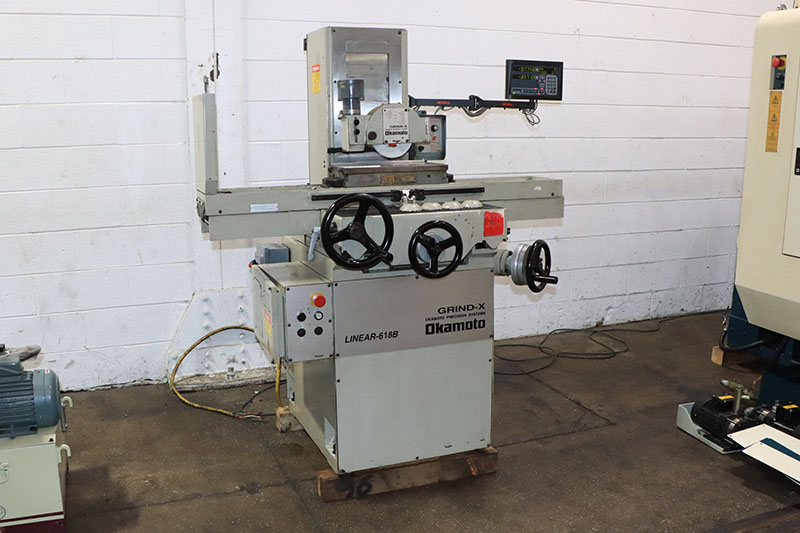

6" X 18" OKAMOTO "HIGH-PRECISION"
HANDFEED SURFACE GRINDER
WITH ROLLER BEARING TABLE,
** "NEWALL DP-700 TWO-AXIS DIGITAL READOUT **
MODEL: L-618B… S/N: 48242… NEW: 2015
NOMINAL GRINDING CAPACITY ........... 6" x 18"
TABLE TO UNDERSIDE,
OF 8" GRINDING WHEEL ............... 14.27"
MAX. LONGITUNAL TABLE TRAVEL ........ 20.87"
MAX. CROSS TRAVEL ................... 8.27"
MOVEMENT PER HANDWHEEL REVOLUTION:
TABLE .............................. 5.12"
SADDLE ............................. 0.1""
SADDLE .............................. 0.05"
HANDWHEEL GRADUATION................. 0.0001"
SPINDLE MOTOR ....................... 2 H.P.
GRINDING WHEEL SPEED ................″450 RPM
WHEEL SIZE .................... 8" x 1/2" x 1- 1/4"
APPROX. DIMS. FOR OPERATION ... 76.5" x 55.3"D x 68"H
APPROX. MACHINE WEIGHT .............. 2,070 LBS.
MACHINE FEATURES:
MEEHANITE CAST IRON, HEAVY DUTY CONSTRUCTION
SMOOTH TABLE MOVEMENT THROUGH RELIABLE BELT DRIVE
TABLE GLIDES ON LINEAR BALL BEARINGS
RECIRCULATING LUBRICATION SYSTEM
2 H.P. DIRECT DRIVE SPINDLE,″/60/220-230-440-460 VOLTS
EQUIPPED WITH:

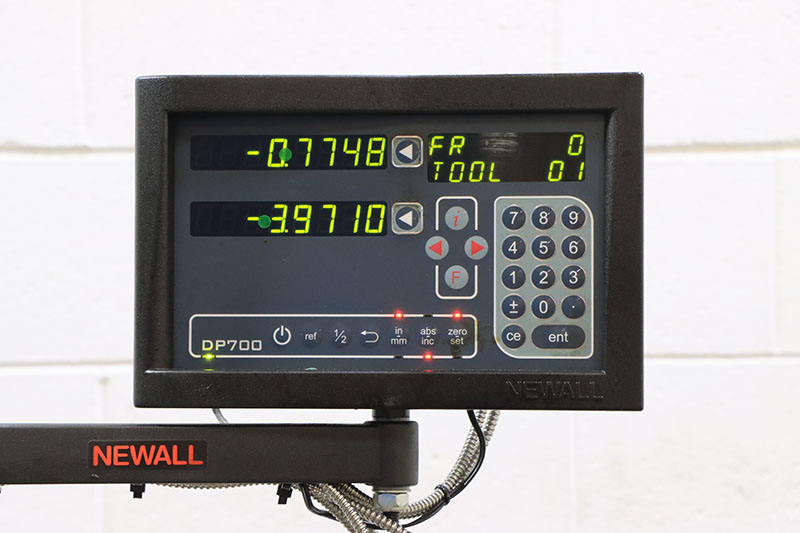

"NEWALL MODEL DP-700" 2-AXIS DIGITAL READOUT DISPLAY
6" X 18"…"KANETSU"…"KESL-2040A"

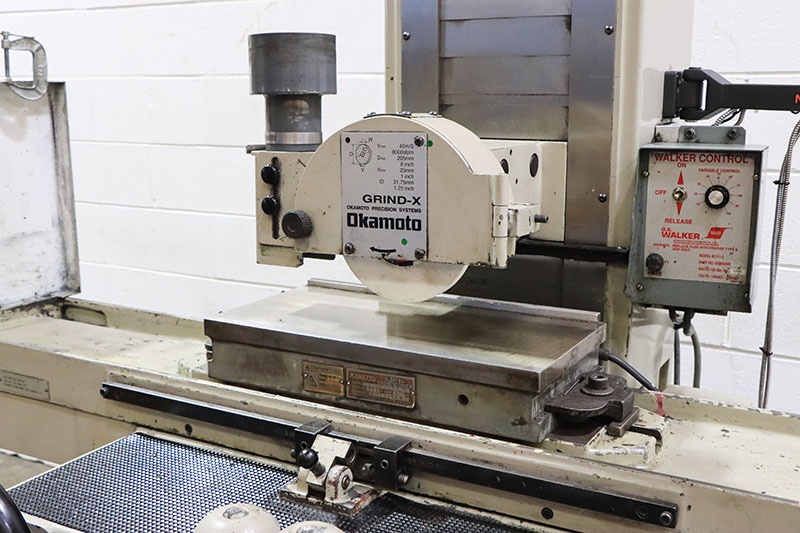

"LBP" FINE-DIVISION ELECTRO-MAGNETIC CHUCK

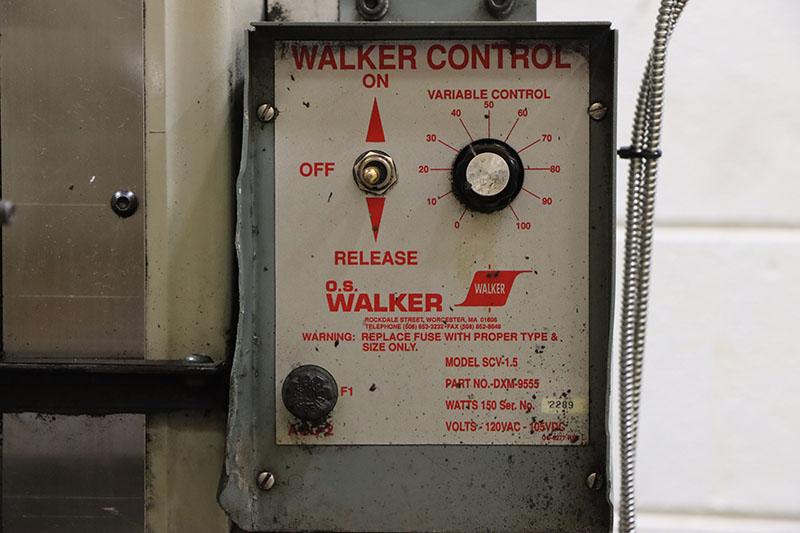

O.S. WALKER…"SCV" VARIABLE HOLD NEUTROFIER CHUCK CONTROL
SET UP FOR DRY GRINDING
RECIRCULATING AUTOMATIC LUBRICATION SYSTEM
3/60/230-460 VOLT WIRING IN THE CABINET
** EXCELLENT CONDITION… APPEARANCE **
** ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
