Manufacturer: Chevalier
Model: FSG-618M
Year: 1998
Width/Cross: 6.0
Length/Longit.: 18.0
Stock # 163531
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

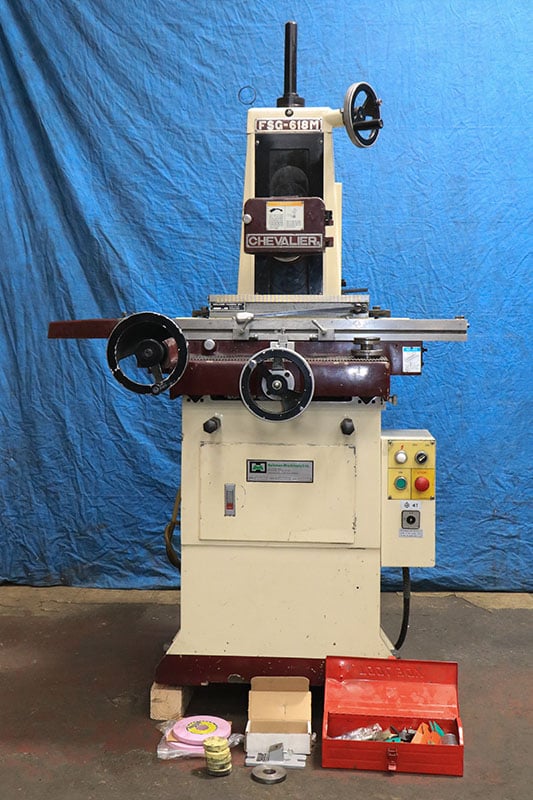

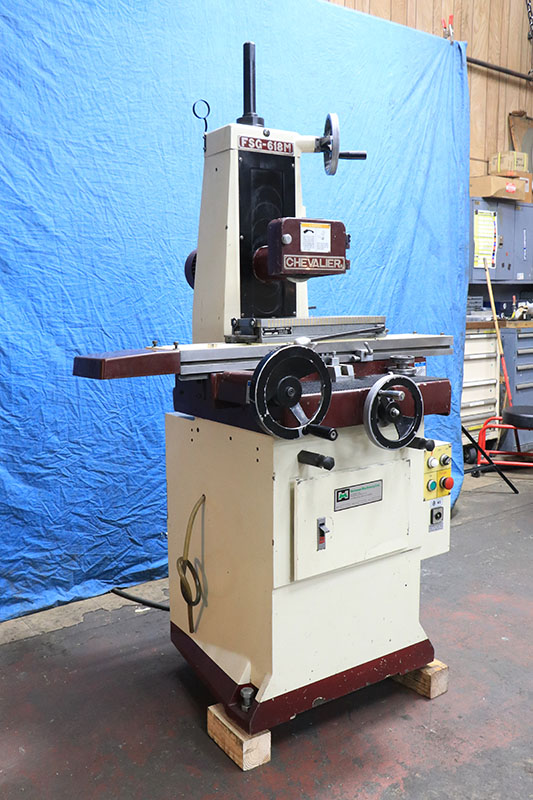

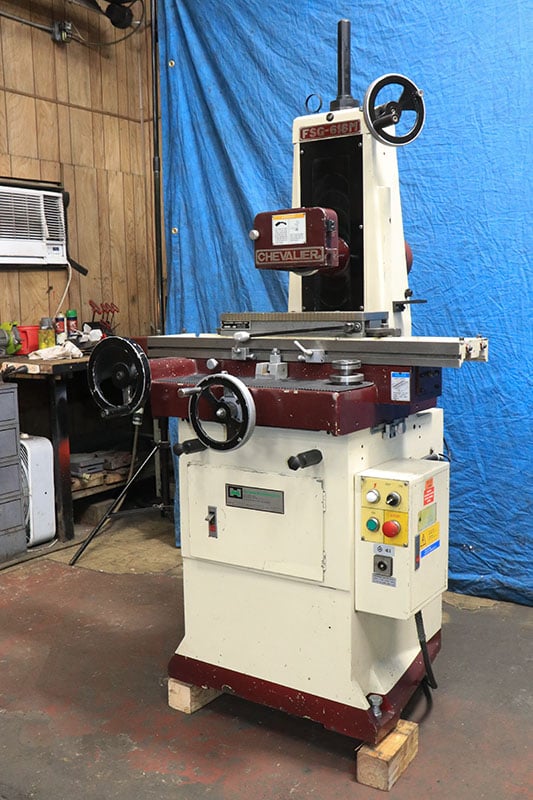

6" x 18" Chevailer Hand Feed Surface Grinder
Model: FSG-618M… S/N: A3872040… New: 1998
Maximum grinding length:............... 18"
Maximum grinding width:................ 6"
Maximum table travel,
longitudinal: ........................ 19"
cross: ............................... 7"
Maximum distance from table
working surface to spindle center .... 18"
Cross handwheel graduations: .......... 0.0005"
Cross handwheel per rev. .............. 0.100"
Downfeed handwheel graduations,:....... 0.0001"
Vertical handwheel per rev. ........... 0.050"
Spindle speed:.........................″,450 RPM
Wheel size:...................... 8" x 1/2"W x 1-1/4"B
Approximate weight: ................... 1,500 lbs
Approximate Dimensions: ......... 55"W x 42"D x 68"H
Equipped with:
All meehanite cast iron construction
Hardened and ground table guideways with steel balls
Double V Guideways laminated with Turcite-B for saddle travel

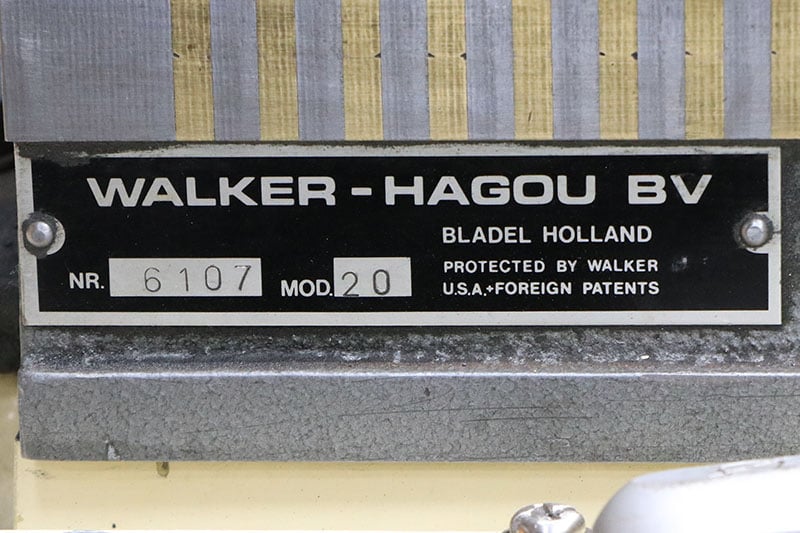

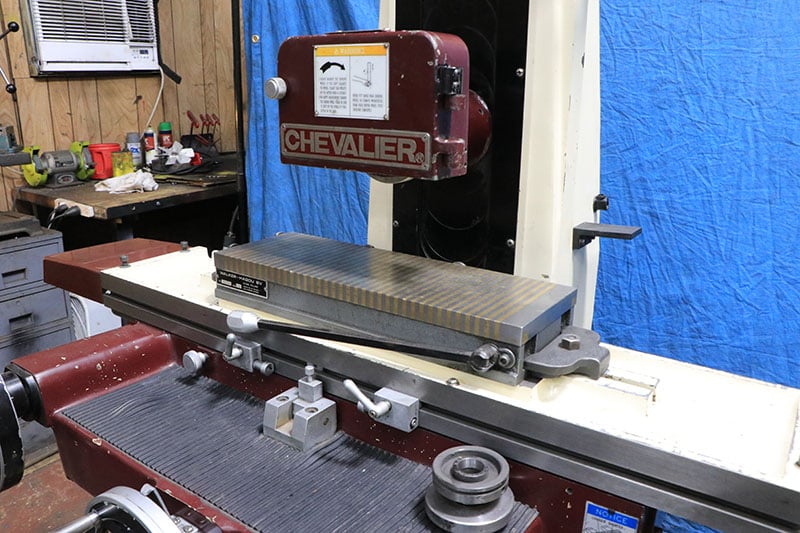

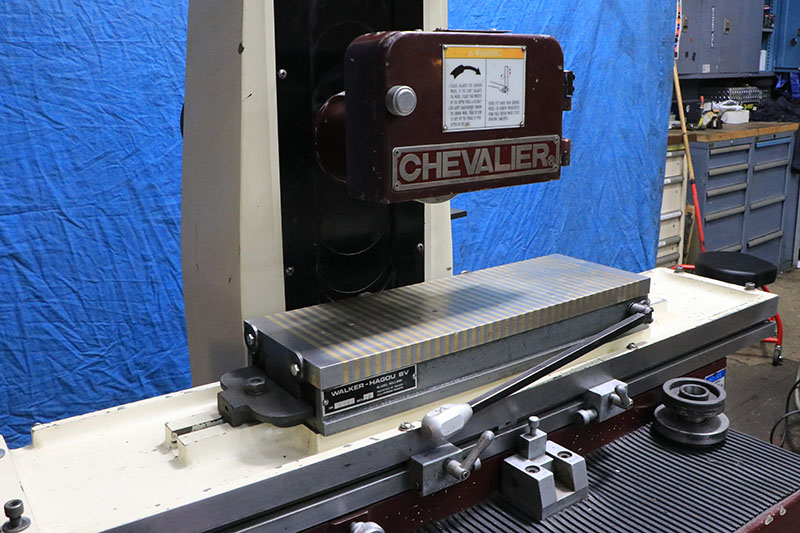

6" x 18" permanent magnetic chuck
Work light
Automatic lubrication of leadscrews and ways
1-1/2 HP″/60/575 volt spindle motor
Machine will be supplied with a transformer for 230 volts
LINK TO VIDEO: https://youtu.be/wv5mNn7sp_k
** Superb Condition… Appearance (Original Paint) **
** Inspect Under Power in our Harrison, NJ Warehouse **
Get Your Price from Machinery Values Inc!
