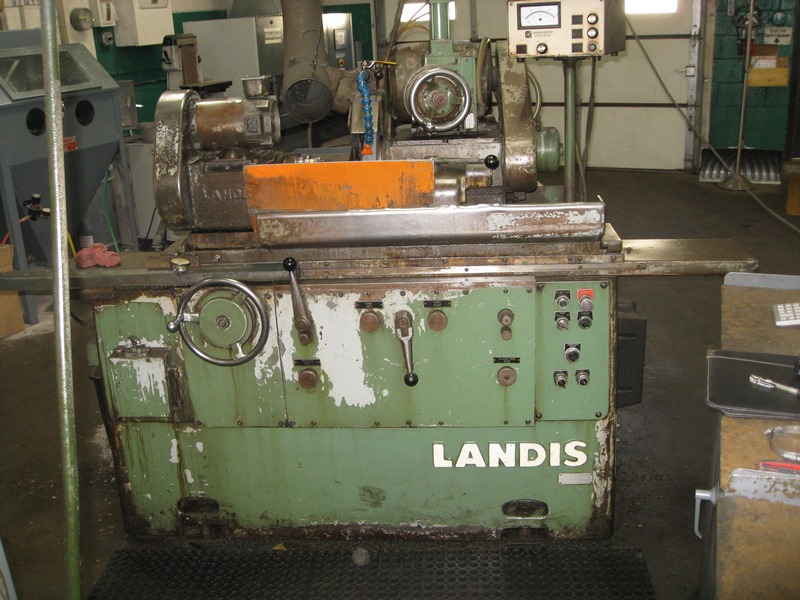

6" x 18" Landis #1R, plain cylindrical grinder, 14" x 1.5" x 5" grinding wheel, 3 HP, 1755 RPM, 1970

10x18 Landis 1R Plain Grinder, Plunge, Sparkout, Variable Speed Headstock
6 x 18 1R LANDIS PLAIN CYLINDRICAL GRINDER
S/N 810-41 Year: 1970
STANDARD CATALOG SPECIFICATIONS
Nominal work swing................................. 6
Nominal distances between work centers............. 18
PRIVATE Maximum diameter work standard machine will grind with full size standard wheel.................................... 6 7/8tc' \l 1 Maximum diameter work standardmachine will grind with full size standard wheel........................... . .. . . . .' 6 7/8\
Minimum diameter wheel to grind zero diameter work on
centers............................................10 1/2
Floor space required ..............................106 x 50
Coolant tank capacity - gallons................... 19
Hydraulic tank capacity -gallons ................. 9 1/4
Height from floor to work center line .............. 39 3/4
WORK CARRIAGE
Carriage traverse per turn of hand wheel .......... 0.200
Swivel table graduated - inches per foot........... 4
Degrees included angle............................ 20
HEAD STOCK FOOT STOCK
Head stock work center............................ #10 Jarno
Foot stock work center............................ #6 Jarno
Head stock swivel range........................... 60, 90, 150
Work speeds - RPM ................................. 225, 400, 600
Head stock spindle nose........................... 5A2
WHEEL HEAD WHEEL FEED
Grinding wheel size -(standard).................. 14 x 1.5 x 5
Grinding wheel spindle speeds - RPM..................... 1725
Grinding wheel, minimum diameter of worn wheel.......... 9 1/2
PRIVATE Maximum distance wheel center line to work center line for machines with hand wheel feed .................................. 11 1/2tc' \l 1 Maximum distance wheel centerlineto work centerline for machines with hand wheel feed ....................... .. . . . . 11 1/2\
For machines with hydraulic in feed .....................12 1/2
PRIVATE Minimum distance wheel center line to work center-line with foot stock removed ......................................... 3 1/2tc' \l 1 Minimum distance wheel centerlineto work center-line with foot stock removed ........................... . . . .. . .' 3 1/2\
Work diameter reduction per revolution of wheel feed
Hand wheel.............................................. 0.100
Work diameter reduction per revolution of fine knob..... 0.001
Minimum feed graduations - on diameter................. 0.000050
Maximum hydraulic in feed on diameter for hydraulic
in feed machines......................................... 0.090
Rapid in feed stroke for hydraulic in feed machines....... 1
ELECTRIC MOTORS
Wheel drive motor..................................3 HP 1755 RPM
Work drive motor........................................ 1/4 HP
Wheel spindle lubrication motor........................ 1/4 HP
Hydraulic pump motor for machines with hydraulic
traverse............................................... 1 HP
WEIGHTS
Machine with hand traverse and hydraulic in feed......... 6,000
EQUIPMENT FEATURES
Auto plunge cycle.
Bijur lube.
Hand traverse.
Coolant tank pump.
Spark out.
Tail stock dresser.
Variable speed head stock.
Specifications are deemed accurate, however, subject to verification or prior sale.
