Description

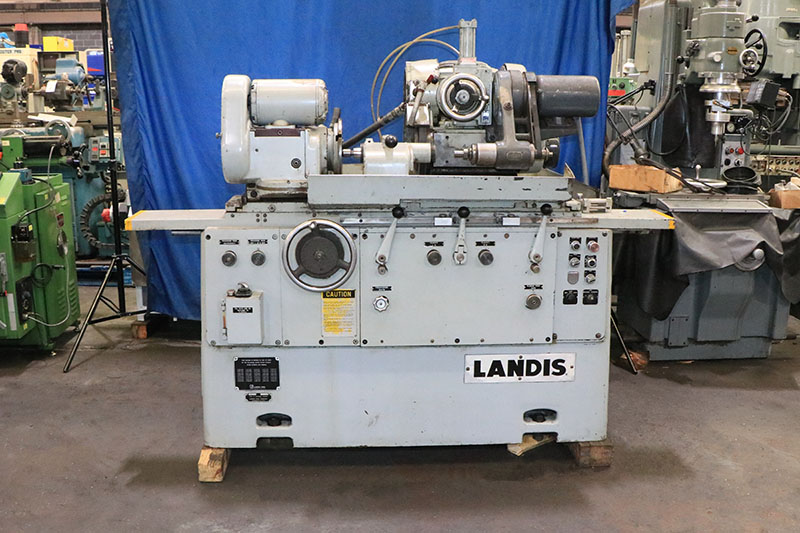

10" X 20" LANDIS I.D./O.D.…
HYDRAULIC UNIVERSAL CYLINDRICAL GRINDER,
WITH SWING DOWN I.D. GRINDING ATTACHMENT
AND I.D. GRINDING SPINDLE
**** MADE IN USA ****
MODEL: 1R… S/N: 905-30… NEW: 1991
CAPACITY:
NOMINAL SWING OVER TABLE .................. 10"
MAXIMUM SWING OVER TABLE .................. 10-7/8"
NOMINAL DISTANCE BETWEEN CENTERS .......... 20"
TABLE:
HYDRAULIC TABLE TRAVERSE ............... 2" TO 240" IPM
TRAVERSE PER TURN OF HANDWHEEL ............ 0.200"
TRAVERSE HANDWHEEL GRADUATIONS ............ 0.001"
SWIVEL TABLE GRADUATED ................. 20°, 4" PER FOOT
WHEELHEAD:
WHEELHEAD SWIVELS LEFT… RIGHT OF CENTER .. 90°
WHEEL SIZE ................................ 12" DIAMETER
MAXIMUM WIDTH, FULL WHEEL .................″"
MAXIMUM HYDRAULIC INFEED - ON DIAMETER .... 0.090"
RAPID INFEED STROKE ....................... 1"
MINIMUM FEED GRADUATIONS - ON DIAMETER .... 0.000050"
WORK DIAMETER REDUCTION PER REVOLUTION
OF HANDWHEEL ............................. 0.100"
WORK DIAMETER REDUCTION PER REVOLUTION
OF FINE FEED KNOB ........................ 0.001"
WHEELHEAD MOTOR ...........................″ HP
WORKHEAD:
WORKHEAD SWIVELS TOWARD WHEELHEAD ......... 90°
WORKHEAD SWIVELS AWAY FROM WHEELHEAD ......″0°
WORKHEAD SPINDLE SPEEDS (6) ............ 60 TO 600 RPM
WORKHEAD SPINDLE NOSE ..................... A2-5"
WORKHEAD MOTOR ............................ 1/4 HP
APPROXIMATE WEIGHT ................. 4,150 LBS
APPROXIMATE DIMS., FOR OPS ......... 8'L x 4'W x 6'6"HT
MACHINE FEATURES:
HYDRAULIC TABLE TRAVERSE
AUTO INFEED @ TABLE REVERSALS
AUTO PLUNGE FEED
POWER RAPID WHEELHEAD ADVANCE… RETRACTION
SPARKOUT TIMER
DUAL LIVE/DEAD WORKHEAD SPINDLE…
HARD FILM MICROSHERE WHEEL SPINDLE BEARINGS
CARRIAGE AND WHEELHEAD WAYS ARE AUTOMATICALLY LUBRICATED
MACHINE MOTORS ARE″/60/230-460 VOLT
EQUIPPED WITH:
SWING DOWN I.D. GRINDING ATTACHMENT
I.D. GRINDING SPINDLE
FACE PLATE
DRESSER
COOLANT SYSTEM IN THE BASE
MACHINE IS WIRED FOR 460 VOLTS PRESENTLY
LINK TO VIDEO:
https://youtu.be/SKeLHQF9AhY?si=34i8jLTC-ba2z0hx
**…"EXCEPTIONAL" CONDITION… APPEARANCE **
**** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE ****
