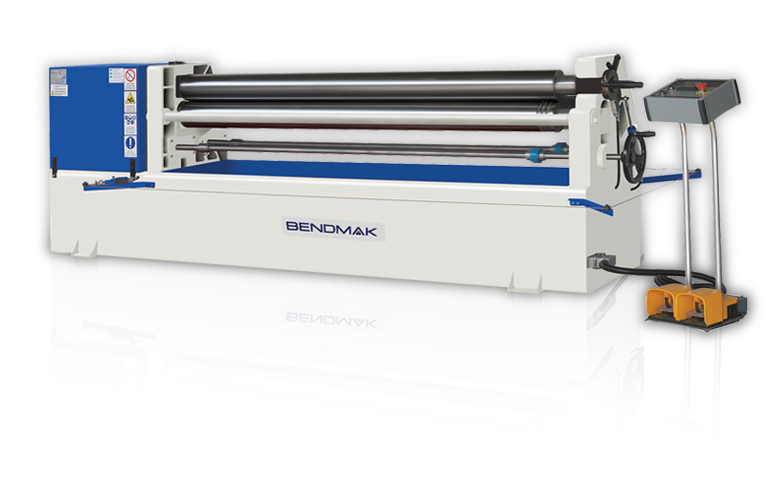

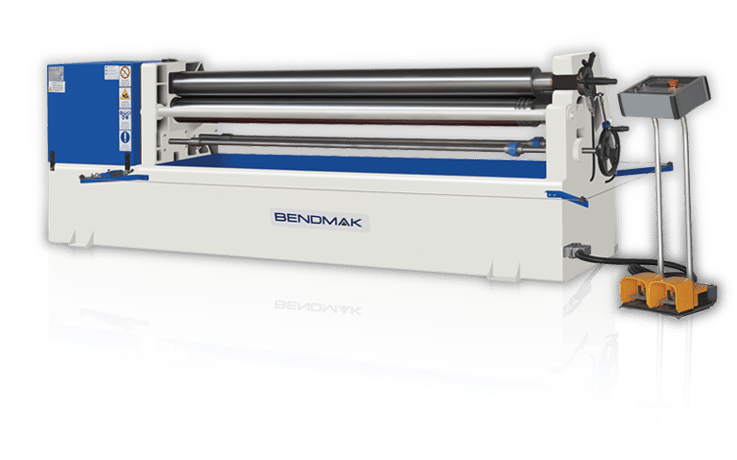

6' x 14 gauge Bendmak #CYL-110-20/3.0, Initial Pinch Plate Roll, digital read out, 3 HP, 4.3" top roll diameter, foot pedals

Manufacturer: Bendmak
Length': 6.00
CapacityInches or Gauges: .080
Stock # 5401

For Sale by Southern Fabricating Mchy Sales

Surplus Record Dealer Since 2015
Gold Level Dealer
Location: Lithia, FL
Contact Dan McCurdy
Let the seller know you found their listing on Surplus Record!

Description

14 Gauge X 6’ Initial Pinch Plate Roll with Digital Readout on Pedestal Control Panel, Foot Pedals for Forward & Reverse Roll Movements, Induction Hardened Rolls, Cone Bending Device, Motorized Back Roll and Swivel Out Top Roll for Easy Part Removal.
GENERAL SPECIFICATIONS
Working Length: 6’
Prebending Thickness: 14 Gauge
Max. Rolling Thickness: 11 Gauge
Top Roll Diameter: 4.3”
Motor Power: 3 HP
Bending Speed: 14.8’ / Min
Length: 10.3’
Height: 3.8’
Width: 2.8’
Weight: 2,425 Lbs
INCLUDES: Digital Readout on Pedestal Control Panel, Foot Pedals for Forward & Reverse Roll Movements, Induction Hardened Rolls, Cone Bending Device, Motorized Back Roll and Swivel Out Top Roll for Easy Part Removal.

***All Price, Location and Specifications Subject to Change without Notice***

Get Your Price from Southern Fabricating Mchy Sales!
