For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact David Valitt
Phone Number: 973...> Show Phone Number 973-497-7570
Let the seller know you found their listing on Surplus Record!
Description

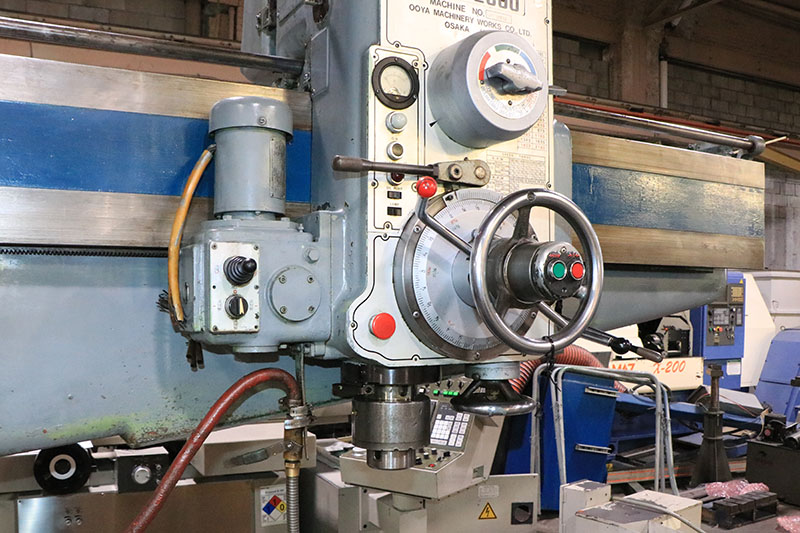

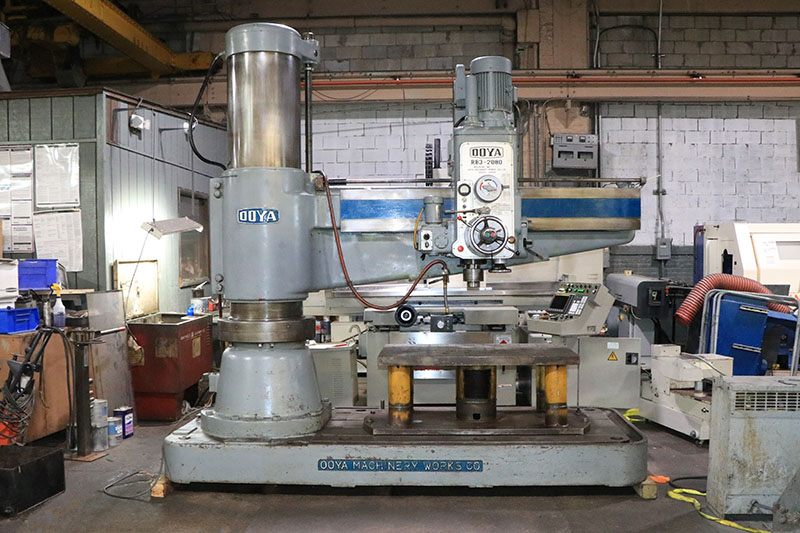

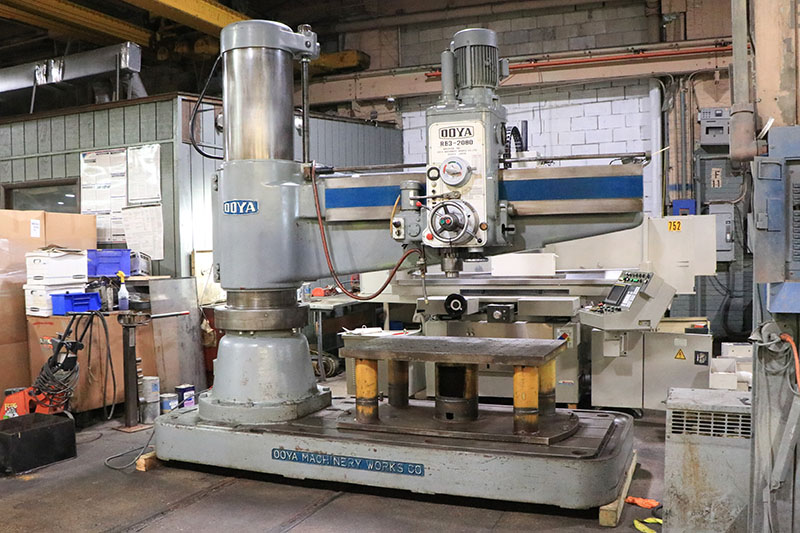

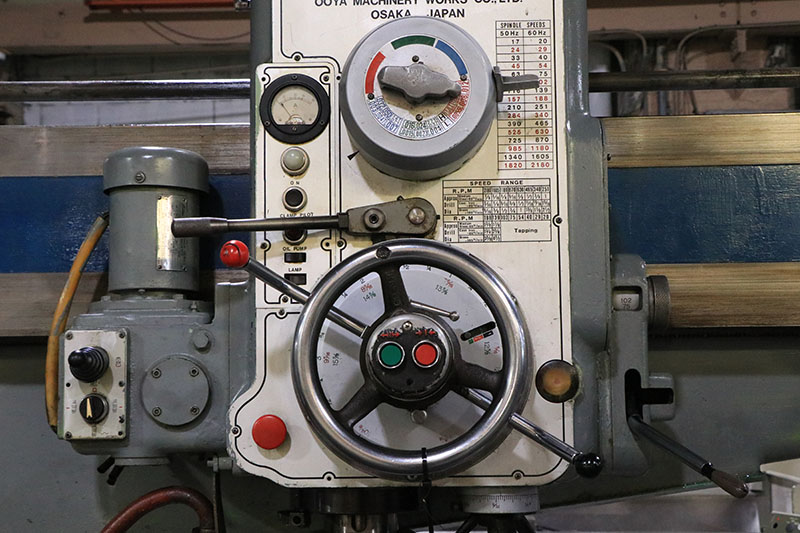

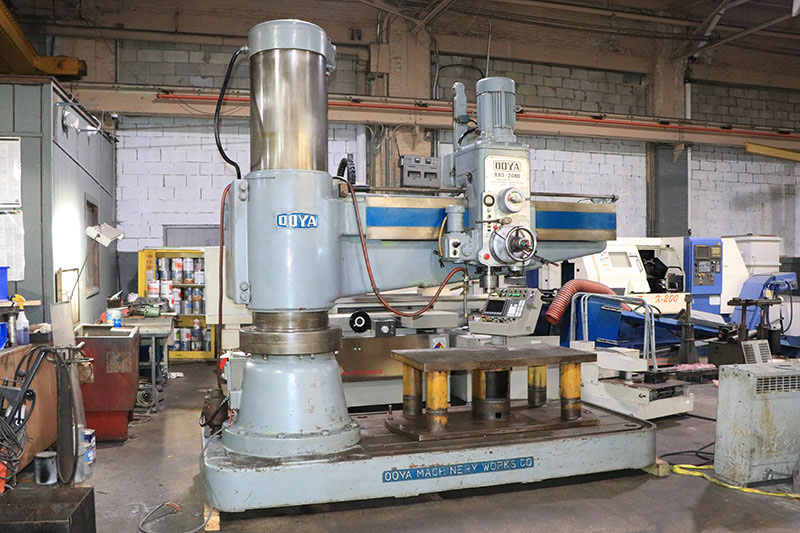

6.5' X 19" OOYA RADIAL DRILL
MODEL: RE3-2000,… S/N: OA5 01222
SPECIFICATIONS:
MAXIMUM DISTANCE SPINDLE TO COLUMN.............. 79-1/2"
MINIMUM DISTANCE SPINDLE TO COLUMN.............. 16-1/8"…
DIAMETER OF COLUMN.............................. 19-11/16"…
DRILL CAPACITY, MILD STEEL:
DRILLING STEEL...........................″"…
DRILLING CAST IRON.......................″-5/8"…
BORING IN STEEL.......................... 7-7/8"…
BORING IN CAST IRON...................... 11"…
TRAVERSE OF SPINDLE HEAD ON ARM................. 63-3/8"…
VERTICAL TRAVEL OF ARM .........................″2-1/4"…
MAX. DISTANCE BETWEEN SPINDLE AND BASEPLATE... 66-7/8"…
MIN. DISTANCE BETWEEN SPINDLE AND BASEPLATE... 19"…
SPINDLE:
TRAVERSE OF SPINDLE........................... 15-3/4"
TAPER IN SPINDLE.............................. #5 MT
RANGE OF SPINDLE SPEEDS(12)................... 20 - 2180 RPM
RANGE OF FEEDS(18)............... .0015" - .125" PER REV
APPROXIMATE MACHINE DIMENSIONS .......... 121"L x 49-1/4"W
x 117"H HEAD DOWN
APPROXIMATE MACHINE WEIGHT ..................... 15,000 LBS.…
EQUIPPED WITH:
POWER ELEVATION… CLAMPING OF ARM ON COLUMN
POWER CLAMPING OF HEAD ON ARM

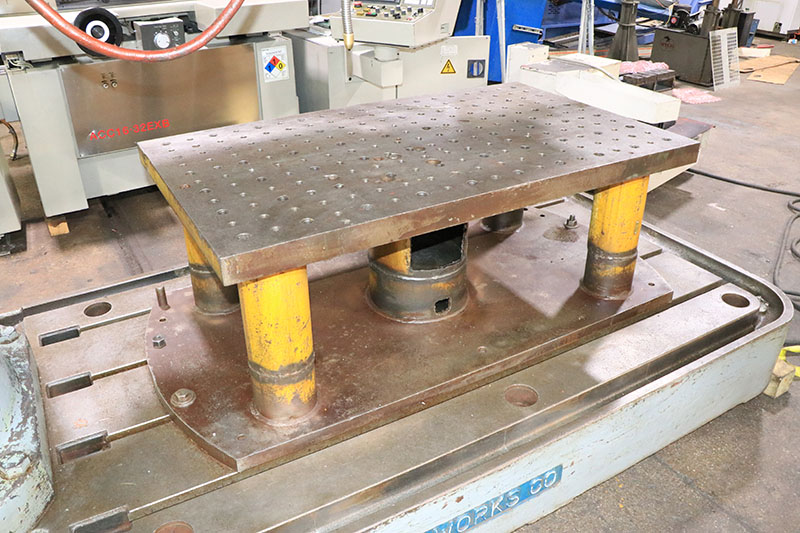

TABLE
T-SLOTTED BASE
COOLANT SYSTEM
10 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
Get Your Price from Machinery Values Inc!
