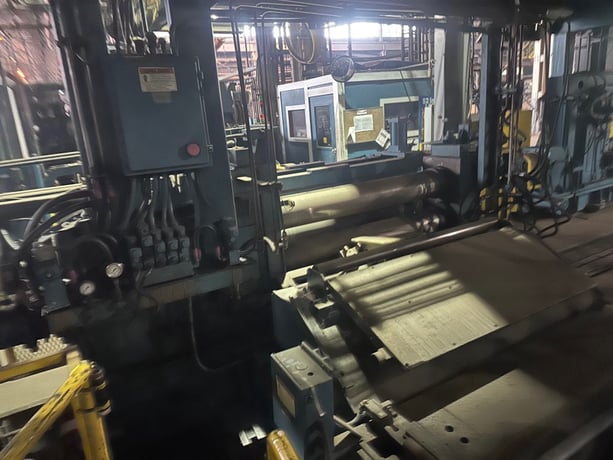

54" x 8" Stamco Double Loop Slitting Line, 35000 lb.

MFG: Stamco
Year: 1995
SO: 25-95-7
S/N: 4865

Width: 54"
Weight: 35,000 lbs.
ID Range: 16" - 20" - 24"
Coil OD: 72" max.
Gauges Processed: 0.010" - 0.100"
Line Direction: Right to Left
Line Speed: 500 and 1200 FPM
Shear Strength: 156,000-170,000 PSI

Consisting of the following:

-4 Arm Entry Turnstile:
C-Hook Type Arms
Power Rotation

-Scissor Lift Coil Car:
Powered Roller Top
Self-Contained Hydraulic Power Unit
Hydraulic Lift & Travel

-DC Driven Inter-Leaf Coiler

-Turret Type Uncoiler:
60" Face Mandrel
Hydraulic Expansion
Pumpkin Tooth Mandrels
Overarm Holddown Roll
DC Motor Drive & Brake
Slide Base

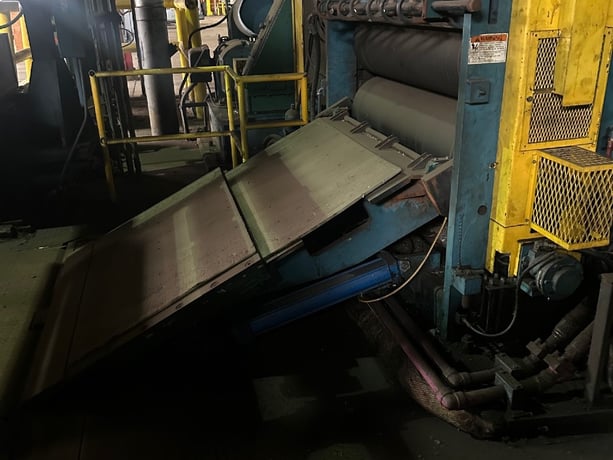

-Articulating Peeler Table

-Entry Unit:
Entry Pinch Rolls- 16" dia. x 60" face, 75HP DC motor, 650/2200RPM, 123 Amp,
Horsburgh & Scott Helical Reducer(6.388:1 Ratio)
Traveling Design - delivers metal over Pit to Slitter Head
Crop Shear- Single Rake, 60" wide blade with metal belt conveor for removal of crops

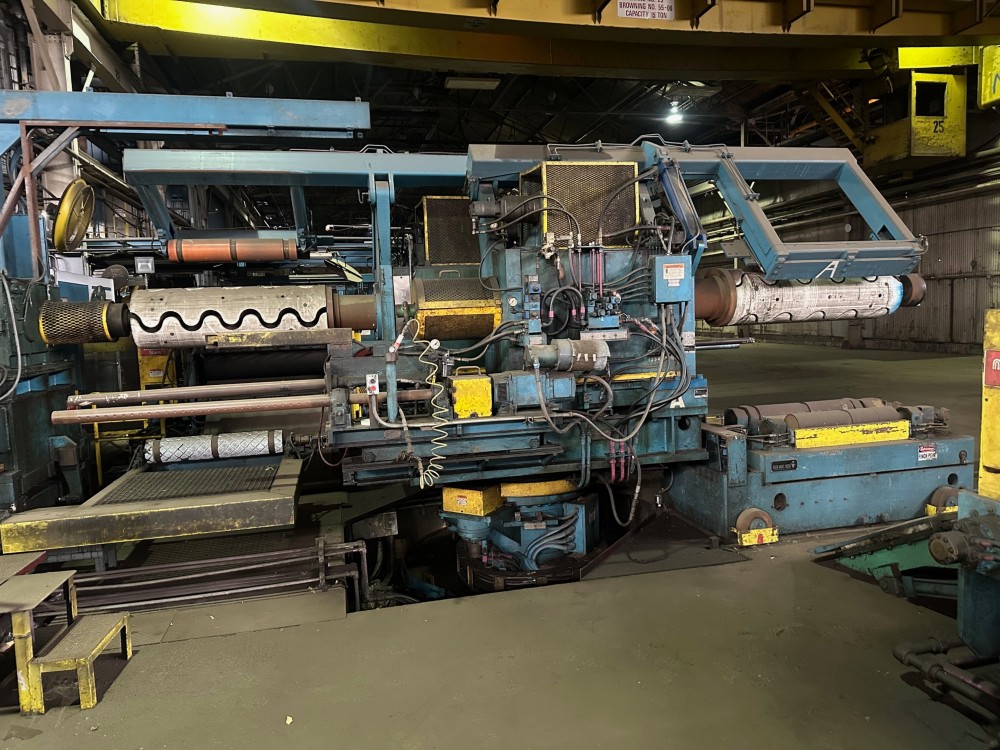

-Injector Slitter Head:
Driven Entry Pinch Roll Stand
Tooling Change by 4 Arm Turret
(1) Slitter Head, 8" x 60" face Arbors
(1) Double-Stub Edge Trimmer
Hydraulic Tooling Lock Up

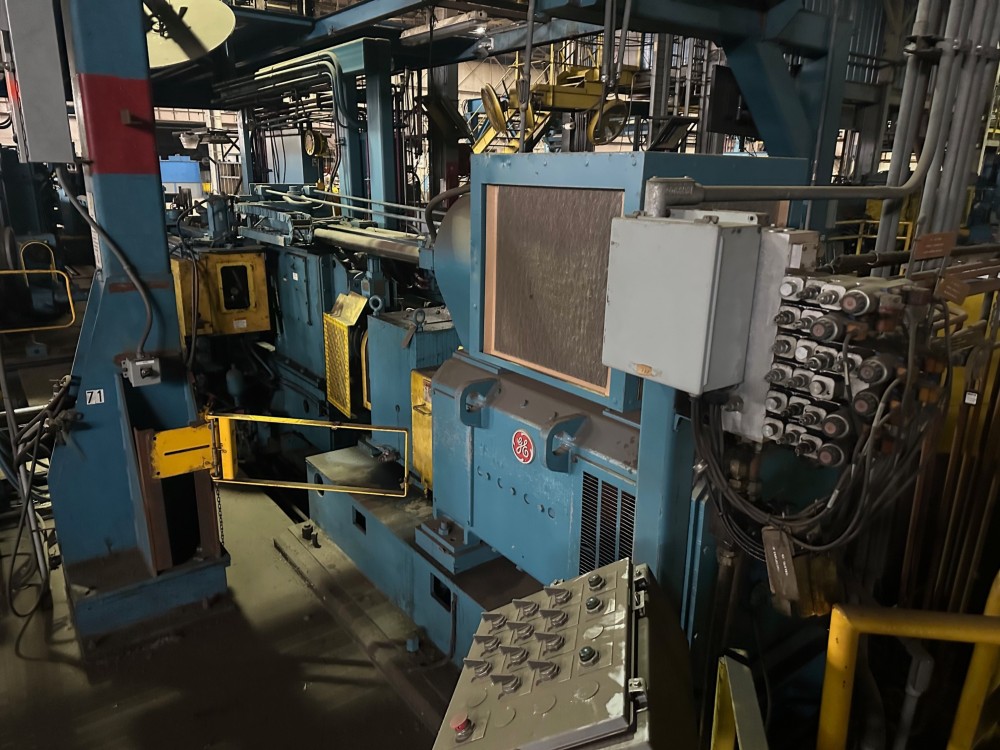

200 HP DC Motor Drive(GE KinaMatic), 500V, 650/2200RPM, 325amp,

-Scrap Baller:

-Pit Carry Over Unit:
Cascade Rolls Entry & Exit
Pad Tension Unit Travels

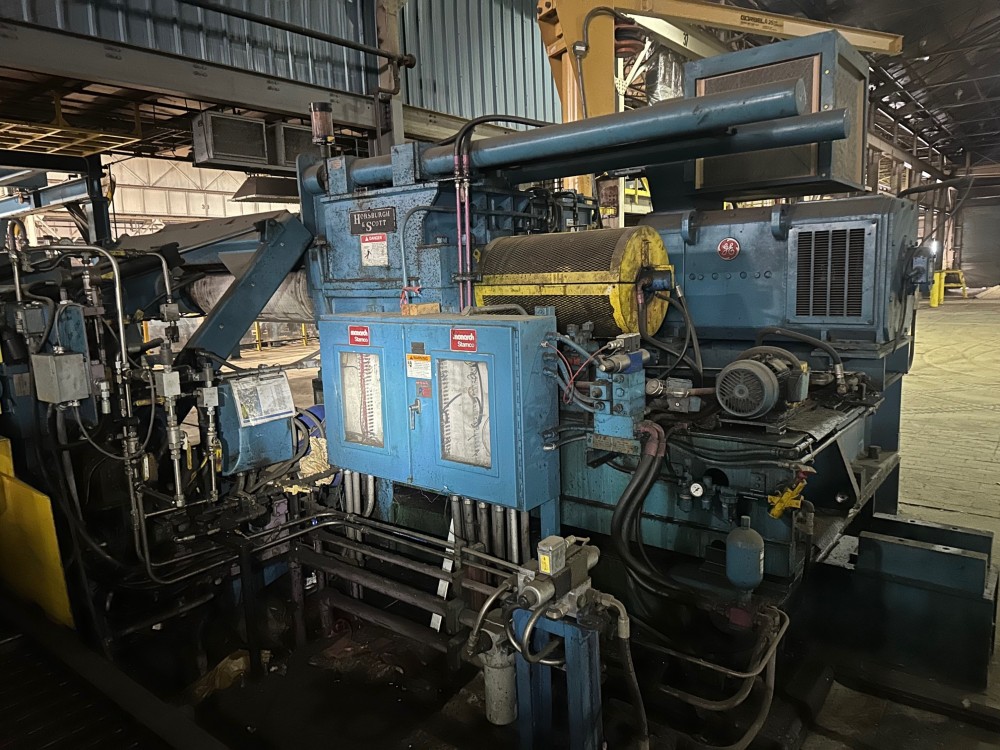

-Combination Pad & Roll Type Tension Stand:
Pneumatic Air Bag Type Pad Tension
DC Motor Drive / Brake for Rolls
16" Diameter Urethane Covered Rolls
Hydraulic Crop Shear

-Free Standing Overarm Separator:
Entry Deflector Roll
Threading Table

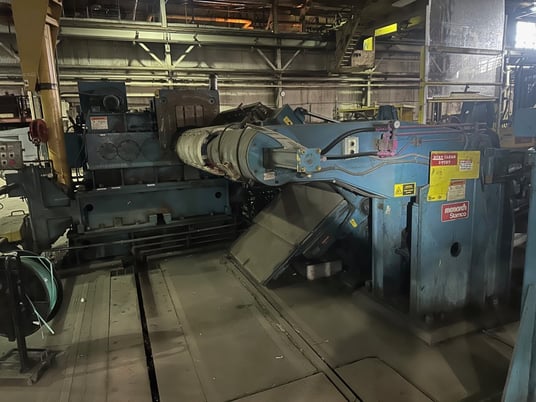

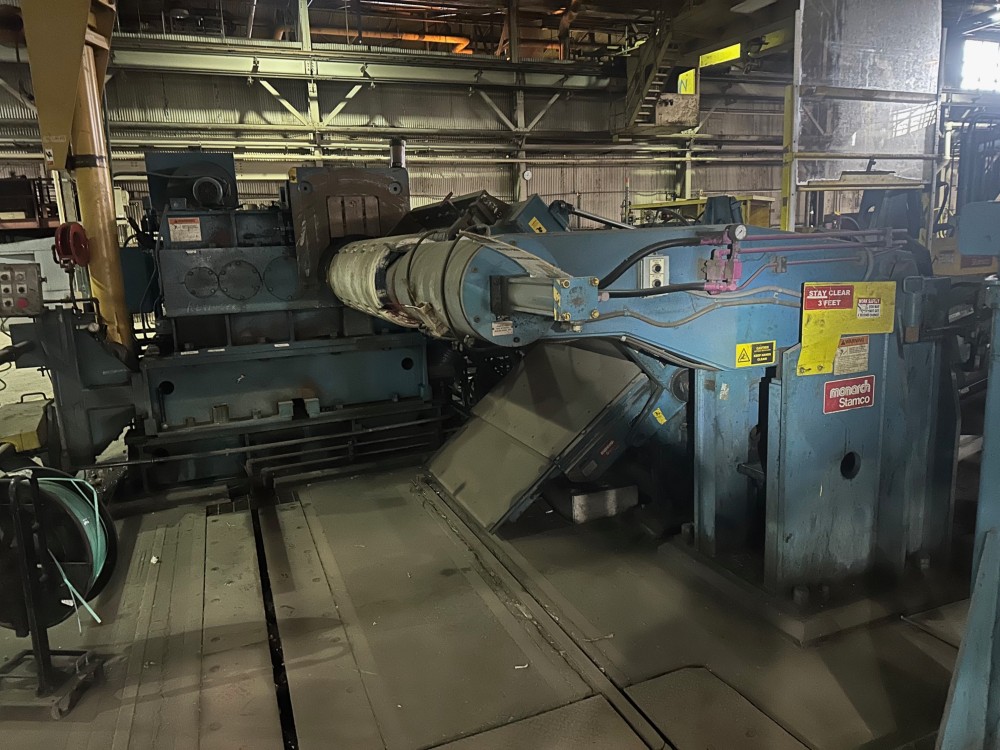

-Recoiler:
16" Dia. x 60 face Drum, 62" from Center line of Drum to Floor(approx. 11.5" shaft)
20" & 24" Bolt-On Pads
Hydraulic Gripper & Expansion
Hydraulic Pushoff
200 HP DC Motor Drive(GE KinaMatic), 500V, 650/2200RPM, 325amp,
Horsburgh & Scott 2 Speed Reducer: 200HP, 200FPM(Low), 1200FPM(High)
Outboard Bearing Support

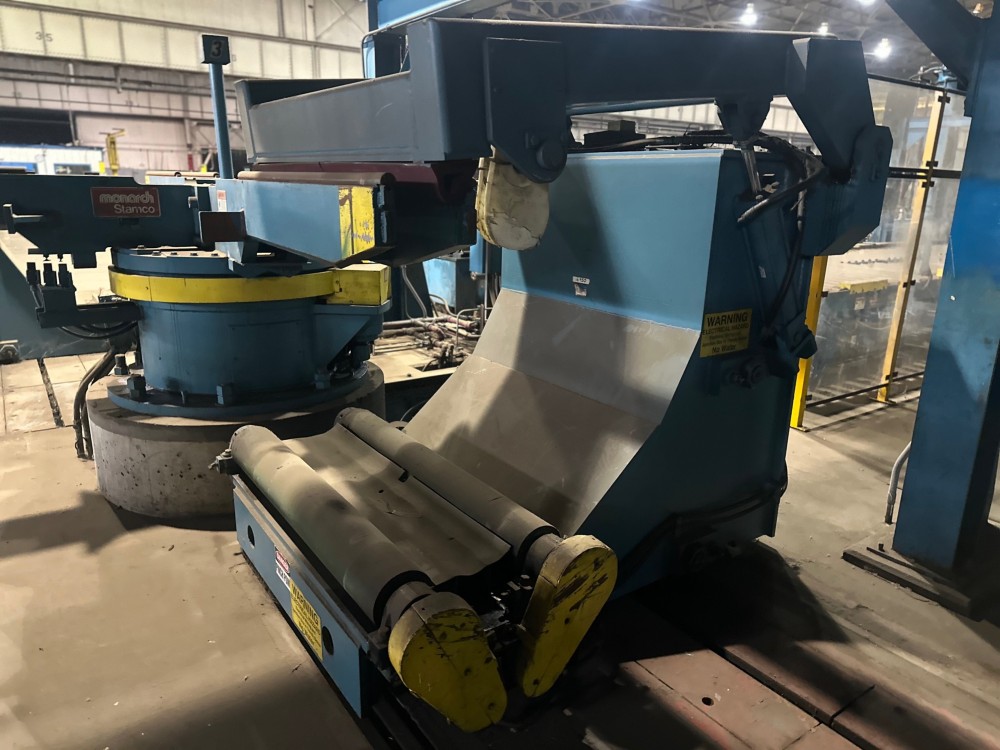

-Exit Coil Car:
L Type
Powered Rollers on Bed
Self-Contained Hydraulic Power Unit
Hydraulic Lift & Travel
Overarm Holddown Arm/Coil Steadies

-4 Arm Exit Turnstile:
C-Hook Type Arms
Power Rotation

-Motor, 3 Pump Hydraulic Power Unit

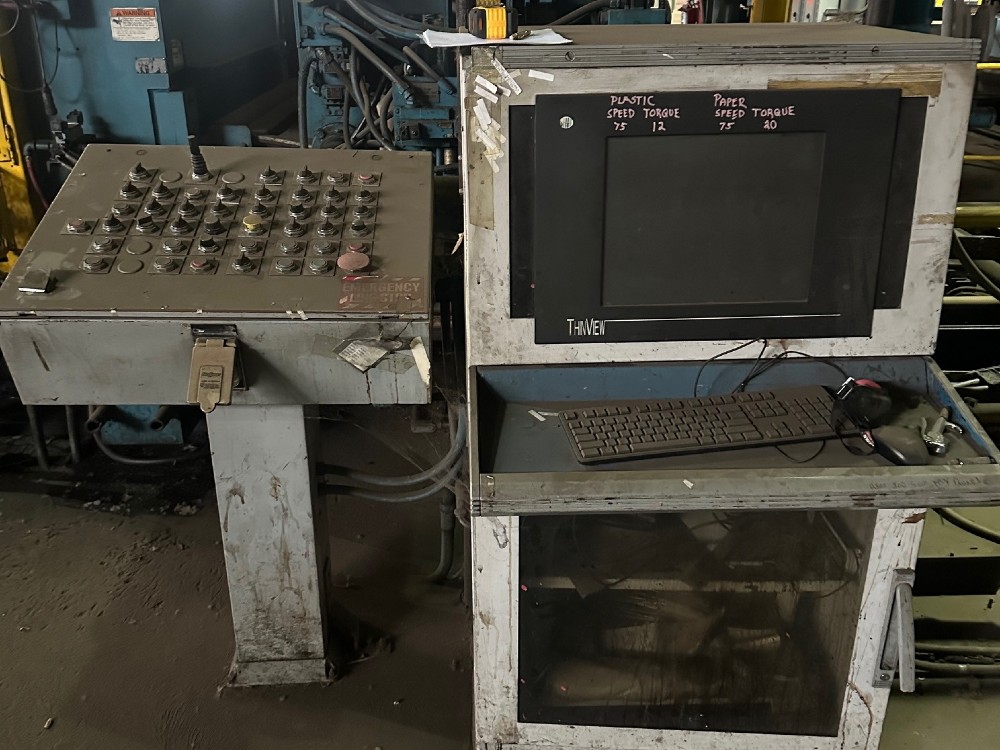

Westinghouse/Avtron Advanced Digital Drives for DC Motors

-Line is Installed
