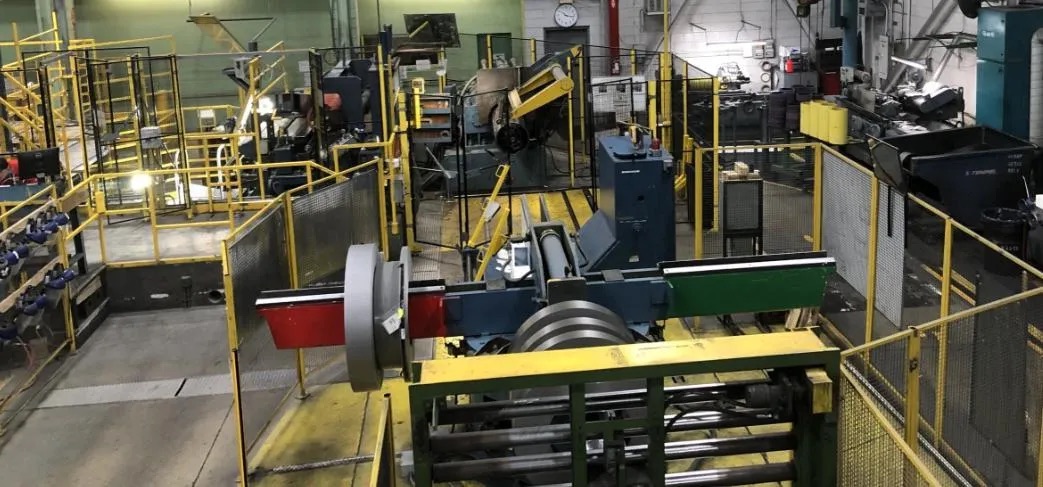

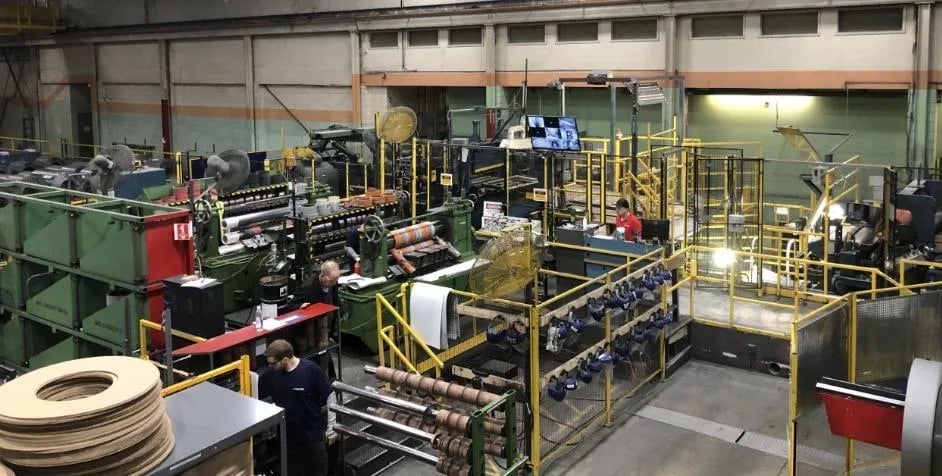

50" x .05" Pro-Eco Silicon Steel, Precision Slitting Line, 50000 lb., Double Loop Injector Head, 48" coil width, 72" outside dimension, 16"-20" ID, 6.5" arbor, 1200 FPM, LR

Specifications:
Manufacturer: Pro-Eco
Shear Stress: 100,000 PSI – Silicon Steel | 60,000 Cold Rolled Steel
Max Yield Stress: 80,000 PSI
Min Yield Stress: 30,000 PSI
Max Coil Weight: 50,000 Lbs Entry/Exit
Max Coil Width: 48” Nominal (50” Maximum) Entry/Exit
Min Coil Width: 8” Entry / 1” Exit
Max Coil OD: 72” Entry / Exit
Min Coil OD: 36” Entry / Exit
Entry Coil ID: 16” – 20”
Exit Coil ID: 20”
Max Strip Thickness: 0.025” In – Silicon Steel / 0.050” CRS
Min Strip Thickness: 0.010”
Arbor Diameter: 6.5”
Number Of Heads: Two (2)
Knife Diameter: 10.5” Max – 8.5” Min
Shimless Tooling: Yes
Max Cuts: 32
Line Speed: 1200 FPM
Uncoiler Motor: 125 HP DC
Slitter Head Motor: 100 HP DC
Recoiler Motor: 150 HP DC
Electrical: 575 V, 3 Ph, 60 Cycle
Air Supply: 80 PSI
Line Direction: Left To Right
Mode Of Operation: Full Loop Drive-Slit, Double Loop
Line Components:
L-Type Entry Coil Car
Mandrel Uncoiler W/ Outboard Coil Support & 8” Hold-Down Roll
Automatic Center Guide Control Unit
Entry Pit
Peeler Table
6” Pinch Roll & Side Guide Unit
Entry Crop Shear
Side Guides
Injector Slitting Head
Butech Dual Arbor Mdl. SC135-1 Scrap Choppers
Looping Pit
Pit Threading Table
Tension Pads & 16” Polyurethane Tension Rolls Stand
Separator Shafts
Exit Crop Shear
Recoiler With Overarm Separator
L-Type Exit Coil Car
Also Available:
Integrated 10,000# x 72” Pro-Eco Packaging Line, Including:
Exit 4-Arm Turnstile
10,000# Downender
Weight Scale Under Semi-Automated Banding Line
5/8” Steel Banding
Pick And Place Stacker
Max Capacity 6000 Lbs Per Slit Coil
6-Position Rotating Turntable Assembly
Exit Conveyor
Semi-Automatic Stretch Wrapping Machine
Weight Station
Controls, Hydraulics And Electrics For Line
Tooling, Spacers, Knives
Electrics
Hydraulic Unit
Operators Control
