For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

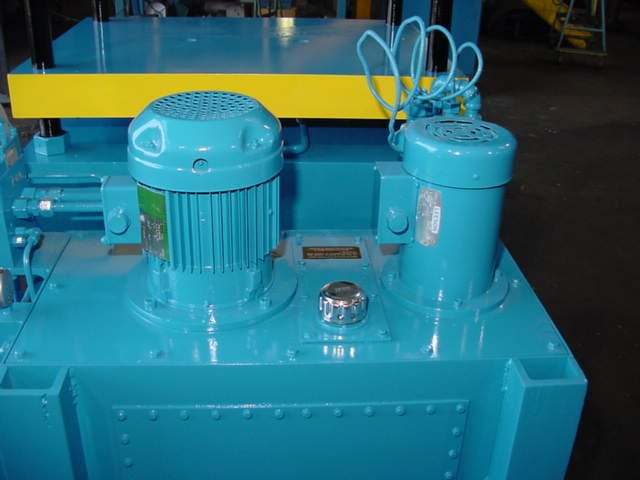

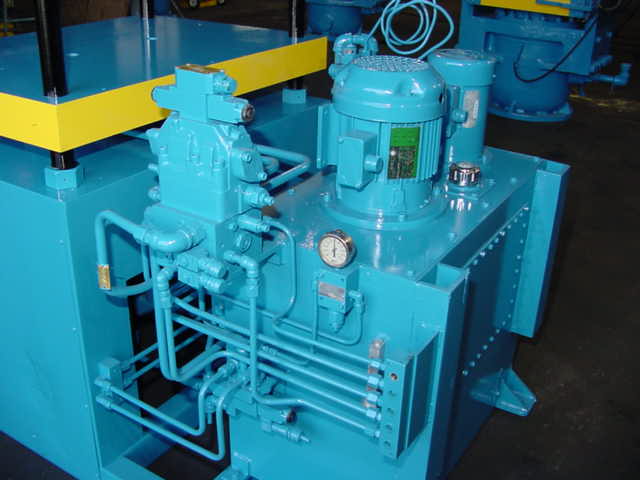

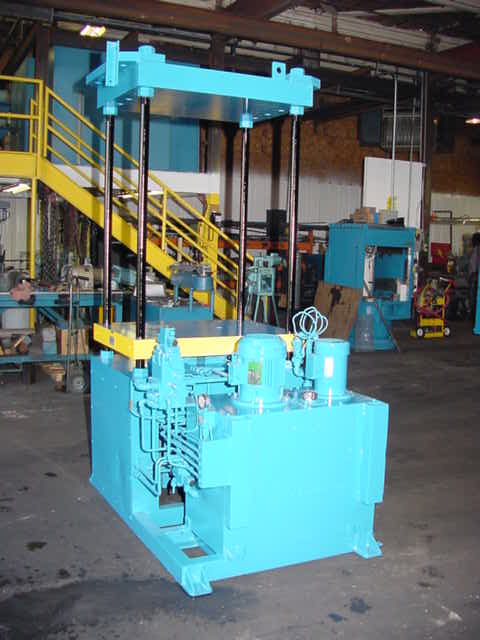

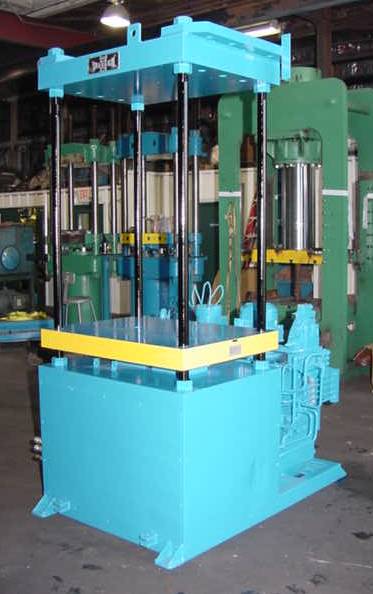

S/N 7860. MODEL PC50-3030-9CTMX. NEW IN 1986. 41" L TO R OVERALL; 22 \u00bd" F TO B BETWEEN THE POSTS. 34" L TO R X 31" F TO B NOMINAL BED SIZE. FULLY GUIDED ON 2" DIAMETER POSTS. TWO DOUBLE-ACTING CYLINDERS: 5" BORE; 2" ROD; 24" STROKE. APPROX. DAYLIGHT OF 50". WORK HEIGHT OF 41". HYDRAULIC UNIT BEHIND PRESS ON SAME BASE. 70 GALLON TANK; 3 H.P. MOTOR (1800 RPM; 208-460 VOLTS) WITH 9 GPM REXROTH VARIABLE VOLUME PUMP AND A 0.71 GPM PISTON PUMP IN COMBINATION; REXROTH VALVES; OIL COOLER WITH WATER SAVER VALVE; 1 \u00bd HP MOTOR WITH A 4 GPM PUMP FOR OPTIONAL AUXILIARY CIRCUIT. OVERALL DIMENSIONS: 68" X 48" X 103" TALL. APPROX. 14,000 LBS. HYDRAULIC SCHEMATIC.R1 (ITEM #877)
Get Your Price from Icon Industries, Inc!
