Description
Overview
Description

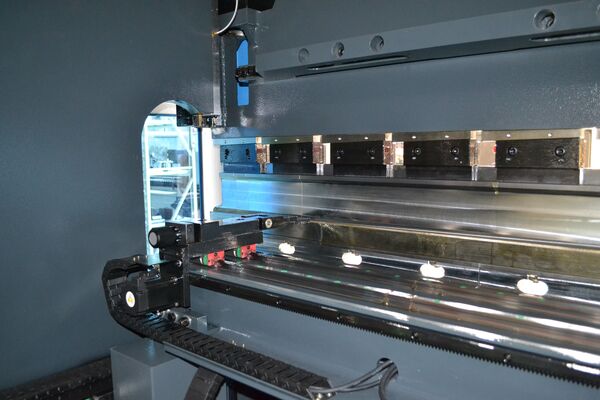

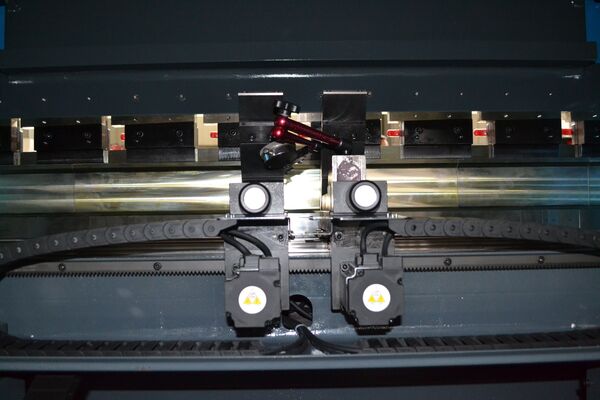

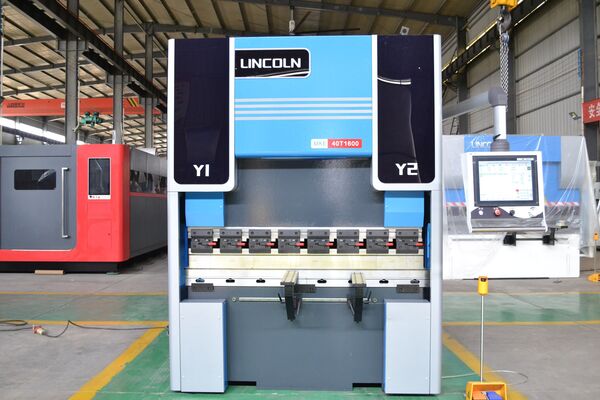

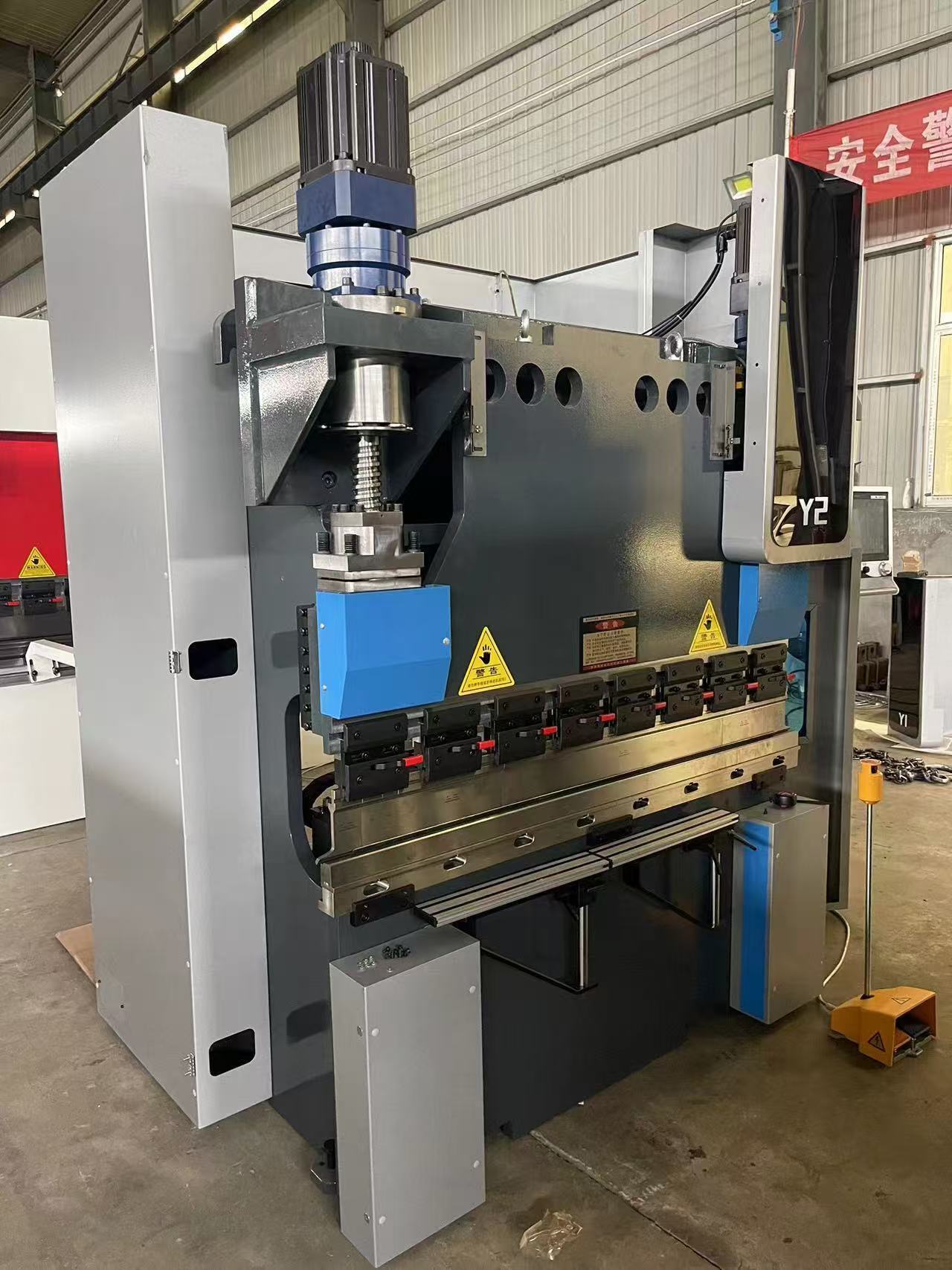

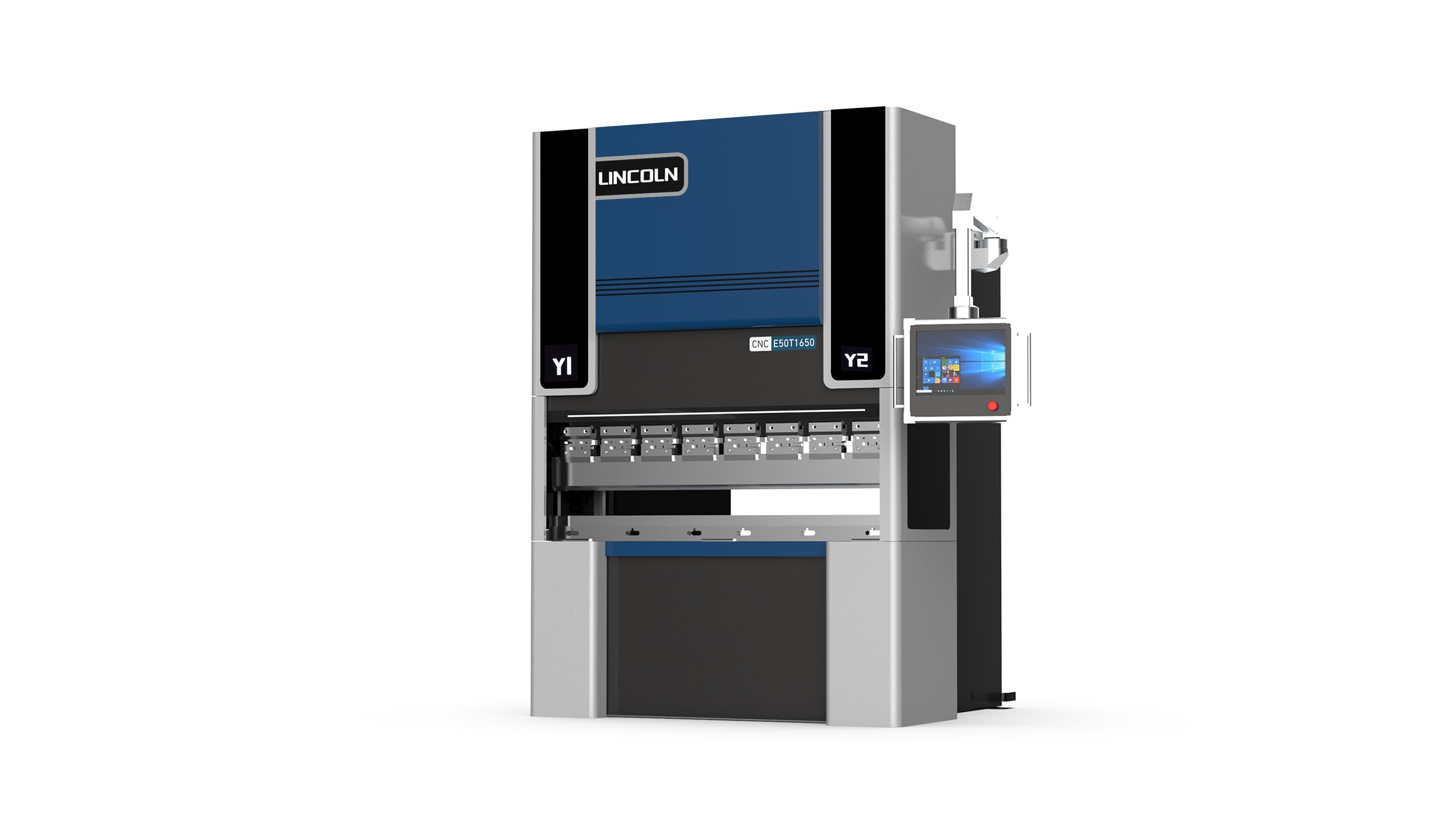

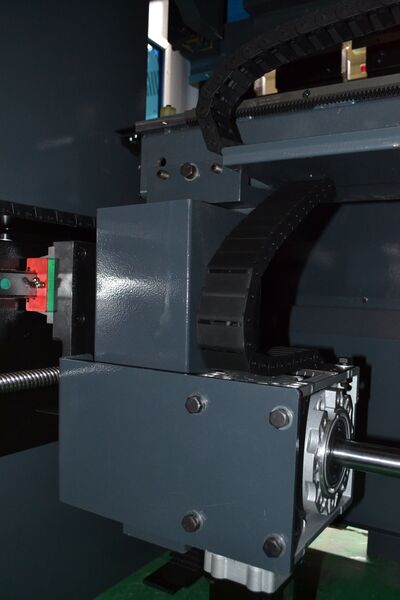

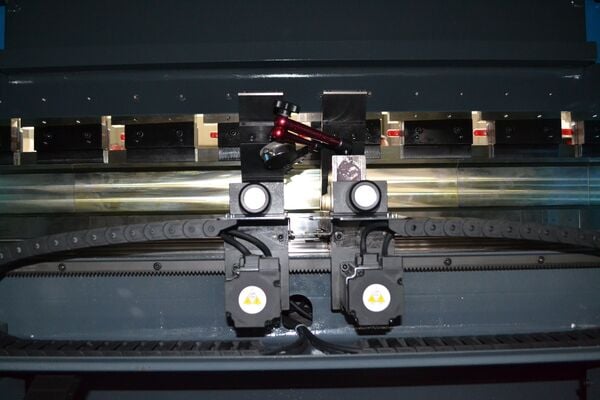

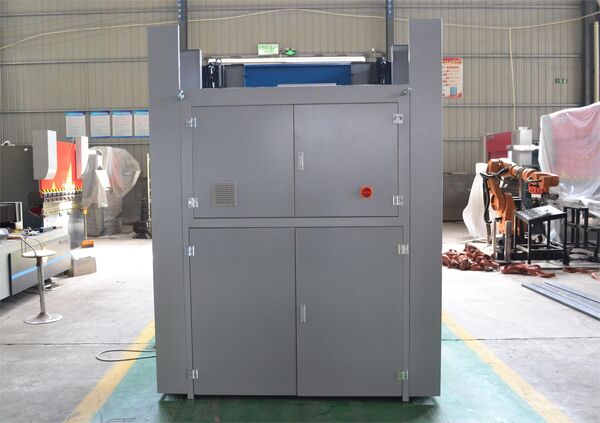

Full Electric Servo Press BrakeThe MKE series is a pure electric servo bending machine, driven by a servo motor, which makes its manufacturing efficiency much better than the conventional hydraulic press brake. in addition, no hydraulic oil is required, which is environmentally fiendly and free from pollution. Compared with the conventional equipment, the pure electric servo bending machine can save the energy 6 AXIS REAR BAFFLE RACK STRUCTURE up to approximately 70% and it features fast slider speed, high production efficiency and bending precision, and can have the deviation of the bending angle well controlled within+0 5mm.
Specifications
Type:
Press Brakes
Manufacturer:
KRRASModel:
MKE-50T/2000
Condition:
Build To Order
Status:
For Sale
Description
Full Electric Servo Press BrakeThe MKE series is a pure electric servo bending machine, driven by a servo motor, which makes its manufacturing efficiency much better than the conventional hydraulic press brake. in addition, no hydraulic oil is required, which is environmentally fiendly and free from pollution. Compared with the conventional equipment, the pure electric servo bending machine can save the energy 6 AXIS REAR BAFFLE RACK STRUCTURE up to approximately 70% and it features fast slider speed, high production efficiency and bending precision, and can have the deviation of the bending angle well controlled within+0 5mm.
Specifications
Model:MKE-50T/2000
Nominal pressure:500KM
ABending length:2000 mm
BColumn spacing:1700 mm
CThroat Depth:350 mm
DCylinder stroke:180 mm
EMax open height:420 mm
FMold height: 470 mm
Xaxis moving speed:600 mm/s
Drive speed:200 mm/s
Compression speed:17 mm/s
Return speed:180 mm/s
Machine axis: 6-axis, no compensation
X-axis stroke:500 mm
R-axis stroke:150 mm
Main motor power:2*7.5 KW
Power capacity: 35KVA
Weight: 5000 kg
Machine dimensions: 2500x1650x2500 mm
All data are approximate. Design and specifications subject to change without notice.
