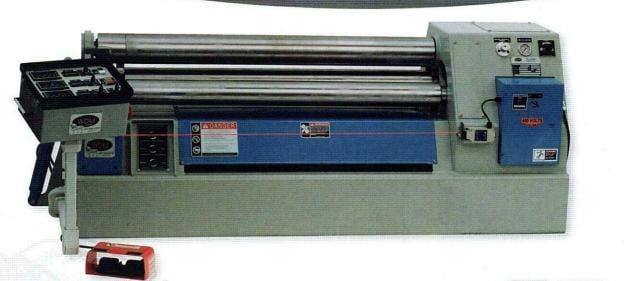

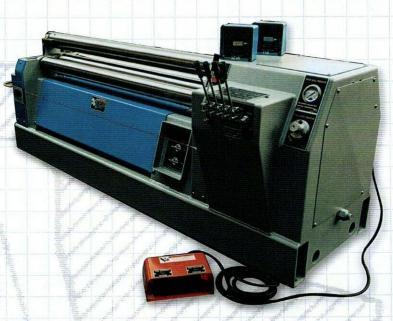

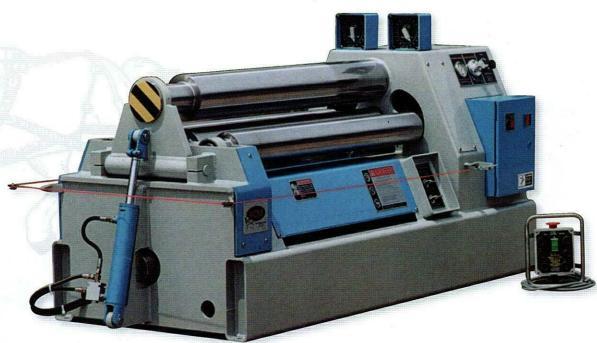

5' x 1/4" WDM #403-6-5, hydraulic initial pinch plate bending, 6" roll diameter, 5 HP, NEW

SPECIFICATIONS:
NOMINAL ROLL DIAMETER -------------------- 6"
RATED ROLLING CAP. (MILD STEEL) ---------- 0.25” mild steel plate to 24” diameter x 5' wide
MOTOR ------------------------------------ 5 HP
VOLTAGE ---------------------------------- 230/460/3PH TEFC
APPROXIMATE WEIGHT ----------------------- 4,750 LBS
APPROXIMATE DIMENSIONS (L X W X H) ---- 107" x 37" x 38"
FEATURES:
• Automatic compensation for roll deflection creating the following features:
o No Crown required in the rolls
o The ability to roll any thickness and width of material up to max capacity without any roll deflection symptoms in the workpiece
o No shimming required to correct “hour glass” shaped cylinders resulting from too much roll crown
o No shimming required to correct “barrel” shaped cylinders resulting from not enough roll crown
• Flame Hardened and Polished 1045 Carbon Steel Rolls
• LSHT type hydraulic drive motor with high volumetric and overall efficiency
• Hydraulic driven rolls which provides instant start, stop, and reverse
• Two roll drive
• NEMA 12 control cabinet with fused power supply
• Electrics meet NFPA 79 Specifications
• 230/460-volt 3 phase 50/60 hertz electrics (specify voltage when ordering)
• Variable Frequency Drive on main motor
• Infinitely variable rolling speed up to 22 FPM
• Electronic overload protection
• SKF spherical roller bearings on all main bearings
• Safety cable around perimeter of machine
• Beta 4.2 rolling console control. Pushbutton control of main functions and 3 digital readouts to show the position of the 3 lower rolls.
• Rolls driven directly or through planetary gear type speed reducers
• Machine sets directly on level floor
• Ability to roll symmetrical steel sections without additional attachments
• Hydraulic operated drop end support
• Heavy Duty Cone Attachment
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
WARRANTY:
Waldemar Design & Machine L.L.C. guarantees for a period of one year from the date of original purchase all necessary repairs and parts replacements to this unit occasioned by defective workmanship and/or material. Should any failure occur during this time period, purchaser agrees to return defective part to factory for repair or replacement at factory’s option.
OPTIONAL FEATURES:
• Cone Attachment with roller “snubber” - $2,750
• Side Support Each - $7,000
• Overhead Support 12' Max - $8,550
• Pre 4.2 (preset) Control - $12,650
• 4R-AP (Automatic CNC) Control - $29,100
DELIVERY:
SUBJECT TO STOCK
