Click to zoom in
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Capacity in carbon steel Type A-36 | 5' x 1/4" |
| Roll Diameters | 6.30 inches |
| Rolling speed (approximately per minute) | 16 feet |
| Voltage | 480 |
| Drive Motor HP | 5 |
| Hyd. Motor HP | 1 |
| Weight | 6200 pounds |
Equipped With
Equipped With
FEATURES:
OPTIONAL FEATURES:
* Variable rotation speeds via frequency changer in place of single-speed drive. For in-stock and incoming-stock machines, adds about 1 week to lead time. For factory order machines, no increase in lead time. Please note: variable speed option is voltage-specific for a single voltage of either 3/60/220 or 3/60/480. ------------- $3,500.00
* Additional digital readouts to display the position of both ends of both side bending rolls. Helpful for cone rolling applications so the operator can easily repeat the same tilt on the side bending rolls. Only available on factory ordered machines. Cannot be added to in-stock models. ------------- $4,200.00
* Electromechanically operated top support device for supporting cylinders being rolled. Only available on factory ordered machines. Cannot be added to in-stock models. ----------------- $12,250.00
DELIVERY:
SUBJECT TO STOCK
* Direct-Drive Design using no belts or chains
* Spherical roller bearings on roll shafts
* Hydraulically powered adjustment of both side bending rolls
* Hydraulic tilting of both side bending rolls for cone rolling
* Cone bending attachment
* Digital readouts for position of both bending rolls
* Hydraulically operated drop end for quick removal of rolled product
* Hydraulic pinch roll adjustment with adjustable pinch pressure with pressure gauge
* Manual tilt of the lower pinch roll
* Portable control console on wheels for efficient operation of the machine
* Upper and lower pinch rolls driven
* All rolls heat treated to 50 Rc Electrics for 3/60/220 or 480 volt operation. Low voltage at the controls.
* Emergency stop palm button on the control console
* Emergency stop cable around the machine
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONOPTIONAL FEATURES:
* Variable rotation speeds via frequency changer in place of single-speed drive. For in-stock and incoming-stock machines, adds about 1 week to lead time. For factory order machines, no increase in lead time. Please note: variable speed option is voltage-specific for a single voltage of either 3/60/220 or 3/60/480. ------------- $3,500.00
* Additional digital readouts to display the position of both ends of both side bending rolls. Helpful for cone rolling applications so the operator can easily repeat the same tilt on the side bending rolls. Only available on factory ordered machines. Cannot be added to in-stock models. ------------- $4,200.00
* Electromechanically operated top support device for supporting cylinders being rolled. Only available on factory ordered machines. Cannot be added to in-stock models. ----------------- $12,250.00
DELIVERY:
SUBJECT TO STOCK
Get Your Price from Smith Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

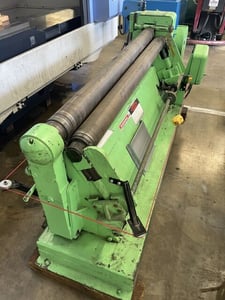

5' x 14 gauge Wysong #B-60, 3-roll Plate Roll, 4" diameter, 1.5 HP
