For Sale by Liberty Machinery Co
Surplus Record Dealer Since 1996
Peter Sonneborn
847-27...> Show Seller's Phone Number 847-276-2761 Let the seller know you found their listing on Surplus Record!
Description
CATALOG SPECIFICATIONS:
Weight on Platter - Maximum:
- Supported............10 Lbs.
- Unsupported............5 Lbs.
Spindle:
- Number............2
- Speed - maximum............200°/Sec.
- Torque - continuous............25 Ft.-LbF
- Nose thread............2-3/16" - 10
- Runout - maximum............0.0004"
- Center height............5.875"
- Collet size............5C
- Backlash............50 Arc-Sec
- Gear ratio............60:1
Indexing:
- Accuracy............±60 Arc-Sec
- Repeatability............10 Arc-Sec
- Resolution............0.001°
- Worm gear............2.8"Ø
- Rotation step - maximum (w/rotary control)............999.999°
Power............115V ±10% @ 15A
Operating temperature - ambient maximum............100°F
Air pressure - maximum............150 PSI
EQUIPPED WITH:
AC-25 Air collet closers

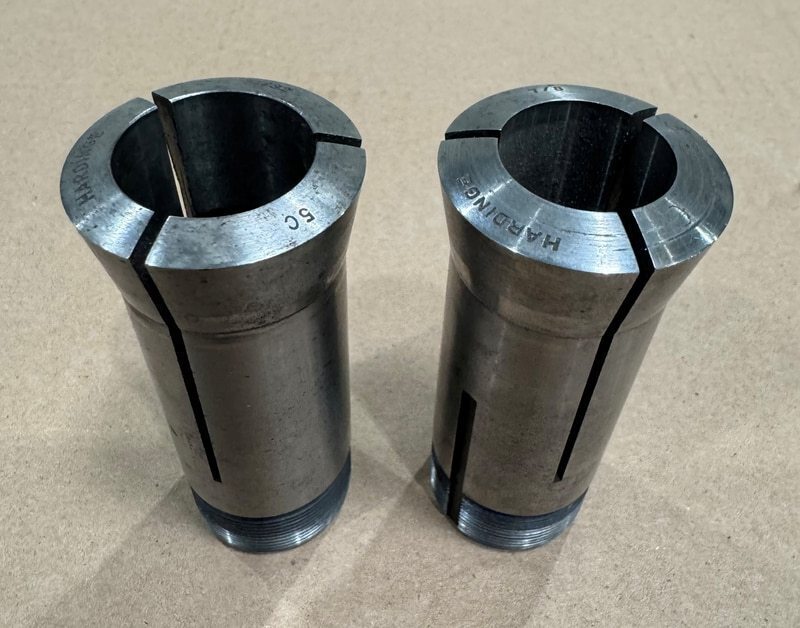

(2) Hardinge 5C Collets
*Catalog specifications, pending confirmation.
Weight on Platter - Maximum:
- Supported............10 Lbs.
- Unsupported............5 Lbs.
Spindle:
- Number............2
- Speed - maximum............200°/Sec.
- Torque - continuous............25 Ft.-LbF
- Nose thread............2-3/16" - 10
- Runout - maximum............0.0004"
- Center height............5.875"
- Collet size............5C
- Backlash............50 Arc-Sec
- Gear ratio............60:1
Indexing:
- Accuracy............±60 Arc-Sec
- Repeatability............10 Arc-Sec
- Resolution............0.001°
- Worm gear............2.8"Ø
- Rotation step - maximum (w/rotary control)............999.999°
Power............115V ±10% @ 15A
Operating temperature - ambient maximum............100°F
Air pressure - maximum............150 PSI
EQUIPPED WITH:
AC-25 Air collet closers
(2) Hardinge 5C Collets
*Catalog specifications, pending confirmation.
Get Your Price from Liberty Machinery Co!
