Manufacturer: Boyar Schultz
Model: H-612-CHALLENGER
Width/Cross: 5.6
Length/Longit.: 12.0
Stock # 8352
Price: $2,750 USD
1 / 6
Click to zoom in
1 / 6
For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Location: Pomona, CA
Contact Dan Wheeler
Phone Number: 909...> Show Phone Number 909-348-5610
Let the seller know you found their listing on Surplus Record!
$2,750 USD
Description

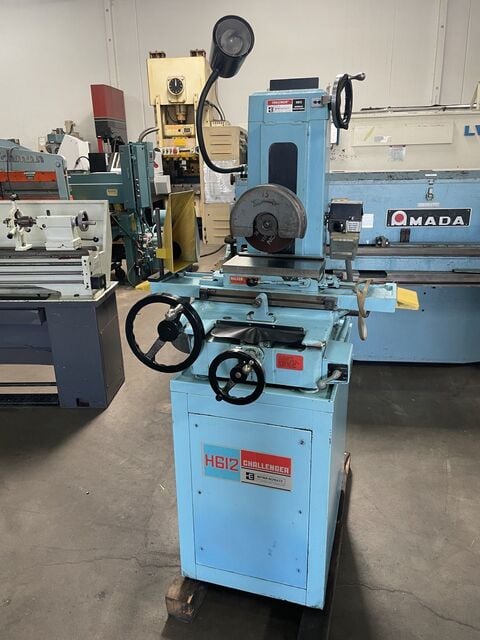

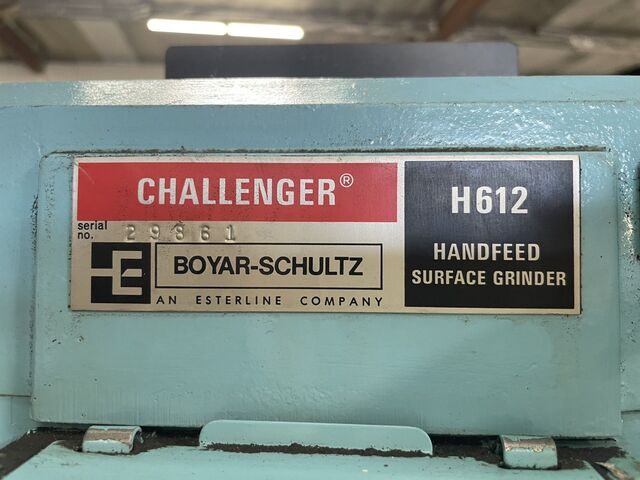

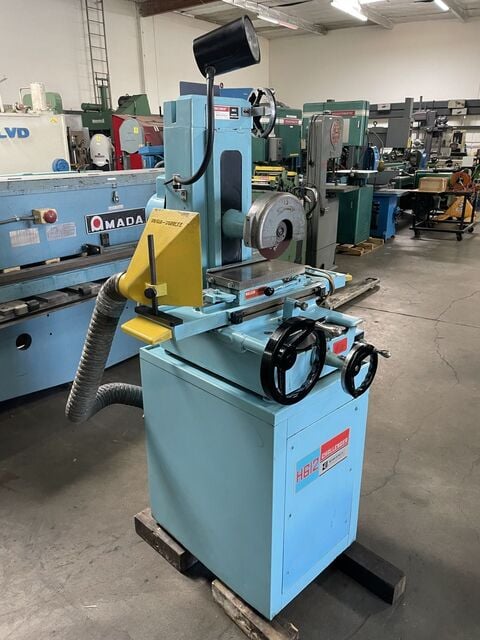

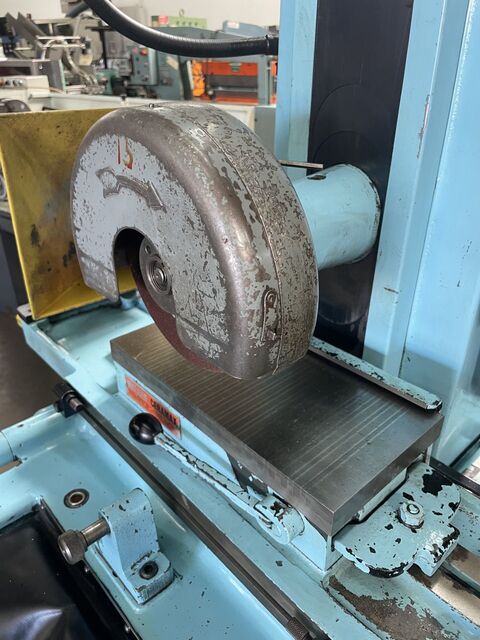

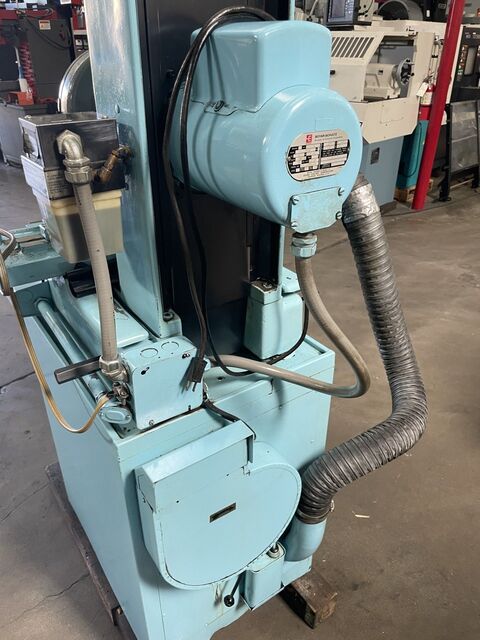

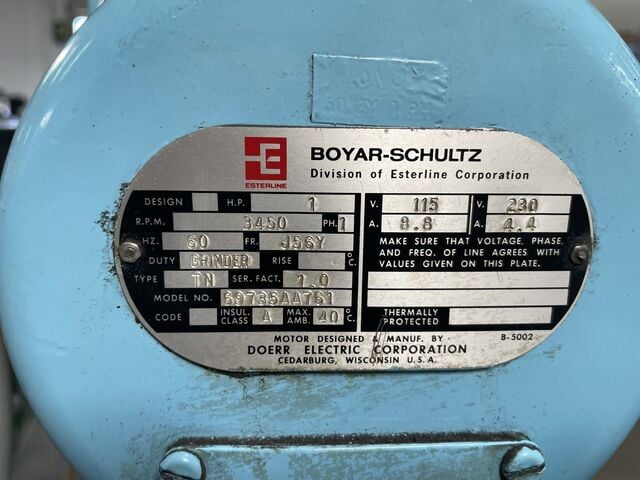

BOYAR SCHULTZ Challenger H612 Surface Grinder #8352 #1
SPECIFICATIONS:
Table Travel:
Longitudinal13
Cross Feed7
Work Height (w/8 Wheel):
Over Table Maximum10-3/4
Over Electric Chuck Maximum (Current Configuration)7-7/8
Work Surface:
On Table5-5/8 x 12
On Electric Chuck (Current Configuaration)5 x 10
Grinding Wheel:
Diameter Maximum8
Width3/16 5/8
Hole Size1-1/4
Spindle:
Motor1 HP
Speed3,450 RPM
Handwheel Graduations:
Downfeed0.0005
Crossfeed0.001
Weight Catalog700 Lbs.
SPECIFICATIONS:
Table Travel:
Longitudinal13
Cross Feed7
Work Height (w/8 Wheel):
Over Table Maximum10-3/4
Over Electric Chuck Maximum (Current Configuration)7-7/8
Work Surface:
On Table5-5/8 x 12
On Electric Chuck (Current Configuaration)5 x 10
Grinding Wheel:
Diameter Maximum8
Width3/16 5/8
Hole Size1-1/4
Spindle:
Motor1 HP
Speed3,450 RPM
Handwheel Graduations:
Downfeed0.0005
Crossfeed0.001
Weight Catalog700 Lbs.
Inquire Further with Wheeler Machinery Sales!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
6" x 12" K.O. Lee #S714, Manual Surface Grinder, 7" x 14" Table Travel, Magnetic Chuck, 1 HP, 220/440 V
Seller: Drilex International
Location: Tomball, TX
Mfr: K.o. Lee
Model: S714
JUST ADDED!

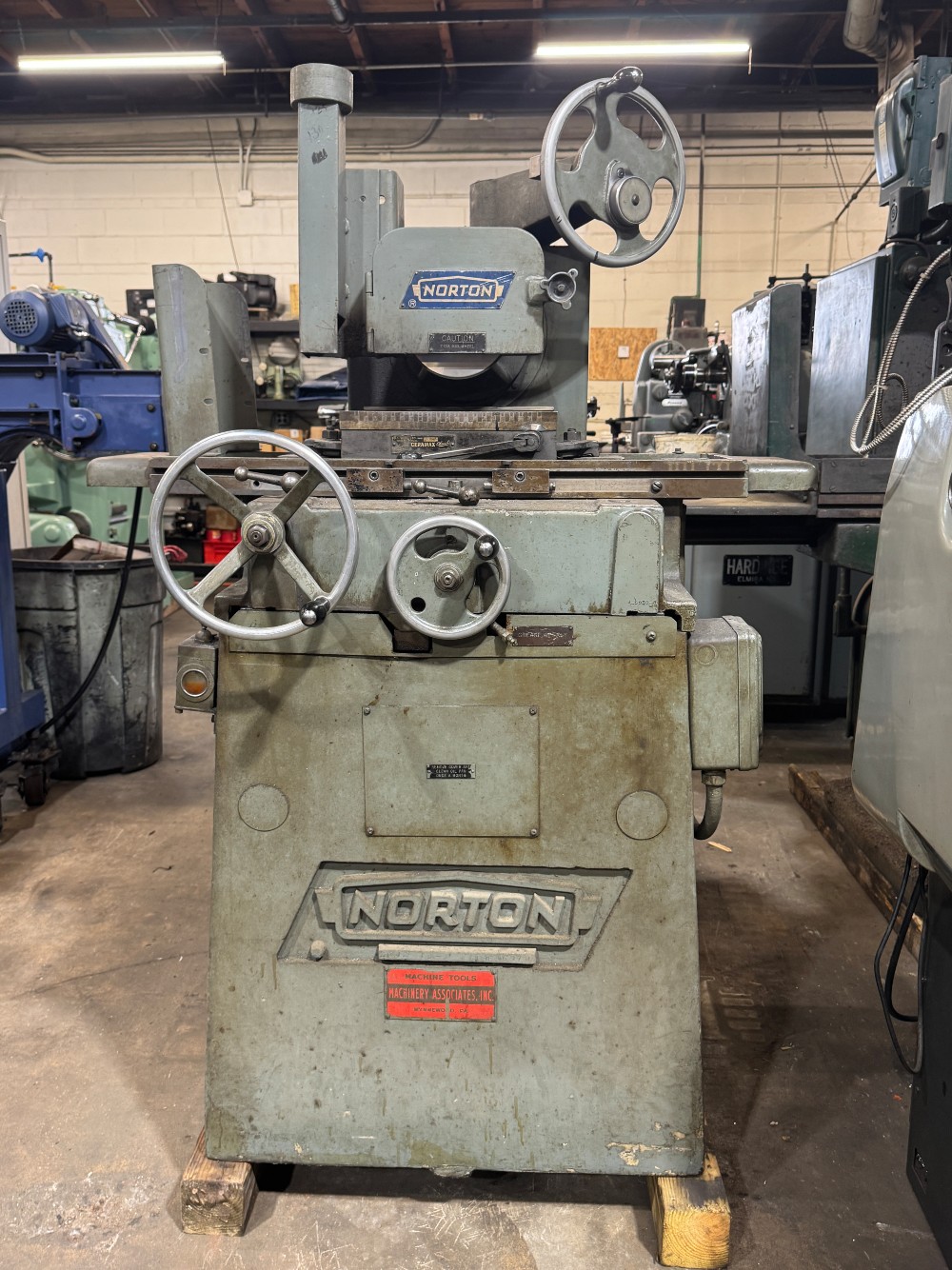

6" x 12" Norton #TS-2, Hand Surface Grinder, 13" longitudinal travel, 11.5" vertical, 8" wheel diameter, Ceramax magnetic chuck, 1 HP, 3450 RPM, 230 V.
