For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Mike DeRisi
Phone Number: 973...> Show Phone Number 973-497-7540
Let the seller know you found their listing on Surplus Record!
Description

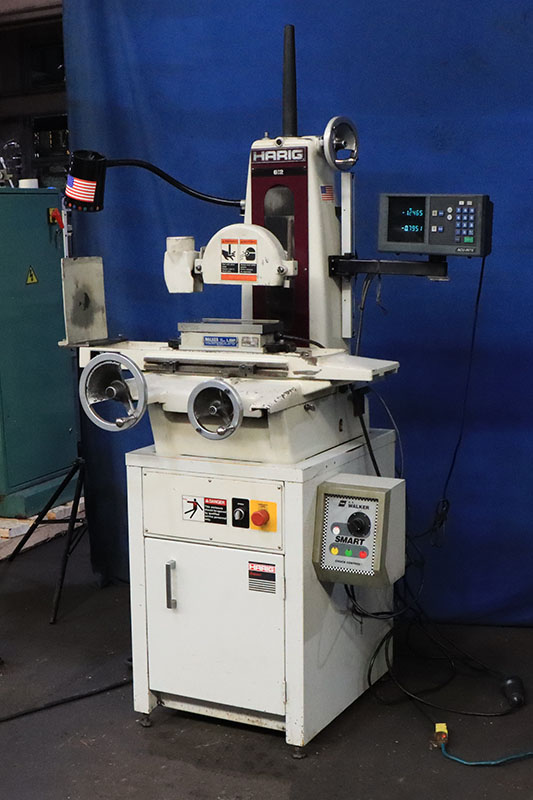

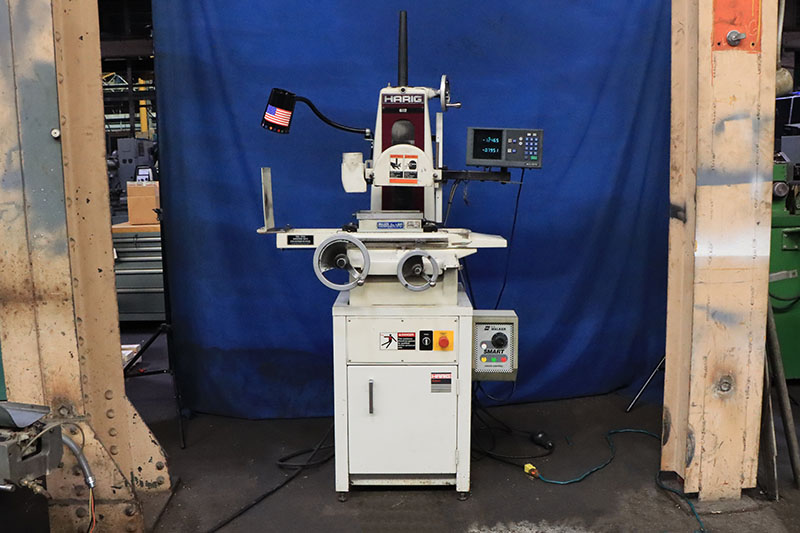

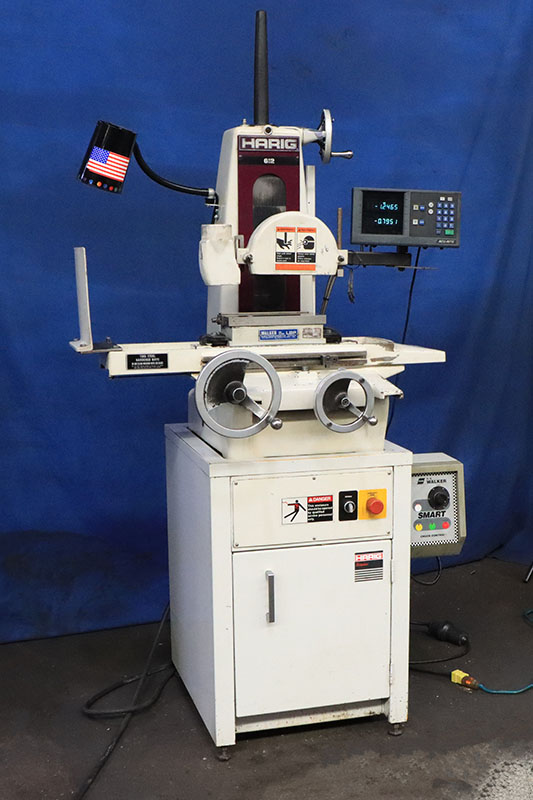

6" X 12" HARIG (MADE IN USA)
"PRECISION" HAND FEED SURFACE GRINDER
"ACU-RITE" 2-AXIS DIGITAL READOUT DISPLAY
MODEL: 612… S/N: 20818… NEW: 2003
WIDTH AND LENGTH GROUND ................. 6" X 12"
LONGITUDINAL TRAVEL ..................... 12-3/4"
CROSS FEED TRAVEL ....................... 6-3/4"
VERTICAL WORKING HEIGHT UNDER 7" WHEEL .. 12"

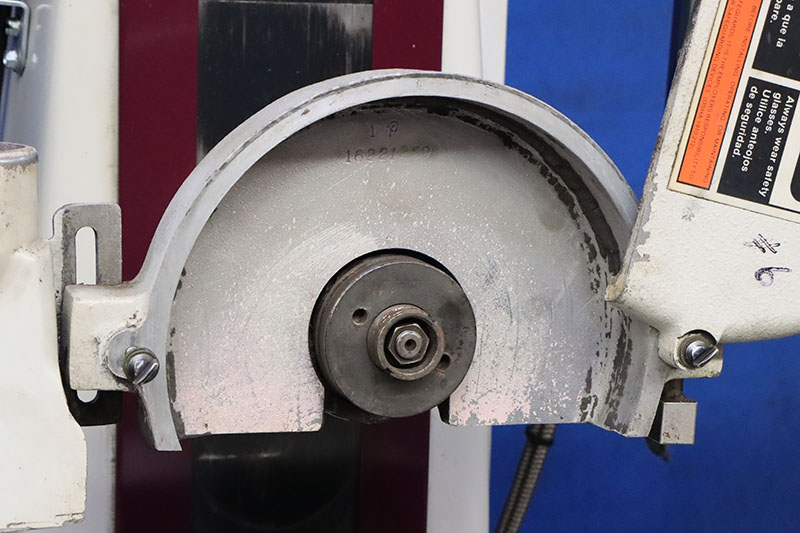

MAXIMUM GRINDING WHEEL DIAMETER ......... 8"
ELEVATING HANDWHEEL GRAD. ............... 0.0005"
CROSS FEED HANDWHEEL GRAD. .............. 0.001"
SPINDLE SPEED ...........................″,450 RPM
FLOOR AREA CABINET ...................... 21" X 25"
FLOOR AREA OPERATING SPACE .............. 48" X 45"
APPROXIMATE MACHINE WEIGHT .............. 900 LBS
EQUIPPED WITH:

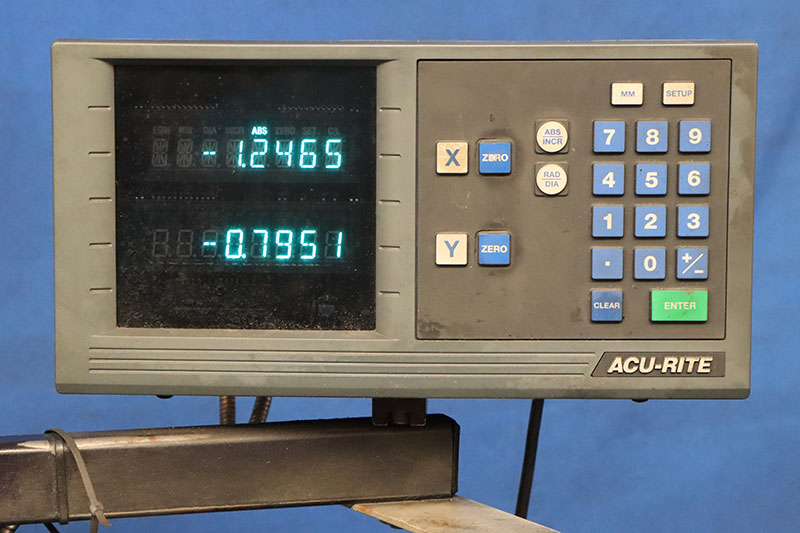

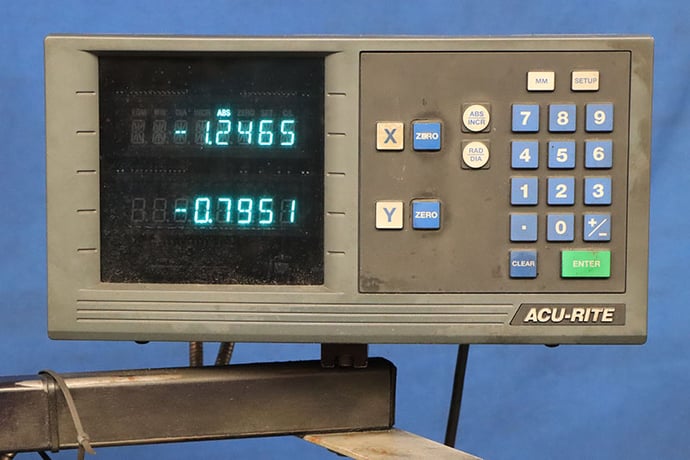

"ACU-RITE" FLAT PANEL 2-AXIS DIGITAL READOUT DISPLAY
HARIG 1.5 HP DIRECT DRIVE…"CARTRIDGE TYPE" SPINDLE,
3/60/208-230-460 VOLTS
V AND FLAT WAY CONSTRUCTION
"TOOL STEEL HARDENED WAYS" OPTION
HARIG…"FLO-CLEAN" AUTOMATIC LUBRICATION SYSTEM

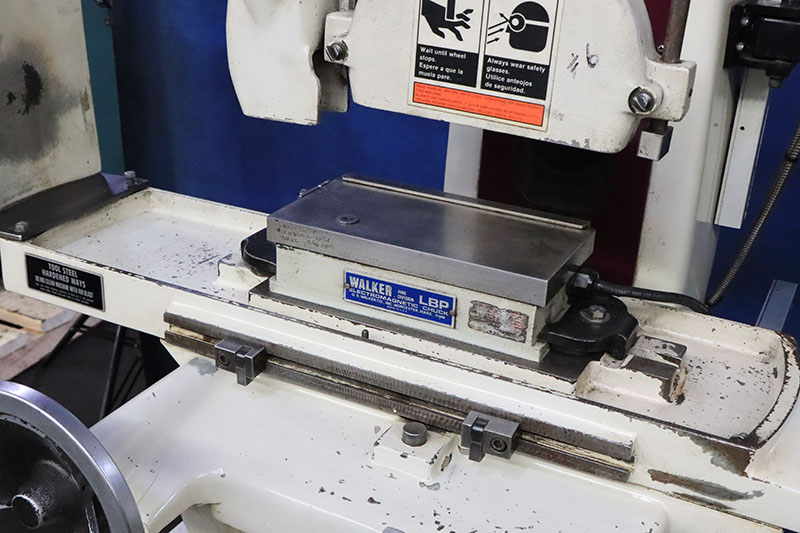

5" X 10"…"O.S. WALKER" FINE-DIVISION…"LBP"
ELECTRO-MAGNETIC CHUCK
O.S. WALKER…"SMART SERIES", NEUTROFIER CONTROL,
WITH VARIABLE HOLD POWER
MACHINE IS PRESENTLY WIRED FOR″/60/230 VOLTS
* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *
** SUPERB CONDITION… APPEARANCE…ndash; ORIGINAL PAINT **
Get Your Price from Machinery Values Inc!
