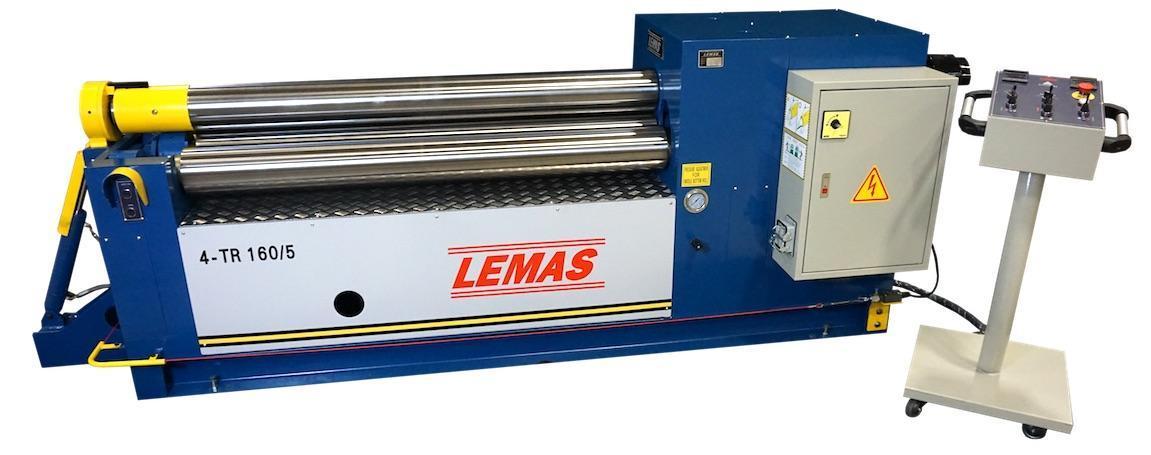

Click to zoom in
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Capacity | 4' X 1/4" |
| Roll Diameters | 6.30 inches |
| Weight | 5700 pounds |
| Drive Motor HP | 5 |
| Voltage | 480 |
| Hyd. Motor HP | 1 |
Equipped With
Equipped With
FEATURES:
OPTIONAL FEATURES:
* Simple adjustable squaring arm, mounted at the front of the machine, to help align parts. Only available on factory ordered machines. Cannot be added to in-stock models. --------------------------------------------- $2,100.00
* Variable rotation speeds via frequency changer in place of single-speed drive. For in-stock and incoming-stock machines, adds about 1 week to lead time. For factory order machines, no increase in lead time. Please note: variable speed option is voltage-specific for a single voltage of
* Electromechanically operated top support device for supporting cylinders being rolled. Only available on factory ordered machines. Cannot be added to in-stock models. -------------------- $12,250.00
DELIVERY:
20-22 WEEKS - SUBJECT TO STOCK
– Direct-Drive Design using no belts or chains
– Less maintenance, better performance
– Spherical roller bearings on all rolls
– Hydraulically powered bending rolls
– No manual adjustment needed.
– Power tilting side bending rolls for cone rolling
– No need to manual adjusts for cone bending
– Cone bending attachment
– Already integrated for your cone bending needs
– Control panel on wheels with digital readouts for position of both side bending rolls
– All machine controls easily located.
– Hydraulically operated drop-end for quick removal of rolled product
– Easy open allows you to easily slide out finished part
– Forward/Reverse rotation controls
– Ability to walk around entire machine while controlling rotation
– Upper and lower pinch rolls driven
– All rolls heat treated to 50 Rc
– Keeping your rolls in peak condition as long as possible
– Sumitomo Cyclo® 6000 gear-less speed reducers
– The hardest working in the industry.
– Manual tilt of the lower pinch roll
– Emergency stop cable
– Hydraulic oil, tools, technical manual
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONOPTIONAL FEATURES:
* Simple adjustable squaring arm, mounted at the front of the machine, to help align parts. Only available on factory ordered machines. Cannot be added to in-stock models. --------------------------------------------- $2,100.00
* Variable rotation speeds via frequency changer in place of single-speed drive. For in-stock and incoming-stock machines, adds about 1 week to lead time. For factory order machines, no increase in lead time. Please note: variable speed option is voltage-specific for a single voltage of
either 3/60/220 or 3/60/480. ------------------------------------- $3,500.00
* Additional digital readouts to display the position of both ends of both side bending rolls. Helpful for cone rolling applications so the operator can easily repeat the same tilt on the side bending rolls. Only available on factory ordered machines. Cannot be added to in-stock models. ------------- $4,200.00* Electromechanically operated top support device for supporting cylinders being rolled. Only available on factory ordered machines. Cannot be added to in-stock models. -------------------- $12,250.00
DELIVERY:
20-22 WEEKS - SUBJECT TO STOCK
Get Your Price from Smith Machinery Co!
