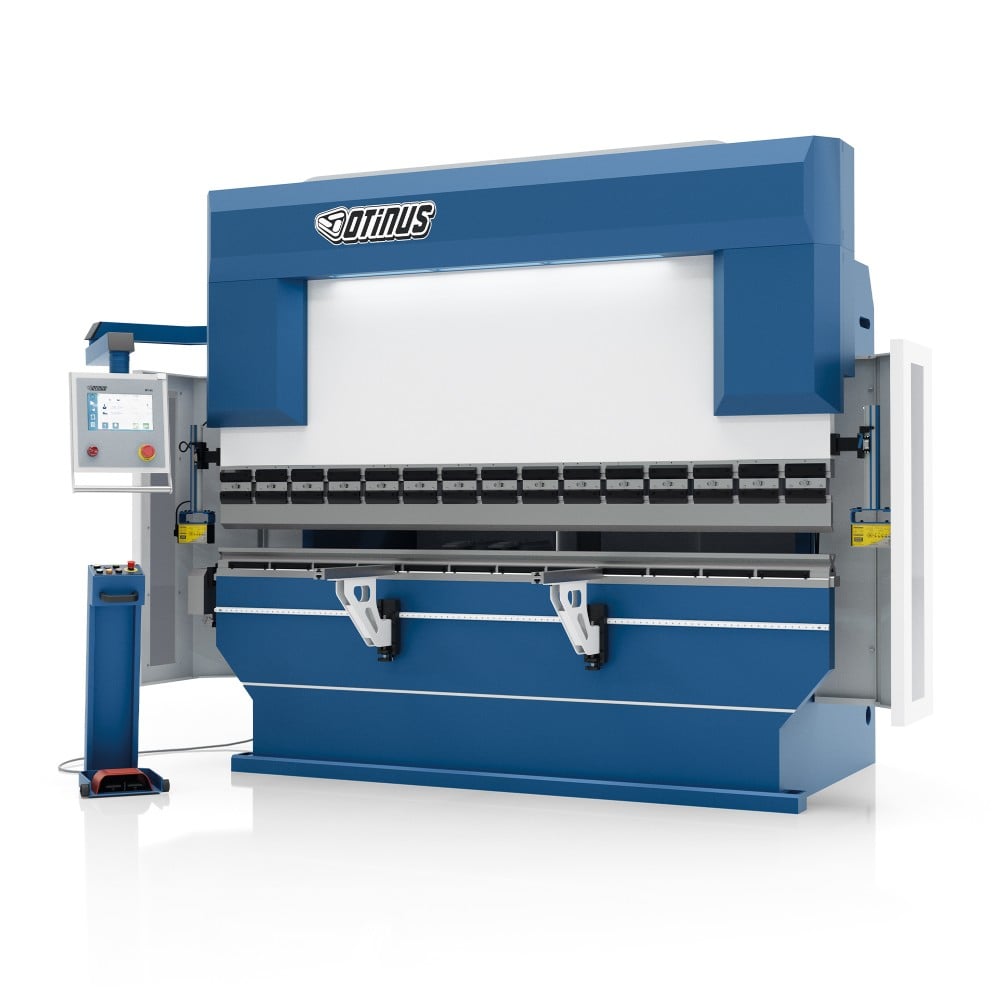

41 Ton, Otinus #PBO-1604-OT41, Hydraulic Press Brake, 5.2' overall, 11.8" daylight, 7.9" throat

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Hydraulic press brake PBO-1640-OT41
Specifications

• Maximum bending thickness (S235): up to 0.118 in
• Nominal bending force: 41 T
• Maximum bending length: 5.2 ft
• Throat depth: 7.9 in
• Maximum stroke: 3.9 in
• Daylight: 11.8 in
• Distance between side frames: 3.9 ft
• Backgauge travel distance: 600 mm
• Motor power output: 2 ft
• Length: 5.9 ft
• Width: 3.9 ft
• Height: 6.1 ft
• Weight: 5071 lb

Tools

• Front supports: 2 pcs.
• Backgauge drive (travel along the X-axis): servo motor
• Ram drive (travel along the Y-axis): servo motor
• Backgauge fingers positioning (R-axis): manual
• Punch quick change tooling system form AMADA

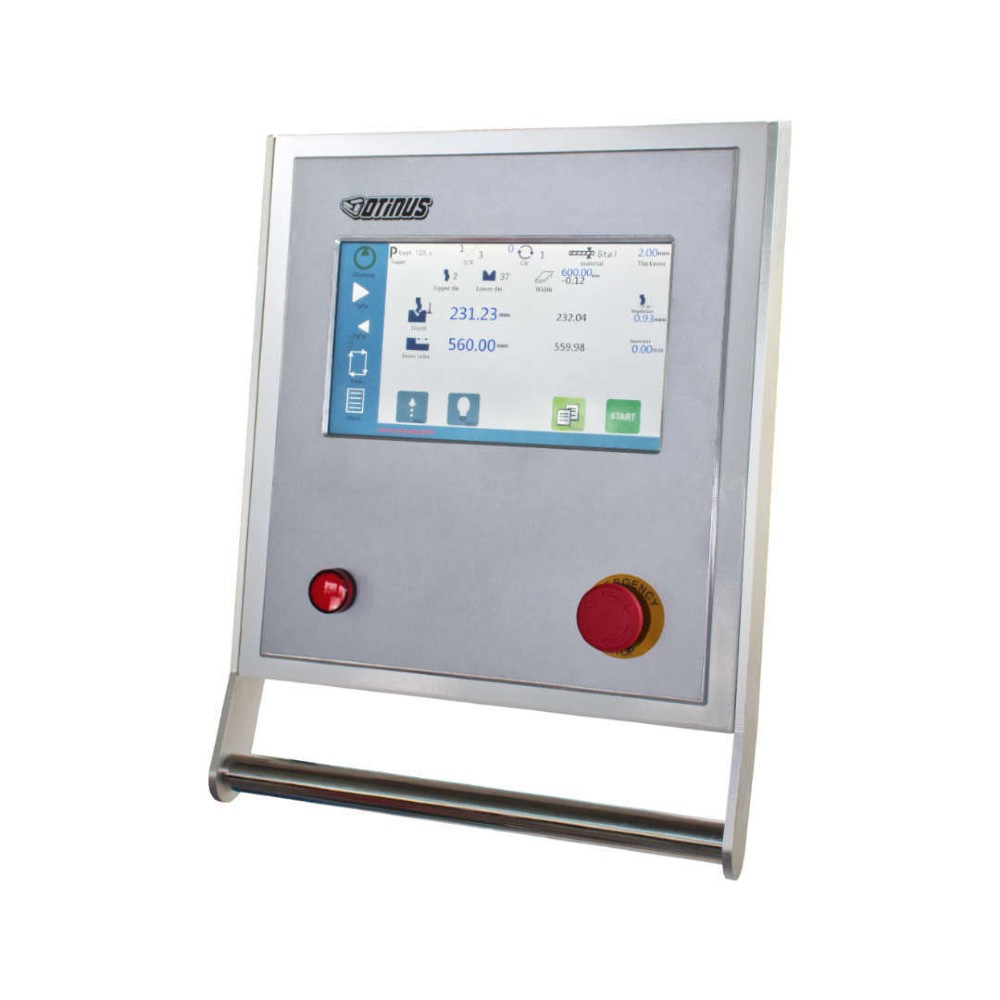

Otinus CNC OT-41 control
The CNC controller Otinus is featured with convenient and intuitive menu. The software calculates the bending angle on its own. The large color touchscreen is readable from any angle.
The controller can store up to 2,000 programs of 30 steps each.
Top quality components

• Rexroth hydraulic valve
• Schneider electrical components
• Omron and Schneider safety circuit parts.

Steel hydraulic line tubings
Hydraulic lines made of steel instead of rubber reduce the risk of future leaks.

Ergonomics
The operator can work freely throughout the machine's working area thanks to the mobile foot switch and the controller on the swivel arm. Additional LED lighting ensures a comfortable view of the workpieces in any situation.

Safety
We attach great importance to the safety of our Clients and their employees; therefore our press brakes are equipped with visible safety labels, side guards, rear safety doors, easily accessible safety switches and light curtains that protect the operator against inserting their hands between the upper and lower dies.
The machines comes with carefully prepared instructions manual.
The machine has a CE marking and EU declaration of conformity.

Oil cooling system
The Oil Cooling System guarantees the stability of the machine's performance even after long, continuous operation.

Technical Consultation
Our specialists help select the right machine and accessories based on technical drawings of the parts you plan to produce.
