Description

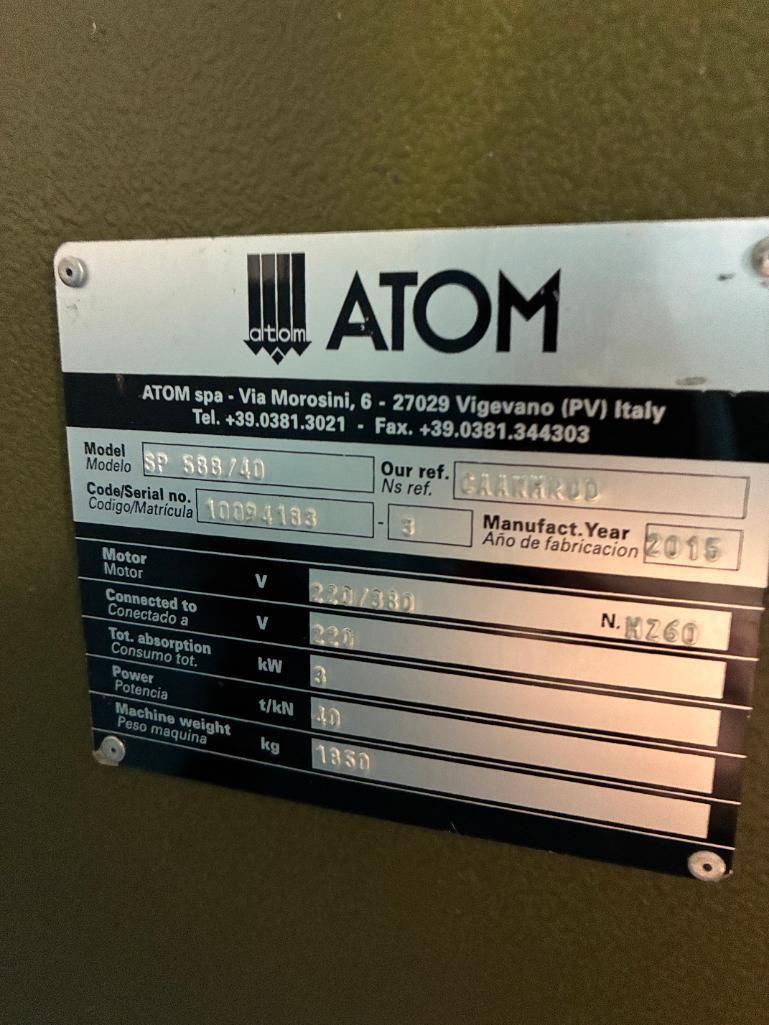

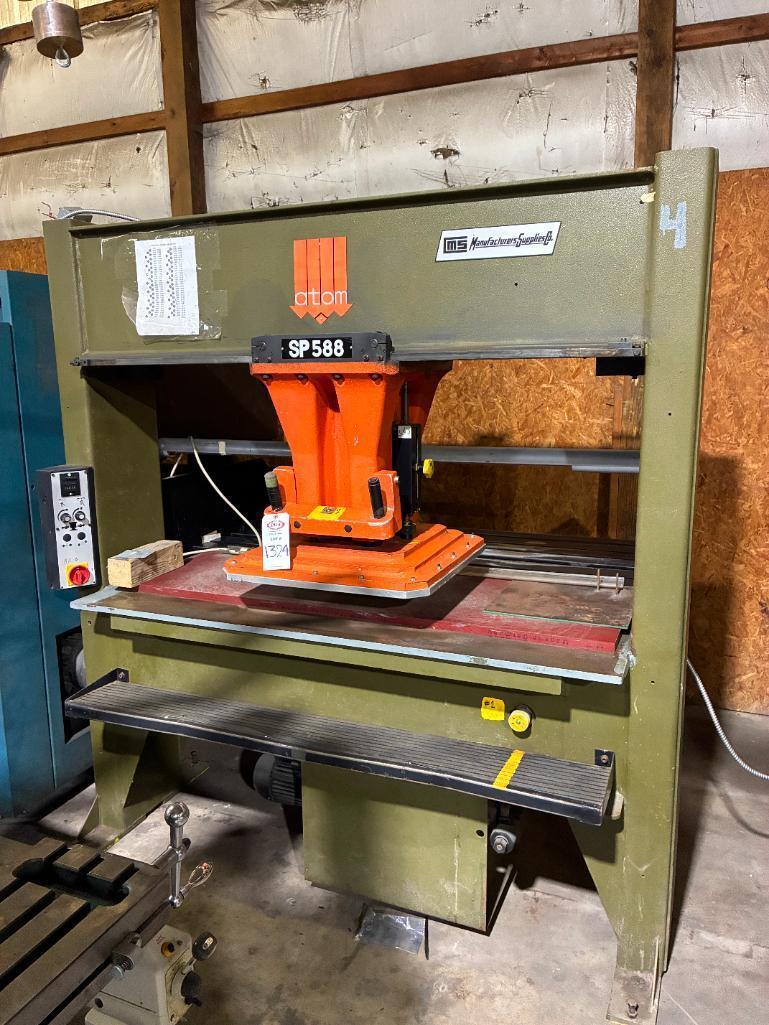

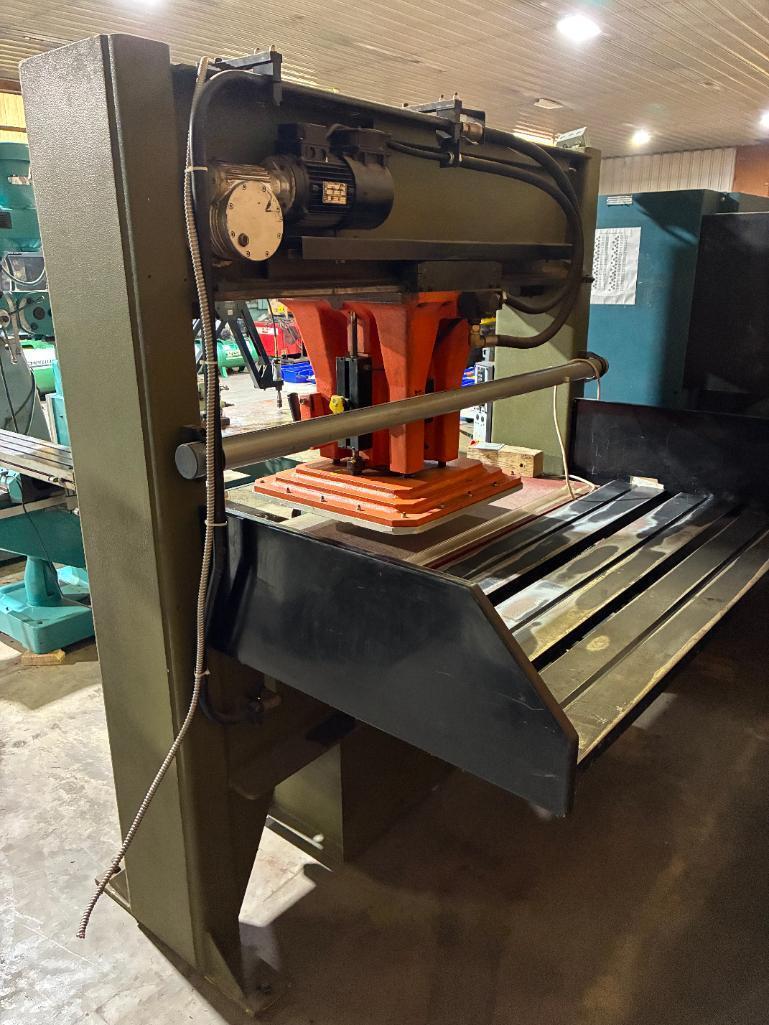

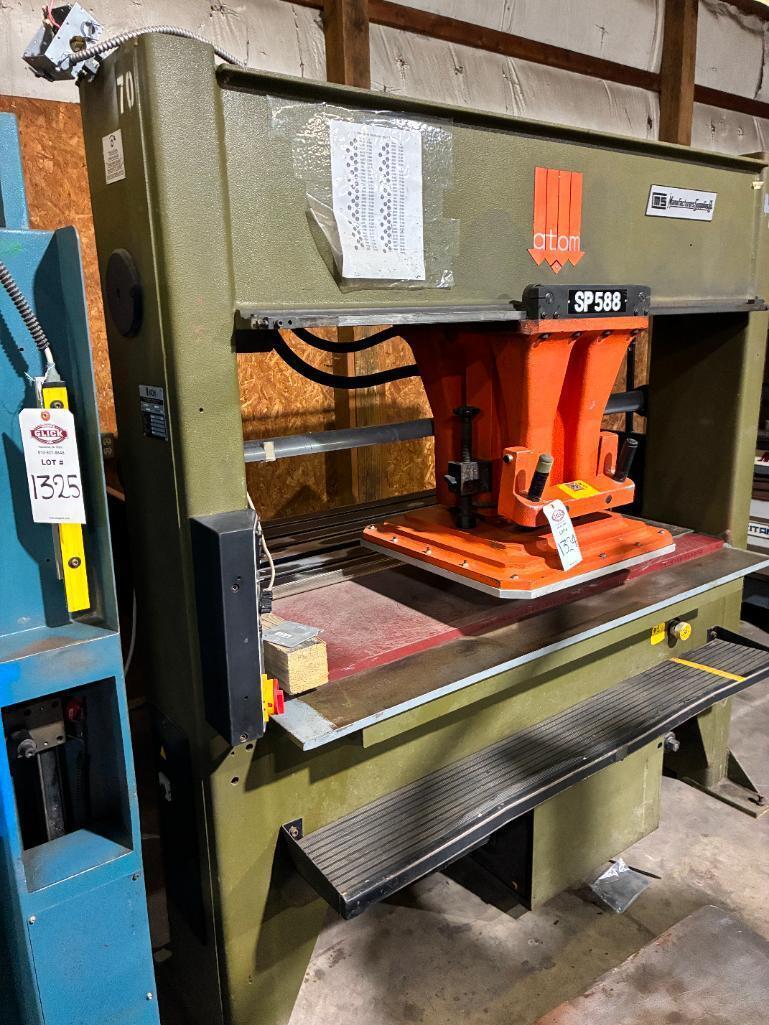

40 TON ATOM SP588/40 TRAVELING-HEAD HYDRAULIC DIE CUTTING CLICKER PRESS - 2015 - 63 X 26 Working Area - 26 x 26 Traveling Head - Programmable Cut Counting 40 TON ATOM MANUFACTURERS SUPPLIES TRAVELING-HEAD HYDRAULIC DIE-CUTTING/CLICKER PRESS New 2015, Serial No 10094183-3, Model No SP588/40 EQUIPPED WITH: Synchronized Controls w/Programmable Cut Counting Dynamic Head Braking System CATALOG SPECIFICATIONS: Cutting Pressure, Maximum 40 TONS 392 kN Cutting Head Size, L x W 25.6 x 25.6" Cutting Head Size, L x W 650 MM x 650 MM Cutting Working Surface, L x W 63" x 25.5" Cutting Working Surface, L x W 1600 MM x 650 MM Cutting Stroke, Variable to 6 150 MM Daylight Opening Overall Dimensions, L x W 86.6" x 52.75" Overall Dimensions, L x W 2200 MM x 1350 MM Overall Height 82.7" Overall Height 2100 MM Weight Approximately 4070 LBS 1850 KG NOTE: This Machine Was Designed To Cut Leather, Textiles, Plastic, Cardboard, Rubber, ETC.. F.O.B. OUR WAREHOUSE
WEIGHT 5,400 Lbs. Cutting Head 29.9" x 29.9" Stroke 5.9" Bed Size 29.9" x 78.7" Tonnage 39 Max. Daylight 7.1" Dimensions (W x L x H) 36" x 106" x 95" Horsepower: 5 Motor 220 Volt 3 PH s Polypropylene Cutting Pad Rear Safety Guards And Simple Table.
MODEL.: DU-47, TONNAGE.: 44, STROKE.: 4", DAYLIGHT OPENING.: 12", FLOOR TO TOP OF BED.: 31", BED SIZE.: 60" L-R X 30" F-B, CUTTING HEAD AREA.: 60" L-R X 30" F-B, MOTOR HP.: 5, DISTANCE BETWEEN HOUSINGS.: 63", Machine Type.Presses, Clicker Manufacturer.ORMONT Model.DU-47 Year.N/A Condition.Used.
Bed Size (W x L) 31.5" x 63" Cutting Area 29.5" x 61" Stroke 7.1" Max. Daylight 9.1" Horsepower 5 Dimensions (W x L x H) 89" x 89" x 62" WEIGHT 6,100 LBS. s Polypropylene Cutting Pad Single Manual Slide Table.
“ACTUAL PHOTOS ! We just sold the described unit! This 2nd unit is in the southern USA is still in a plant. We are told that it works ok but the owner didn’t need it anymore. The frame is straight and sound and it has normal wear from use. The mentioned in the text must be verified.” ...more
