$14,500 USD
Finance for as low as $294/mth
Description

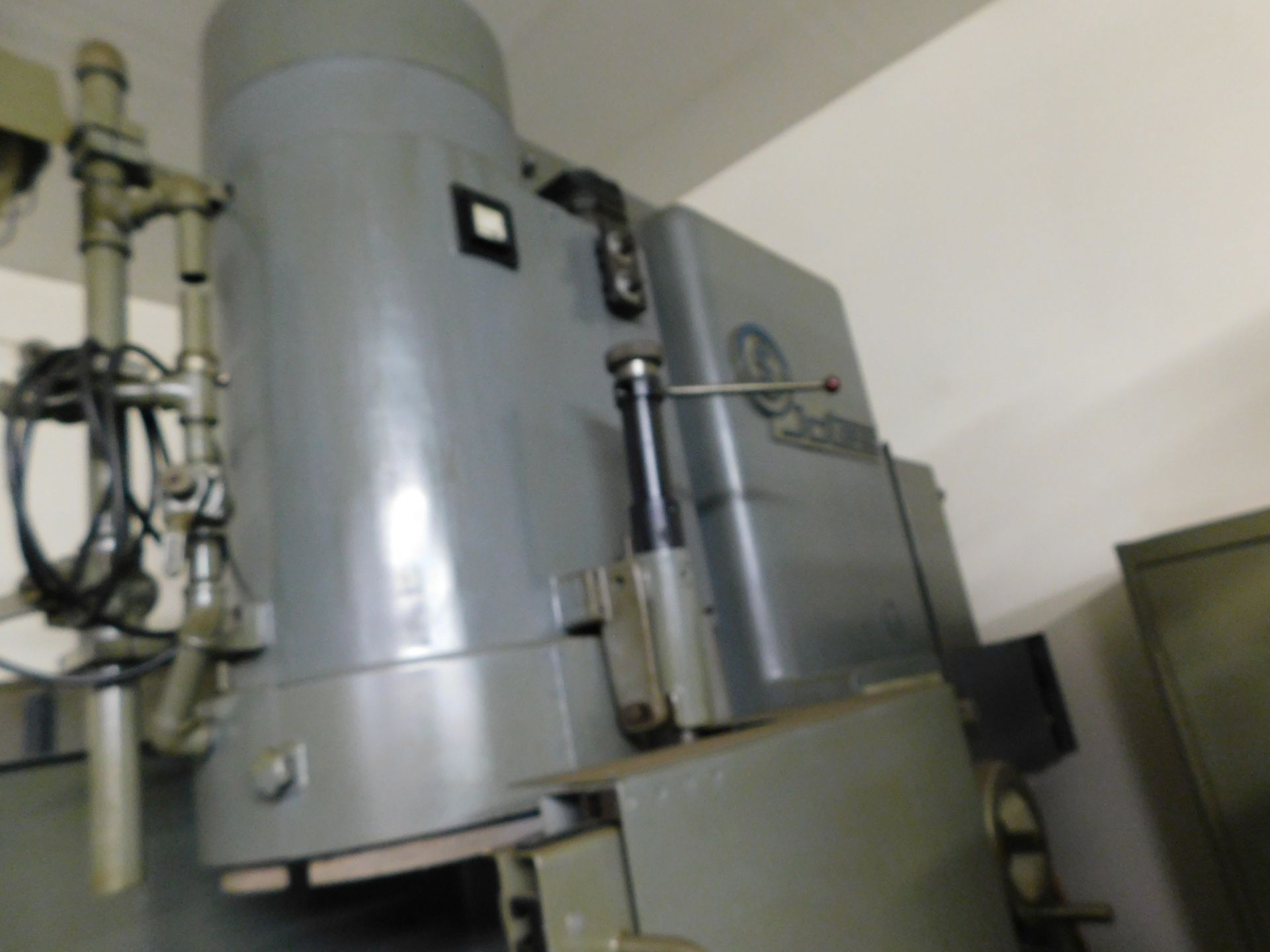

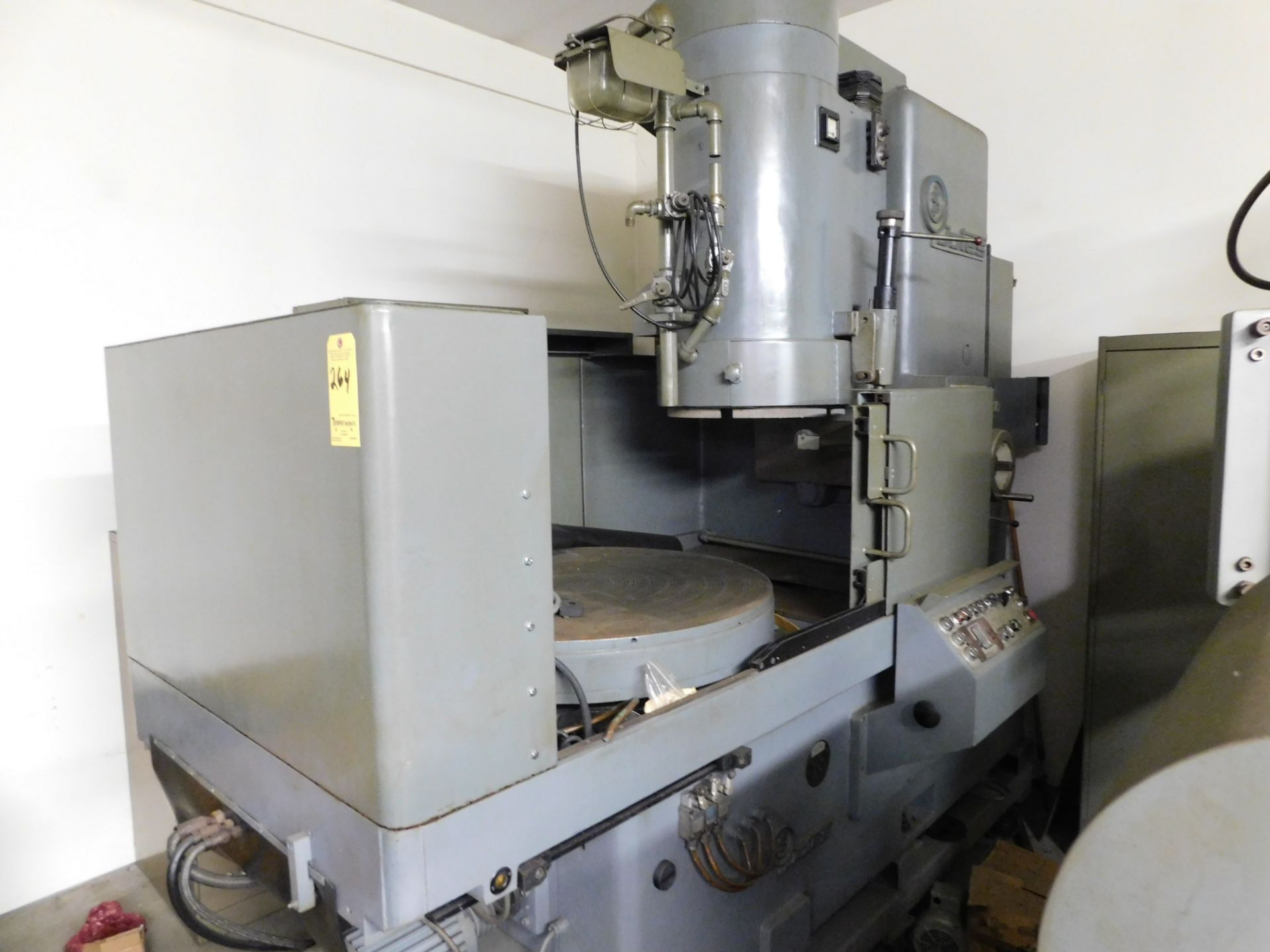

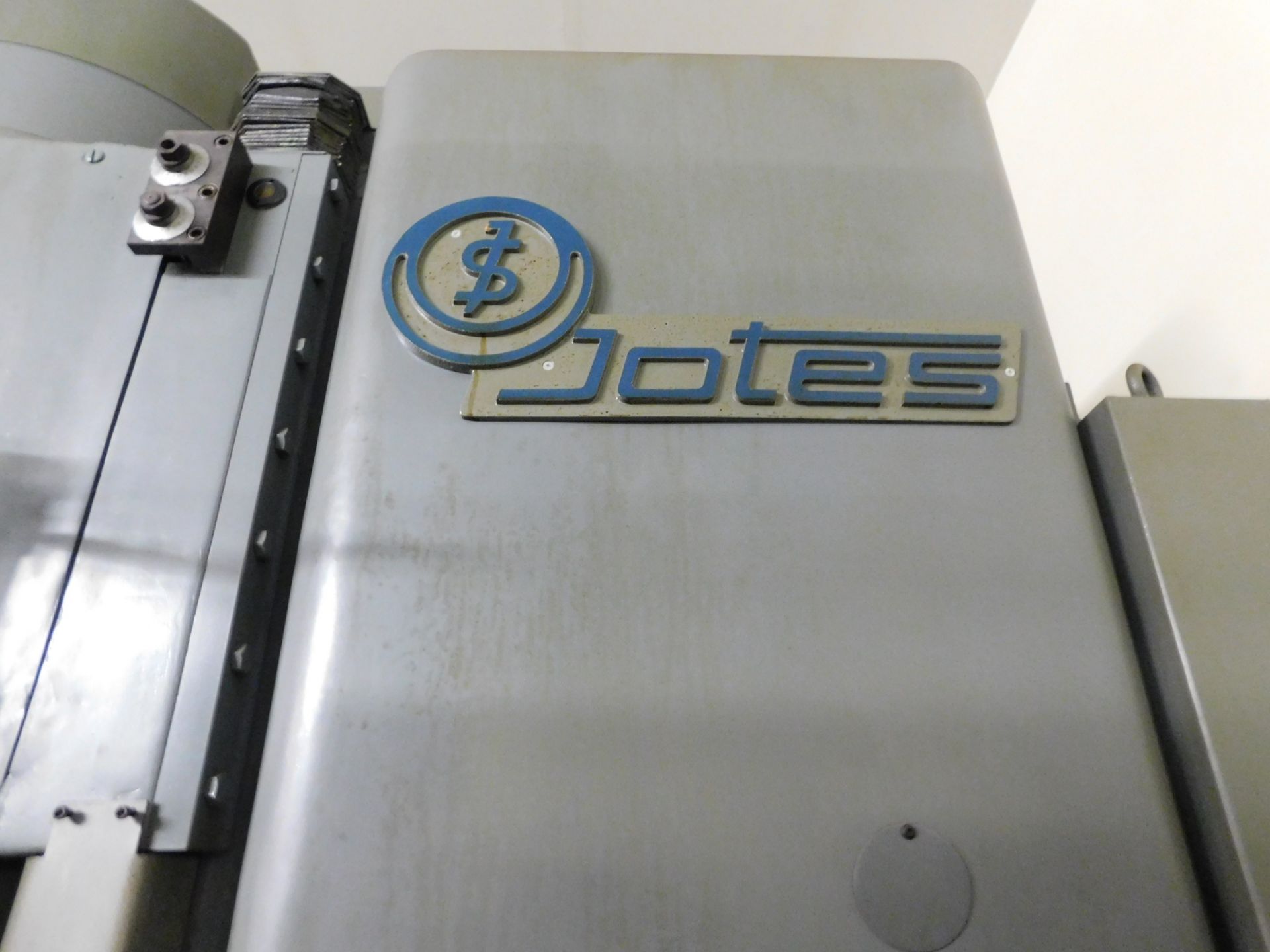

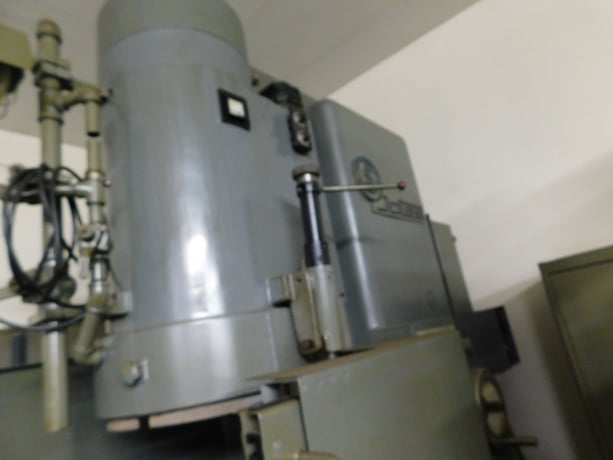

40" JOTES "SAB-100W" VERTICAL-SPINDLE
ROTARY SURFACE GRINDER
Serial No 269, Model SAB-100W
40" JOTES "SAB-100W" VERTICAL-SPINDLE
ROTARY SURFACE GRINDER
Serial No 269, Model SAB-100W
EQUIPPED WITH:
Vertical Spindle Machine Design

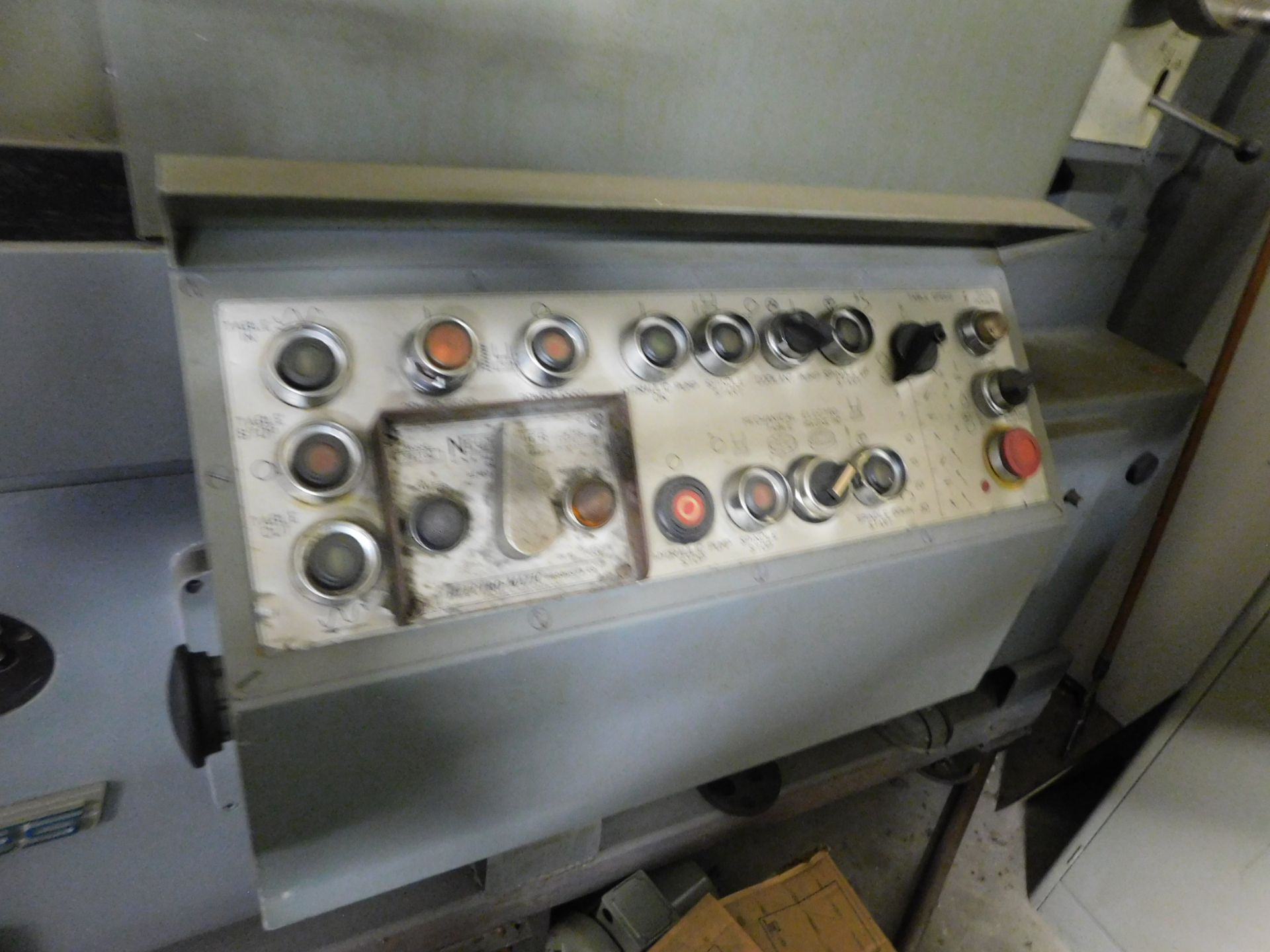

Electro-Magnetic Chuck w/Neutrofier & Controls
Segmented Grinding Wheel
Swing-Away Grinding Wheel Dresser
Coolant Filtration System (Tank & Pump)
CATALOG SPECIFICATIONS:
Chuck, Diameter . . . . . . . . . 39.37"
Swing Between Coolant-Guards . . . . . . . . . 42"
Height Under Grinding Wheel, Used Segments 17"
Height Under Grinding Wheel, New Segments 15"
Grinding Wheel Diameter, Maximum . . . . . . . . . 21"
Chuck Speeds, Range . . . . . . . . . 6 to 30 RPM
Spindle Motor Horsepower . . . . . . . . . 40 HP
Overall Dimensions, W x D . . . . . . . . . 120" x 68"
Overall Height . . . . . . . . . 112"
Weight, Approximately . . . . . . . . . 22000 LBS
F.O.B. OUR WAREHOUSE
Chuck, Diameter: 39.37"
Swing Between Coolant-Guards: 42"
Grinding Wheel Diameter, Maximum: 21"
Chuck Speeds, Range: 6 to 30 RPM
Spindle Motor Horsepower: 40 HP
Overall Height: 112"
Weight, Approximately: 22000 LBS
ROTARY SURFACE GRINDER
Serial No 269, Model SAB-100W
40" JOTES "SAB-100W" VERTICAL-SPINDLE
ROTARY SURFACE GRINDER
Serial No 269, Model SAB-100W
EQUIPPED WITH:
Vertical Spindle Machine Design
Electro-Magnetic Chuck w/Neutrofier & Controls
Segmented Grinding Wheel
Swing-Away Grinding Wheel Dresser
Coolant Filtration System (Tank & Pump)
CATALOG SPECIFICATIONS:
Chuck, Diameter . . . . . . . . . 39.37"
Swing Between Coolant-Guards . . . . . . . . . 42"
Height Under Grinding Wheel, Used Segments 17"
Height Under Grinding Wheel, New Segments 15"
Grinding Wheel Diameter, Maximum . . . . . . . . . 21"
Chuck Speeds, Range . . . . . . . . . 6 to 30 RPM
Spindle Motor Horsepower . . . . . . . . . 40 HP
Overall Dimensions, W x D . . . . . . . . . 120" x 68"
Overall Height . . . . . . . . . 112"
Weight, Approximately . . . . . . . . . 22000 LBS
F.O.B. OUR WAREHOUSE
Chuck, Diameter: 39.37"
Swing Between Coolant-Guards: 42"
Grinding Wheel Diameter, Maximum: 21"
Chuck Speeds, Range: 6 to 30 RPM
Spindle Motor Horsepower: 40 HP
Overall Height: 112"
Weight, Approximately: 22000 LBS
Inquire Further with Mohawk Machinery Inc!
