For Sale by Pearl Equipment Co
Surplus Record Dealer Since 1963
Location: Nashville, TN
Contact Si Culp
Phone Number: 615...> Show Phone Number 615-383-8703
Let the seller know you found their listing on Surplus Record!
Description

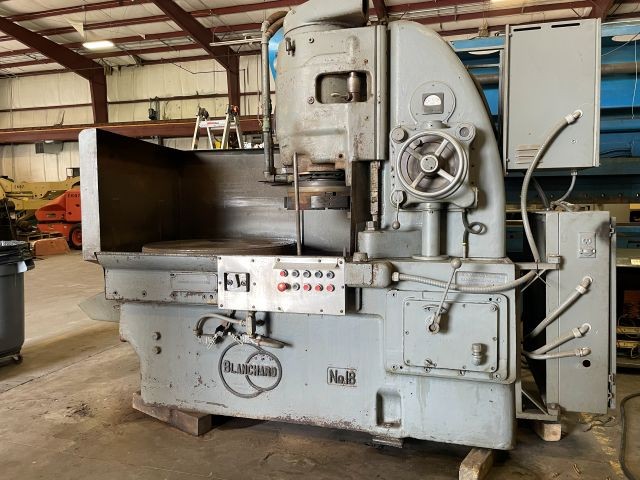

BLANCHARD 36" VERTICAL SPINDLE ROTARY SURFACE GRINDER
MODEL: NO. 18
HOURS | 7865
MAGNETIC CHUCK DIA | 36"
MAX CLEARANCE CHUCK TO WHEEL | 12" W/CYL. WHEEL, 11" W/SEG. WHEEL
WET BASE | 150 GAL CAP
CHUCK LIFE | 3/8"
CHUCK SPEEDS | 6, 9, 12, 18, 25, & 33 RPM
SPINDLE SPEED | 720 RPM
SEGMENTED WHEEL INSTALLED
WHEEL DRESSER
ELECTROMATIC NEUTRIFIER REMOTE CONTROL
INTERNAL COOLANT
240/480 VAC THREE PHASE
CURRENTLY WIRED 240
SPINDLE DRIVE MOTOR 25 HP
MODEL: NO. 18
HOURS | 7865
MAGNETIC CHUCK DIA | 36"
MAX CLEARANCE CHUCK TO WHEEL | 12" W/CYL. WHEEL, 11" W/SEG. WHEEL
WET BASE | 150 GAL CAP
CHUCK LIFE | 3/8"
CHUCK SPEEDS | 6, 9, 12, 18, 25, & 33 RPM
SPINDLE SPEED | 720 RPM
SEGMENTED WHEEL INSTALLED
WHEEL DRESSER
ELECTROMATIC NEUTRIFIER REMOTE CONTROL
INTERNAL COOLANT
240/480 VAC THREE PHASE
CURRENTLY WIRED 240
SPINDLE DRIVE MOTOR 25 HP
Get Your Price from Pearl Equipment Co!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Blanchard #18, rotary surface grinder, 36" chuck, 40" swing, 18" segmented wheel, 3,000 lb., 720 RPM spindle, 25 HP, 1980
Seller: Machine Tool Bids
Location: Chicago, IL
Mfr: Blanchard
Model: 18
Year: 1980
Blanchard No. 18 Rotary Surface Grinder (1980), Chuck Diameter: 36" Includes Extra Norton Grinding Pads S/N: 3014, Maximum Swing: 40", Vertical Range (Under Wheel):12", Max Work Load: 3,000 lbs, Grinding Wheel Diameter: 18" Segmented, Table Speeds: 6, 9, 12, 18, 25, 33 RPM (Variable), Vertical ...more
JUST ADDED!

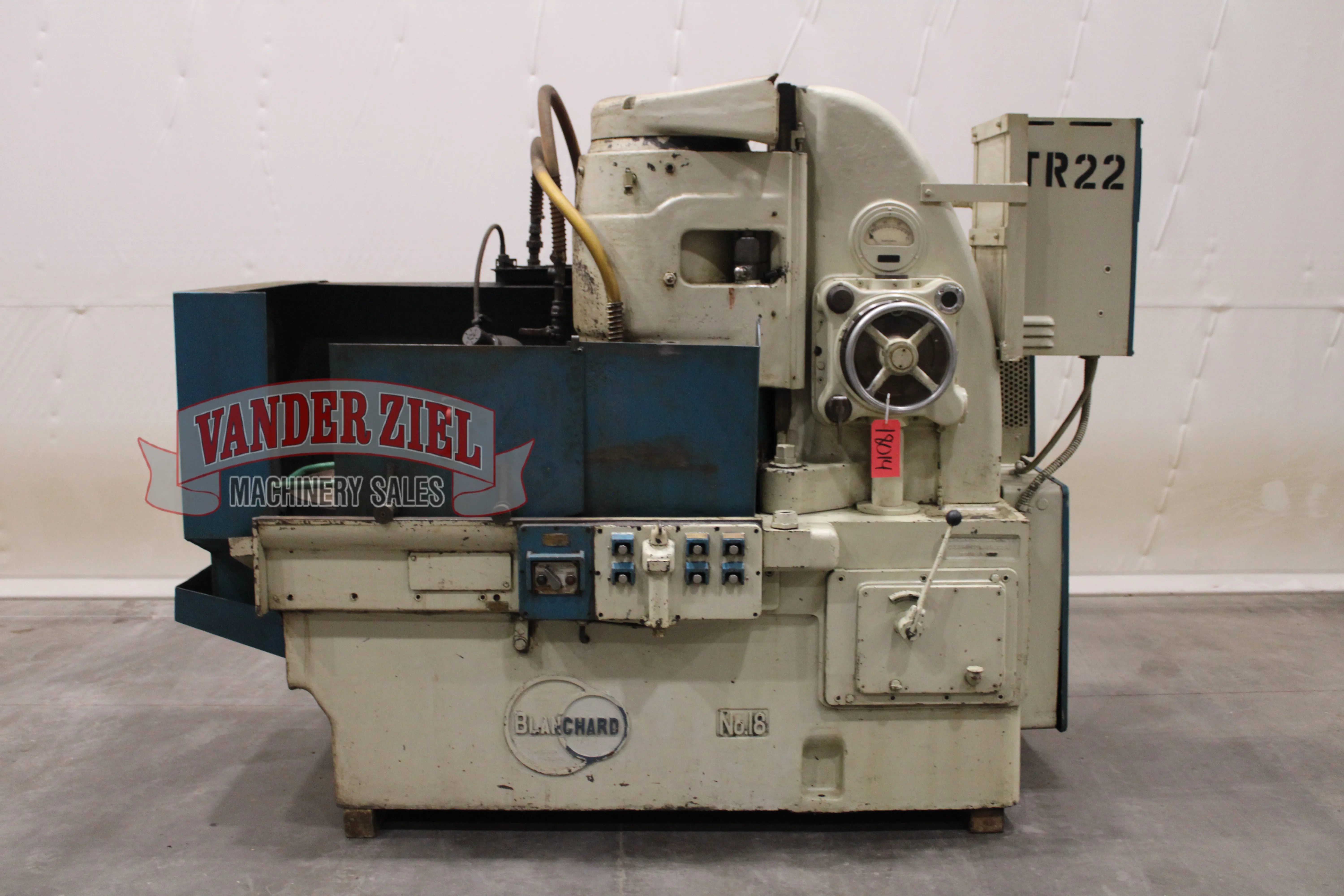

Blanchard #18, Rotary Surface Grinder
