Description

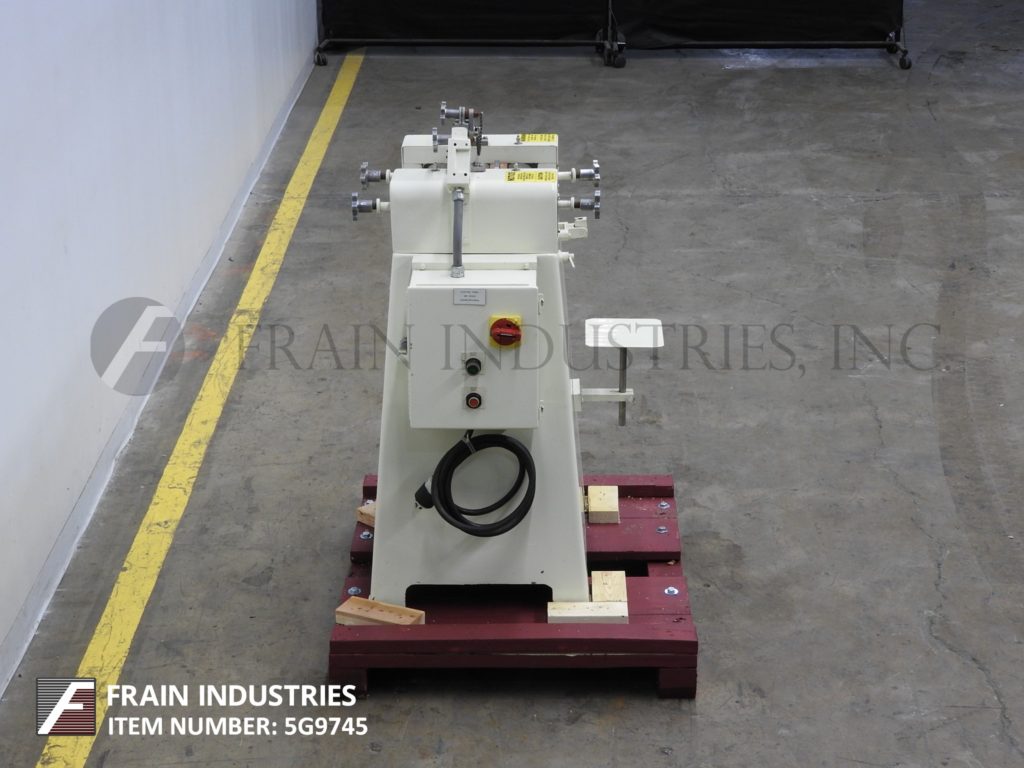

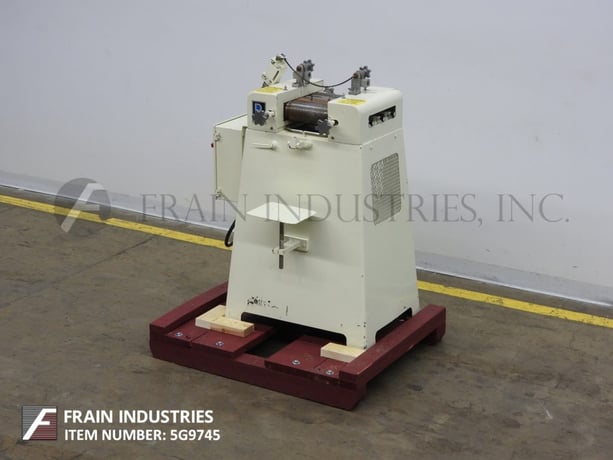

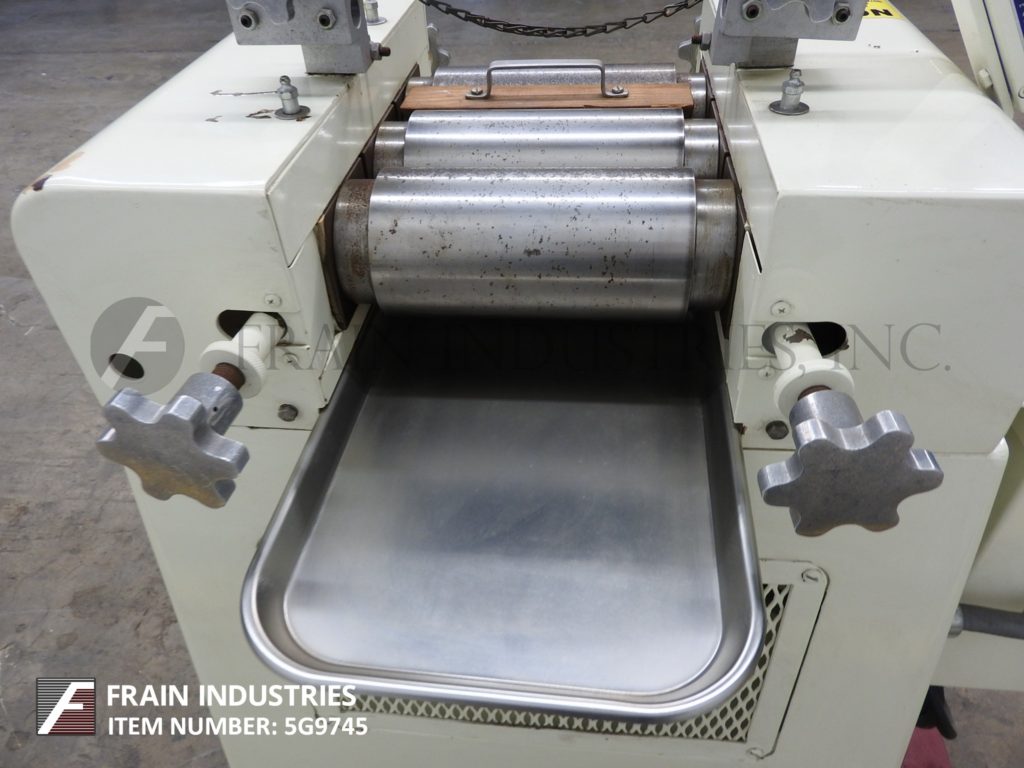

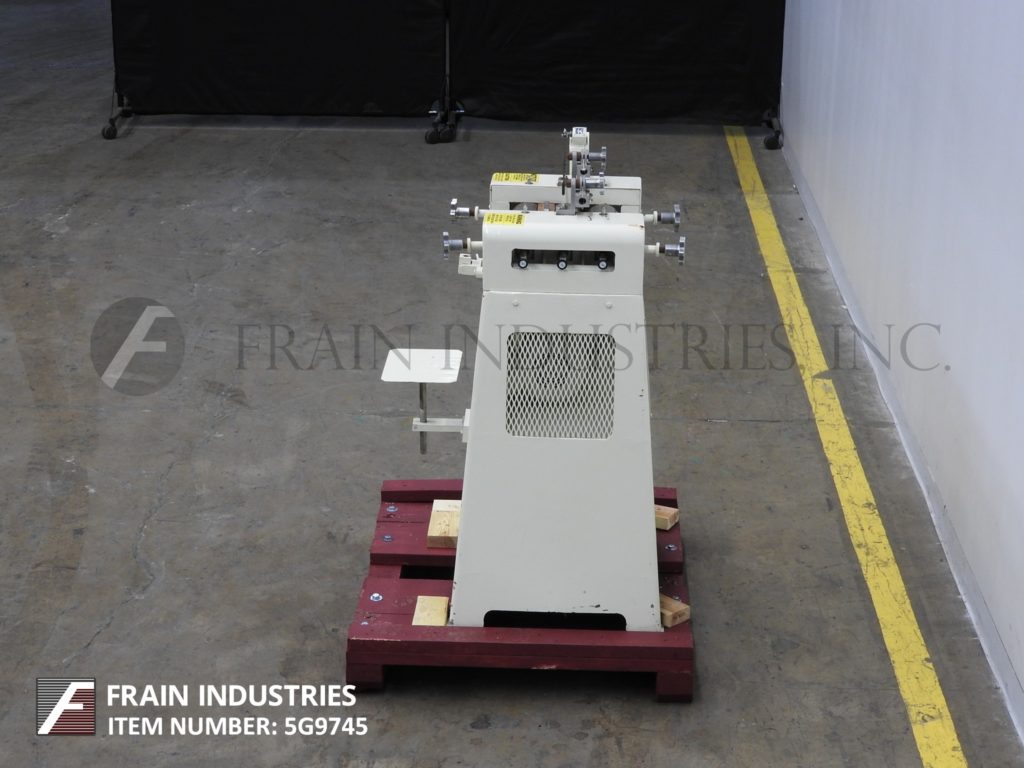

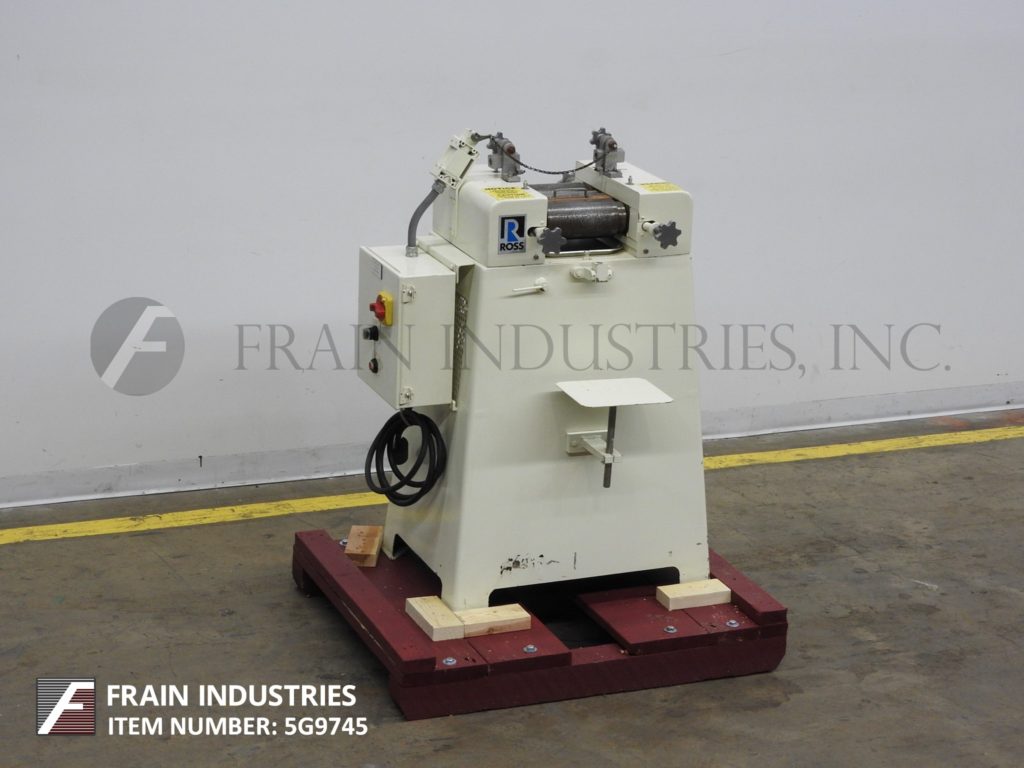

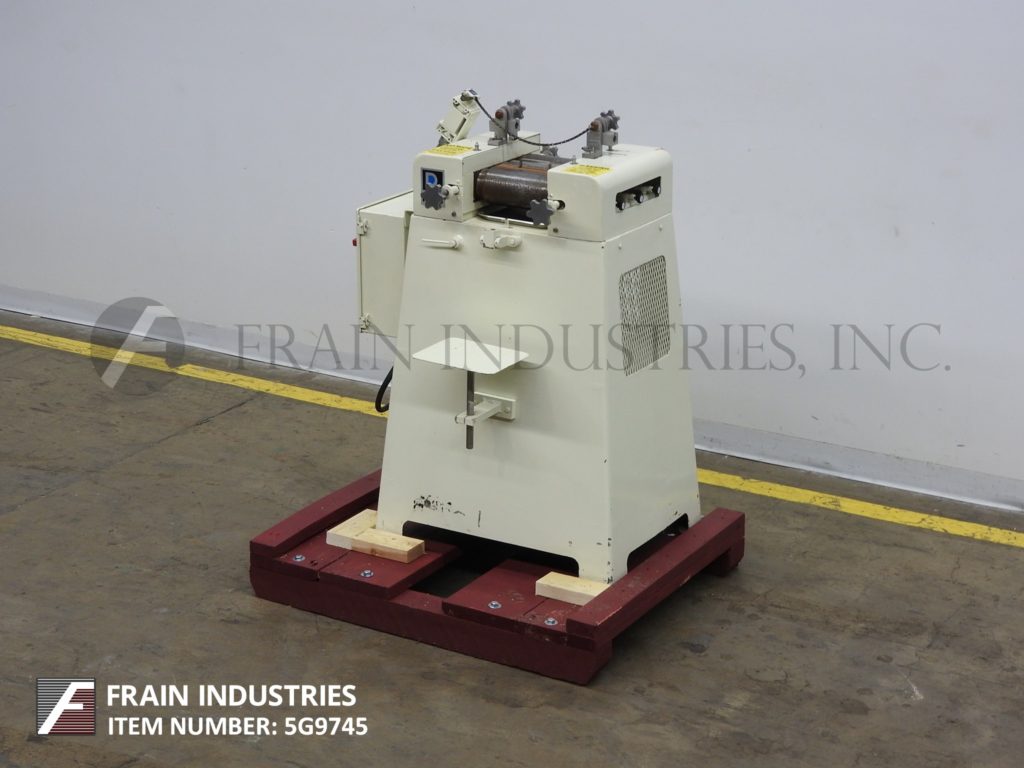

Ross, Model 4 x 8 TRM, 3-Roll mill with volumes of product per hour – depending on materials and application. Equipped with (3) 4" in diameter x 8" long rollers powered by 1 Hp motor drive, with hand crank gap adjustment, scraper blades and 8" long working roll area. All (3) rolls made of hardened steel. Roller cooling with ¼" NPT inlet port for cooling medium and ¾" NPT outlet. Control panel has push button start, stop and e-stop chain. Mounted on heavy duty base frame.
OAD: 40"L x 28"W x 51"H
