For Sale by Aleco Machinery Sales
Description

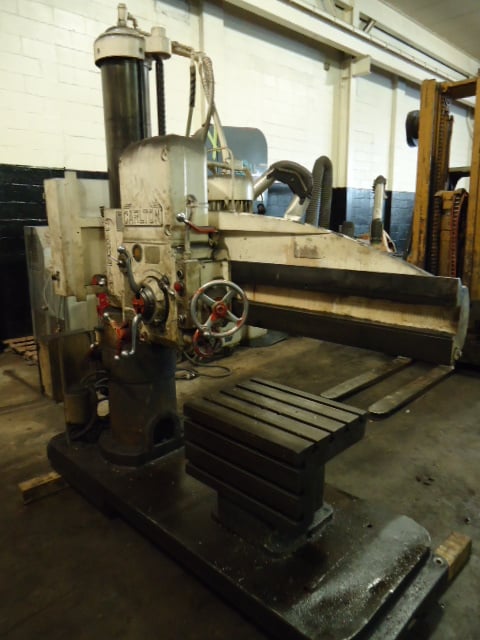

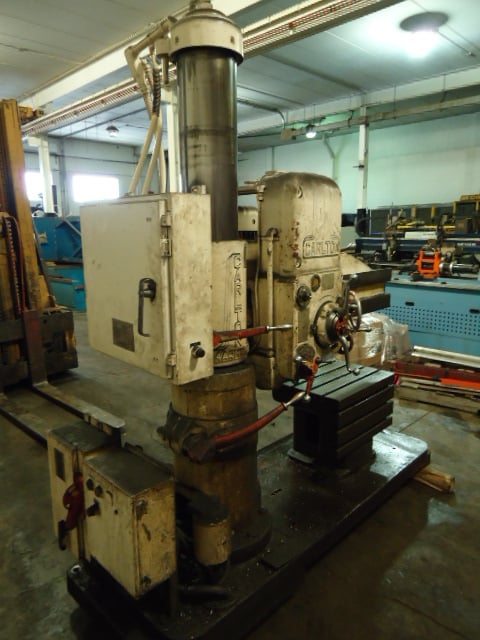

Pre Owned 1979 Carlton 4’ X 9” Radial Arm Drill
Serial Number QA 1253GENERAL SPECIFICATIONSArm Length 4'
Column Diameter 9"
Maximum Spindle Radius 55"
Minimum Spindle Radius 16"
Maximum Spindle Base 53"
Minimum Spindle Base 14"
Working Surface of the Base 30" x 53"
Height of Base 6"
Vertical Travel of Spindle In Head 12"
Bearing of Head on Arm 15"
Bearing of Arm on Column 19"
Maximum Height Over Head 98"
Height Over Column Capacity 91"
Spindle Diameter 2 1/2"
Morse Taper in Spindle No. 4
Traverse of Arm on Column 27"
Traverse of Head on Arm 39"
Drills to Center of Circle 96"
Swing of Arm 67"
Feeds and Tap Leads 6 Changes .004"to.025"
Spindle Speeds 12 Speeds
Approximate Overall Weight 6195 Lbs

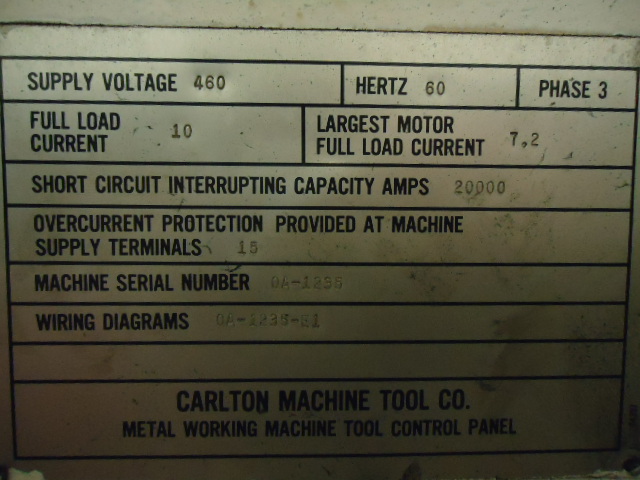

Electrics 460/3/60
Get Your Price from Aleco Machinery Sales!
