Description

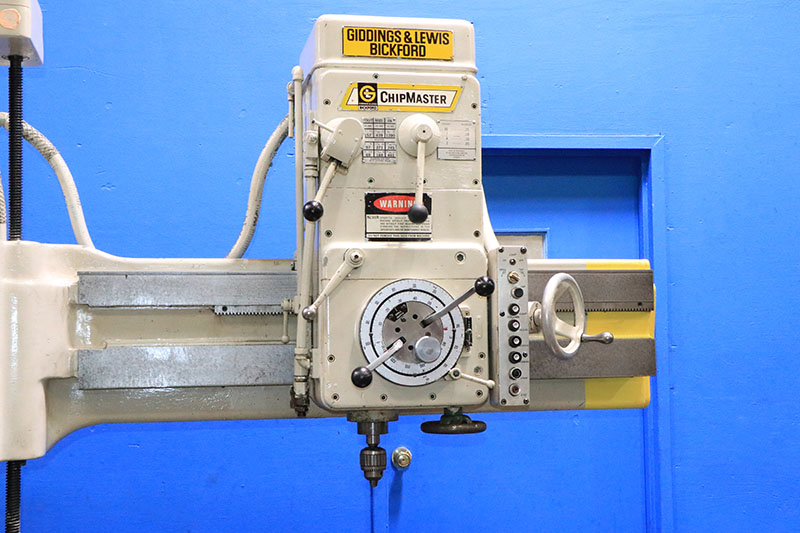

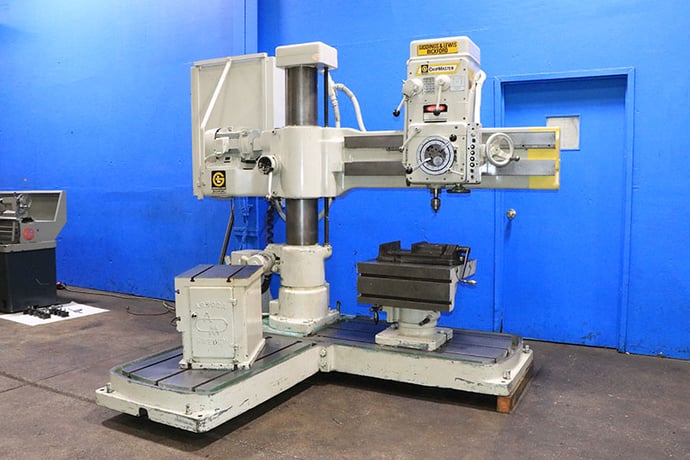

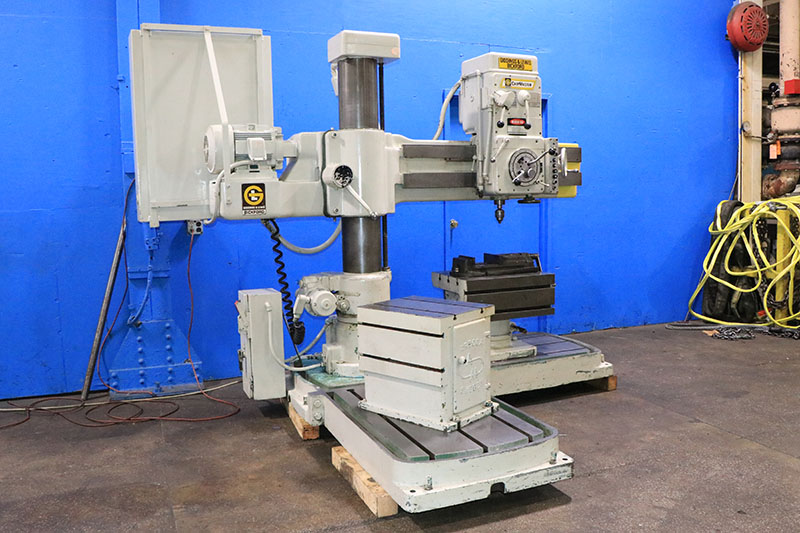

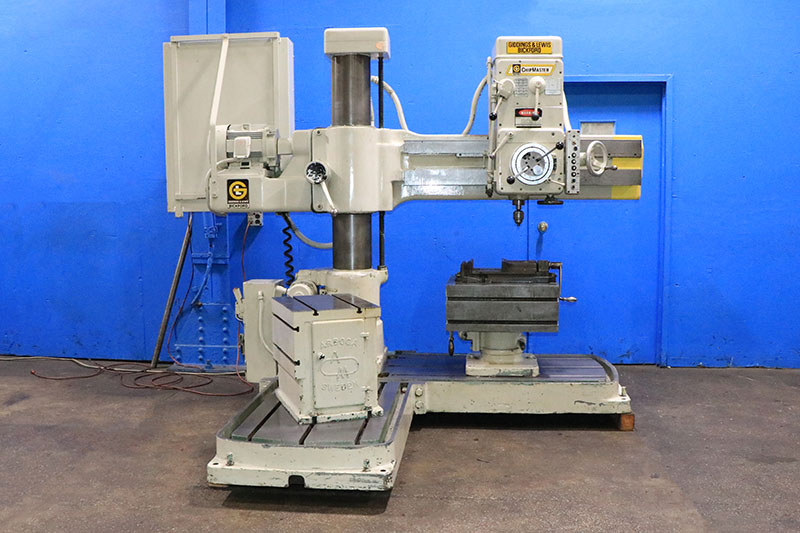

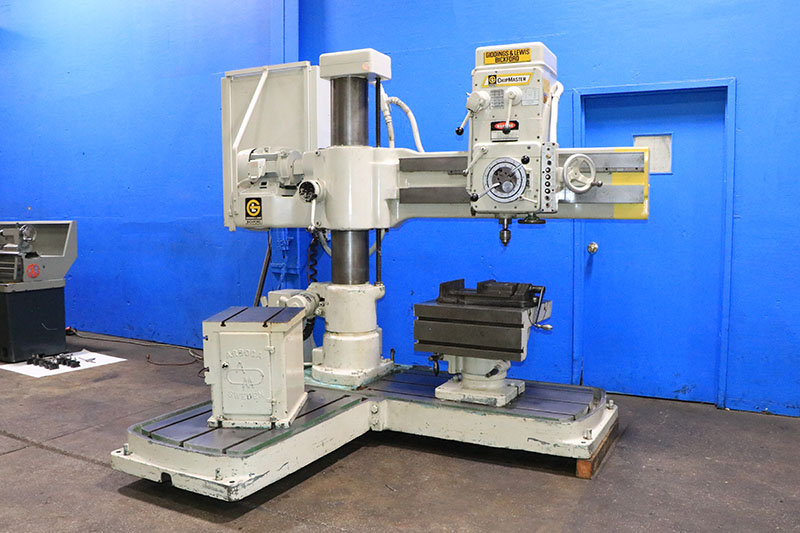

4' X 9" GIDDINGS… LEWIS BICKFORD RADIAL DRILL
WITH ADDITIONAL RIGHT ANGLE BASE
MODEL: CHIPMASTER, S/N: 951-00683-83,… NEW: 1983
SPECIFICATIONS:
MAXIMUM DISTANCE SPINDLE TO COLUMN .. 55"
COLUMN DIAMETER ..................... 9"
FACE OF COLUMN TO CENTER OF SPINDLE . 10-1/2" MIN
VERTICAL TRAVEL OF ARM ON COLUMN .... 28-1/4"
DISTANCE SPINDLE TO BASE MAX/MIN .... 53"/15"
WORKING SURFACE OF BASE .............″0" X 53"
VERTICAL TRAVEL OF SPINDLE IN HEAD .. 10"
TAPER IN SPINDLE .................... #4 MT
SPINDLE FEEDS (4) ................... 2, 4, 7… 10 IPR
SPINDLE SPEEDS-(9) .................. 60 TO 1,200 RPM
DRILLING CAPACITY ................... 1-1/2"
TAPPING CAPACITY ....................″/4"
BORING CAPACITY .....................″-5/8"…
APPROXIMATE WEIGHT .................. 6,000 LBS
EQUIPPED WITH:
* SPINDLE HAS POWER FEED

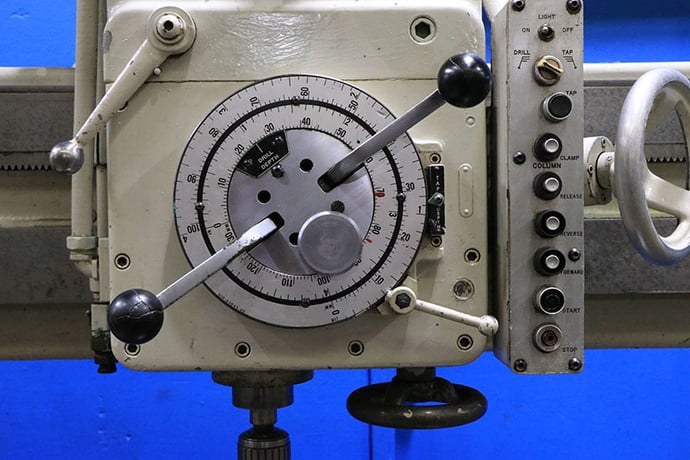

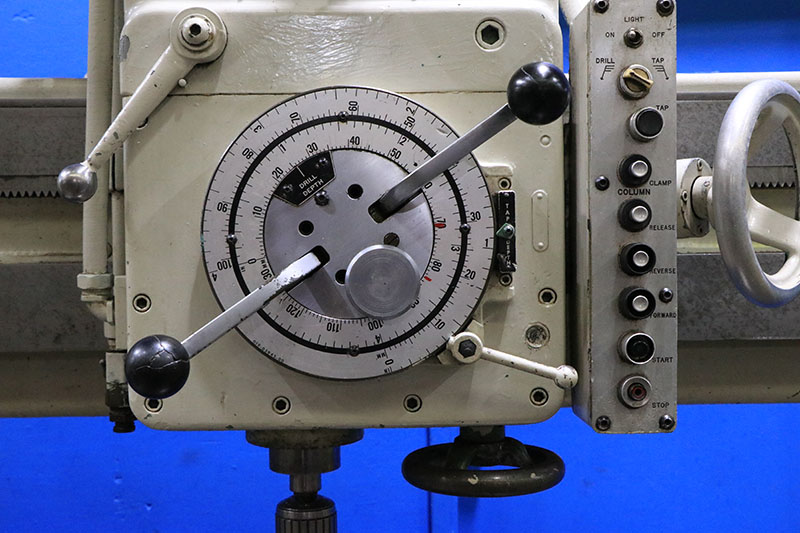

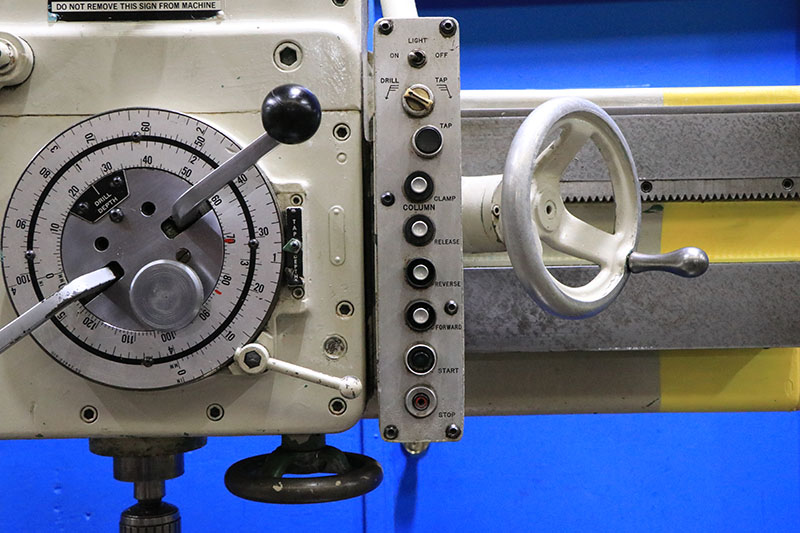

* TAPPING BY SWITCH… PUSH BUTTON
* POWER ELEVATION OF ARM ON COLUMN
* RIGHT ANGLE BASE
* T-SLOTTED BASES
* UNIVERSAL BOX TABLE
* T-SLOTTED BOX TABLE MADE BY…"ARBOGA"
* COOLANT SYSTEM
* 5 HORSEPOWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
