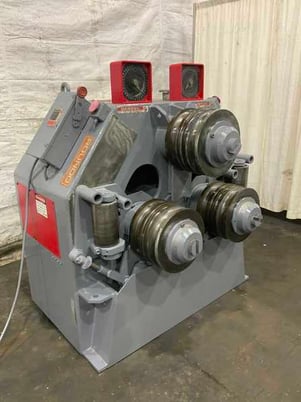

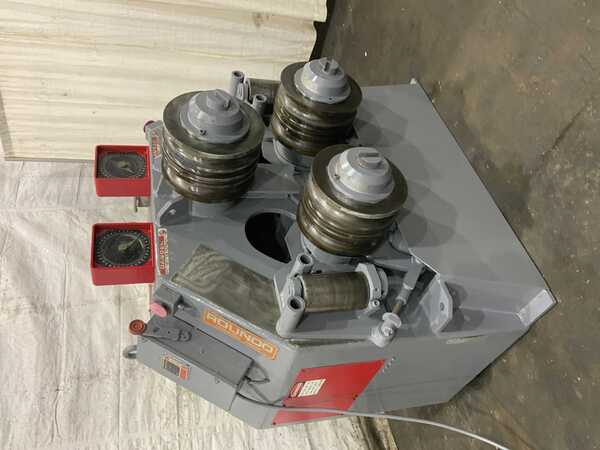

4-1/2" x 4-1/2" x 1/2" Roundo #R-5, hydraulic vertical/horizontal angle roll, guide rolls, 10 HP, 1989

SERIAL ............................. 854600

MODEL............................... #R-5

YEAR NEW ........................... 1989

CAPACITY ANGLE LEG OUT ............. 4-1/2" X 4-1/2" X 1/2"

MINIMUM DIAMETER LEG OUT ........... 50"

CAPACITY ANGLES LEG IN ............. 3-1/2" X 3-1/2" X 1/2"

MINIMUM DIAMETER LEG IN ............ 60"

SMALLEST ANGLE ROLLED .............. 1-1/2" X 1-1/2" X 1/4"

CAPACITY FLAT ON FLAT .............. 8" X 1"

MINIMUM FLAT DIAMETER .............. 36"

CAPACITY SQUARE BAR ................ 2-1/4"

CAPACITY ROUND BAR ................. 2-1/2"

CAPACITY PIPE ...................... 4"

MINIMUM PIPE DIAMETER .............. 48"

DIAMETER OF BENDING ROLLS .......... 14-1/4"

ROLL SPEED (VARIABLE) .............. 0 TO 23 FPM

HYDRAULIC ROLL ADJUSTMENT .......... YES

GUIDE ROLLS ........................ YES

PIPE TOOLING ........................ 3/4",1-1/2,2",2-3/4"& 4"

HORSEPOWER MAIN MOTOR .............. 10
