For Sale by Bud's Machine Tools
Description
Description
MACHINE DIMENSIONS
Overall Bending Length (A) Ft/Inch 14' 1"
Distance Between Sideframes (B) Ft/Inch 12' 4"
Stroke (C) Inch 14.4
Daylight (D) Inch 24.8
Throat Depth (E) Inch 16.1
Table Height (F) Inch 35.4
Table Width (G) Inch 6.1
Overall Height (H) Ft/Inch 10' 7"
Overall Length (L) Ft/Inch 18′ 1"
Overall Width (W) Ft/Inch 6' 3"
Approximate Weight LBS 46,200
Oil Capacity Gallons 66
Man Motor HP 50
Full Load Amps (3 phase) 230/460 V 130/65 A
SPECIFICATIONS
Capacity Length x Tons 14' 1" x 352 ton
Ram Repeatability Inch ± 0.0004
Programmable Ram Tilt Yes
Programmable Ram Approach Speed (maximum) IPM 236
Programmable Ram Working Speed (maximum) IPM 24
Programmable Ram Returm Speed (maximum) IPM 236
Box Forming Universal Wedge Clamp Height Inch 5.9
X Axis Back Gauge Speed IPM 591
X Axis Back Gauge Travel (Front to Back) Inch 25.6
MACHINE STANDARD EQUIPMENT AND OPTIONS

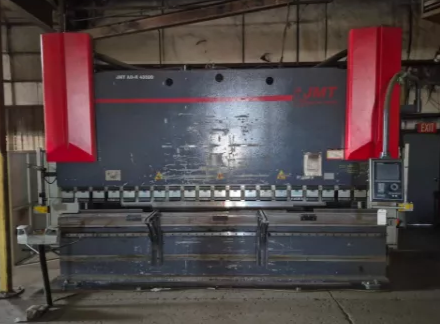

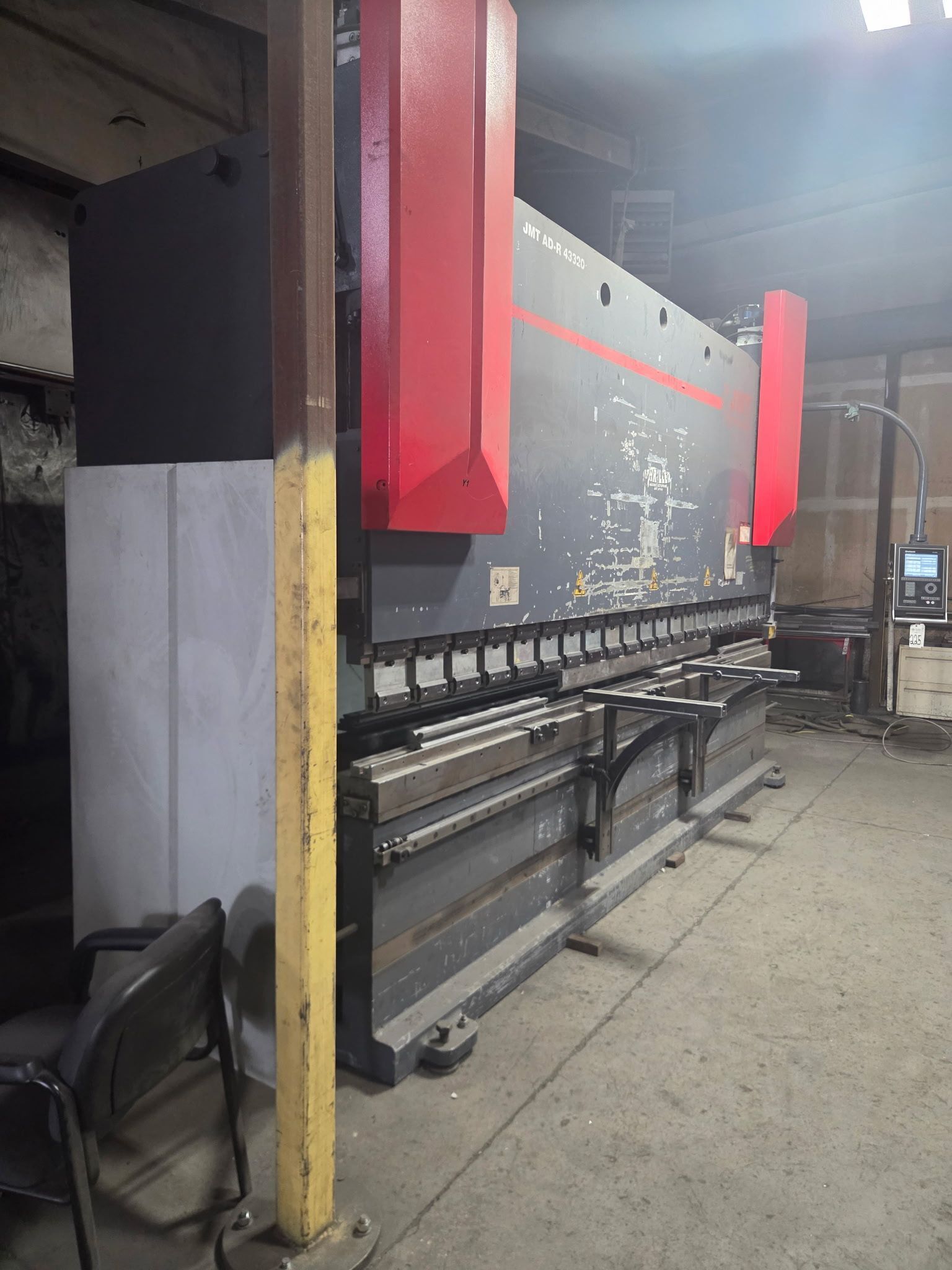

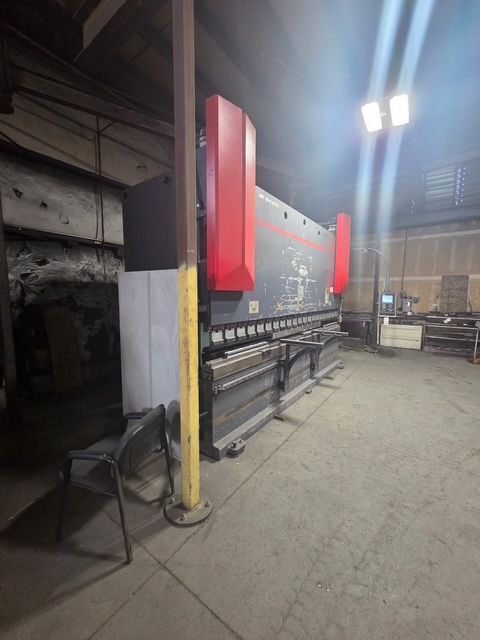

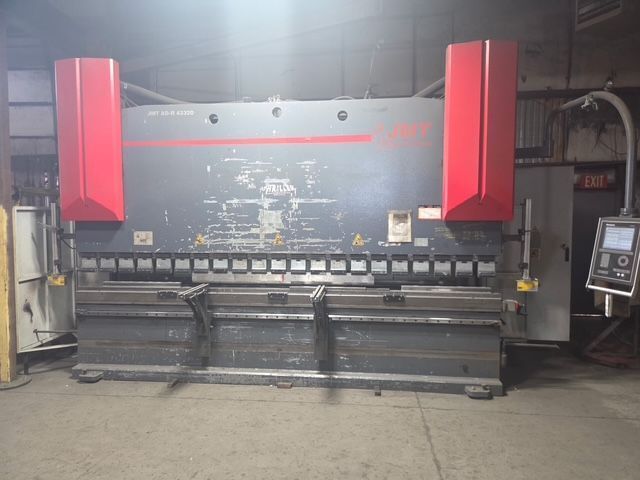

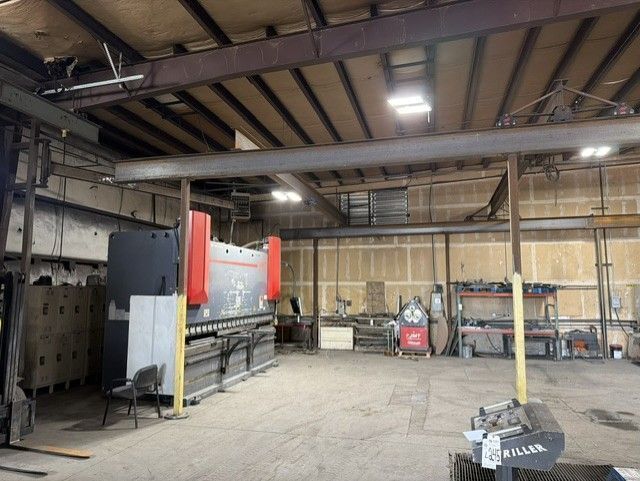

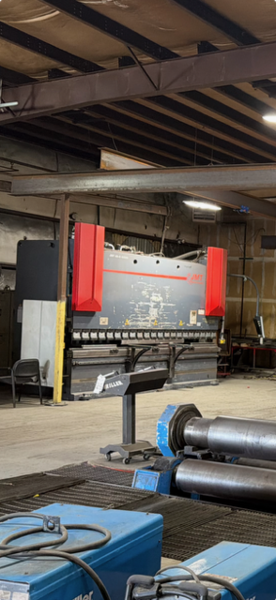

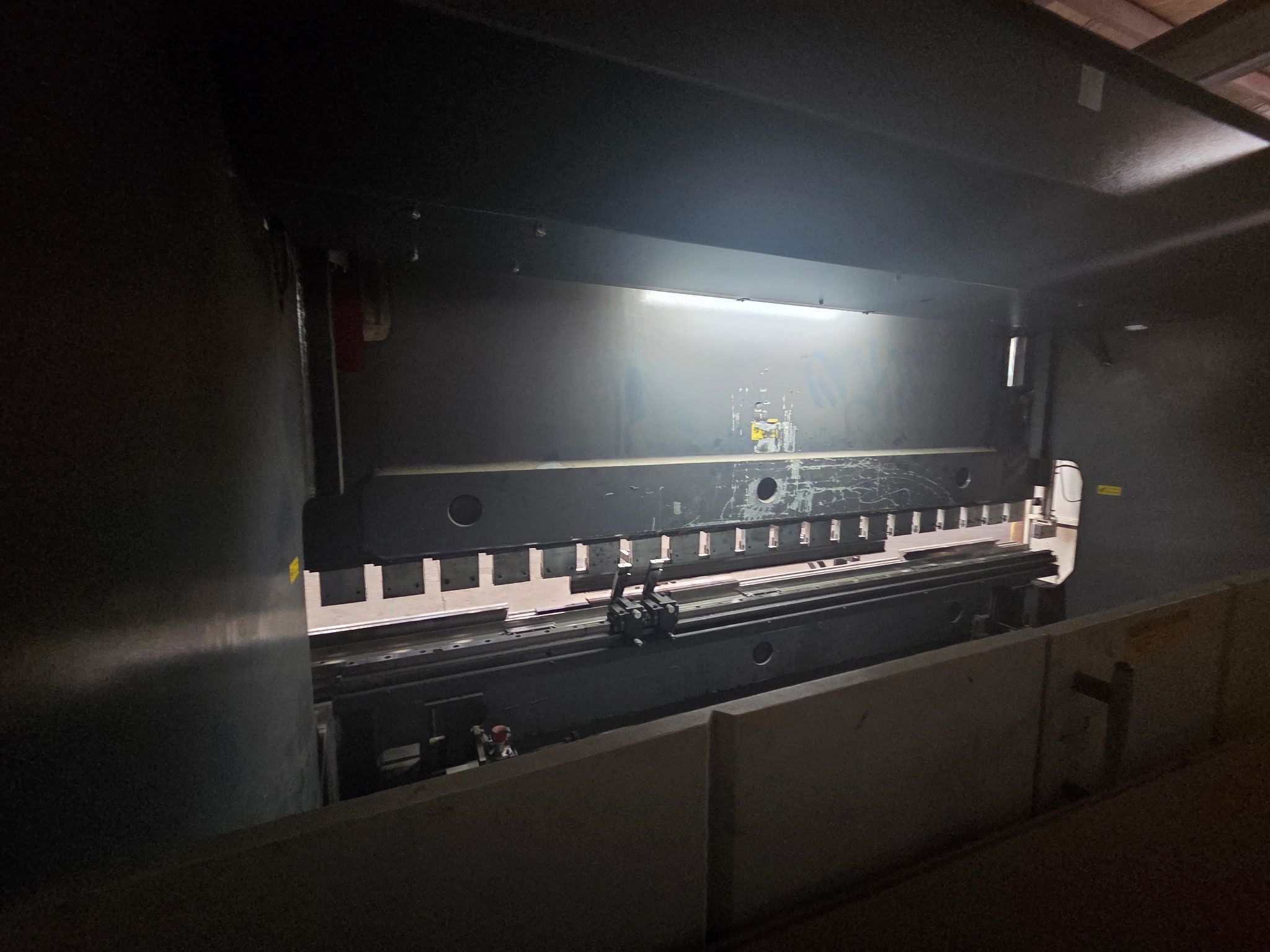

JMT ADR43320 14′ 352 Ton Y1 Y2, X,R Axis Press Brake
Serial: 7359138693
Y1,Y2 Closed Loop Ram Positioning Included
Delem DA56 2D Graphic Control w/Product Design Included

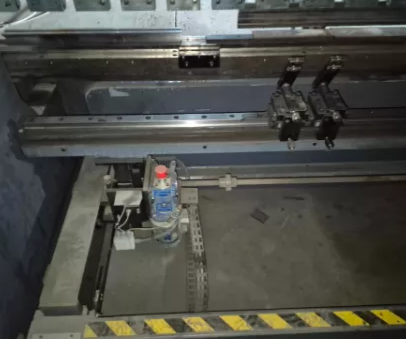

CNC Controlled X,R Axis Back Gauge Included
Euro/American Style Punch Clamp Included
Rear Work Light Included
Sliding Front Sheet Supports with Linear Rail Included
Dual Palm/Foot Station w/Selector Switch Included

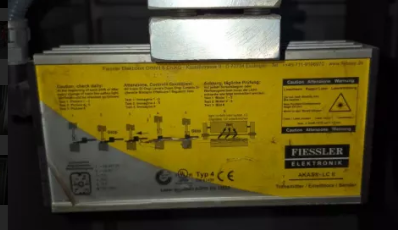

Fiessler Safety Laser Included
Manual Crowning Included
Setup-Calibration-Training
Setup & Training POR
Tooling & Tool Clamping
JMT Universal Die Rail - Holds both AM or Euro Tooling POR
JMT AM Punch Full Length Upper Tool Flame Hardened H =3 3/4" , 85 degree, R 0.8 POR
JMT 4-Way Percision Ground Flame Hardened Die (5/8",7/8",1 3/8", 2") POR
Wila NSCLll Hydraulic Punch Clamping - PREMIUM POR
Wila NSCLl Hydraulic Punch Clamping - PRO POR
Wila Hydraulic Die Clamping - OB-I-HC/ES IV BOTTOM HYDRAULIC CLAMPING POR
Wila Power Pack (required for clamping) POR
Specifications
| Tonnage | 352 T | 319.329 t |
| Overall Length | 168" | 4.3 m |
| Between Housings | 146" | 3.7 m |
MACHINE DIMENSIONS
Overall Bending Length (A) Ft/Inch 14' 1"
Distance Between Sideframes (B) Ft/Inch 12' 4"
Stroke (C) Inch 14.4
Daylight (D) Inch 24.8
Throat Depth (E) Inch 16.1
Table Height (F) Inch 35.4
Table Width (G) Inch 6.1
Overall Height (H) Ft/Inch 10' 7"
Overall Length (L) Ft/Inch 18′ 1"
Overall Width (W) Ft/Inch 6' 3"
Approximate Weight LBS 46,200
Oil Capacity Gallons 66
Man Motor HP 50
Full Load Amps (3 phase) 230/460 V 130/65 A
SPECIFICATIONS
Capacity Length x Tons 14' 1" x 352 ton
Ram Repeatability Inch ± 0.0004
Programmable Ram Tilt Yes
Programmable Ram Approach Speed (maximum) IPM 236
Programmable Ram Working Speed (maximum) IPM 24
Programmable Ram Returm Speed (maximum) IPM 236
Box Forming Universal Wedge Clamp Height Inch 5.9
X Axis Back Gauge Speed IPM 591
X Axis Back Gauge Travel (Front to Back) Inch 25.6
MACHINE STANDARD EQUIPMENT AND OPTIONS
JMT ADR43320 14′ 352 Ton Y1 Y2, X,R Axis Press Brake
Serial: 7359138693
Y1,Y2 Closed Loop Ram Positioning Included
Delem DA56 2D Graphic Control w/Product Design Included
CNC Controlled X,R Axis Back Gauge Included
Euro/American Style Punch Clamp Included
Rear Work Light Included
Sliding Front Sheet Supports with Linear Rail Included
Dual Palm/Foot Station w/Selector Switch Included
Fiessler Safety Laser Included
Manual Crowning Included
Setup-Calibration-Training
Setup & Training POR
Tooling & Tool Clamping
JMT Universal Die Rail - Holds both AM or Euro Tooling POR
JMT AM Punch Full Length Upper Tool Flame Hardened H =3 3/4" , 85 degree, R 0.8 POR
JMT 4-Way Percision Ground Flame Hardened Die (5/8",7/8",1 3/8", 2") POR
Wila NSCLll Hydraulic Punch Clamping - PREMIUM POR
Wila NSCLl Hydraulic Punch Clamping - PRO POR
Wila Hydraulic Die Clamping - OB-I-HC/ES IV BOTTOM HYDRAULIC CLAMPING POR
Wila Power Pack (required for clamping) POR
