For Sale by Aleco Machinery Sales
Description

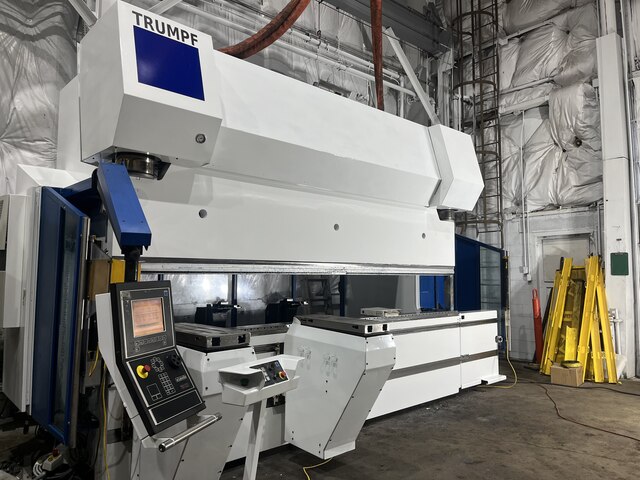

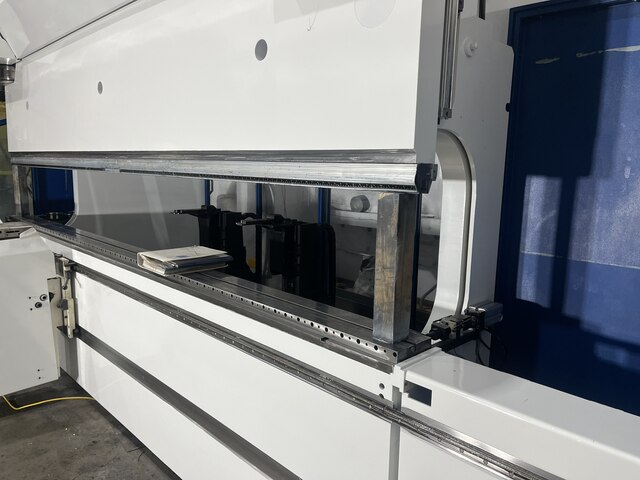

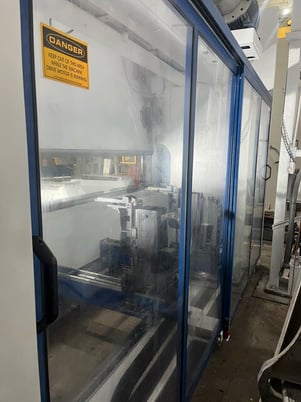

Pre Owned 2006 Trumpf Trumabend V320 CNC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Capacity 352 US Tons
Overall Length of Bed and Ram 174”
Distance Between Housings 145”
Stroke 14”
Max Open Height 25”
Effective Open Height 21”
Ram Inclination +/- 0.4”
Throat Clearance 16”
Speeds
Approach 354” Per Minute
Form 2-24” Per Minute
Return 320” Per Minute
Distance Floor to Top of Bed 41”
Width at Top of Bed 8”
Operating Height 41”
Oil Capacity 133 US Gallons
Main Motor Horsepower 50 230/460/3/60
CONTROL FEATURES

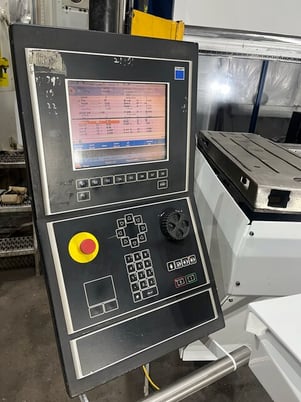

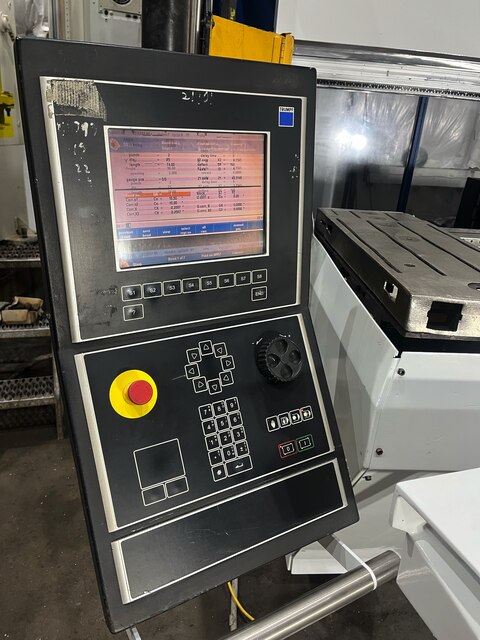

Trumpf Delem DA-69TW Multi-Axis Control (Y1,Y2,X , R, I )
Off Line Capable
Programmable Forming Speeds
Programmable Ram Opening
Programmable Reversal
Programmable Tonnage Displayed Through CRT
Control Diagnostics
Graphic Programming

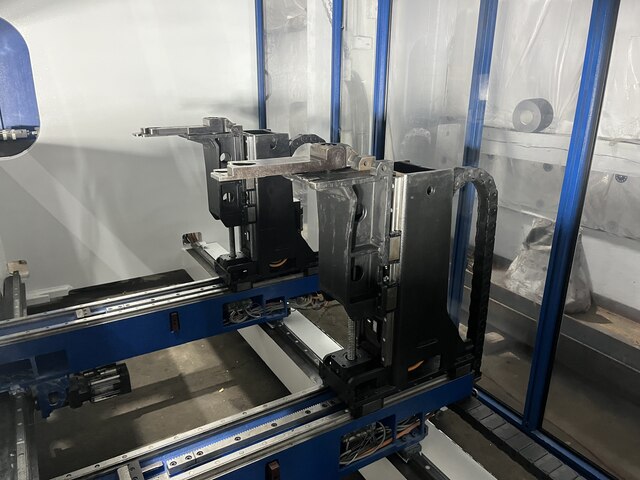

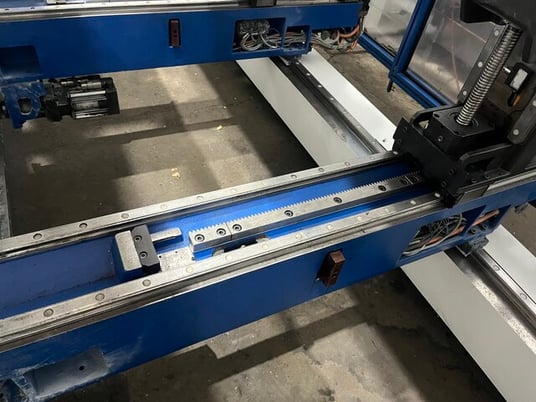

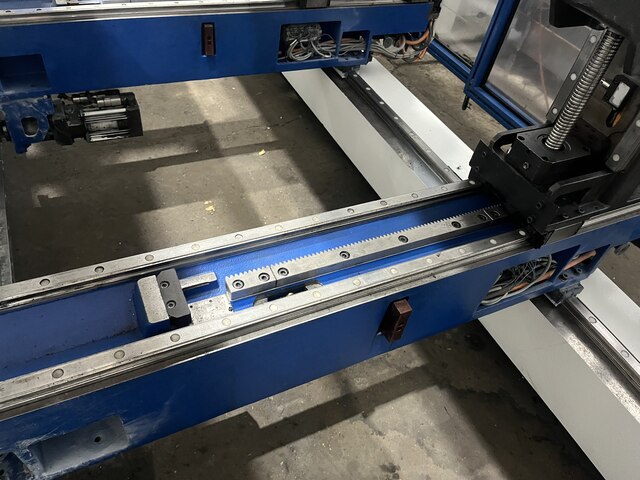

BACK GAGE FEATURES
Trumpf 6 Axis Heavy Duty Backgauge
X-Axis X1, X2
Max Distance 34.6”
Travel 19.6”
Max Speed 13” Per Min
R-Axis R1, R2
Travel 13.3”
Max Speed 3.9”
2 Back Gage Finger Supports
Z-Axis, Z1, Z2,
EQUIPPED WITH
Automatic Crowning
I-Axis Die Shift

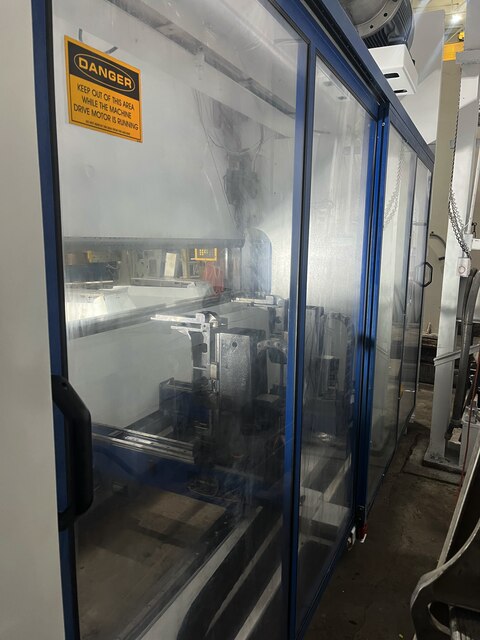

ISB Merlin Light Curtains
Ram Inclination in Y1 –Y2
Upper & Lower Hydraulic Tool Clamping
Self-Active Crowning
Self Centering Tooling Adaptor
Precision Ram Leveling with Dual Linear Glass Scale Encoders

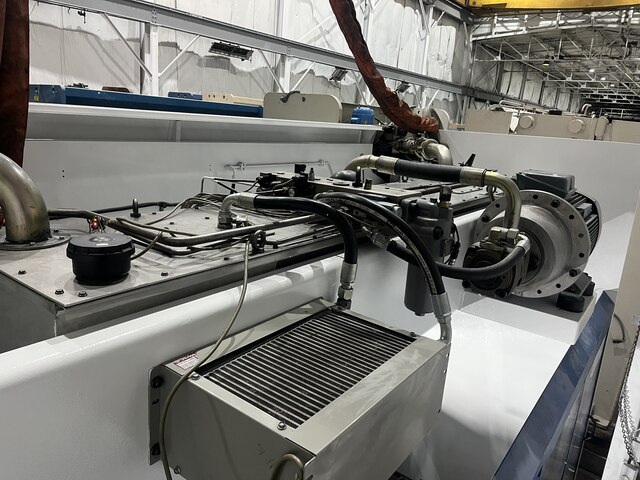

Oil Cooler
Electric Foot Switch
Approximate Overall Weight 53900 lbs.
Approximate Overall Dimensions 212” L X 109”W X 126” H
Get Your Price from Aleco Machinery Sales!
