Manufacturer: Doall
Model: 3613-20
Year: 1984
Max Throat or Width: 35.50
Max Height / Under Guide: 13.00
Stock # Q10634
1 / 7
Click to zoom in
1 / 7
For Sale by Great American Eqpt Co
Surplus Record Dealer Since 1991
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 513...> Show Phone Number 513-771-2111
Let the seller know you found their listing on Surplus Record!
Description

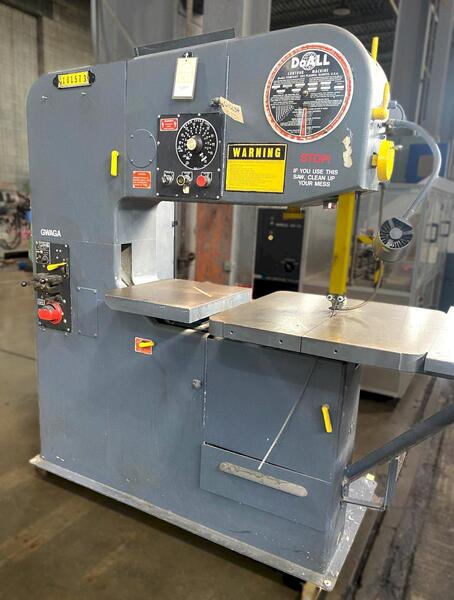

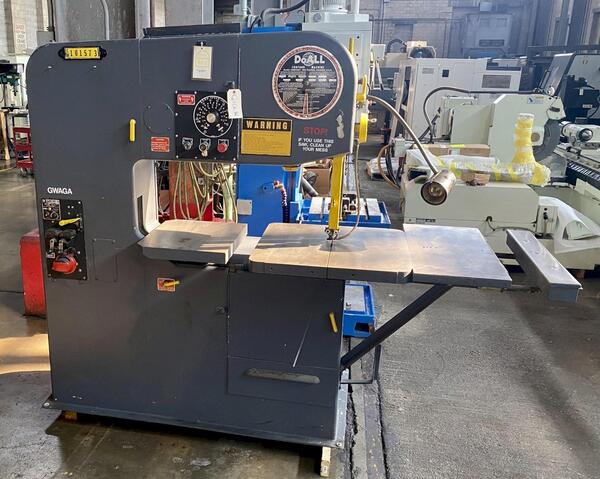

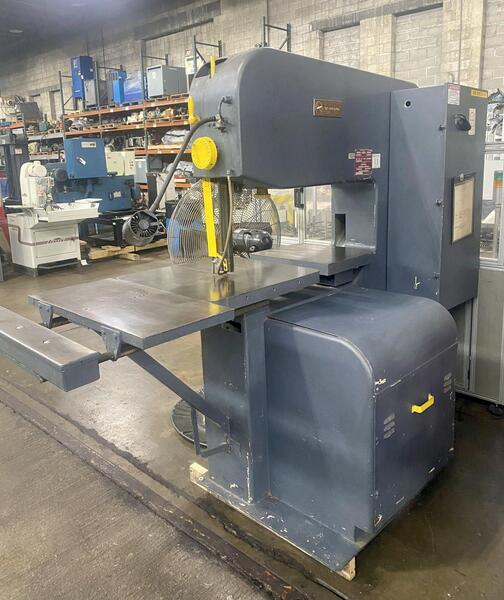

36" DOALL VERTICAL BAND SAW

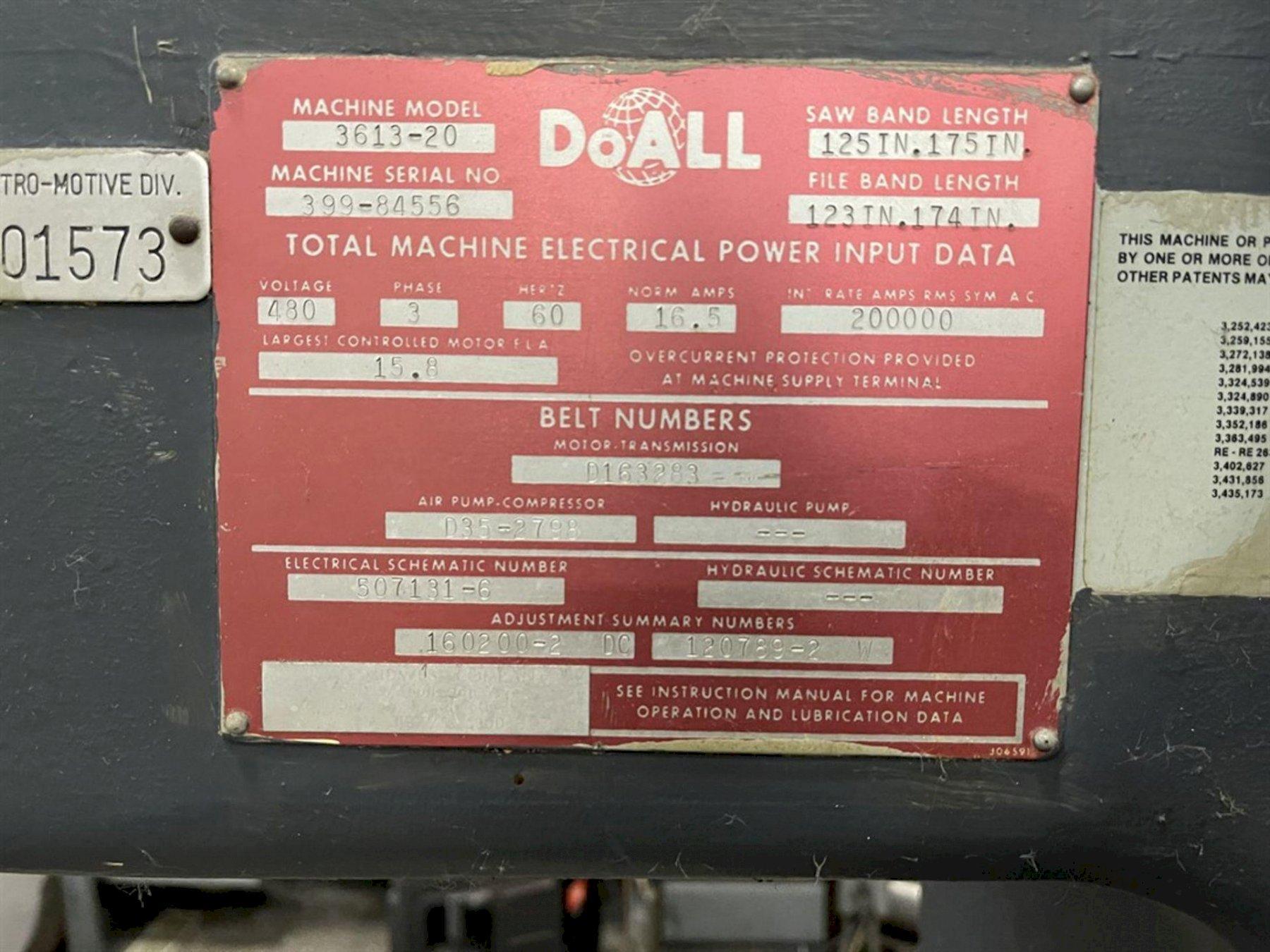

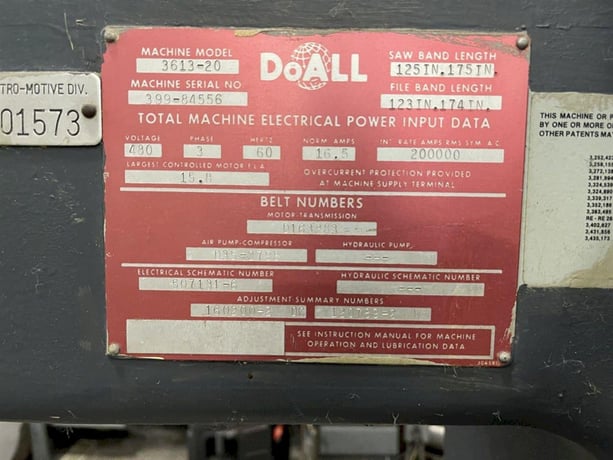

Model 3613-20, S/N 399-84556, New 1984
Stock# Q10634
Model 3613-20, S/N 399-84556, New 1984
Stock# Q10634
EQUIPPED WITH:

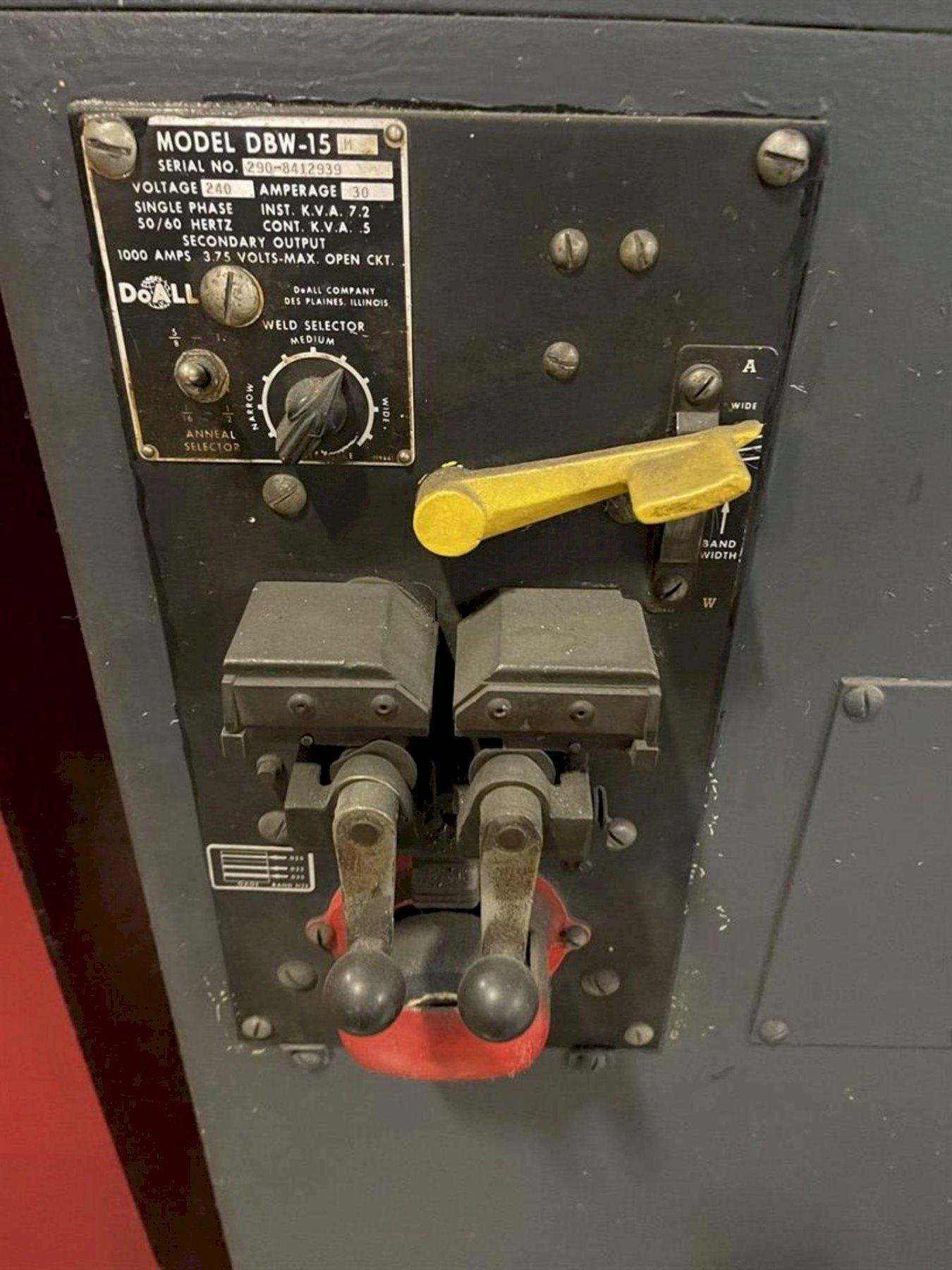

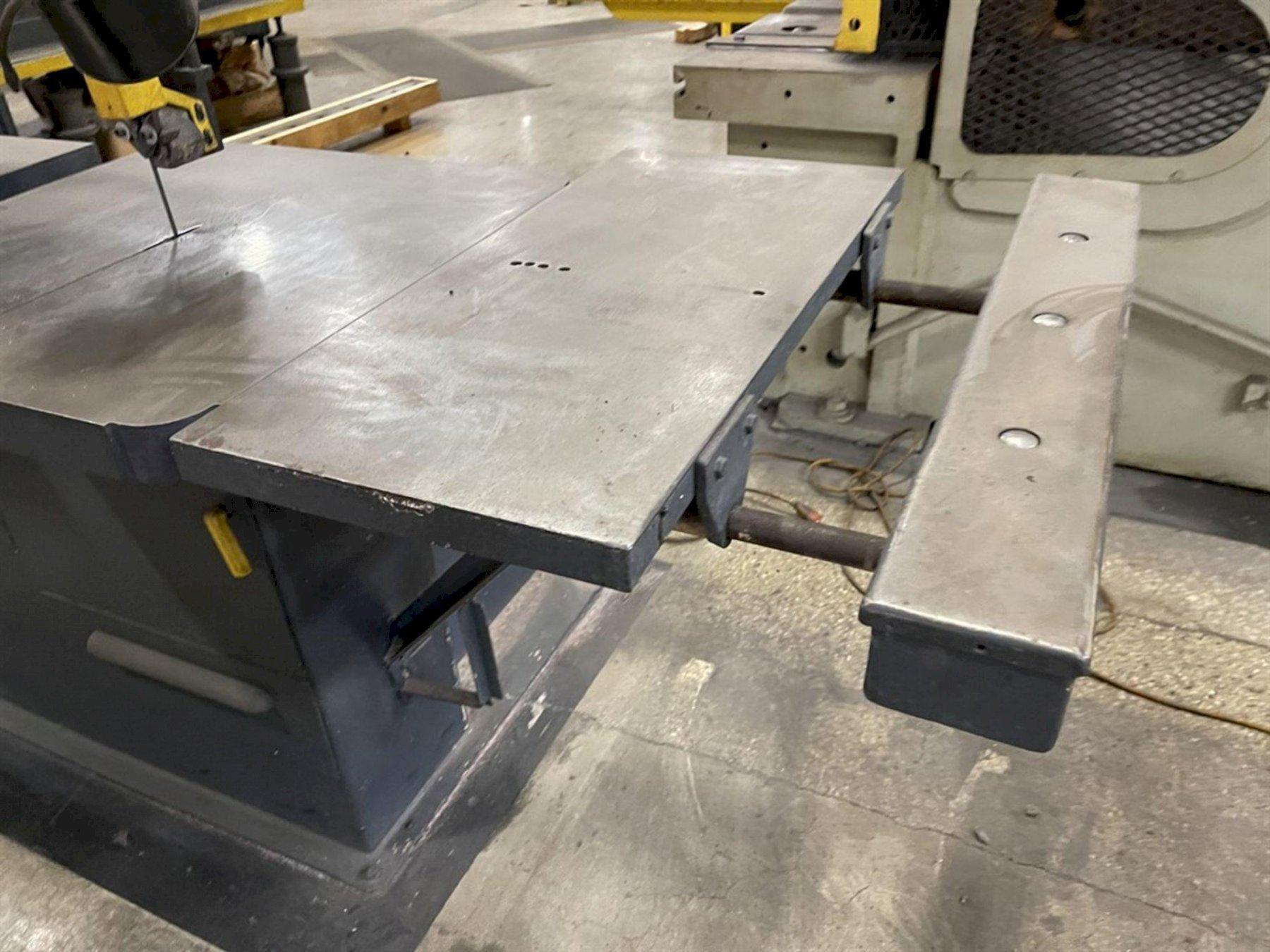

30" x 30" 2-Way Tilting Table, DoALL DBW-15 Blade Welder & Shear, Cast Iron Blade Wheels, Infinitely Variable Speed Control, Work Light.
CATALOG SPECIFICATIONS:
| Throat Depth | 35-1/2" |
| Max Work Height Capacity | 13" |
| Worktable Dimensions (Overall) WxL | 30" x 30" |
| Worktable Tilt (L/R) | 10°/45° |
| Blade Length | 125" |
| Blade Width | 1/16 - 1" |

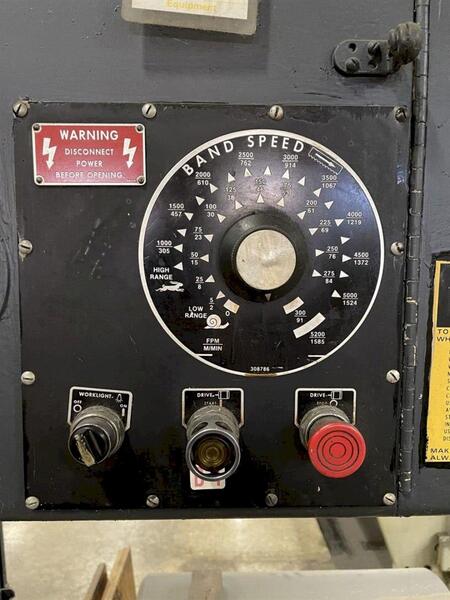

| Blade Speeds, Infinitely Variable | 5 - 300 FPM (Low) 850 - 5200 FPM (High) |
| Motor Horsepower | 3 HP |
| Electrics | 460/3/60 |
| Approximate Machine Dimensions | 76" x 39" |
| Approximate Machine Height | 79" |
| Approximate Machine Weight | 2,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition.
Get Your Price from Great American Eqpt Co!
Buyers Who Viewed This Listing Also Viewed:
36" x 13" Doall #3613-20, Vertical Bandsaw, 1/16"-1" x 125" band, 5-5200 FPM, 3 HP, blade welder & grinder
Category: Vertical Band Saws
Seller: Wheeler Machinery Sales
Location: Pomona, CA
Mfr: Doall
Model: 3613-20
DoAll 3613-20 Vertical Bandsaw 36" #5931 #1, Throat, Band To Column: 35-1/2, Maximum Work Height: 13, Band Width: 1/16 to 1, Band Speed, Variable: 5 300 FPM (Low) / 850 5200 FPM (High), Work Table Size: 26 x 26 Tilting Table, Saw Band Length: 125 (2-Wheel Drive) / 175(3-Wheel Drive), Main Motor HP: 3, Electrical: ...more
36" x 13" DoAll #3613-20, vertical band saw, 26" x 26" table area, tilt table, blade welder, 3 HP, 1982
Category: Vertical Band Saws
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Doall
Model: 3613-20
Year: 1982
SERIAL. 399-82452, MODEL. 3613-20, YEAR NEW. 1982, DEPTH OF THROAT. 36", MAXIMUM UNDER GUIDE. 13", BLADE SPEEDS, VARIABLE. 0 TO 5200 FPM, AREA OF TABLE. 26" X 26", TABLE TILTS RIGHT. 45 DEGREE, TABLE TILTS LEFT. 10 DEGREE, TABLE LOAD CAPACITY. 500#, WIDTH OF BLADE. 1/16" TO 1", BLADE LENGTH (36" THROAT). 175", BLADE ...more
DoAll #3613-20, vertical band saw, 36" throat, cnc, 480 V., tilt table, 26" x33" table, blade welder, 1981
Category: Vertical Band Saws
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Doall
Model: 3613-20
Year: 1981
Throat 36 inches Work Height 42 inches CNC Control yes Dimensions 90" X 56" X 80" Main Motor 480V, 1 PH TABLE SIZE 26" X 33" BLADE LENGTH 125-175, * BLADE WELDER, * TILT TABLE, NOTES:, SUBJECT TO VERIFICATION, DELIVERY:, IMMEDIATE, SUBJECT TO PRIOR SALE.
JUST ADDED!

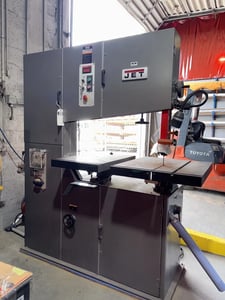

36" x 12" Jet #VBS-3612, vertical band saw, 23-5/8" x 27-1/2" table, 45° right tilt, 3 HP, 230/460 V., 3 Phase, 2022
