Description

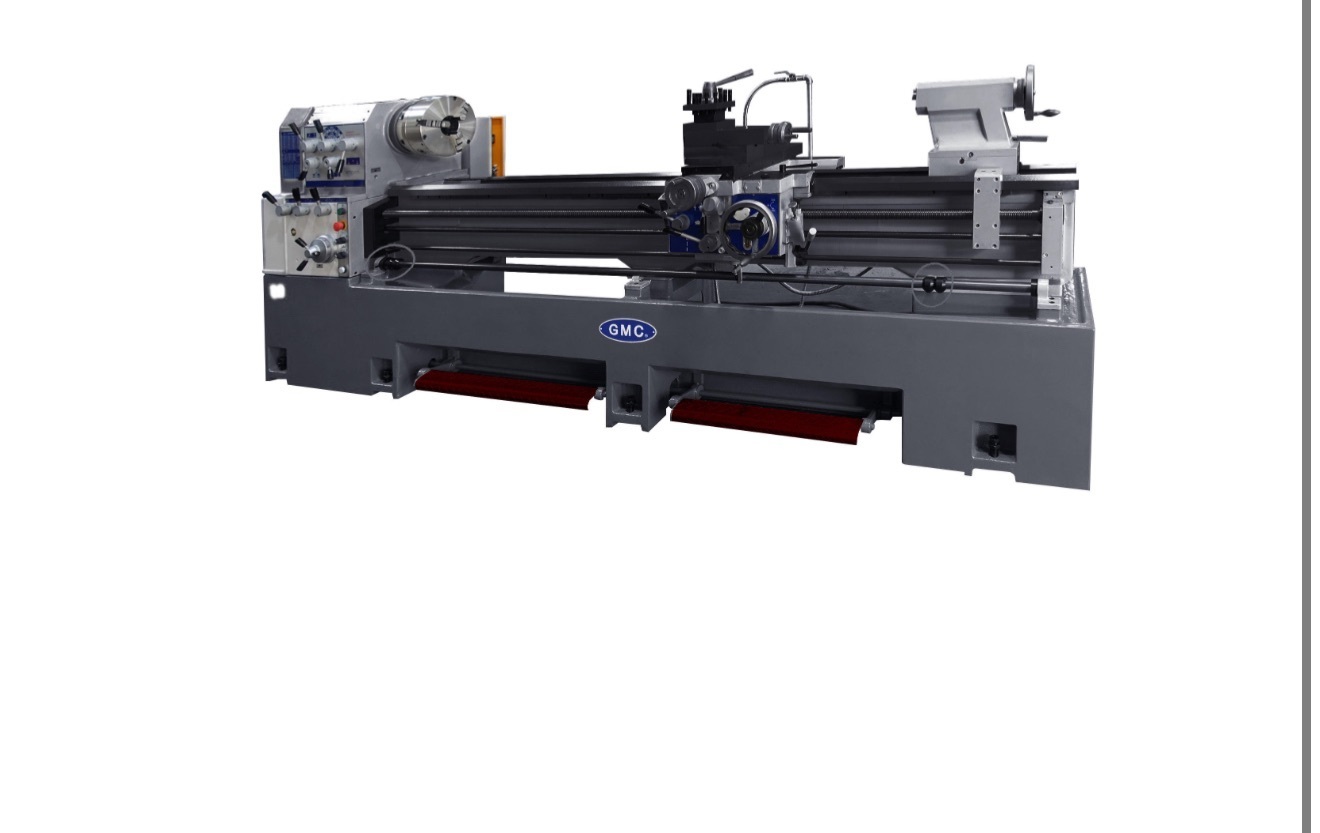

Specifications GML-3380T #7725 Max. swing over bed 33 Max. length of workpiece 80 Max. swing over cross slide 24 Max. Swing in gap 42 Width of Bed 15-3/4 Effective length in gap to spindle 9 Effective length in gap to chuck jaws 4-1/2 Spindle bore 4-3/4 (120mm), D1-11 Taper of spindle center MT# 7/MT5 with reducing sleeve Spindle speeds 10-1,000 rpm / 12 steps Longitudinal feeds 0.002-0.032 IPR, 35kinds Cross feeds 0.001-0.0094IPR, 35kinds Inch threads 2-56 TPI, 44kinds Metric threads 0.5-14mm , 24 kinds Max. travel of top slide 8 Max. travel of cross slide 13-1/2 Leadscrew length X TPI 1-1/2 x 4 TPI Diameter of tailstock quill 3-1/2 Max. travel of tailstock quill 7-1/2 Taper of tailstock quill center M.T. # 5 Main motor Amperage draw 15HP, 220V or 440V, 3 phase 55Amp on 220V / 30Amp on 440V Rapid traverse motor 1HP, 220V or 440V, 3 phase Coolant pump motor 1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid Machine Oil #30 weight machine oil, 8 Gallons Machine weight, approx. LBS 8,060 LBS Overall dimensions, LxWxH, inch Shipping dimensions, LxWxH, inch 137x50x76 142x44x79 Machine Standard Features and Equipment: Made in Taiwan Meehanite casting high performance cast iron ISO 9001 certified Large spindle bore 4-3/4 (120mm) Heavy Duty spindle D1-11 Heavy Duty main motor 15HP 2-speed tailstock 16 spindle speeds from 25-1,600 rpm, 16 speeds 54 kinds of inch threads, and 54 kinds of metric threads Threading and feeding rate change without changing gears Spindle is balanced, hardened and precision ground Spindle is supported at 3-point by high precision bearings All gears and shafts are hardened and precision ground Guideways induction hardened and precision ground Automatic lubrication system in headstock and feed box One year industrial warranty for parts Standard Equipment (free) for # GML-3380T & GML-33120T & GML-33160T: Free CARMAR DRO, installed Rapid traverse on carriage on Longitudinal way Automatic kick-out longitudinal carriage stop system 2-speed tailstock 12 3-jaw chuck with top reversible jaws, direct mount 20 Face plate 12 steady rest with roller jaws 5 follow rest with roller jaws Removeable gap 4-way tools post Foot brake Halogen Work light and coolant system Splash guard on carriage Dead center Thread chasing dial Reducing sleeve MT7/MT5 for spindle Tool box and leveling pads
